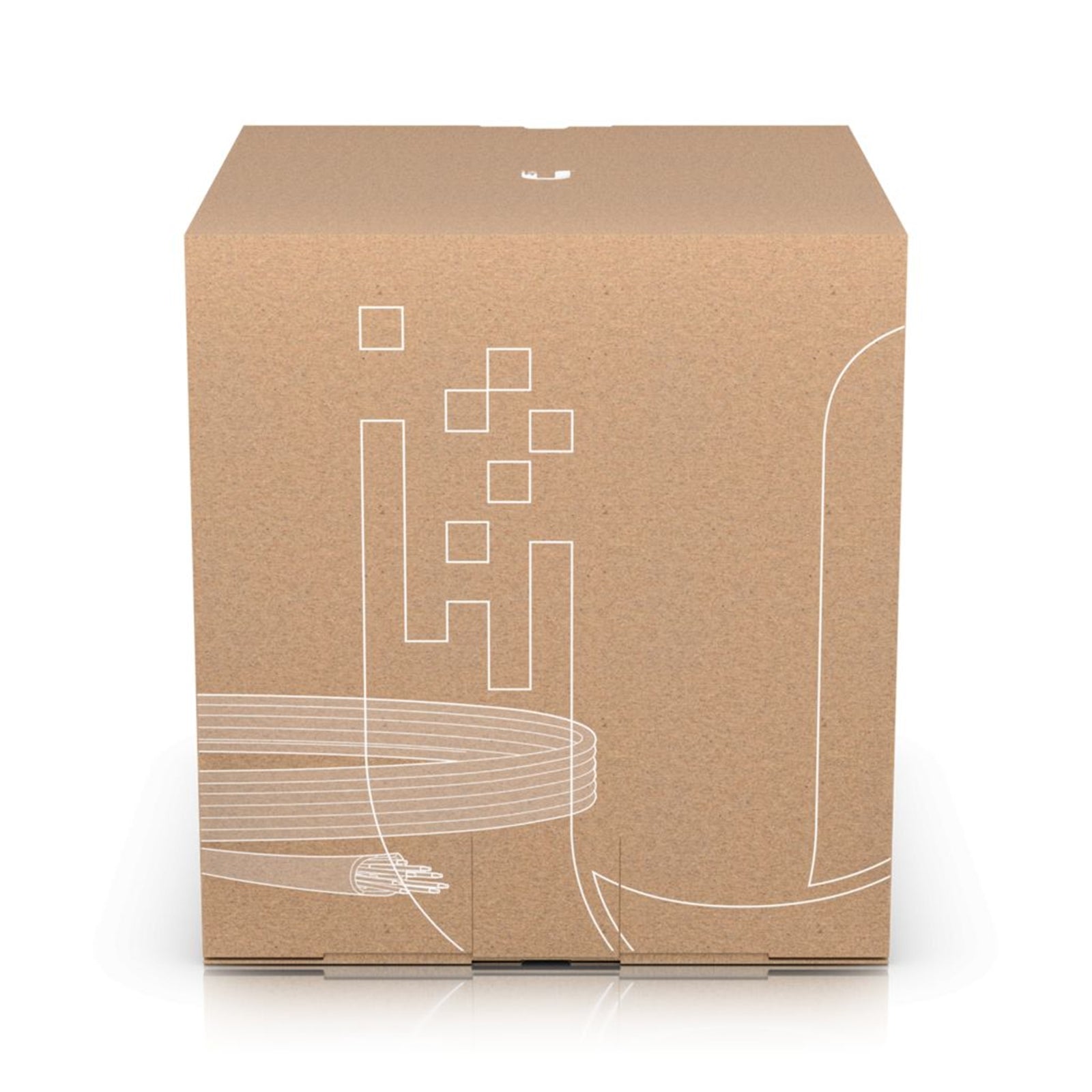

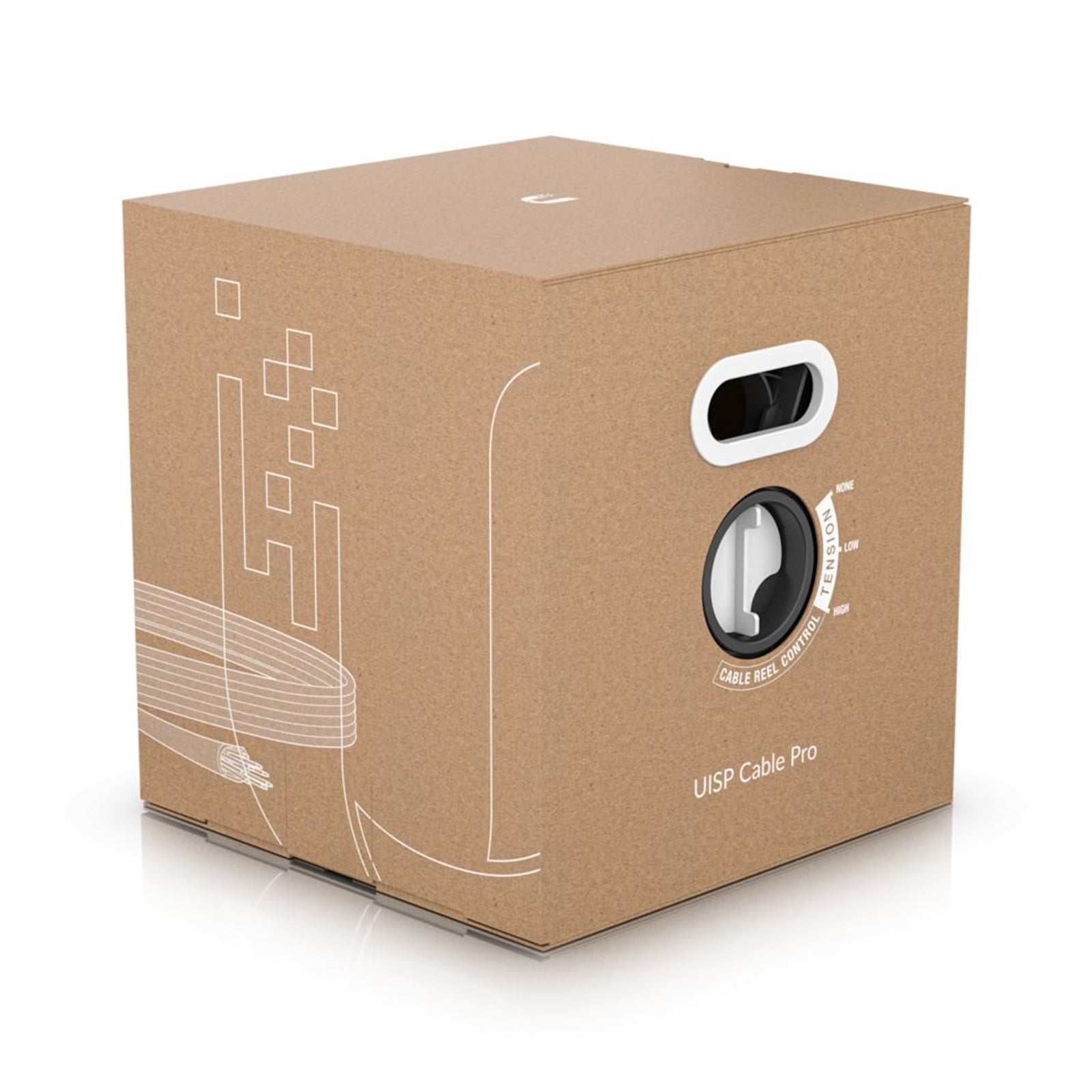

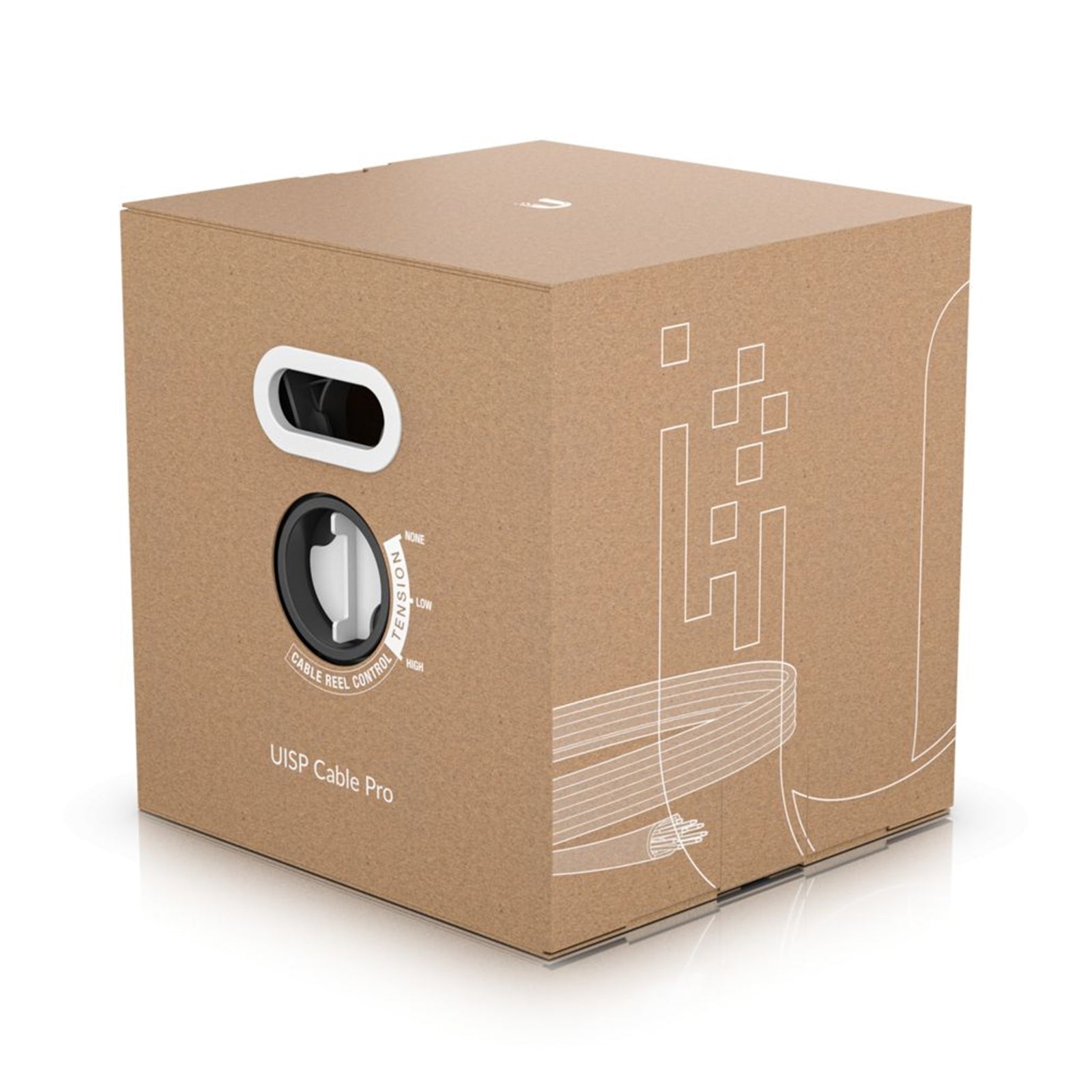

Outdoor Shielded Ethernet Cable
The industrial-grade, Category 5e TOUGHCable protects your networks from the most brutal environments.
Increased Performance
TOUGHCable dramatically increases your Ethernet link states, speeds and overall performance.
Extreme Weatherproof Design
TOUGHCable has been built to perform in even the harshest weather and environments.
ESD Damage Protection
TOUGHCable protects your networks from devastating electrostatic discharge attacks.
Extended Cable Support
TOUGHCable has been developed to increase power handling performance for extended cable run lengths.
TOUGHCable Connectors
Specifically designed for use with TOUGHCable, the TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid field deployment without soldering.
| Category | Specification |
|---|---|
| Mechanical | |
| Box dimensions | 330 x 330 x 340 mm (13 x 13 x 13.4") |
| Box weight | 12 kg (26.5 lb) |
| Cable length | 305 m (1,000 ft) |
| Cable color | Black |
| Cable type | CAT5e, shielded |
| Ethernet support | Up to 1 Gbps |
| Conductor | |
| Wire gauge | 24 AWG |
| Material | Solid bare copper |
| Diameter | 0.500 ± 0.005 mm |
| Insulation | |
| Type | Solid polyethylene |
| Thickness | Avg. 0.26 mm, Min. 0.25 mm |
| Diameter | 1.04 ± 0.03 mm |
| Separation (Polyester wrapping) | Thick: 0.025 mm, Extent: 20 mm |
| Anti-crosstalk divider | None |
| Cable shield (Aluminum foil) | Thick: 0.060 mm, Extent: 18 mm |
| ESD drain wire | 0.4 CCS |
| Rip cord | Yes |
| Jacket | |
| Material | Polyethylene |
| Thickness | Avg. 0.50 mm, Min. 0.46 mm |
| Outer diameter | 6.0 ± 0.30 mm |
| Color | Black |
| Temperature | |
| Storage | -30 to 75° C (-22 to 167° F) |
| Installation | -20 to 60° C (-4 to 140° F) |
| Ambient operating | -40 to 80° C (-40 to 176° F) |
| Standards | |
| Compliance | ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2) |
