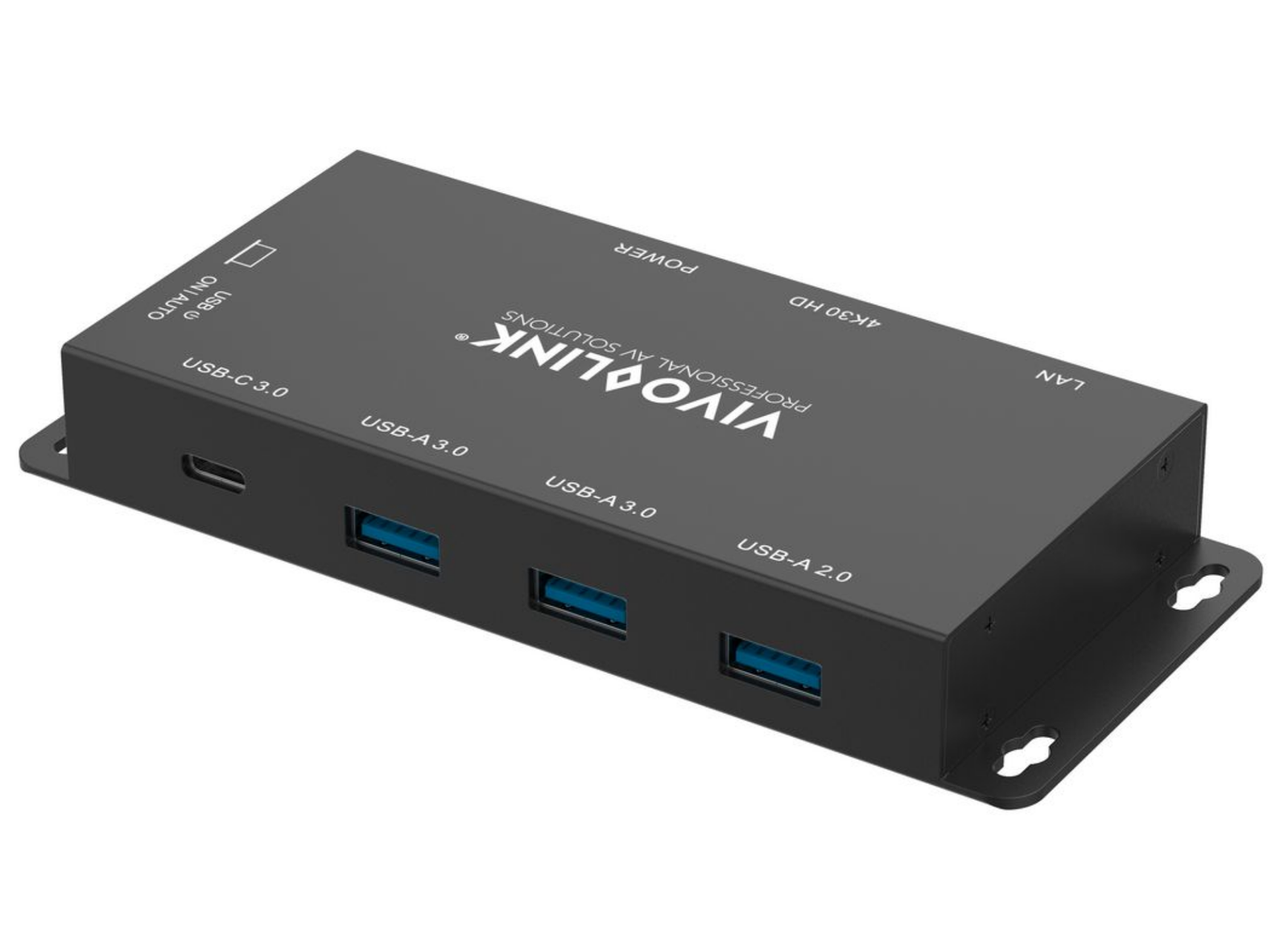

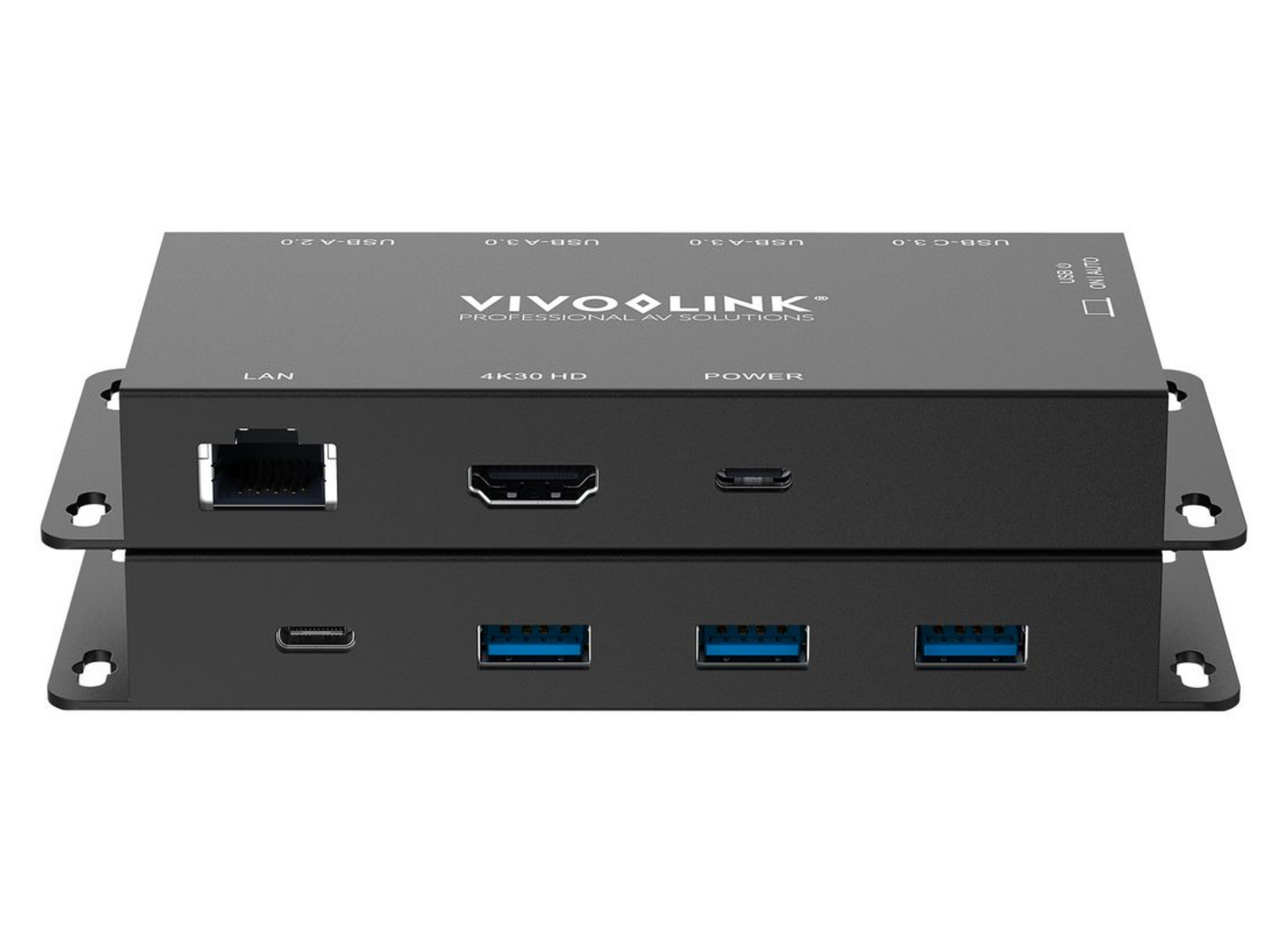

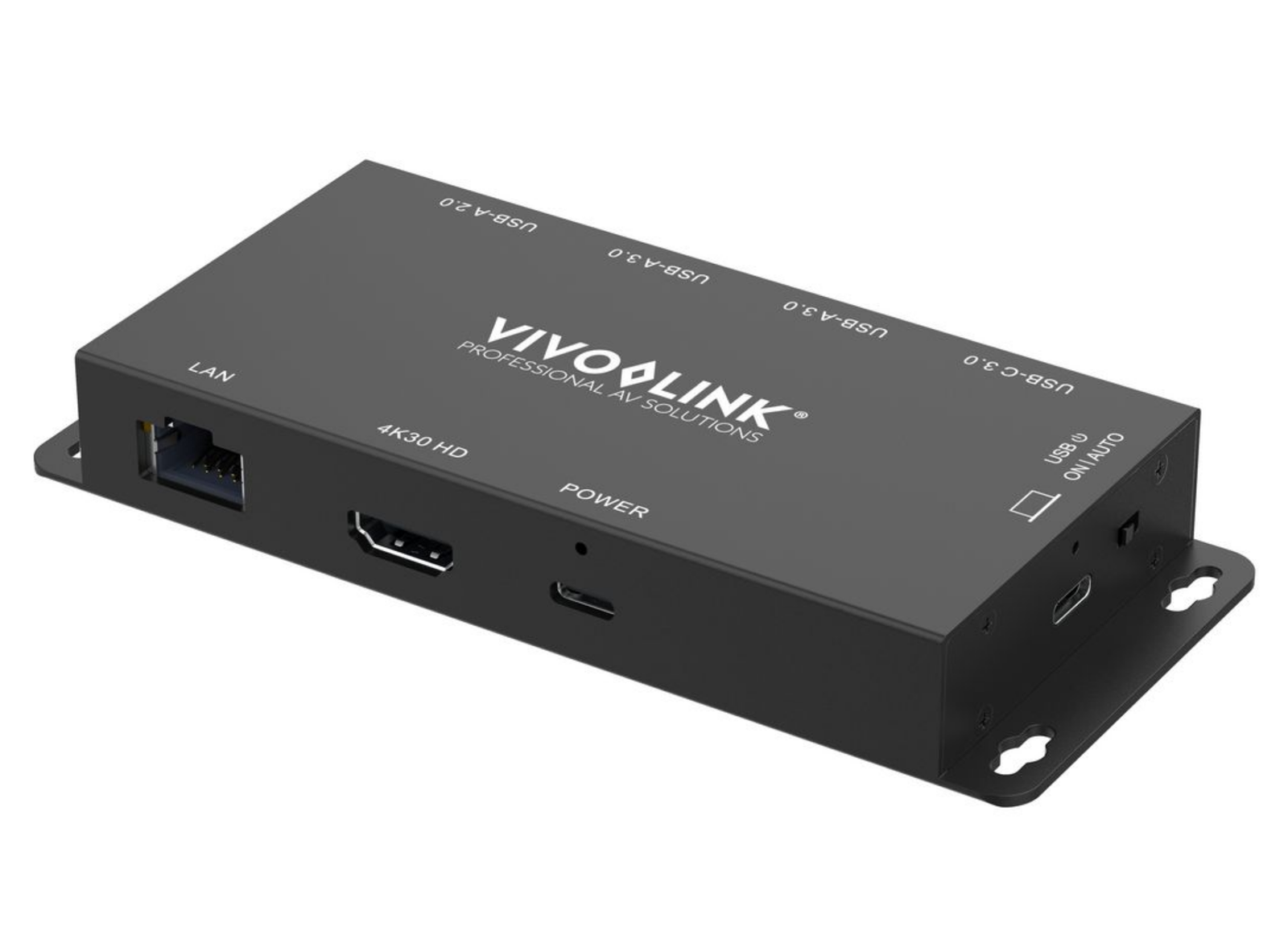

Vivolink 4K USB-C HUB – Your all-in-one solution for video conferencing systems. Connect all your equipment, just like you would with a docking station for your computer.

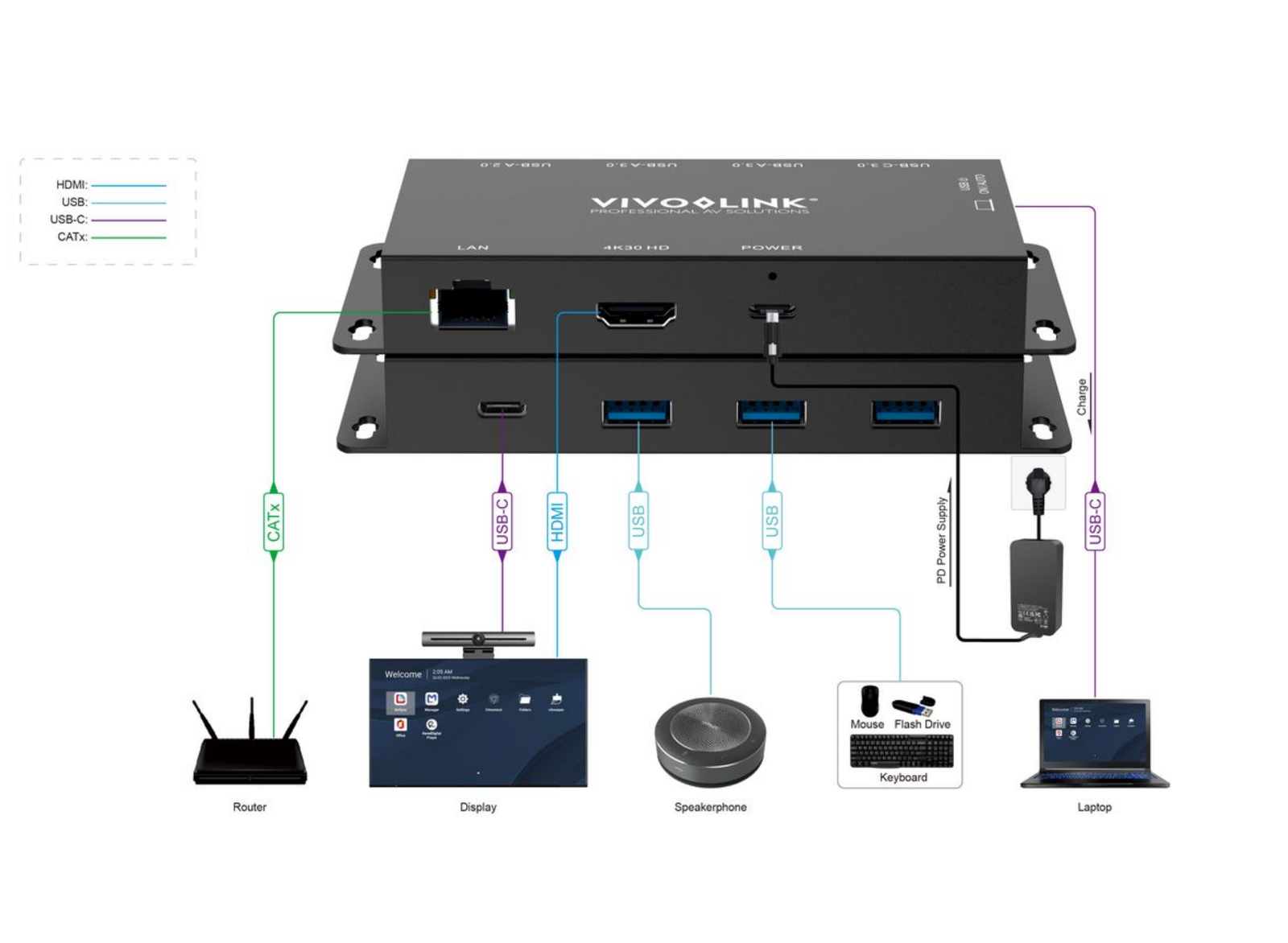

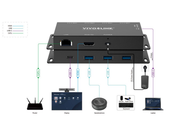

The VLUSBCHUB2V2 is your key to effortless conferencing. Designed as a 4K USB-C Hub, it allows you to connect multiple devices via USB and share content seamlessly on a single screen.
This Hub is designed to be fixed either under, or on top of, the desk to support all connections within a conference setting.

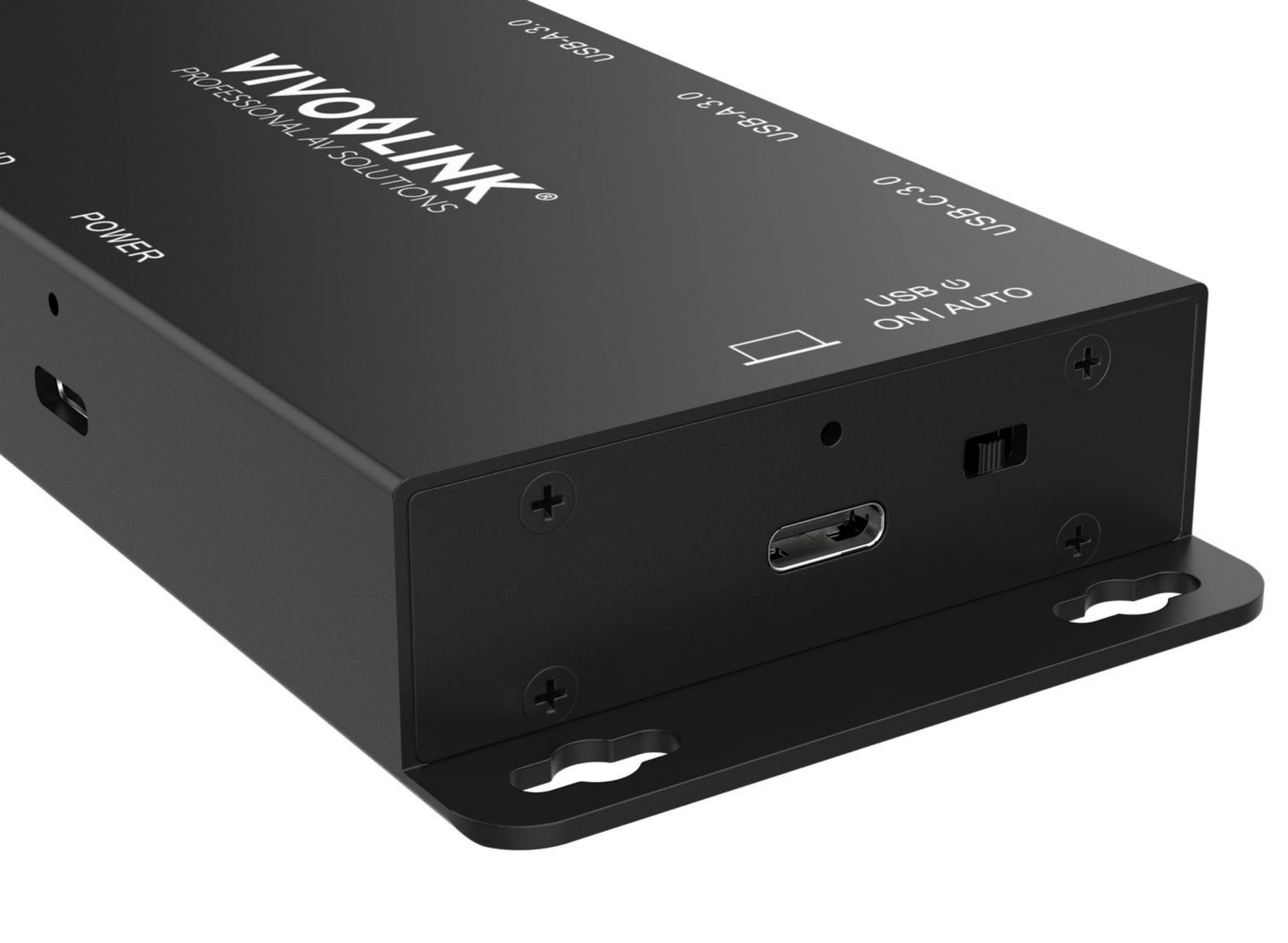

The Hub provides power for the connected device, thus reducing the need for extra unnecessary power cables. DIP switch on product can control powering of USB decives, constant power or auto power that follows HOST connection.

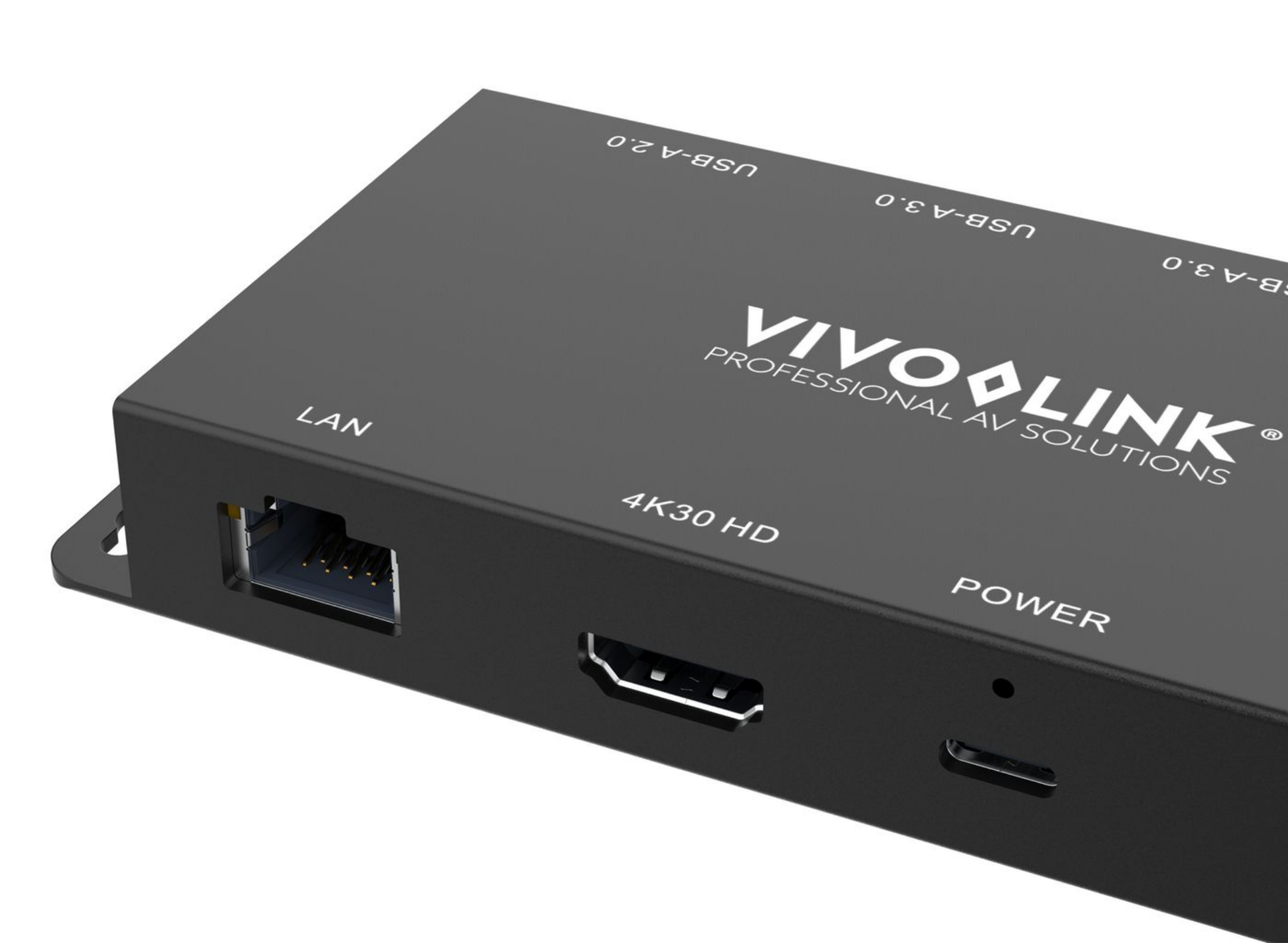

The HDMI output delivers both 4K video and sound from the device, while the LAN port provides cabled network connection to the laptop.
Supports:
HDMI 1.4, 4K@30Hz 4:4:4
USB-C input supports 100W power delivery
Supports USB3.2 Gen2 data transfer via USB-C

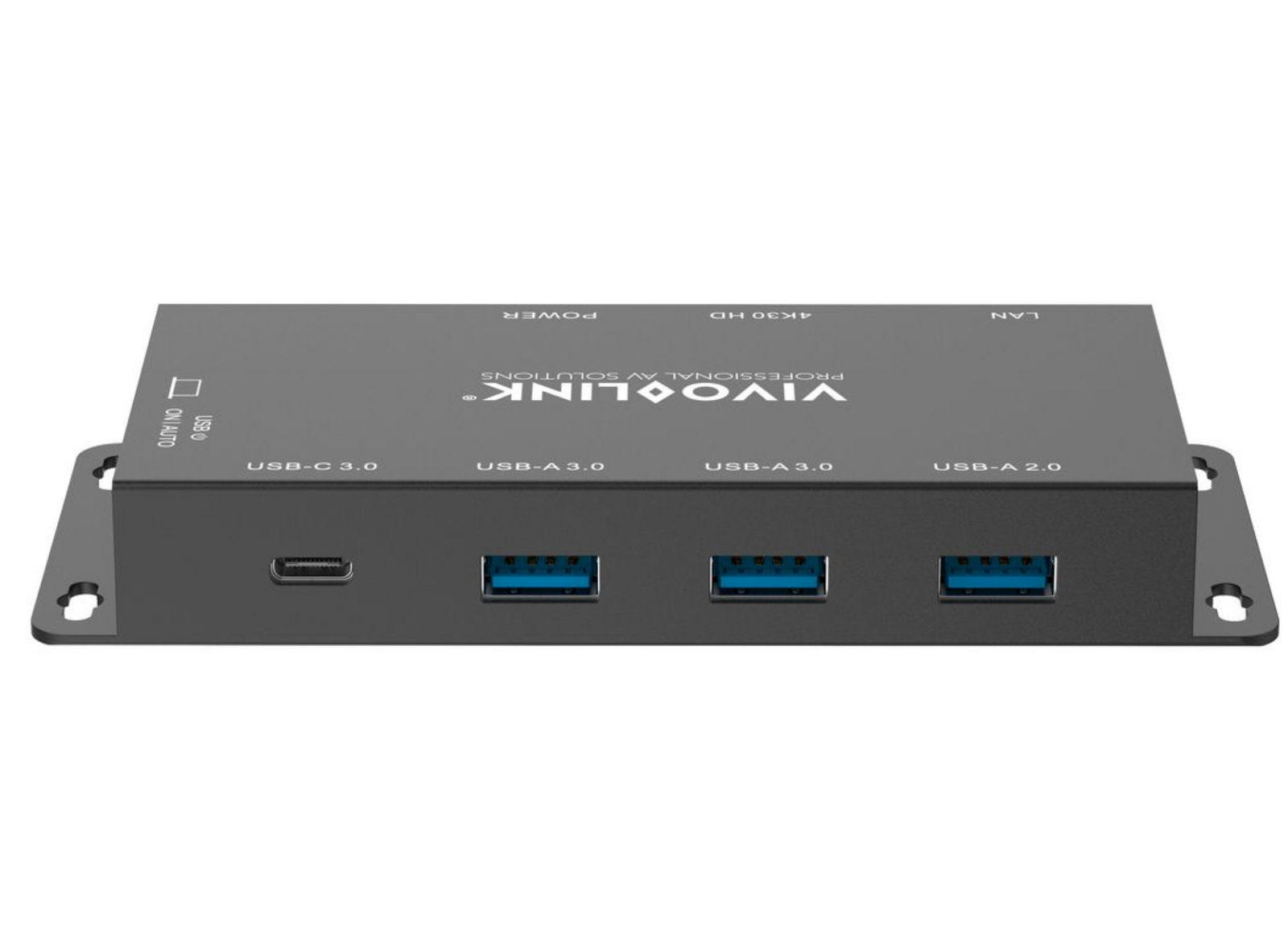

2 USB3.2 Gen 1 and 1 USB2.0 KVM for camera, keyboard and mouse
Supports USB power management, maximum power delivery shared for all four ports is 2Amp
Ethernet Gigabit LAN
Plug and Play
Ensure to use cable PROUSBCMM* for the connection from PC to HUB.
The maximum recommend length of cable is 5m (PROUSBCMMS5)
The following formats are supported:
DP Alt Mode, DisplayPort Supported products: Windows PC, Apple MacBook including iPad Pro M2
Recommended HDMI cables for long distance is: PROHDMIOP20
Package Content:
1 x HUB
1 x 100W USB-C PSU incl. mount for PSU
1 x UK Power Plug (Type G)
1 x EU Power Plug (Type C)
| Housing Material | Metal | Master Case Height | 5 cm |
| Master Case Length | 33 cm | Master Case Width | 16.5 cm |
| HDMI Output | Yes | HDMI Ports Quantity | 1 |
| HDMI Version | 1.4 | Maximum Resolution | 3840 x 2160 pixels |
| Number of Displays Supported | 1 | Refresh Rate at Maximum Resolution | 30 Hz |
| RoHS Compliance | Yes | USB Connector Form Factor | Straight |
| USB Connector Gender | Male | USB Connector Type | USB Type-C |
| USB Version | 3.2 Gen 1 (3.1 Gen 1) | Brand Name | Vivolink |
| Warranty | 5 Year(s) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
