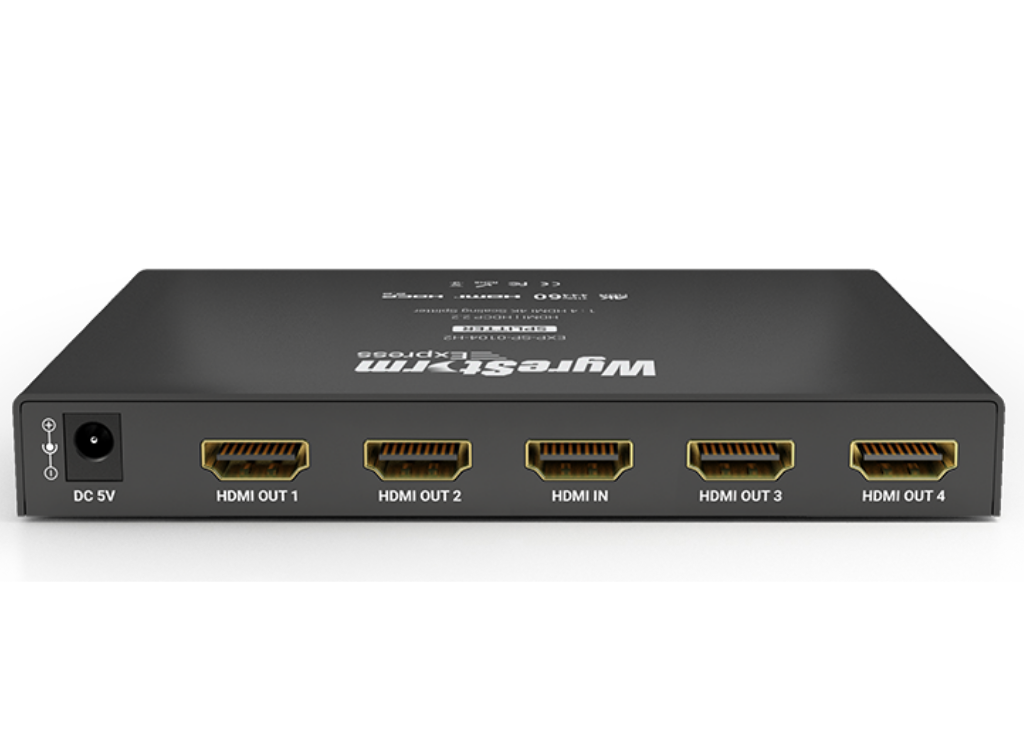

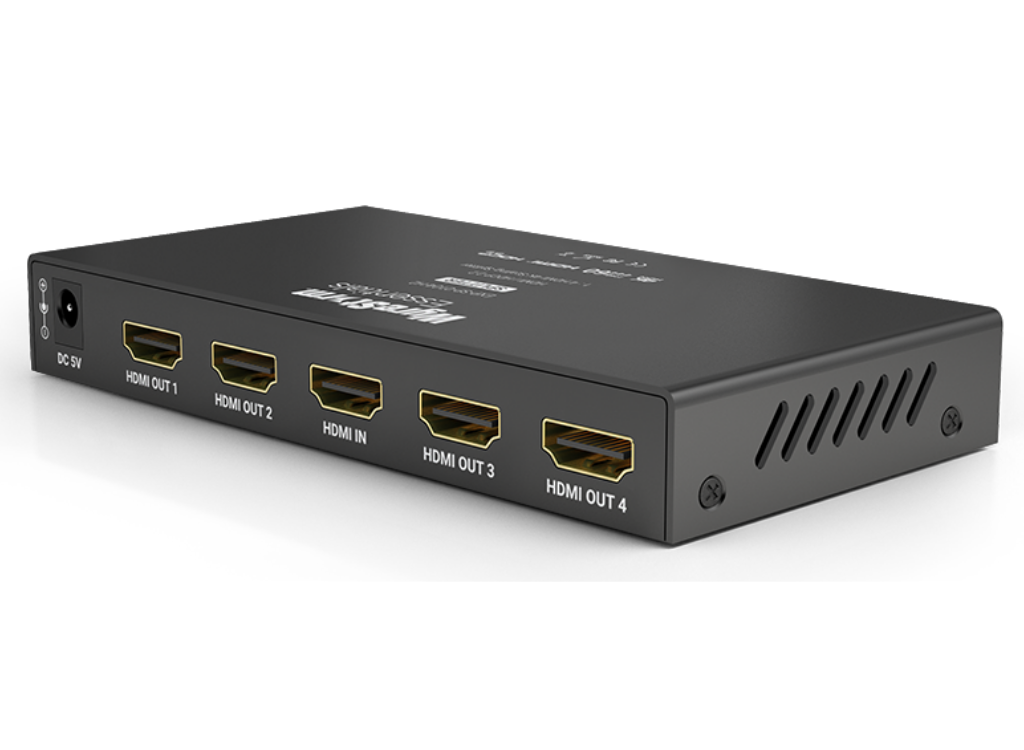

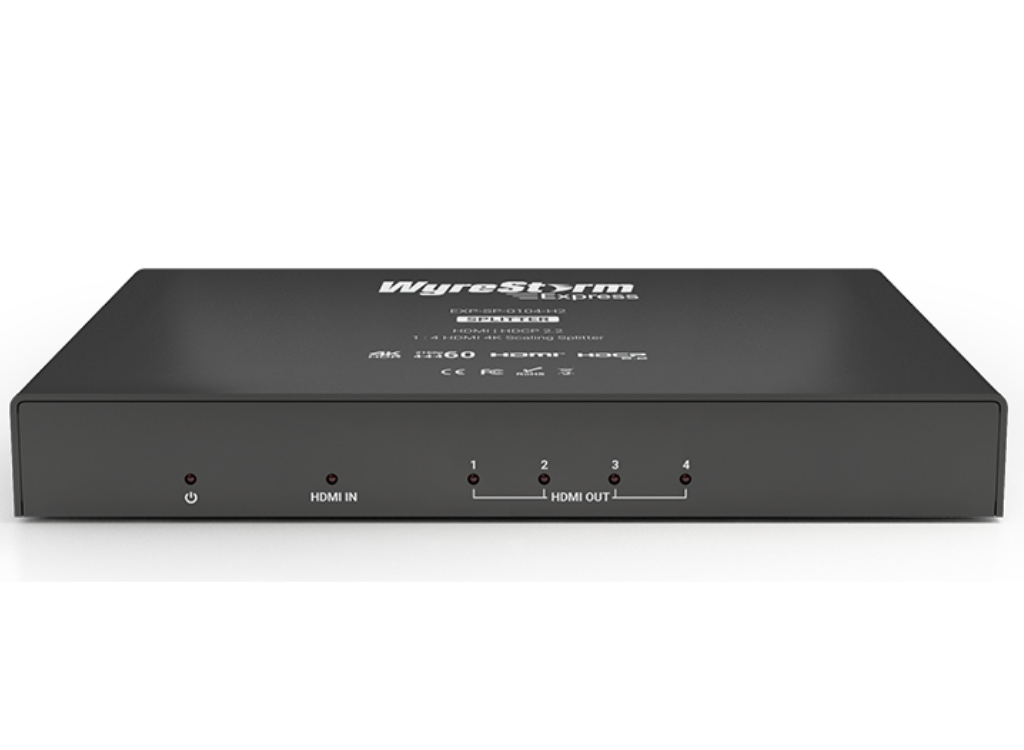

The latest addition to the WyreStorm Essentials splitter range, the EXP-SP-0104-H2 now offers H2 features and the same value and reliability found in its predecessor, not to mention a few new tricks up its sleeve! Upgrades to support of the full 18Gbps bandwidth HDMI 2.0 offers; 2160p@60Hz 4:4:4 and support for Dolby Vision™ included. As if that wasn’t enough, the EXP-SP-0104-H2 is now featuring a powerful built-in scaler, allowing users to simultaneously connect a mix of 4K and 1080p displays, which gives the source range to play to its fullest potential!
SCALING FROM 4K TO 1080P
With the EXP-SP-0104-H2, the user doesn’t have to give up 4K content when mixed resolution displays are present, as each output is capable of downscaling from 4K to 1080p without affecting the source!
PLUG AND PLAY
WyreStorm’s variety of essential’s splitters offers lossless duplication and distribution of a single HDMI UHD or HD source to multiple outputs for a flexible and reliable solution supporting resolutions up to 4K. EDID and HDCP device communication are automatically negotiated, truly making a plug-and-play device.
HDMI 2.0 VIDEO: MAXED OUT!
The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be split with the 0104-H2. Newly emerging 60Hz HDR-10 & Dolby Vision content can also be handled by this powerful device.
SLIM BY DESIGN
All of WyreStorm’s Essential’s splitters showcase a low profile, ultra slim chassis for greater installation convenience without giving up strength and quality. This allows the device to be installed under a table or desk for neat, discreet integration.
In the Box
1x EXP-SP-0104-H2 Splitter
1x DC 5V 1A Power Adapter (US/UK/EU/AU)
2x Mounting Brackets
| Category | Specification |
|---|---|
| AUDIO & VIDEO | |
| Inputs | 1x HDMI In 19-pin HDMI type A |
| Outputs | 4x HDMI Out 19-pin HDMI type A |
| Audio Formats | 2ch PCM |
| Video Resolution (Max) | 1920x1080p @60Hz 12bit, 1920x1080p @60Hz 16bit, 3840x2160p @24Hz 10bit 4:2:0 HDR, 3840x2160p @30Hz 8bit 4:4:4, 3840x2160p @60Hz 10bit 4:2:0 HDR, 4096x2160p @60Hz 8bit 4:2:0, 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020 |
| Maximum Pixel Clock | 600MHz |
| COMMUNICATION & CONTROL | |
| HDMI | HDCP 2.2, EDID, DVI-D supported with adapter (not included) |
| POWER | |
| Power Supply | 5V DC 1A |
| Max Power Consumption | 1.8W |
| Key Features | Allows transmission from a single HDMI device to up to 4 HDMI devices, Supports 4K@60Hz 10bit 4:2:0, HDR, Dolby Vision, HDCP 2.2 compliant, Data rates up to 18Gbps, Automatic cable equalization, Plug and play setup, Compact design |
