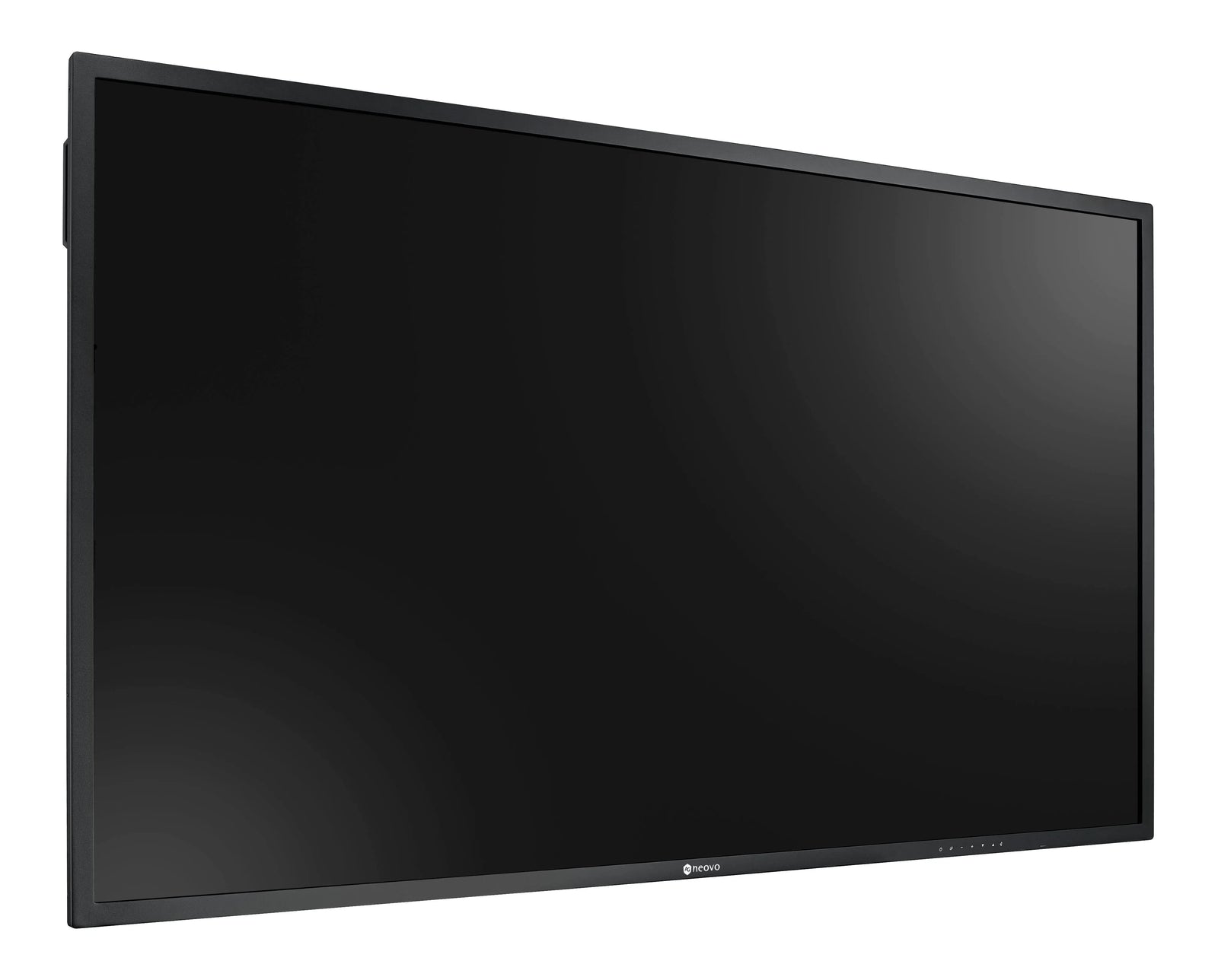

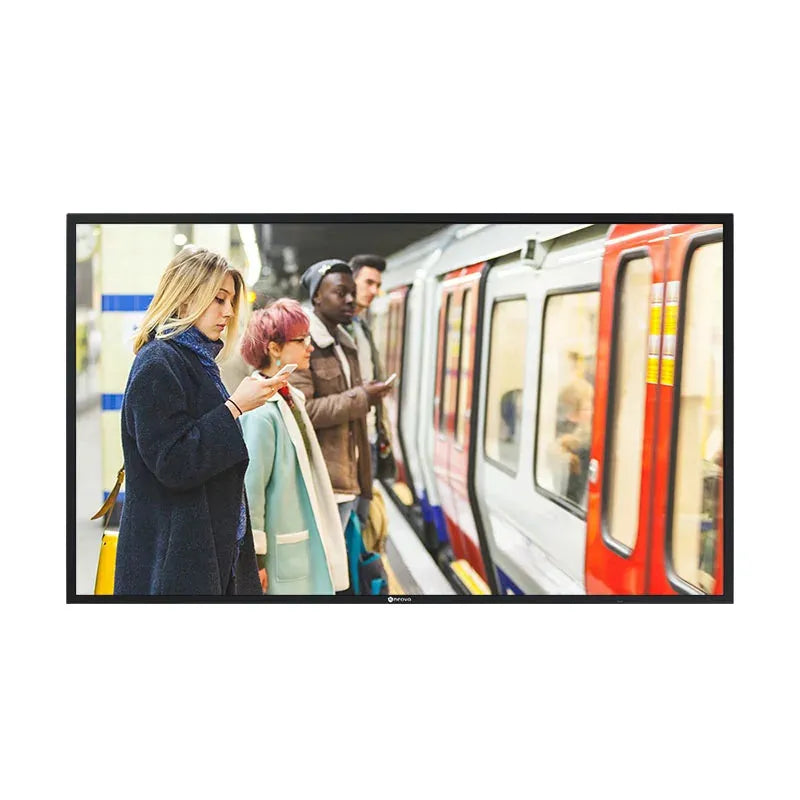

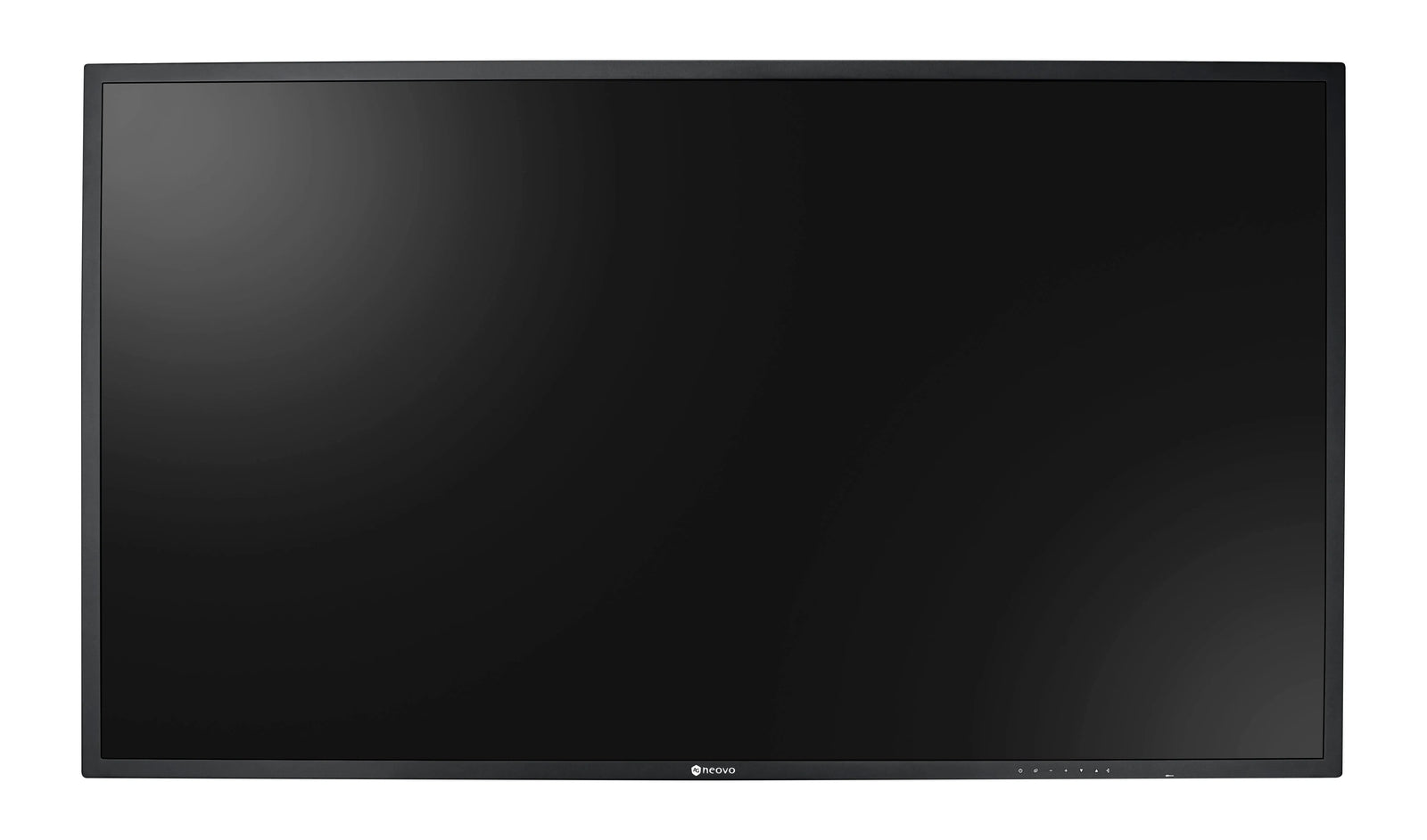

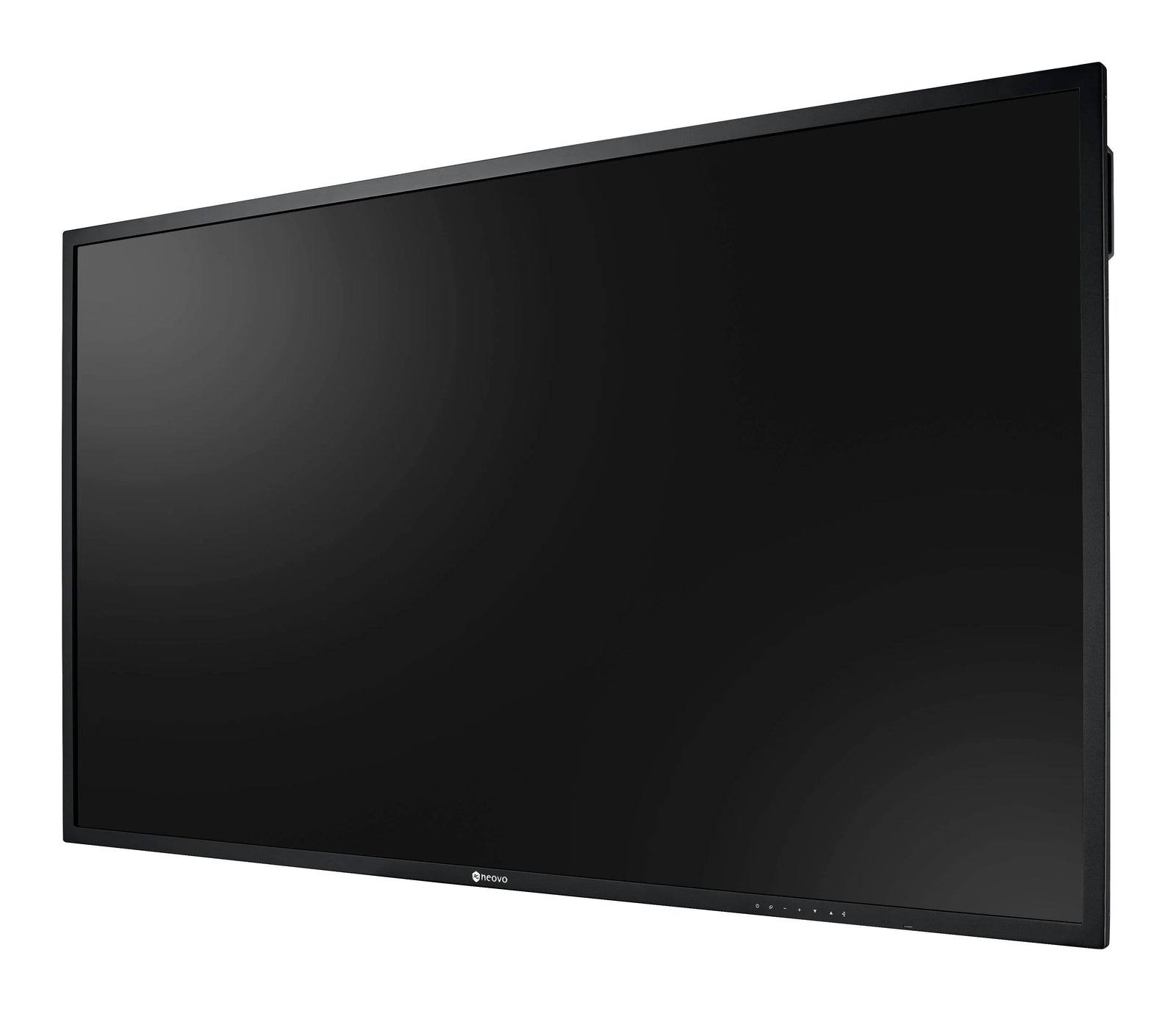

AG Neovo HMQ-6501

65" 4K SDI Live Video Security Monitor

• Description
• Specifications
• Warranty
• Downloads

• The HMQ-6501 is a 65-inch 4K surveillance display with SDI that supports live video streaming over long distances in surveillance and monitoring applications. The display technology is future-proof and compatible with analogue and digital surveillance systems. The HMQ-6501 supports up to 8MP image quality through an HDMI connection to present crisp video footage. With SDI loop-through design, the display can receive real-time 1080p images from HD-SDI or 3G-SDI cameras and transmit the uncompressed videos to multiple SDI displays with ultra-low latency. It fulfils the need for high-quality image details to live video monitoring in broadcasting and video surveillance solutions.


  SEE INTRICATE DETAILS IN 4K
  The HMQ-6501 features 3840 x 2160 pixels, offering finer video footage. The high resolution enables zoom-in with clear detail as CCTV evidence. As a result, the operator can zoom in on a license plate number or the lines on a face. Furthermore, the panel enables the operator to view smooth 4K video and graphics with a new level of detail and clarity.

  SUPPORT 3G-SDI 1080P HIGH-DEFINITION VIDEO STREAMING
  Support for 3G-SDI and HD-SDI at 1080p resolution enables the HMQ-6501 to display live video signals from SDI cameras. The SDI loop-through output terminal allows displaying the same image to a local SDI monitor or other SDI device.

  UNCOMPRESSED AND ULTRA-LOW LATENCY TRANSMISSION VIA LONG DISTANCE
  The HMQ-6501 supports multiple SDI video standards, including SD, HD and 3G-SDI formats. These standards support ultra-low latency and uncompressed transmission of HDTV signals up to 300 meters for live video monitoring.

  The maximum distances for 3G-SDI, HD-SDI and SD-SDI signal transmission via RG6 coaxial cables:
  3G-SDI: 100M
  HD-SDI: 150M
  SD-SDI: 300M

  FINE-TUNE CCTV IMAGES FOR MAXIMUM CLARITY AND DETAIL
  A special pre-configured CCTV Mode maximizes image clarity in low-light footage. You can make granular adjustments and quickly fine-tune your video footage with sharpness, saturation, contrast, brightness, and more. As a result, you don’t need to waste time constantly testing and re-adjusting because the HMQ-6501 already has it all figured out!

  ENHANCED GAMMA SELECTION
  Offering an enhanced gamma selection makes for excellent visual optimization. As a result, you can easily improve the light, shadow, and colour balance quality of your videos.

  VISIBLE DETAILS IN DARK SCENES
  The technology lets you make black-level adjustments, which facilitate the display of more details in video surveillance images captured in the nighttime or low-light environments.

  TAILOR-MADE FOR RELIABILITY
  The HMQ-6501 security display adopts a commercial-grade panel and incorporates high-quality components to ensure 24/7 continuous operations. Furthermore, the patented Anti-burn-in™ Technology adds another protection level in mission-critical environments.

  METAL CASING ENSURES RELIABLE MONITORING

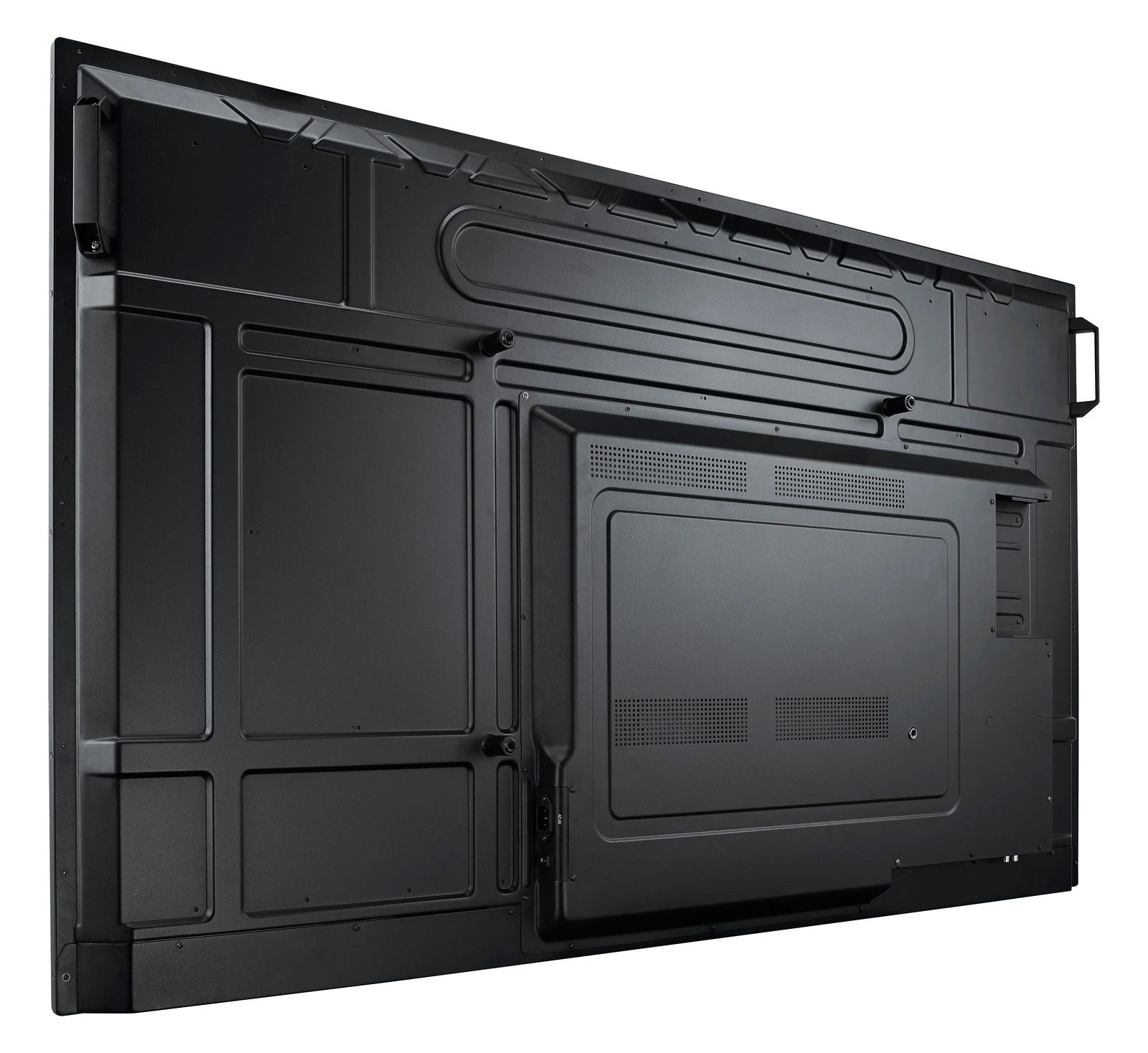

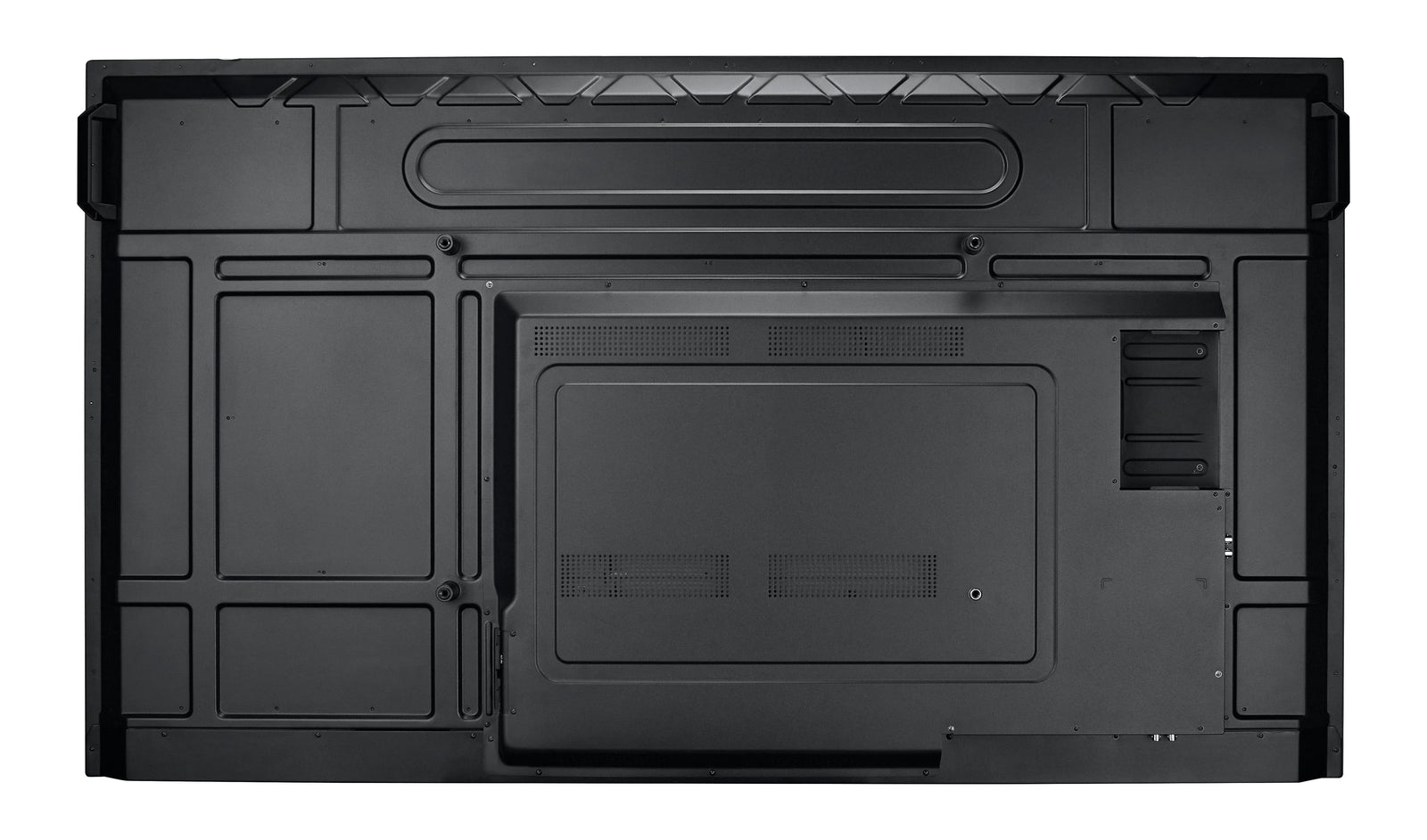

  The outer metal case provides enhanced heat dissipation, offering a high level of strength and durability. In turn, this improves the cooling performance to ensure 24/7 proper operation.

  EASY CONTROL AND INTEGRATION
  The built-in RS232 / LAN connections and AG Neovo PID command & Ctrl software allow you to easily control, configure and maintain multiple-display installations in a simple and intuitive way. The software provides intuitive web and mobile interfaces for remote management and OSD-related settings.

  VERSATILE CONNECTIVITY AND VIDEO LOOP THROUGH

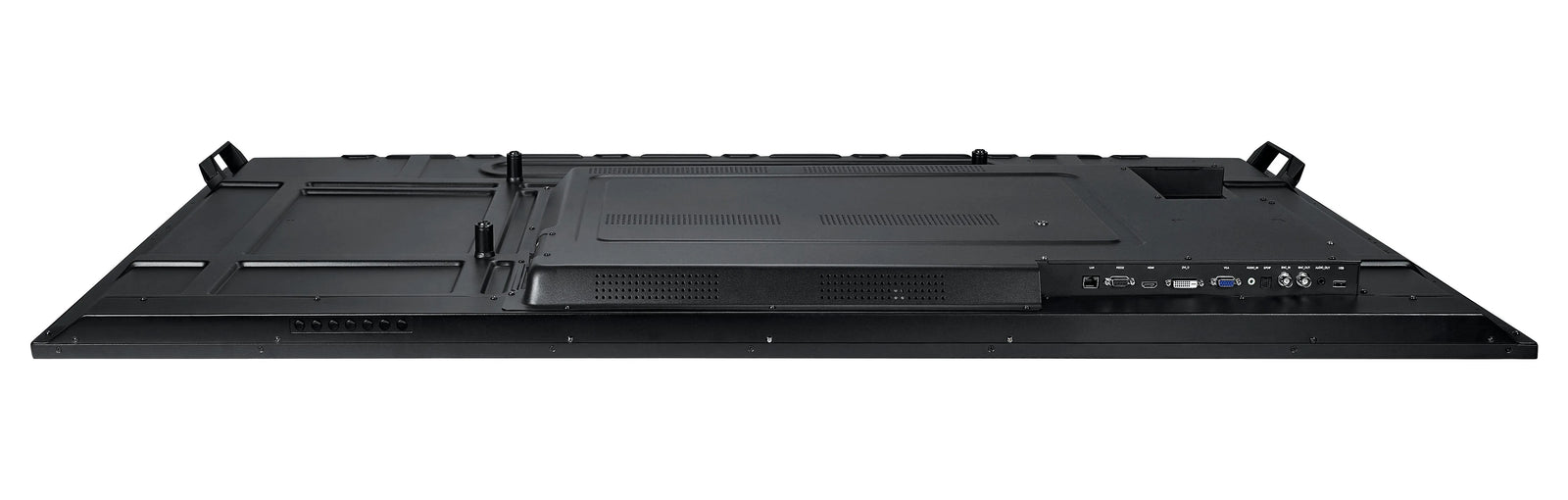

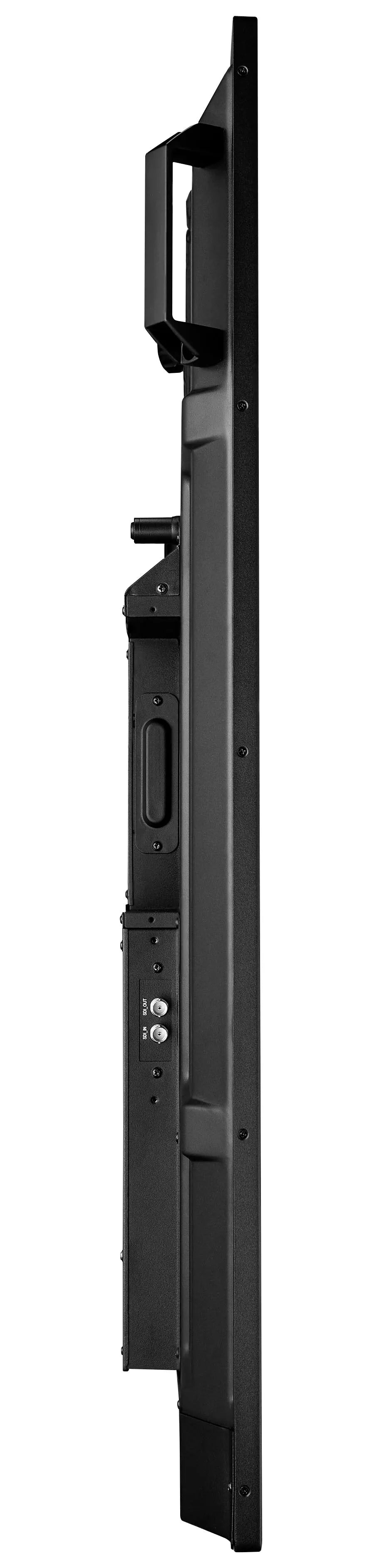

  The HMQ-6501 can easily connect to various surveillance equipment with HDMI, DVI, VGA, SDI and Composite (BNC) ports. Its BNC inputs and outputs enable security camera footage to be directly displayed on the screen and loop through to the second device for instant monitoring.


• Feature	Specification
  Panel	IPS
  Panel Type	64.5"
  Max. Resolution	UHD 3840 x 2160
  Pixel Pitch	0.372 mm
  Brightness	400 cd/m²
  Contrast Ratio	1200:1
  Viewing Angle (H/V)	178°/178°
  Display Colour	1.07B
  Response Time	5 ms
  Surface Treatment	Anti-Glare Treatment (Haze 1%)
  	3H Hard Coating
  Frequency (H)	15KHz~135KHz
  Frequency (V)	24Hz ~ 86 Hz
  Signal Input	SDI
  	BNC x 1
  	HDMI 2.0 x 1
  	DVI 24-Pin DVI-D
  	VGA 15-Pin D-Sub x 1
  	Composite
  	BNC x 1
  Signal Output	SDI
  	BNC x 1
  	Composite
  	BNC x 1
  External Control	RS232 In
  	9-Pin D-Sub
  	LAN
  	RJ45 x 1
  Other Connectivity	USB
  	2.0 x 1 (Service Port)
  Audio	Audio In
  	Stereo Audio Jack (3.5 mm)
  	Audio Out
  	S/PDIF
  	Stereo Audio Jack (3.5 mm)
  Internal Speakers	10 W x 2
  Power Supply	Internal
  Power Requirements	AC 100-240V
  	50/60 Hz
  Power Consumption (On Mode)	123W (On)
  Power Consumption (Standby Mode)	<0.5W
  Power Consumption (Off Mode)
  Operating Conditions	Temperature: 0°C-40°C (32°F-104°F)
  	Humidity: 20%-85% (non-condensing)
  Storage Conditions	Temperature: -10°C-60°C (-4°F-140°F)
  	Humidity: 10%-95% (non-condensing)
  Mounting	VESA FPMPMI
  	Yes (600 x 400 mm)
  Dimensions	Product w/o Base (W x H x D): 1476.7 x 851.7 x 79.8 mm (58.1" x 33.5" x 3.1")
  Packaging (W x H x D):	1660.0 x 1045.0 x 220.0 mm (65.4" x 41.1" x 8.7")
  Weight	Product w/o Base: 26.2 kg (57.8 lb)
  	Packaging: 36.7 kg (80.9 lb)
  Regulation Approval	Certifications & Compliance
  	CE
  	LVD
  	WEEE
  	RoHS
  	REACH
  	EAC
  	UKCA
  Accessories	Supplied
  	Batteries
  	HDMI Cable
  	Power Cord
  	Quick Start Guide
  	Remote Control
  Optional Accessories	Ceiling Mount (Landscape only): CMP-01 + LMK-01
  	Wall Mount (Landscape only): LMA-02, LMK-01, LMK-03
  	Floor Mount (Landscape only): FMC-03 + LMK-04, FMC-04 + LMK-04, FMC-06

• AG Neovo provides the following limited warranty. This limited warranty applies only to the original End User and to no other purchaser or transferee.

  FOR LCD DISPLAYS

  AG Neovo warrants its LCD Monitor products and parts against defects in materials and workmanship under normal use for a period of Three (3) Years for parts from the date of initial retail purchase. AG Neovo warrants LCD Panel for a period of Three (3) years from the date of initial retail purchase. During this period, AG Neovo will repair or replace a defective product or part without charge.

  Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.




  WHAT THE WARRANTY COVERS

  The AG Neovo warranty obligations for the product are limited to the terms set forth below.

  1. AG Neovo warrants the product against defects in materials for a period of three (3) years for all series of TFT LCD panel and three (3) years for parts.
  2. With respect to LCD display pixel quality inspection of the defective display pixels must be performed in black screen. A maximum of 3 bright pixels or 3 dark pixels is allowed in an LCD panel; the total number of dark and bright pixels should not exceed 3 pixels for the whole area.
  3. If a defect arises within the warranty period, please contact the AG Neovo service centre; you should provide your products serial number, and your contact information, such as address, and phone number.
  4. AG Neovo warrants replacement products or parts provided under this warranty against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage.




  WHAT THE WARRANTY DOES NOT COVER

  1. Products on which the serial number has been defaced, modified or removed;
  2. Products, which are not accompanied by a copy of the original invoice or where information on the original invoice has been altered or erased in any manner whatsoever.
  3. Damage, deterioration or malfunction resulting from:
     • Accident, abuse, misuse, neglect, fire, water/liquids, lightning, or other acts of nature, unauthorised product modification, or failure to follow instructions supplied with the Products.
     • Repair or attempted repair by anyone not authorised by AG Neovo.
     • Any damage of the Products due to shipment.
     • Removal or installation of the Products.
     • External causes to the Products, such as electric power fluctuations or failure.
     • Use of supplies or parts not meeting the specifications of AG Neovo.
     • Normal wears and tear.
     • Any other cause, which does not relate to a Product defect.
     • Damage to, or abuse of, the coating on the surface of the display.
     • Scratched or broken panel.
     • Cracked Printed Circuit Board or abused housing and/or base.
     • Exposure to an excessive dusty and/or humid environment.
     • Because LCD panel is the liquid characteristic, damage caused by static (non-moving) images displayed for lengthy periods of time (also referred to as “burn-in”).

  AG Neovo has the right to revise the policy.

  Please contact local AG Neovo office to get detailed information.

  ---




  FOR ACCESSORIES

  AG Neovo warrants its accessories to be free from defects in material and workmanship under normal operating conditions for a period of 12 months limited warranty.

  Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.




  WARRANTY CONDITIONS

  1. The warranty applies only to products distributed by AG Neovo.
  2. The warranty applies only to defects in material or workmanship as limited above and does not include normal wear items. The warranty applies only to defects which occur during normal use and does not extend to damage to products or parts which results from alterations, repairs, modifications, faulty installation or service by anyone other than an authorised AG Neovo Service Centre; damage to products or parts caused by accident, abuse, misuse, maintenance, mishandling, misapplication, or use in violation of instructions furnished by us; damage which occurs in shipment or any damage caused by an act of God, such as lightning or line surges.
  3. You must retain your bill of sale, invoice or receipt.
  4. Any replacement parts provided to the purchaser in fulfillment of this warranty does not extend the warranty period only the residual portion of the original warranty period remains.

  AG Neovo has the right to revise the policy.

  Please contact local AG Neovo office to get detailed information.

  For information on obtaining warranty service, call your AG Neovo dealer, AG Neovo’s Customer Support hotline, or email service centers.

  Europe |  +31-10-442-57-37 | service.nl@agneovo.com

• Document Type	Downloads
  Data Sheet	Download
  User Manual	Download
  Declaration	Download
  EEI Label	Download
  Technical Drawing	Download
