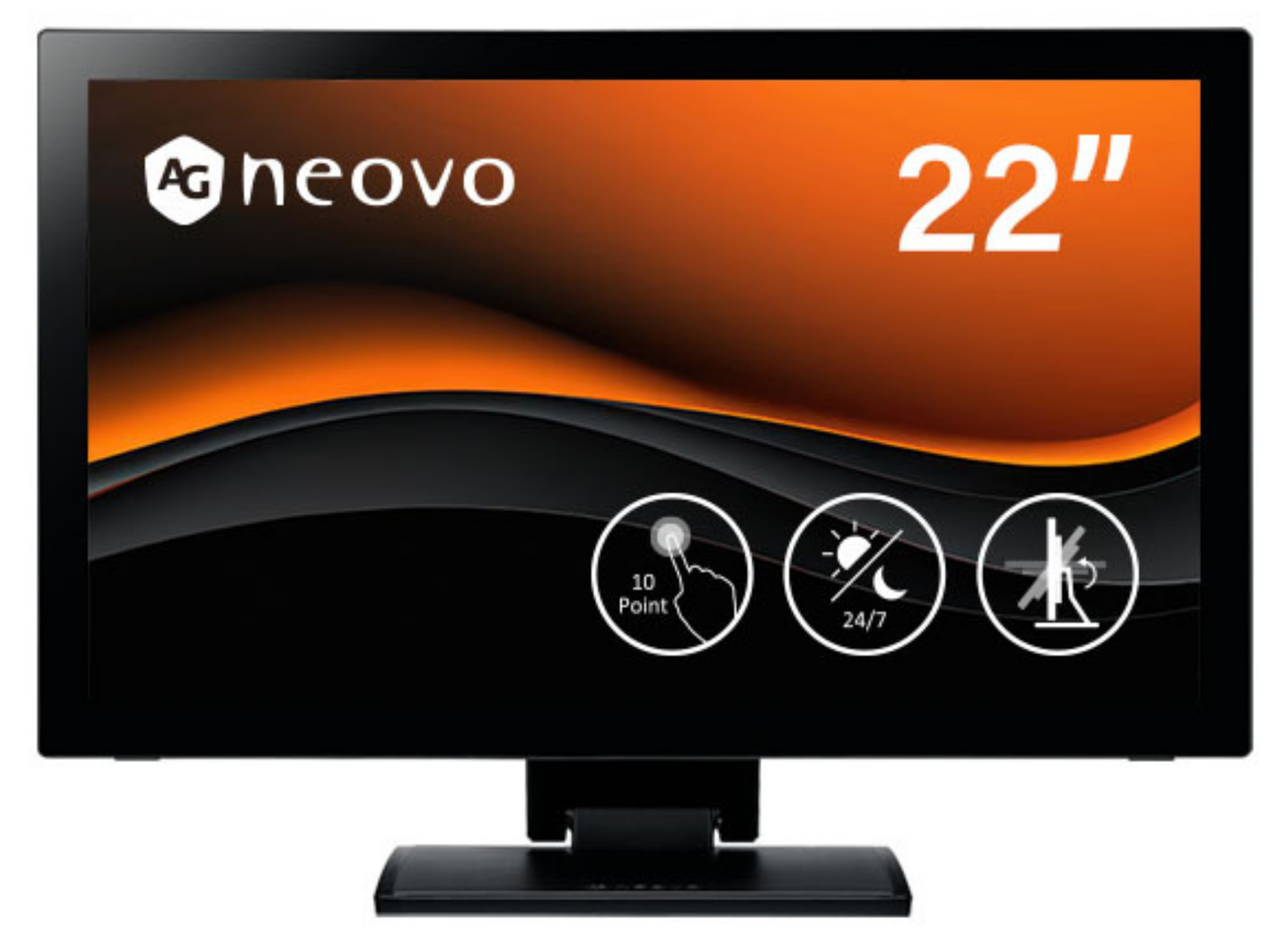

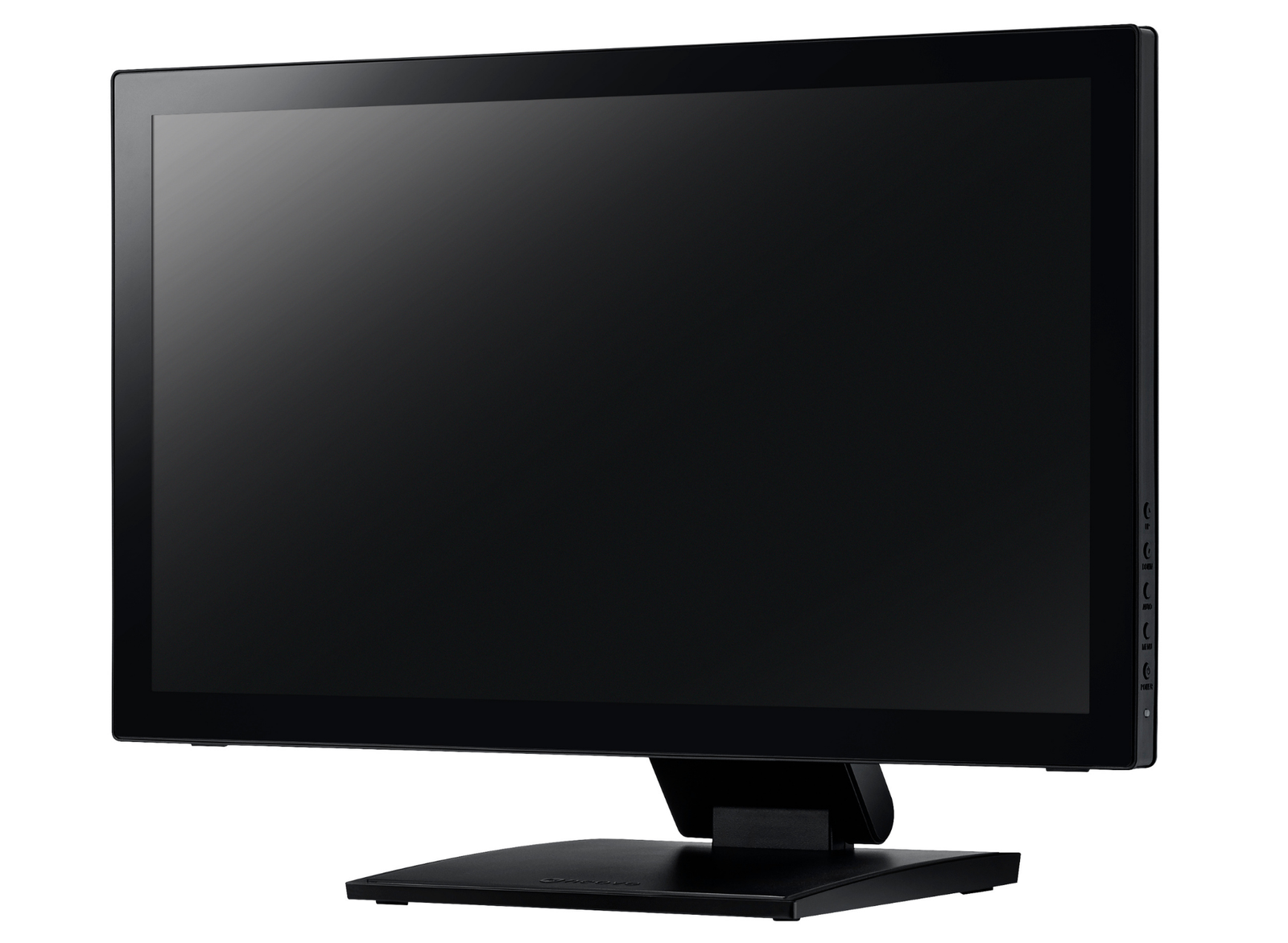

Utilizing projected capacitive (PCAP) 10 point multi-touch technology, the TM-22 22-inch touch screen monitor delivers a smooth and precise touch response. Compatibility with Windows® 7, 8 & 10 touch functions and versatile connectivity makes connecting with media sources and peripheral devices easy. The TM-22 ergonomic monitor stand with tilt flexibility ranging from –5 to 90 degrees guarantees user comfort, making it an ideal choice for public access, like information kiosks and self-check-in kiosks.
10 Point Multi-Touch Monitor

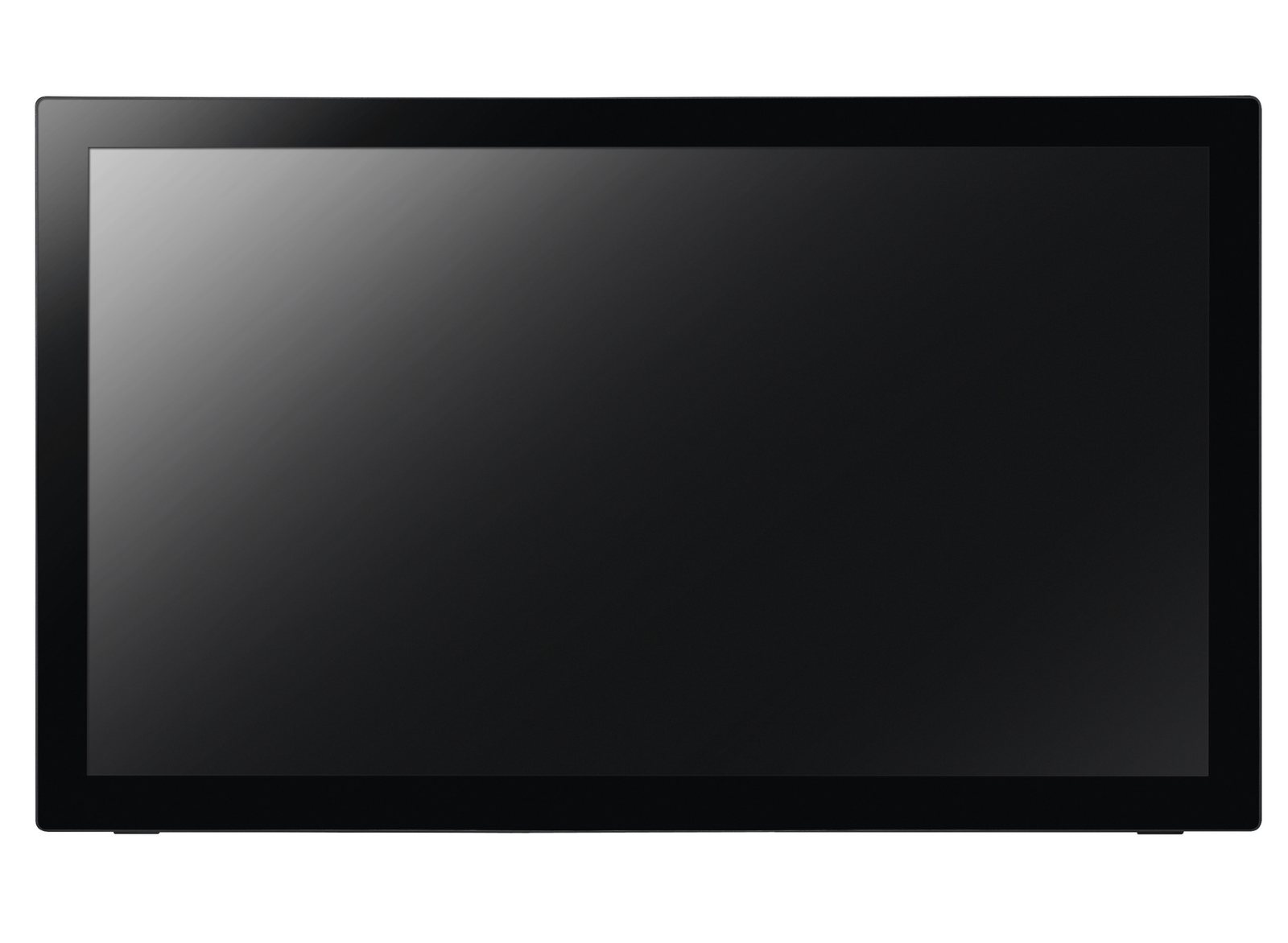

The TM-22 PCAP touch screen monitor, with 10-point touch capability, offers a smooth and responsive touch experience. Designed with a flat surface and edge-to-edge glass overlay, the TM-22 gives an invitingly modern appeal that fits the professional environment.
Ergonomic Monitors Maximise Users Comfort

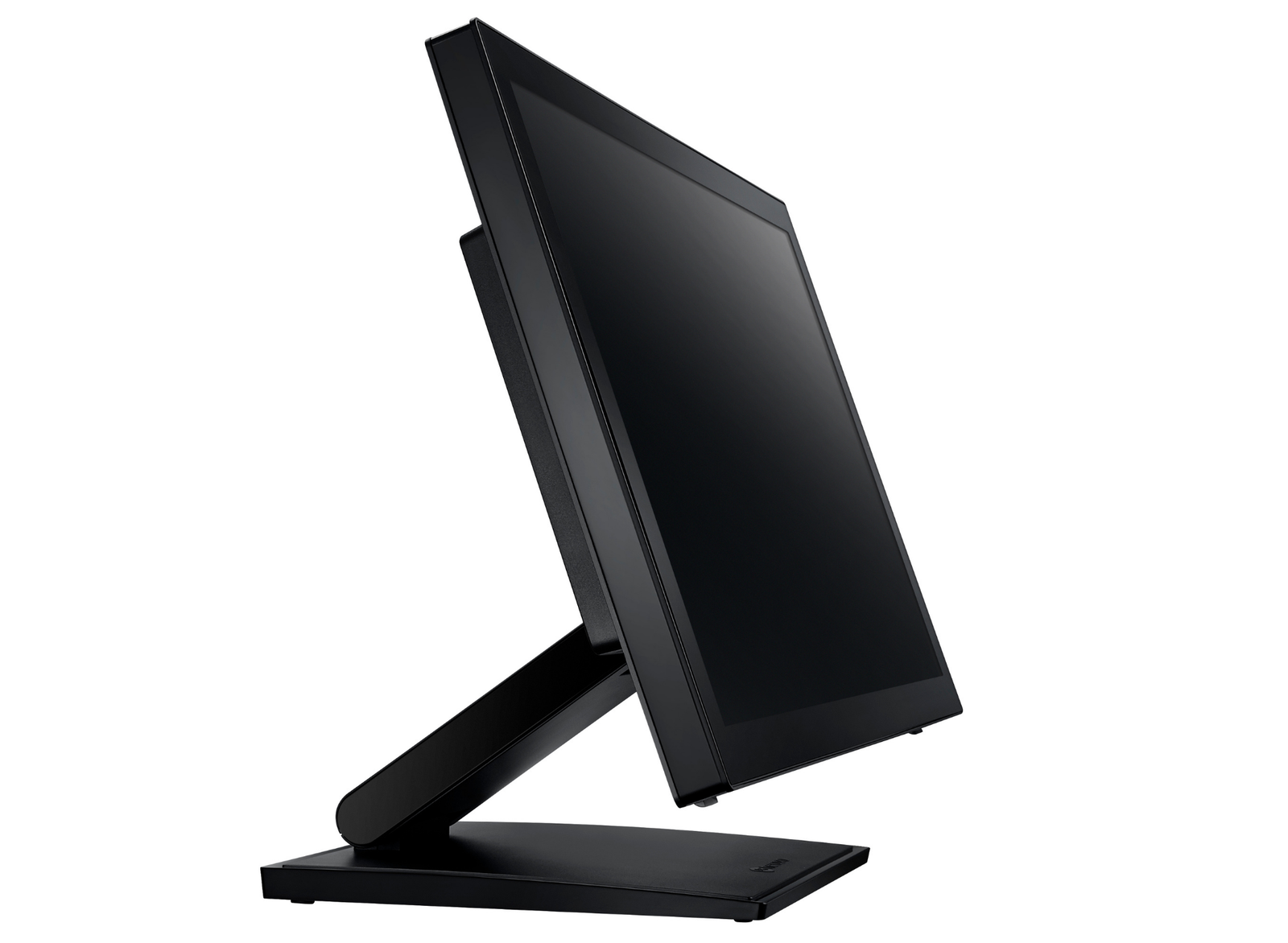

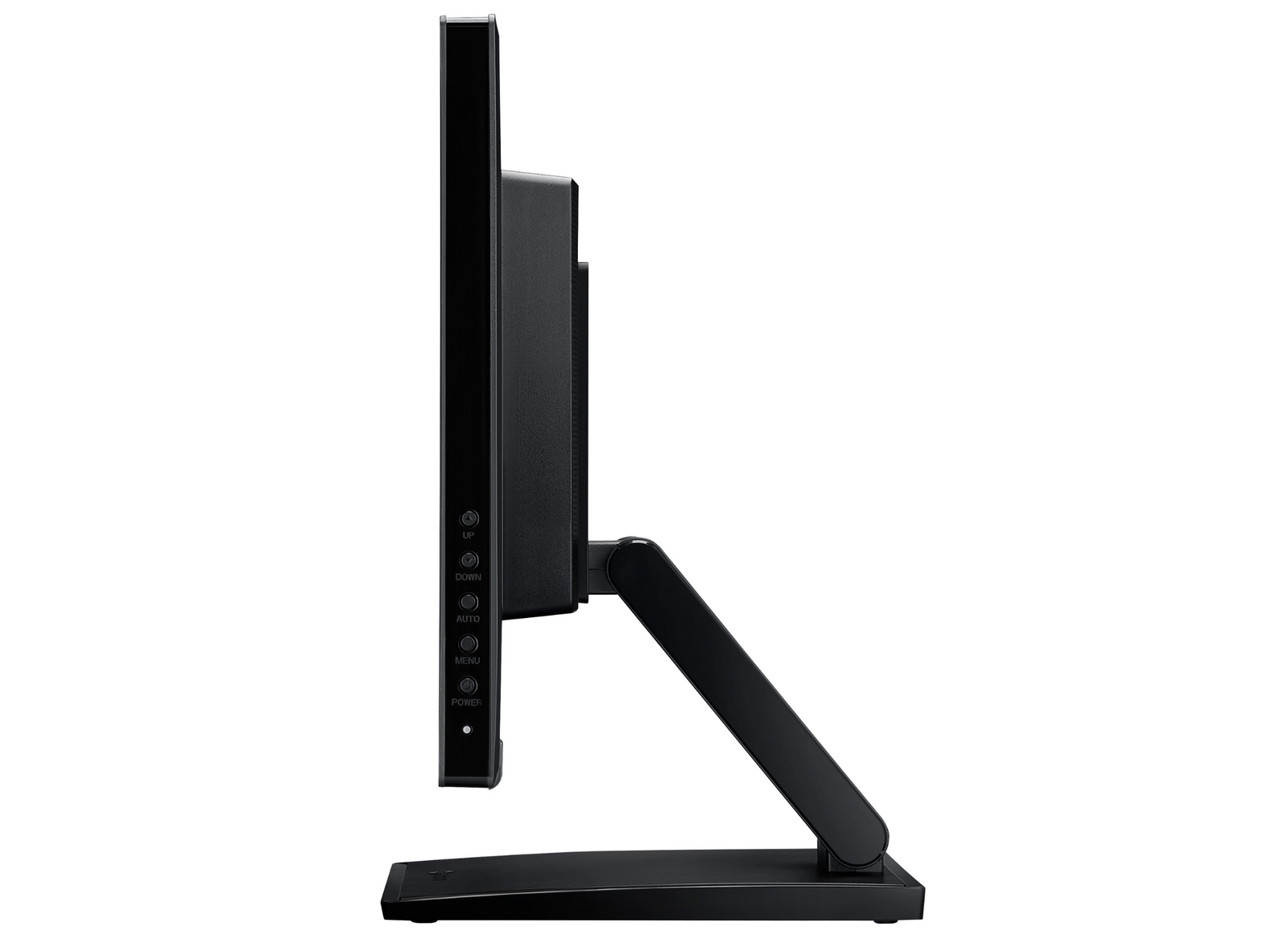

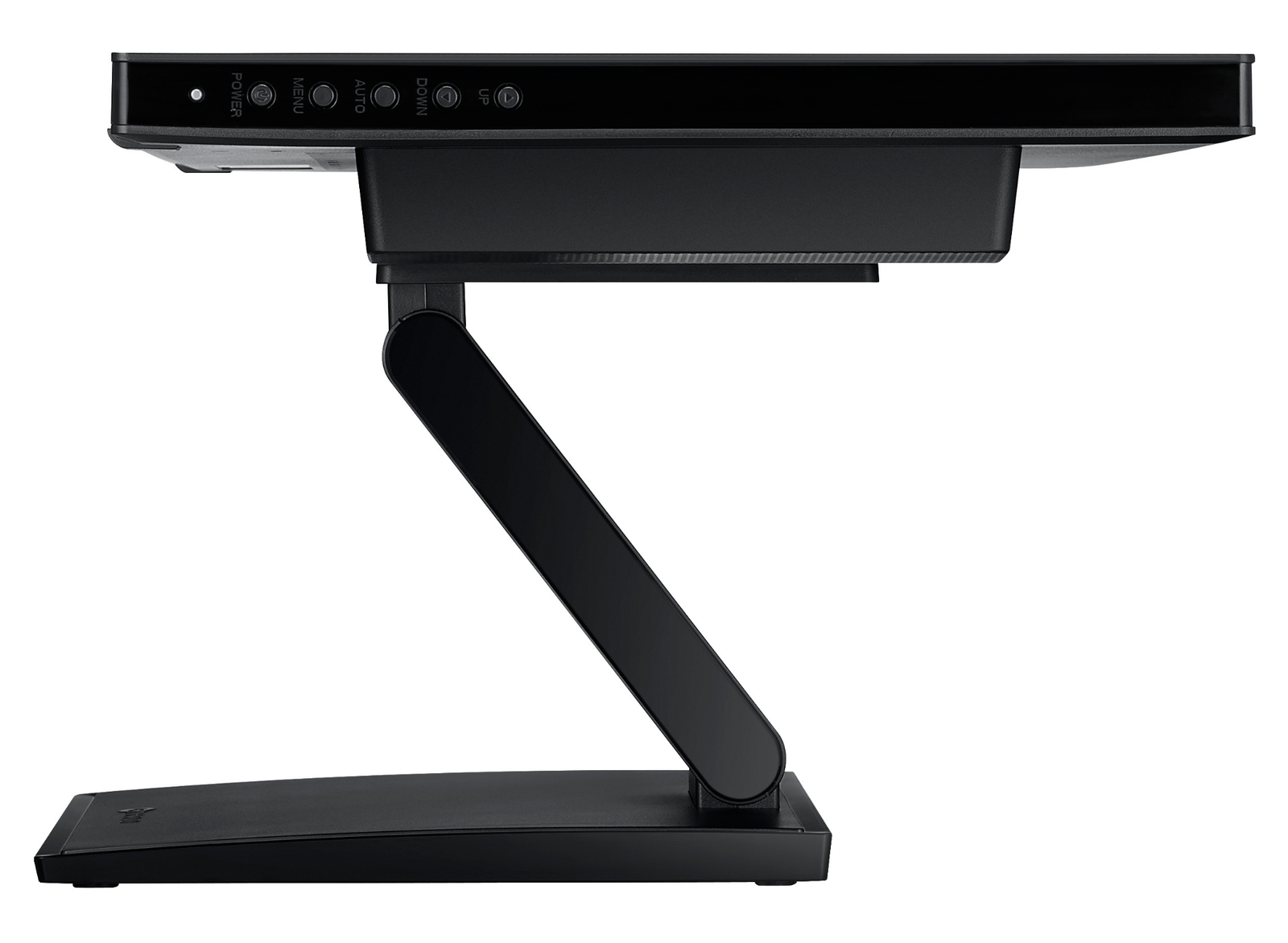

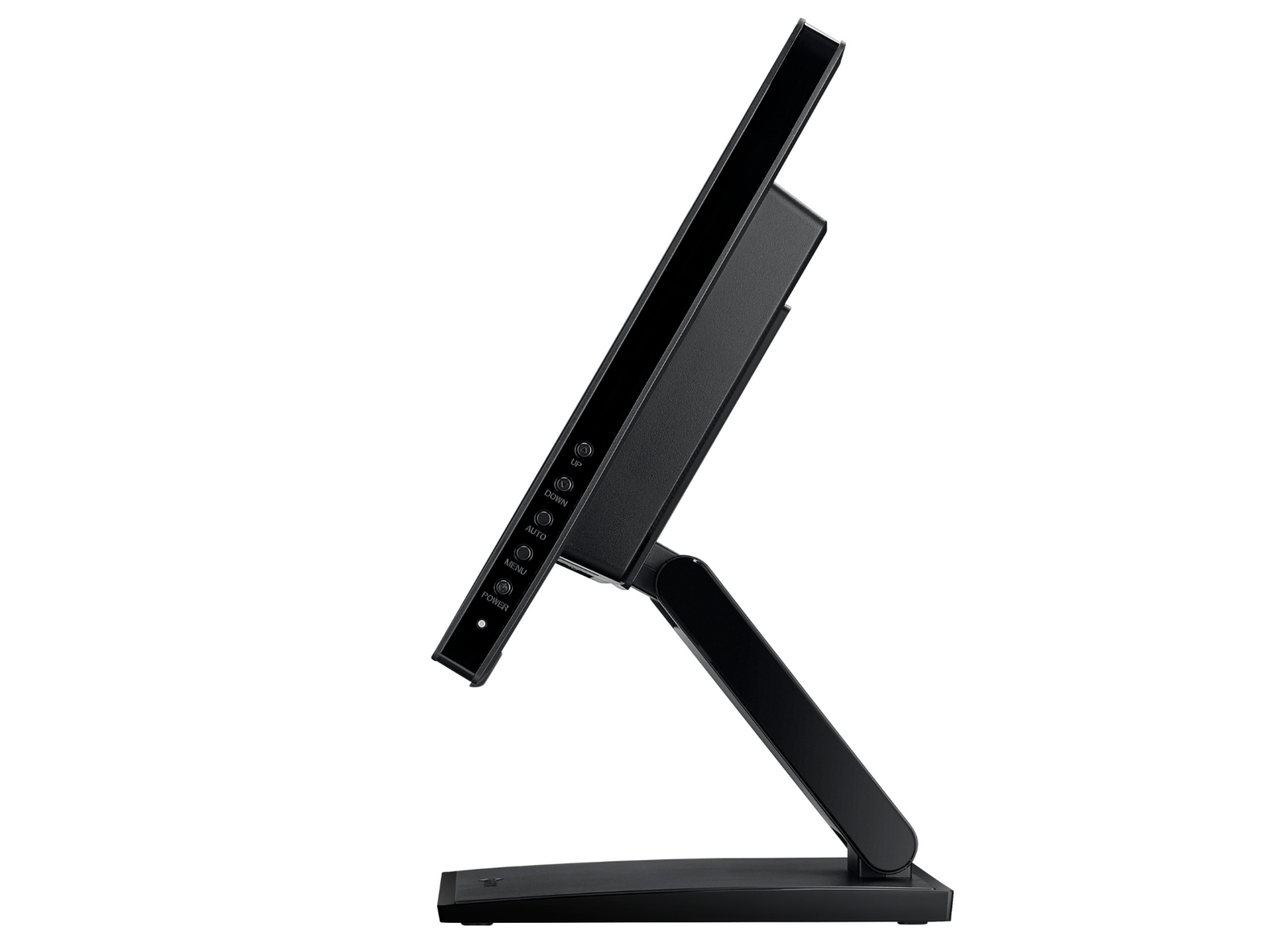

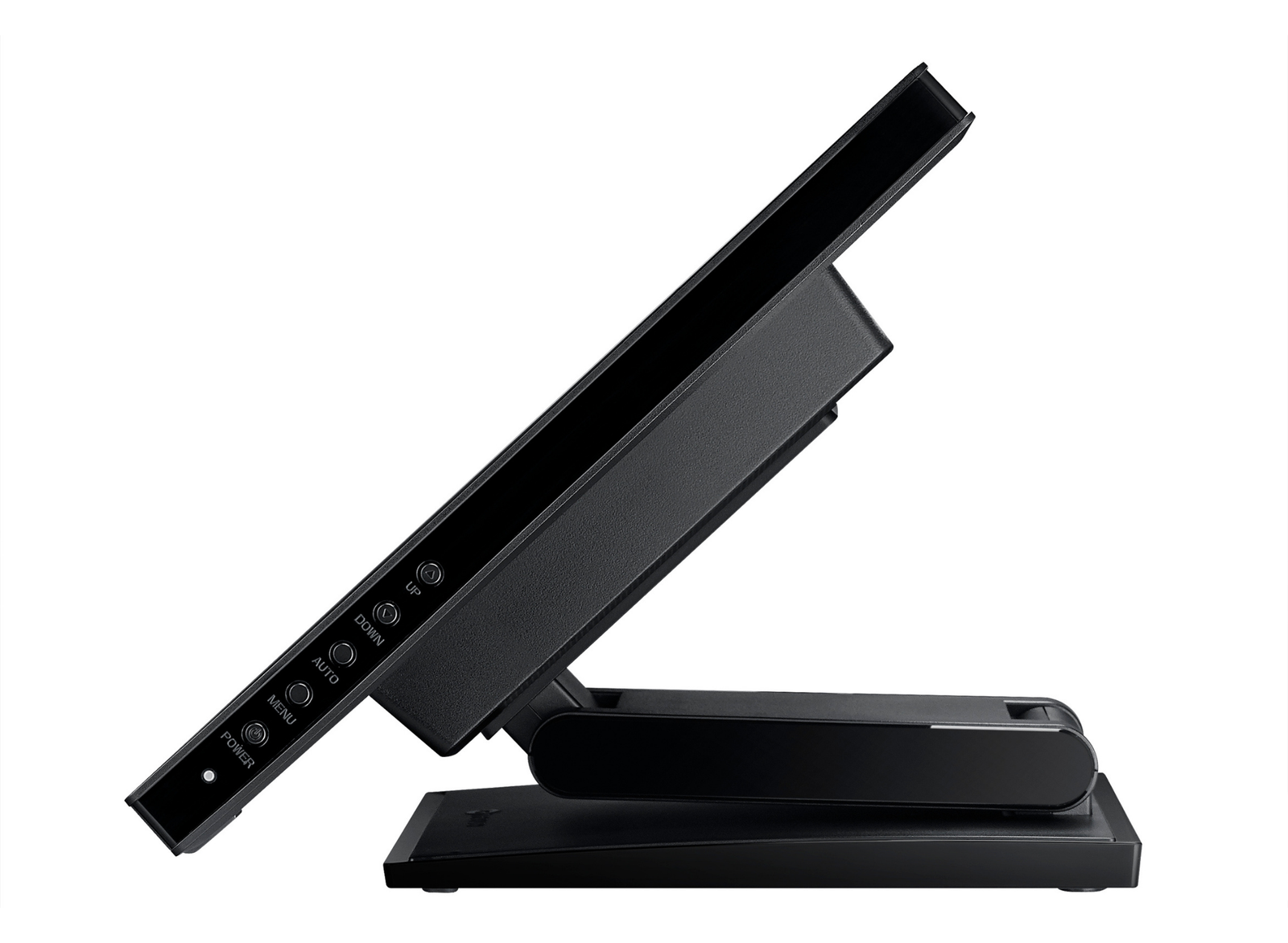

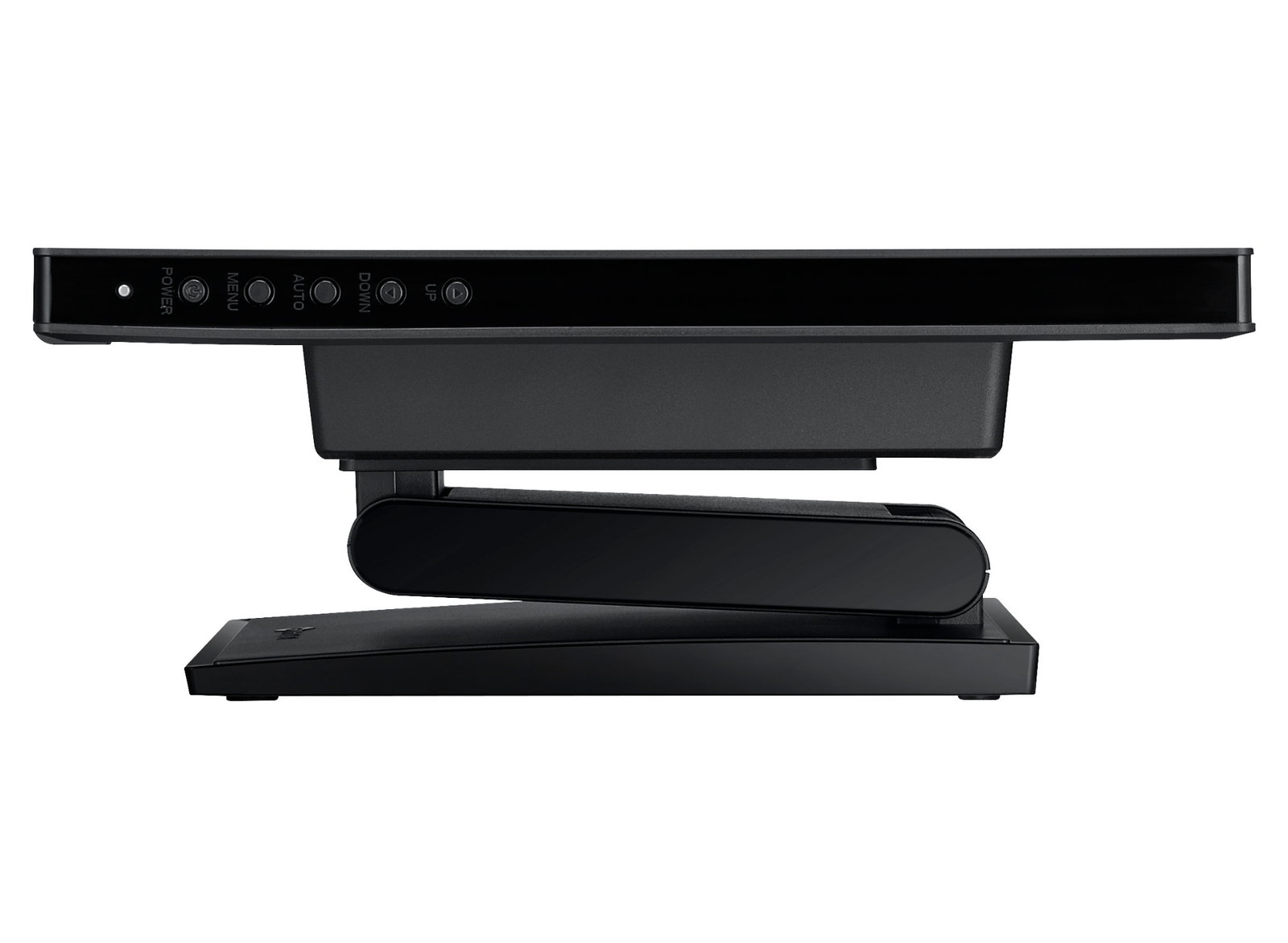

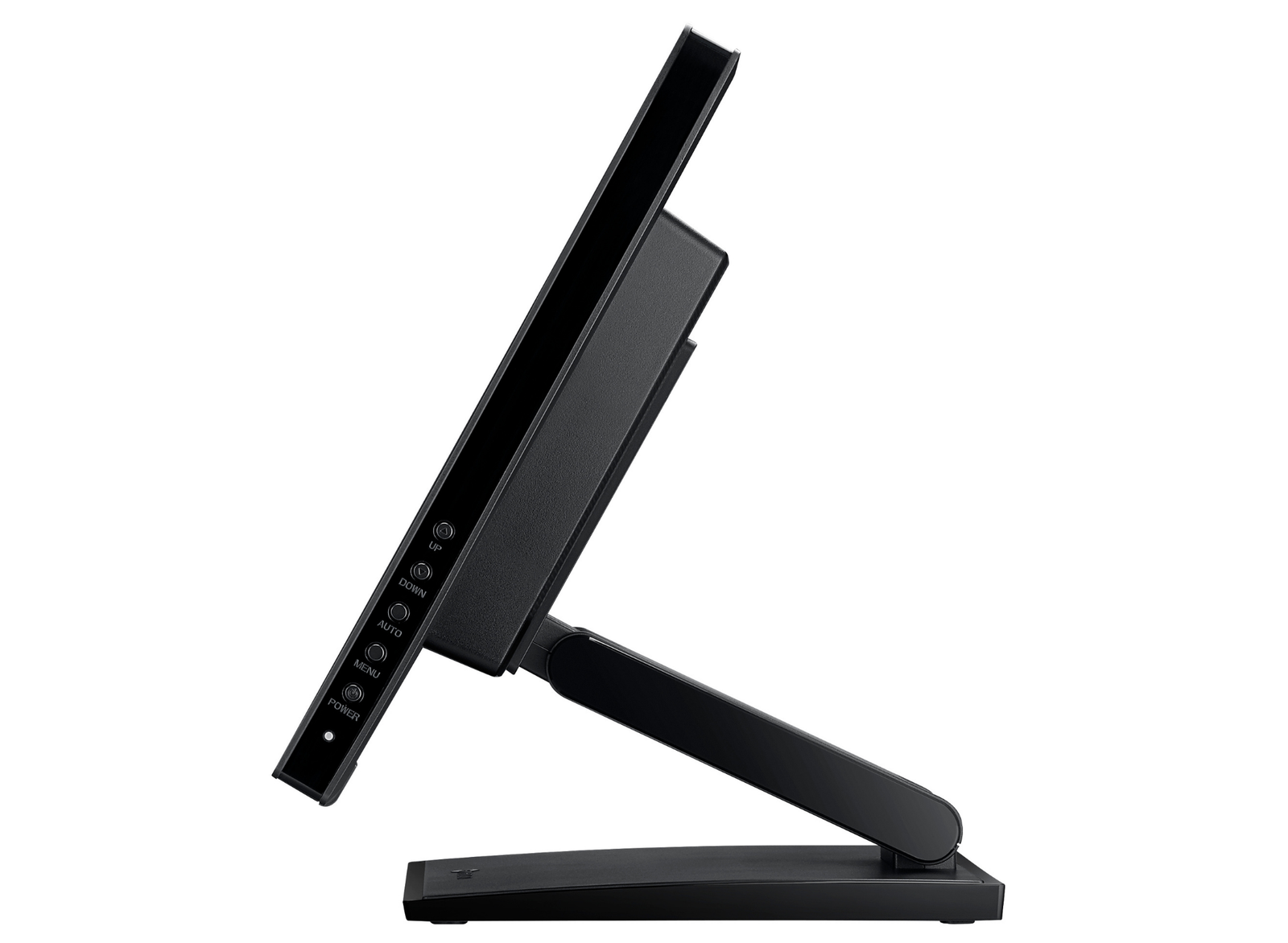

With an ergonomic monitor stand, the TM-22 touch screen provides height adjustability and a wide tilt range from –5° to 90° to optimise users’ ergonomic working position and productivity. Given a 178-degree wide viewing angle, it allows multiple users to view a single screen comfortably.
Easy System Integration

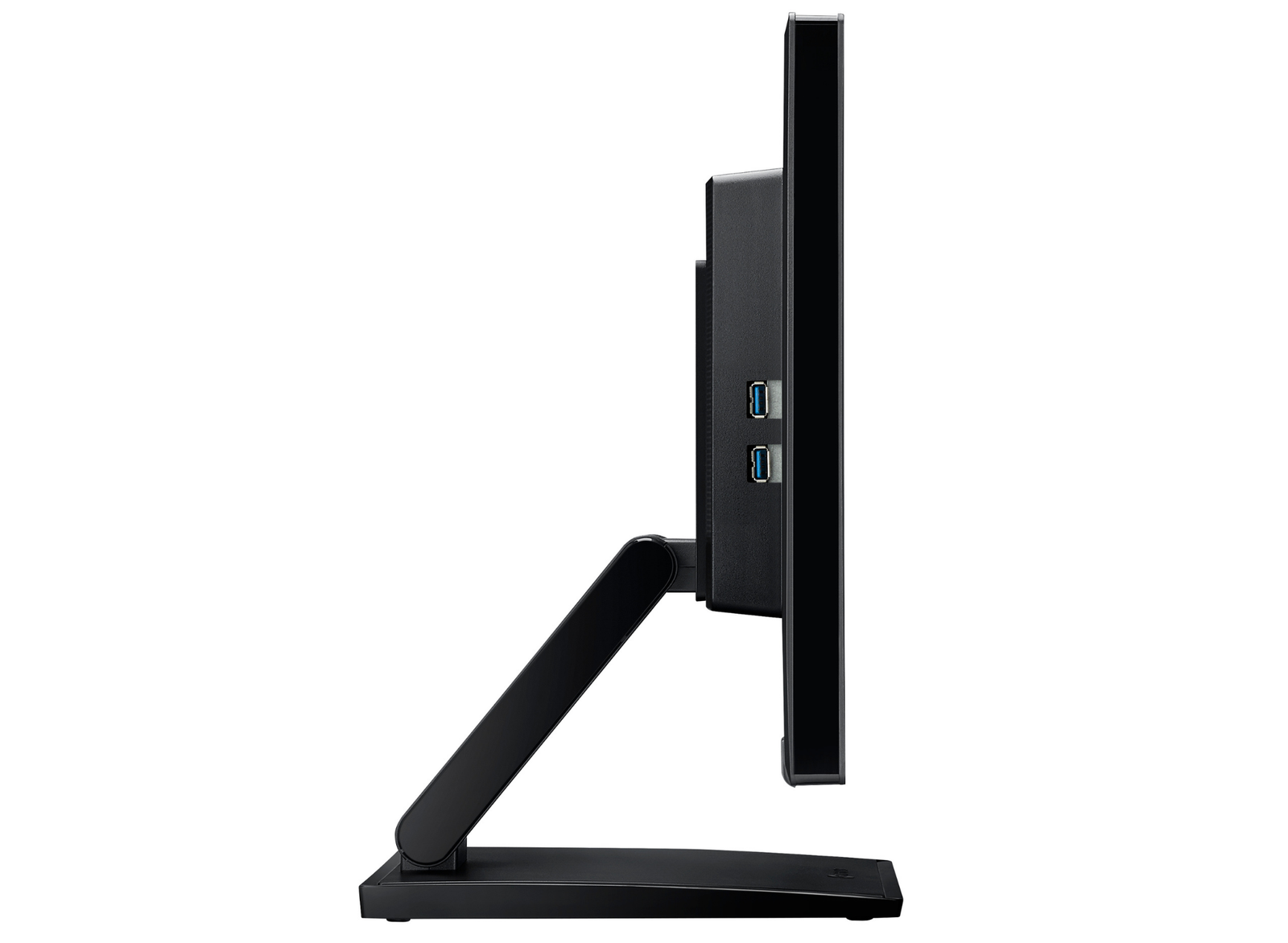

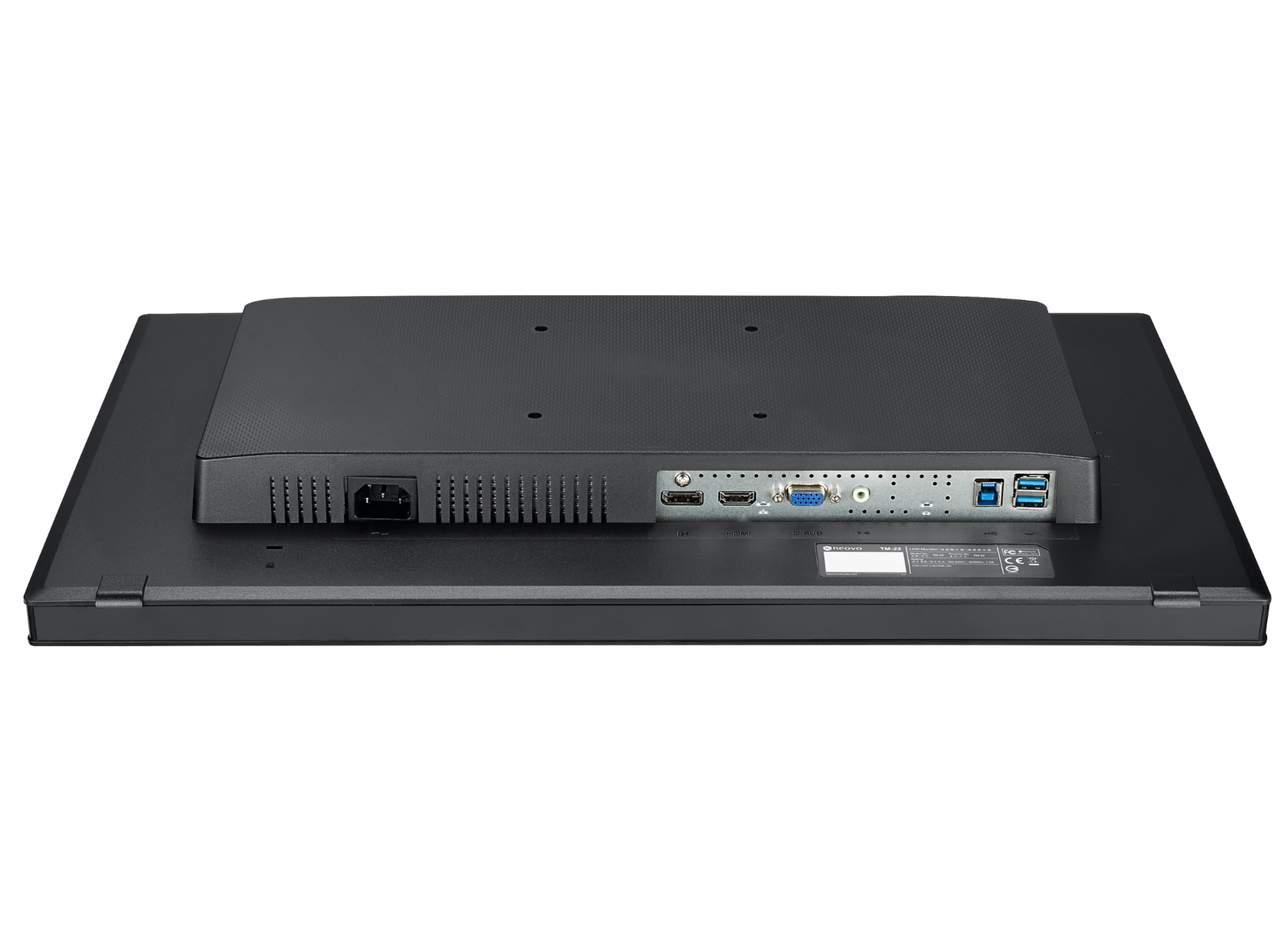

Plug-and-play multi-touch capability for systems with Windows 7/8/10, versatile connectivity (DisplayPort, HDMI, VGA) and built-in speakers enable effortless system integration. The built-in USB Port (USB 3.0) also allows a touch monitor easy connect to peripheral devices.
Multiple Mounting Options Support Installation Flexibility

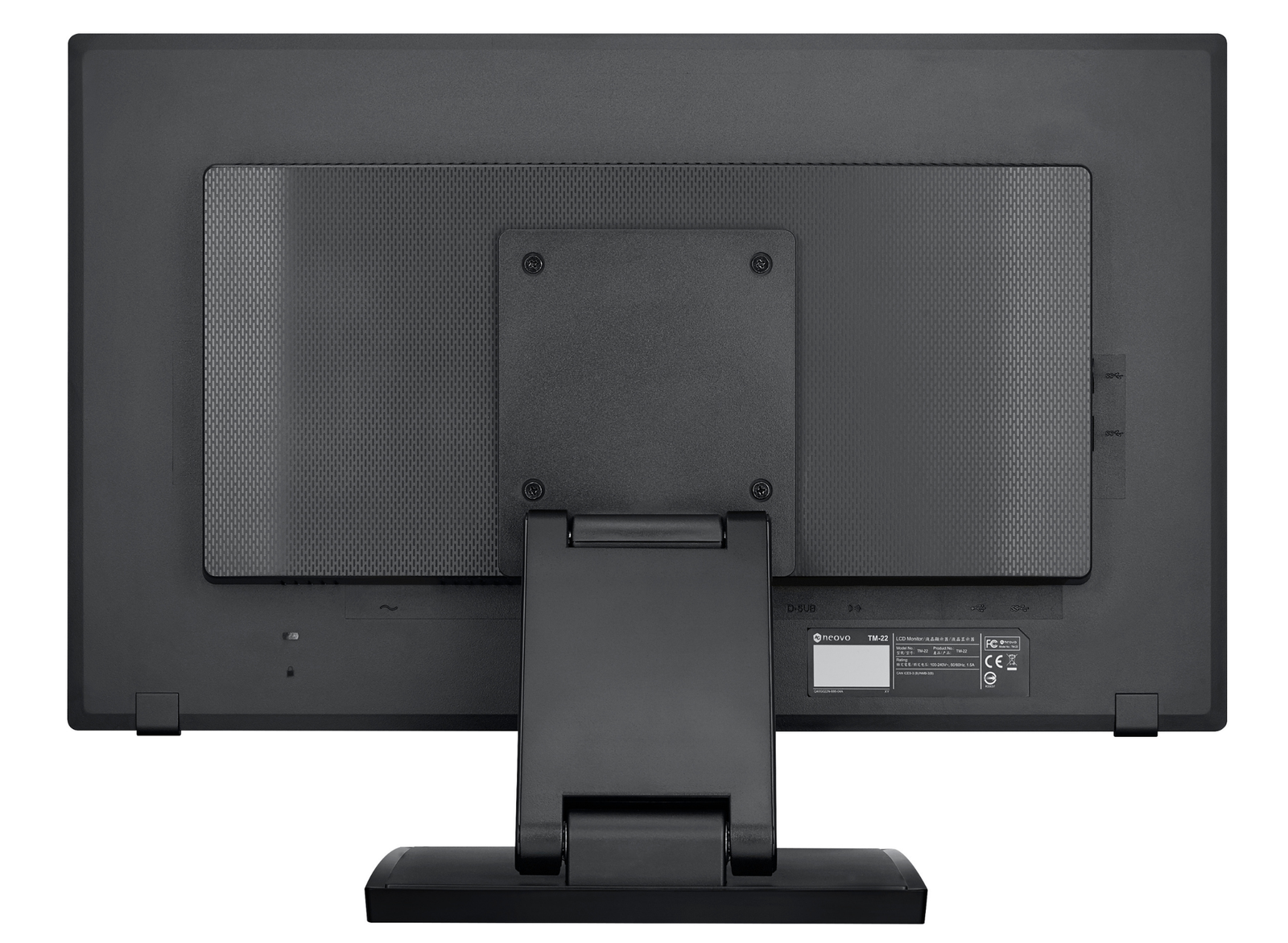

This 22-inch touch screen monitor can be easily integrated with various mounting options, from its ergonomic monitor stand to wall mounts and other monitor mounts that feature VESA mounting patterns.
| Panel | |||
| Panel Type | TN | Panel Size | 21.5" |
| Max. Resolution | FHD 1920 × 1080 | Pixel Pitch | 0.248 mm |
| Brightness | 250 cd/m² | Contrast Ratio | 20,000,000:1 (DCR) |
| Viewing Angle (H/V) | 170°/160° | Display Colour | 16.7M |
| Response Time | 3 ms | Surface Treatment | Anti-Glare Treatment, 3H Hard Coating |
| Frequency | |||
| Frequency (H) | 30 kHz–83 kHz | Frequency (V) | 50 Hz–76 Hz |
| Signal Input and Connectivity | |||
| DisplayPort | × 1 | HDMI | 1.3 × 1 |
| VGA | 15-Pin D-Sub × 1 | USB | USB HUB (3.0 × 4) |
| Audio | |||
| Internal Speakers | 2W × 2 | ||
| Touch Screen | |||
| Technology | Projective Capacitive | Positional Accuracy | ± 1.0 mm |
| Panel Interface | USB (Type-B) | Multi-touch Plug & Play | 10-point touch for Windows® 7, 8, 10 and 11 |
| Single Touch Support by Driver | Windows XP | ||
| Power | |||
| On Mode | 14W | Standby Mode | < 0.5W |
| Off Mode | < 0.3W | ||
| Glass | |||
| Thickness | 2.4 mm (0.09") | Pencil Hardness | 8H |
| IK Rating | IK07 | ||
| Operating Conditions | |||
| Temperature | 0°C–40°C (32°F–104°F) | Humidity | 10%–85% (non-condensing) |
| Storage Conditions | |||
| Temperature | -25°C–55°C (-13°F–131°F) | Humidity | 5%–93% (non-condensing) |
| Mounting and Stand | |||
| VESA FPMPMI | Yes (100 × 100 mm) | Tilt | -5° to 90° |
| Height Adjustment | 122.0–387.4 mm | Kensington Security Slot | Yes |
| Dimensions | |||
| Product with Base (W × H × D) | 522.4 × 387.4 × 238.5 mm (20.6" × 15.3" × 9.4") | Product without Base (W × H × D) | 522.4 × 318.4 × 57.2 mm (20.6" × 12.5" × 2.3") |
| Packaging (W × H × D) | 586.0 × 422.0 × 186.0 mm (23.1" × 16.6" × 7.3") | ||
| Weight | |||
| Product without Base | 3.9 kg (8.6 lb) | Packaging | 8.1 kg (17.9 lb) |
| Regulation Approval | |||
| Certifications & Compliance | FCC, CE, LVD, WEEE, RoHS, REACH, UKCA | ||
| Accessories | |||
| Supplied Accessories | Audio Cable, CD, HDMI Cable, Power Cord, USB Cable, VGA Cable | Optional Wall Mounts (Landscape Only) | PMK-01, WMK-01, WMK-03 |
| Description | Downloads |
|---|---|
| Datasheet | Download |
| User Manual | Download |
| Technical Drawing | Download |
