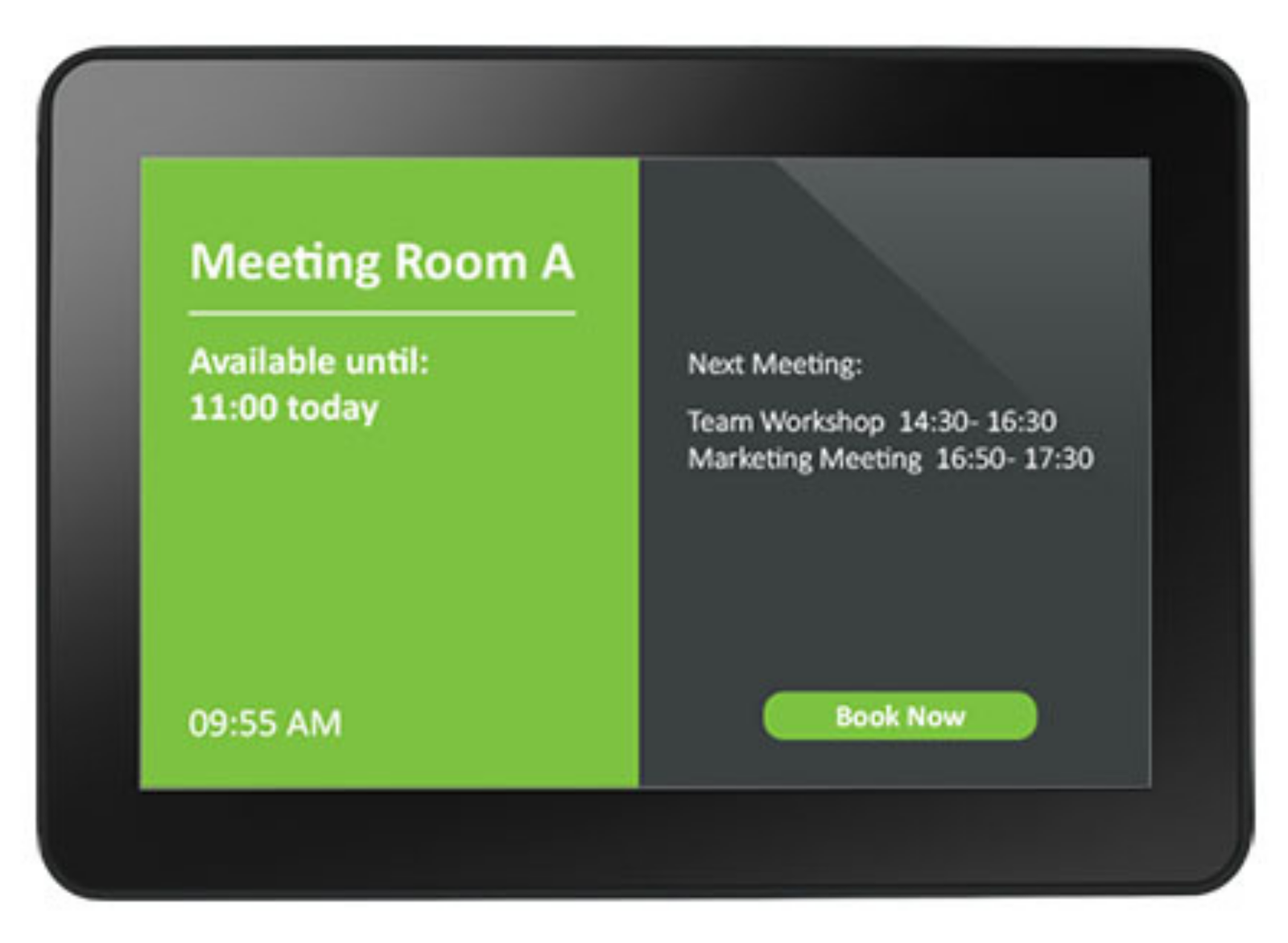

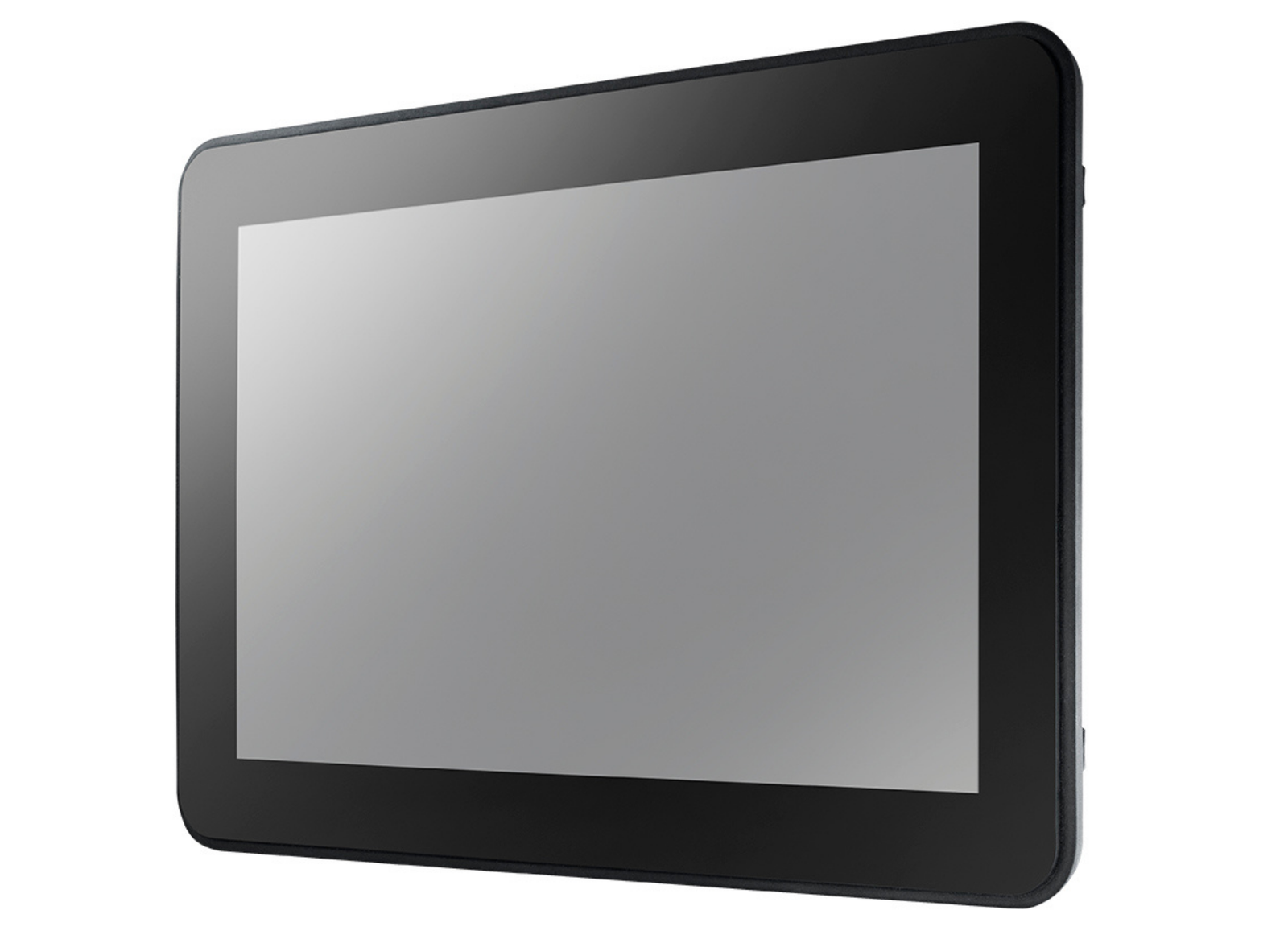

The TX-10 10-inch touch screen monitor brings the experience of a tablet into the form factor of a monitor. Its foam seal design supports seamless integration into kiosks and its front-side IP65 rating protects the screen from dust and water. External mounting brackets are provided for installation in various applications — conference room schedule display, self-service kiosks, in-store interactive signage or control panels. Flexibility in either landscape or portrait installation, the TX-10 touch screen is the perfect fit.
Functional and Reliable for Round-the-Clock Use
Using projected capacitive (PCAP) touch technology, the TX-10 touch screen has 10 point multi-touch capability, gives the user a higher precision, and brings the same touch experience as using a tablet or smartphone. And this functionality is backed by a high-impact resistant screen glass and a high reliability level for around-the-clock operations.
Water and Dust Resistant Design
The front-side IP65 rating protects the touch screen from water and dust. The outer edge of the display is plastic resin bezels and a foam seal finish, ensuring a seamless, airtight fit and protection from dust invasion. Perfect for high-use applications like kiosks or control panels.
Cable Management System

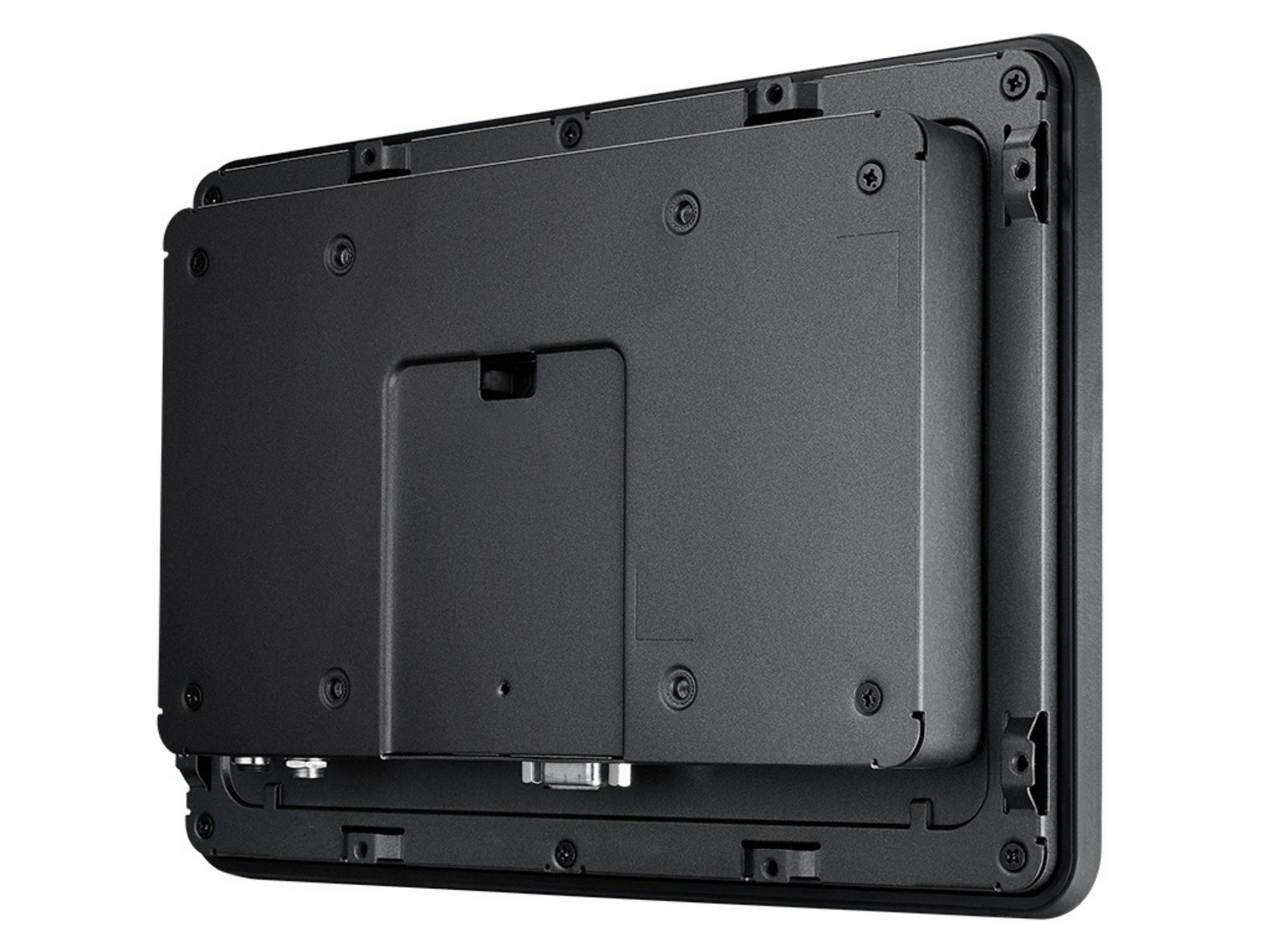

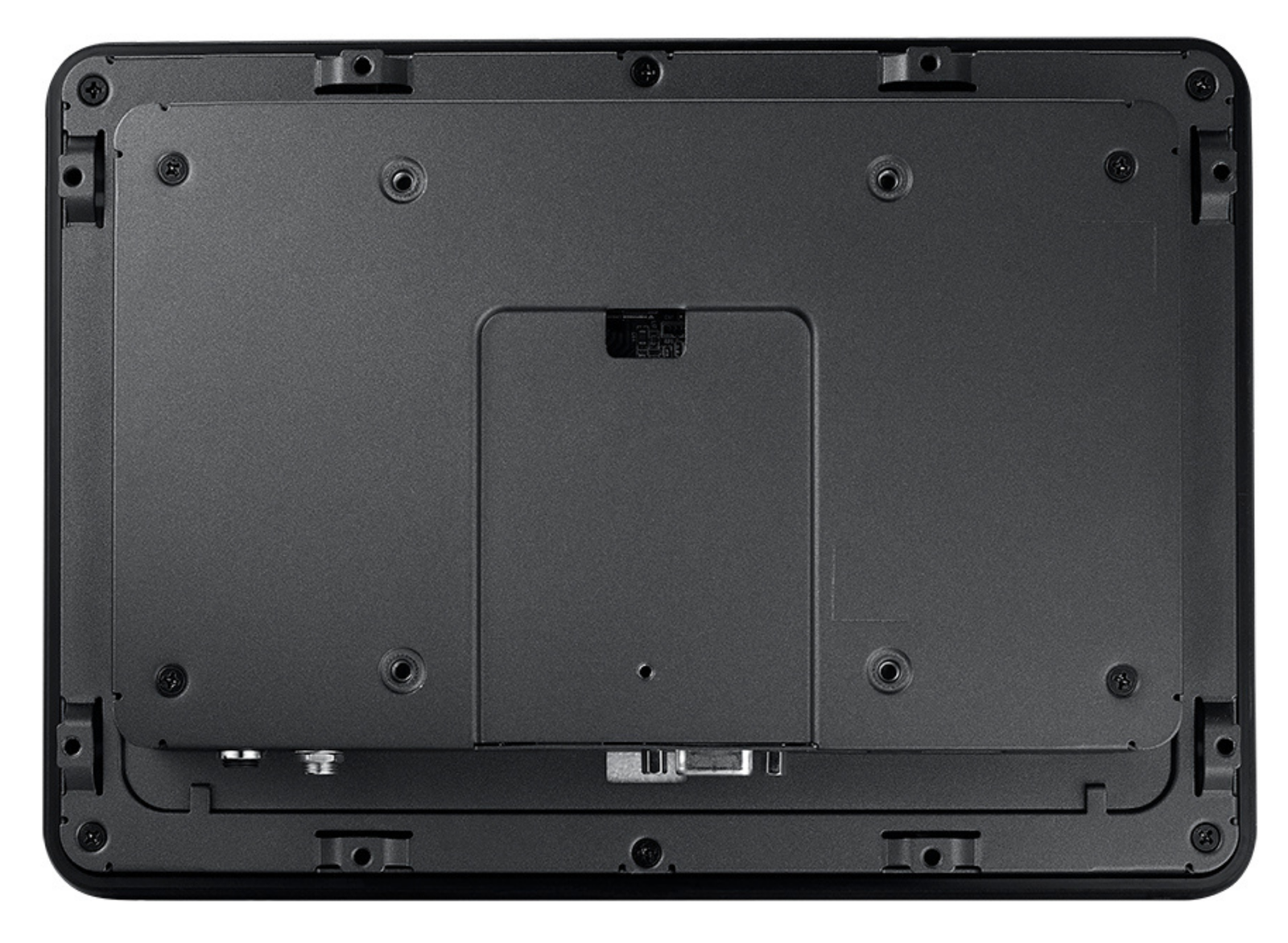

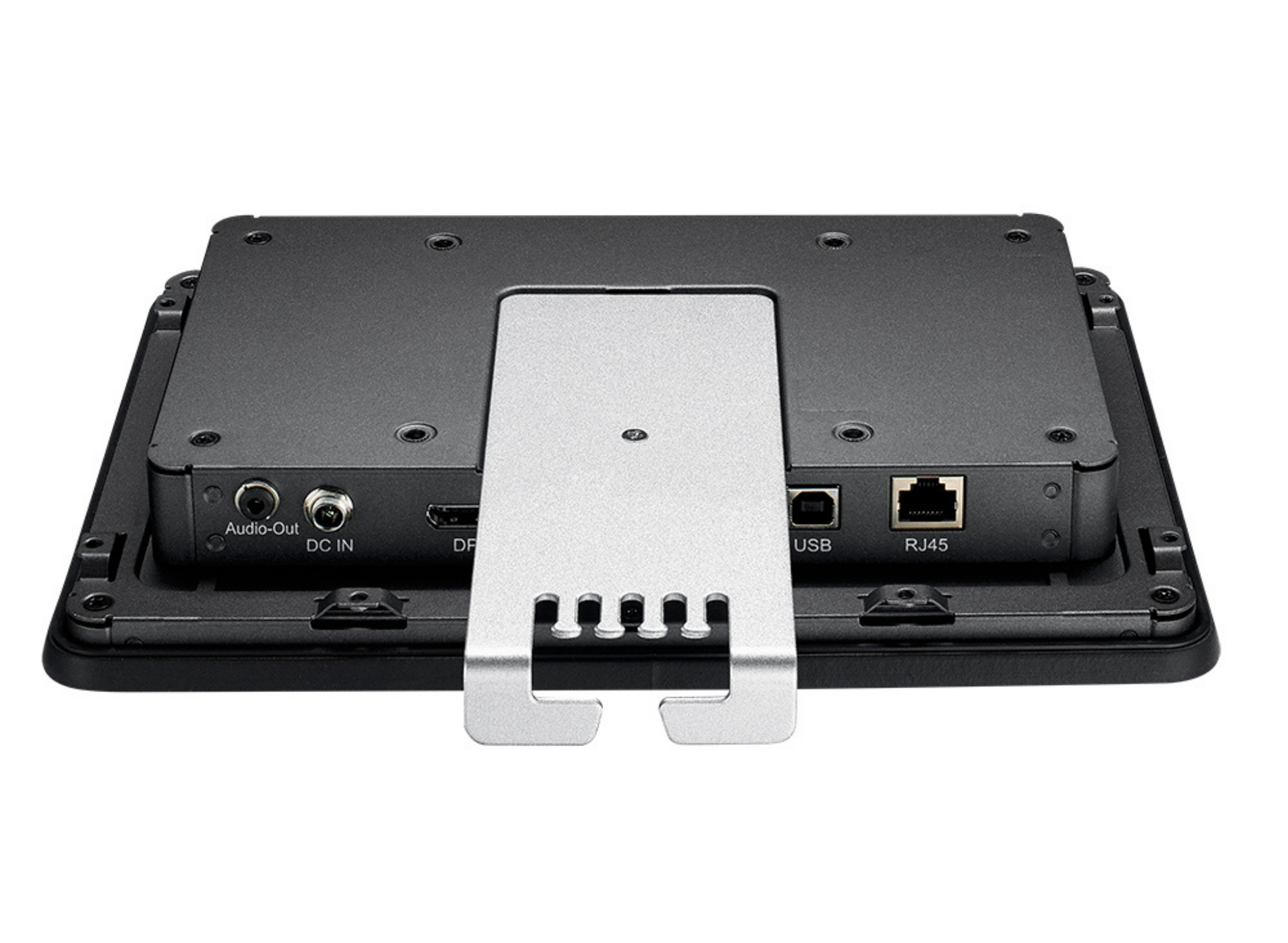

Cleanliness and orderliness are key in commercial and industrial settings. A lockable power adapter and cable organizer at the back end of the touch screen keep cables neat and in order, preventing loose, messy, or disconnected cords.
Easy System Integration

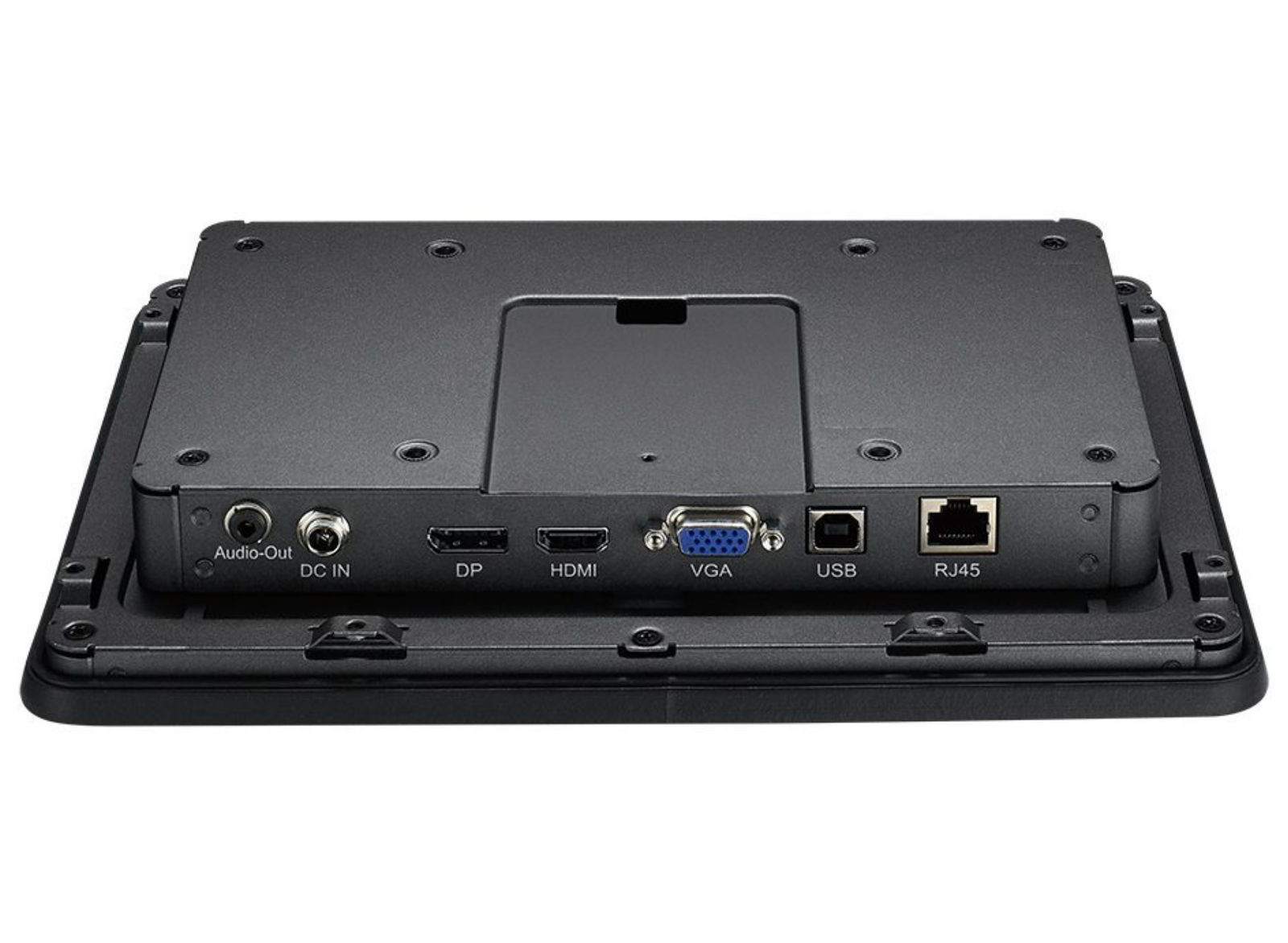

Plug-and-play multi-touch capability for Windows 7/8/10 and versatile connectivity (DisplayPort, HDMI, VGA) enable effortless system integration and facilitate users to connect to various devices.
Mount with Flexibility

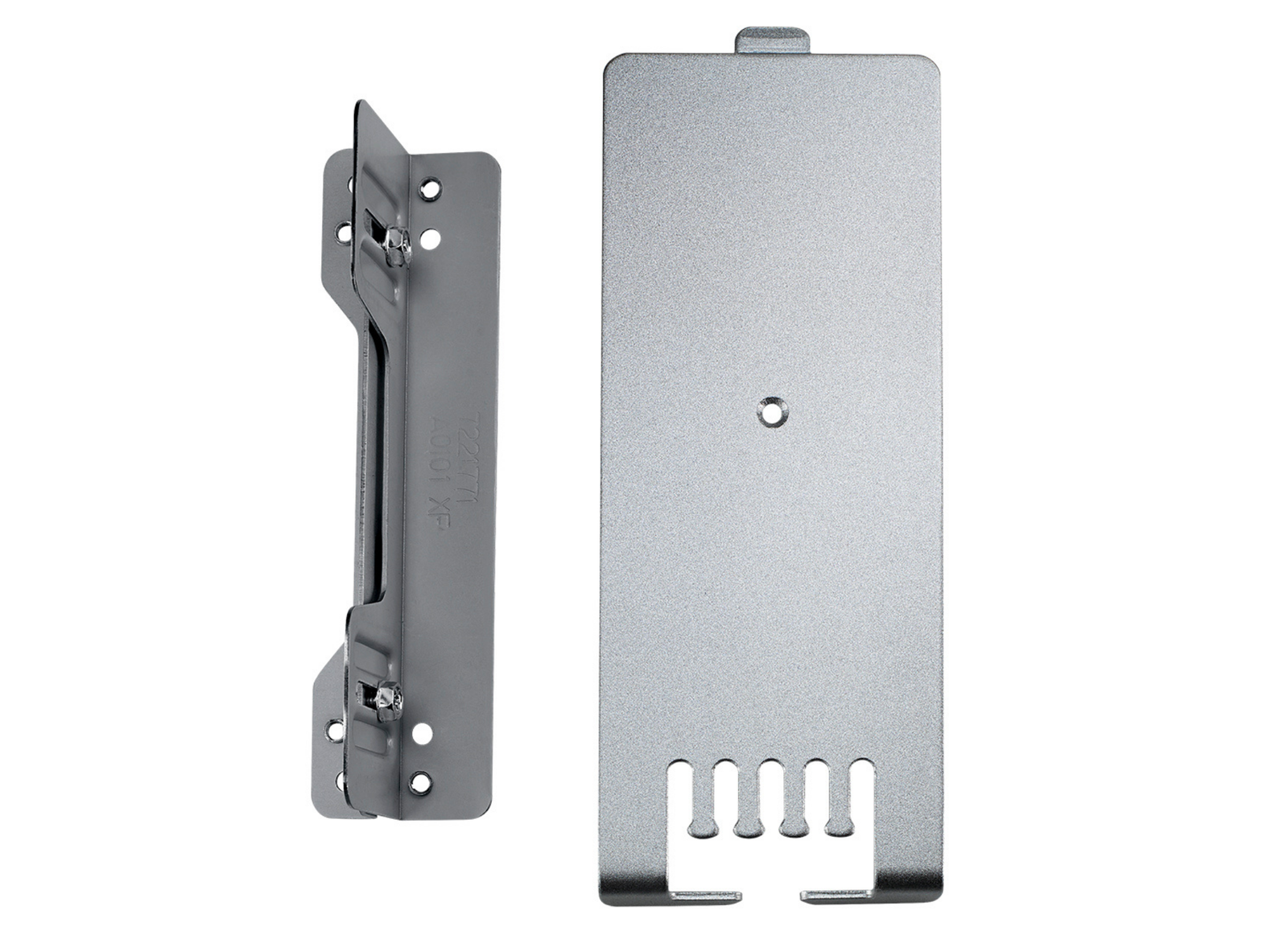

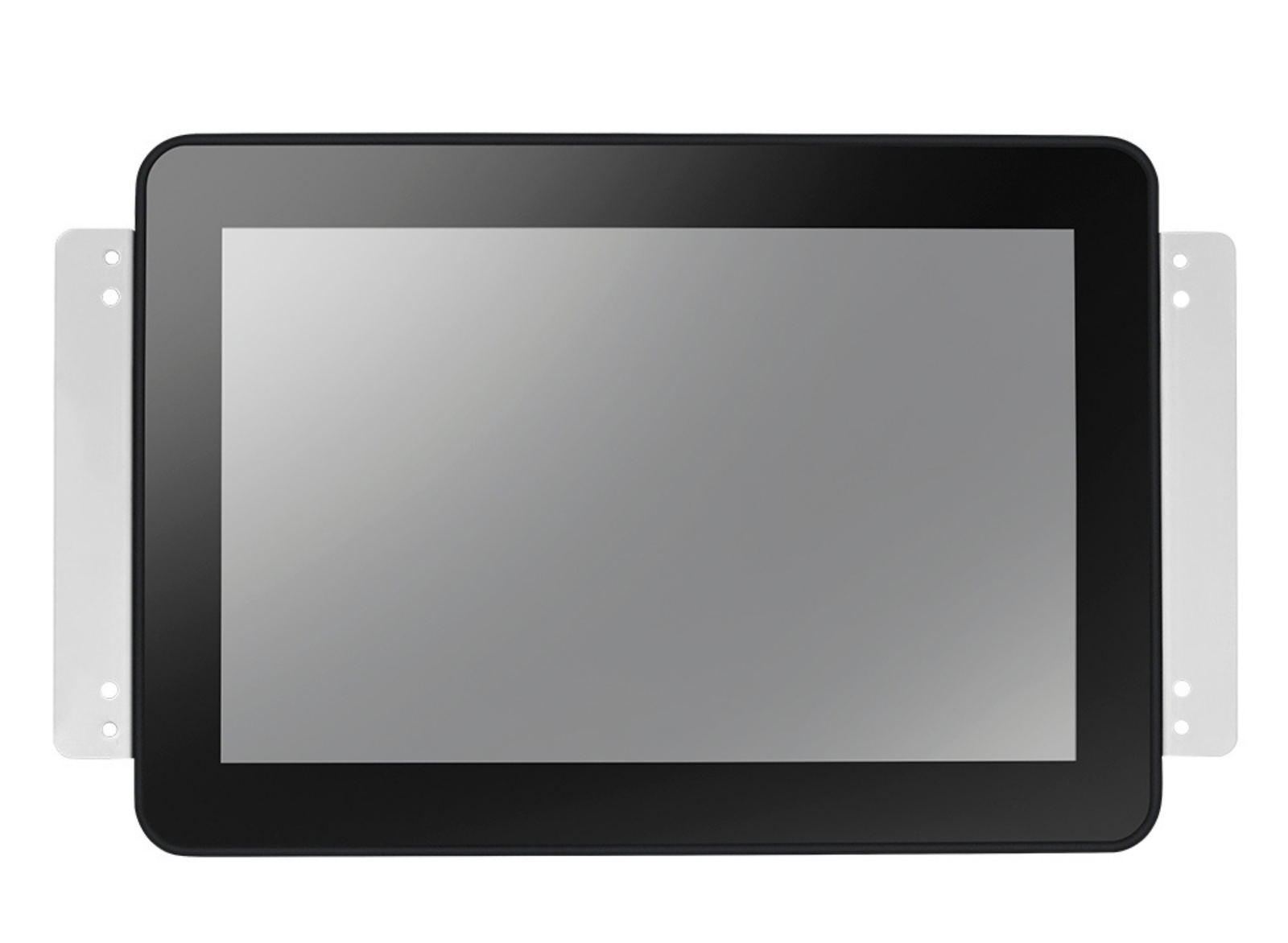

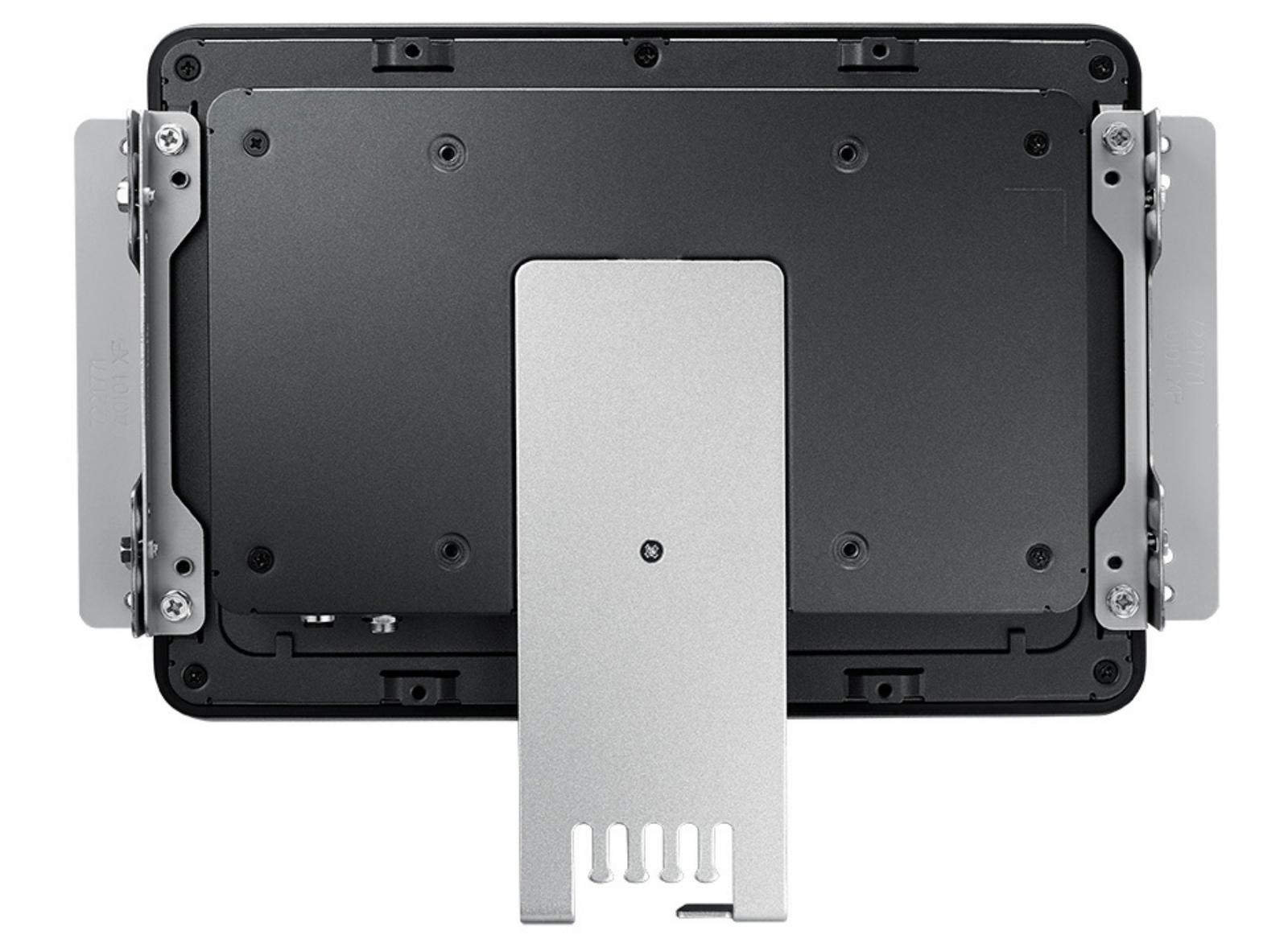

AG Neovo equipped this 10-inch touch screen monitor with external open frame brackets. This allows users to mount the screen in their unique environment and purpose—in either landscape or portrait orientation.
| Section | Panel | Panel Type | IPS |
| Panel Size | 10.1" | Max. Resolution | 1280 × 800 |
| Pixel Pitch | 0.169 mm | Brightness | 500 cd/m² |
| Contrast Ratio | 1300:1 | Viewing Angle (H/V) | 170°/170° |
| Display Colour | 16.2M | Colour Gamut | NTSC 45% |
| Response Time | 5 ms | Section | Frequency |
| Frequency (H) | 31 kHz–50 kHz | Frequency (V) | 56 Hz–60 Hz |
| Section | Signal Input | DisplayPort | × 1 |
| HDMI | 1.3a × 1 | VGA | 15-Pin D-Sub × 1 |
| Section | External Control | RJ45 | × 1 |
| Section | Touch Screen | Technology | Projective Capacitive |
| Positional Accuracy | ±2.5 mm | Panel Interface | USB (Type-B) |
| Multi-touch Plug & Play | 10-point touch for Windows® 7/8/10/11, Linux/Android 2.6.36 or later, Mac OS 10.11–10.14 | Single Touch Support by Driver | 1-point touch for Windows XP/Embedded/7/8/10/11, Linux/Android 2.6.35 and older |
| Section | Power | Power Supply | External |
| Power Requirements | DC 12V, 1.0A | On Mode | 8W (On) |
| Standby Mode | < 0.8W | Off Mode | < 0.3W |
| Section | Glass | Surface Treatment | Clear Glass |
| Thickness | 3.3 mm (0.13") | IK Rating | IK07 |
| MOHS Hardness | 5 | Section | Durability and Protection |
| IP Rating | Front-Sided IP65 | Section | Operating Conditions |
| Temperature | 0°C–50°C (32°F–122°F) | Humidity | 20%–80% (non-condensing) |
| Section | Storage Conditions | Temperature | -20°C–60°C (-4°F–140°F) |
| Humidity | 10%–90% (non-condensing) | Section | Mounting |
| VESA FPMPMI | Yes (100 × 100 mm) | Section | Dimensions |
| Product w/o Base (W × H × D) | 260.7 × 183.4 × 39.4 mm (10.3" × 7.2" × 1.6") | Packaging (W × H × D) | 370.0 × 325.0 × 160.0 mm (14.6" × 12.8" × 6.3") |
| Section | Weight | Product w/o Base | 1.4 kg (3.1 lb) |
| Packaging | 2.4 kg (5.3 lb) | Section | Regulation Approval |
| Certifications & Compliance | CE, LVD, BSMI, RoHS, REACH, WEEE, UKCA | Section | Accessories |

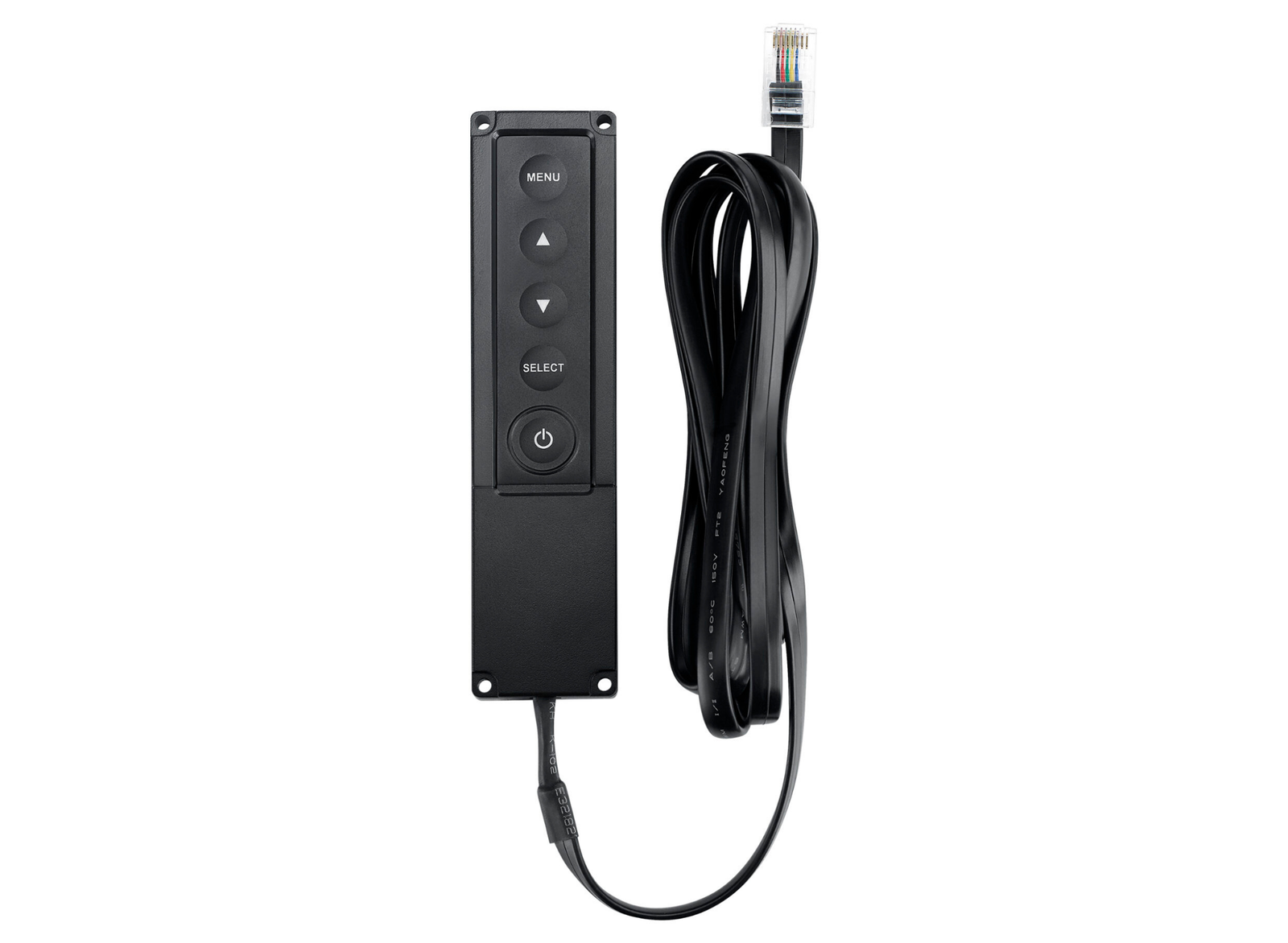

| Supplied Accessories | DisplayPort Cable, Power Adaptor, Power Cord, Quick Start Guide, Side Bracket Package, USB Cable, VGA Cable, Wired OSD Controller | Optional Wall Mount | PMK-01, WMK-01 (Landscape only) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
| User Manual | Download |
| Technical Drawing | Download |
