XGA 1280 x 1024 resolution with 5:4 aspect ratio
10-point projected capacitive touch technology
Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
Windows 10 ready – plug and play support for Windows 7/8/10
Designed and developed for continuous 24/7 operation

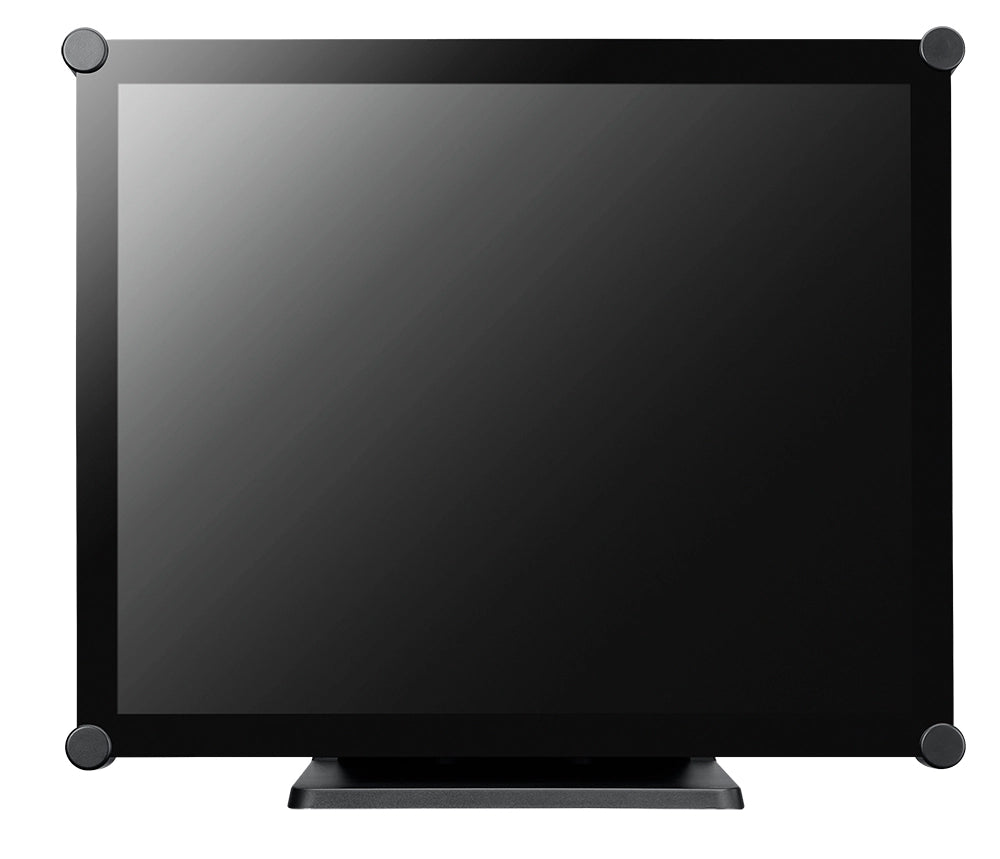

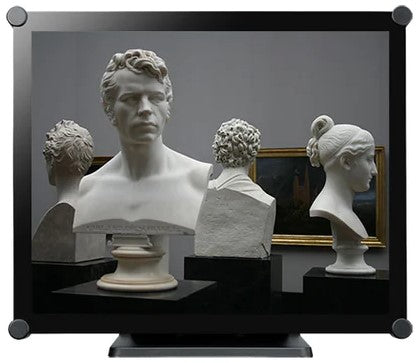

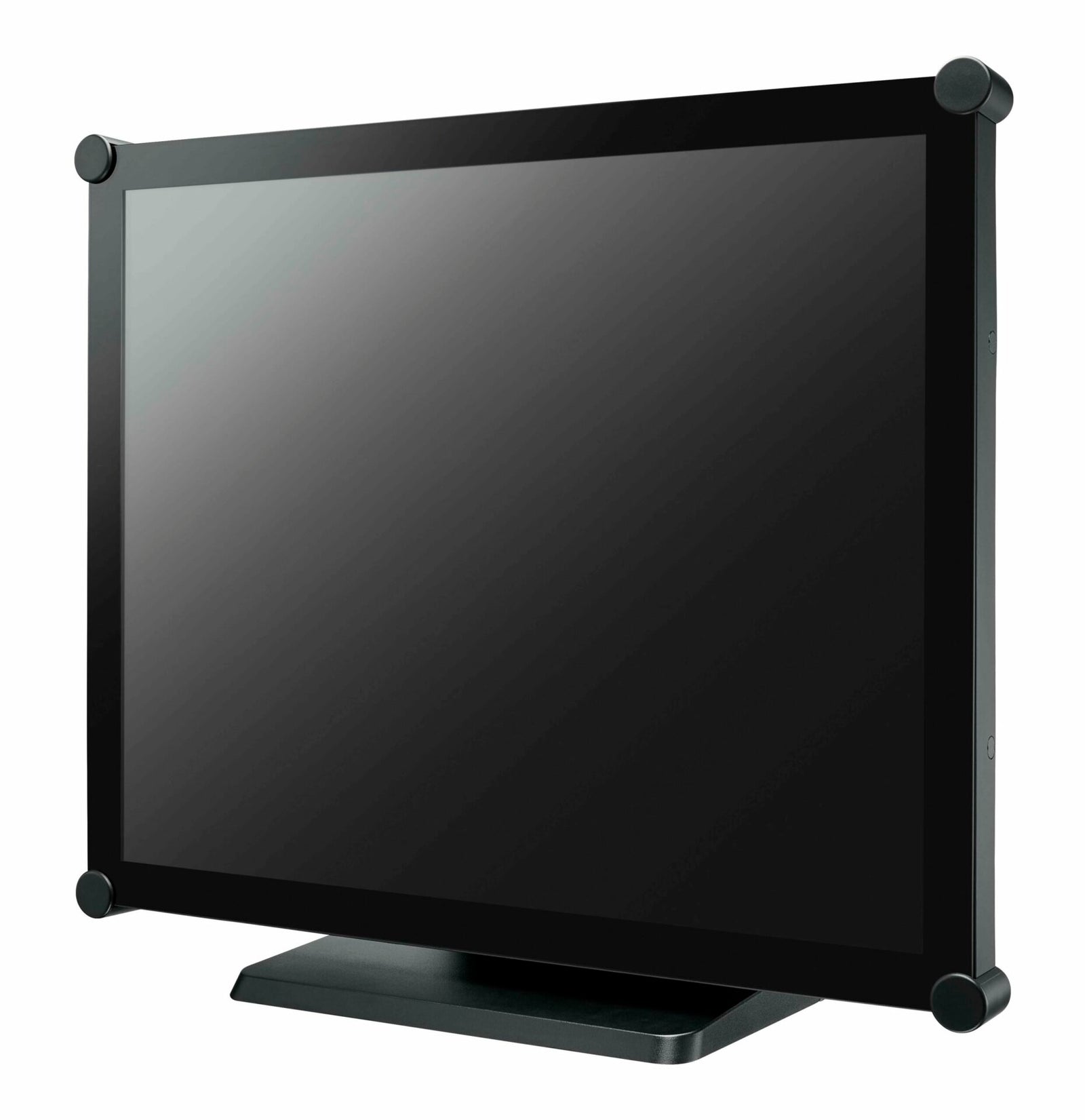

AG Neovo TX-1902 19-inch touch screen monitor provides a smooth and responsive touch experience with 10-point projected capacitive (PCAP) multi-touch screens, including responsiveness to latex gloves. With DisplayPort, HDMI and VGA input connectivity, the TX-1902 supports analogue and digital signals respectively, making them flexible for various applications such as factory automation, information displays, digital signage, and self-service kiosks. The TX-1902 touch monitor is complemented by a metal housing with an edge-to-edge tempered glass design which enhances durability for continuous operation in demanding and high-traffic areas.
PREMIUM PCAP MULTI TOUCH SCREEN
Based on PCAP touch screen technology, the TX-1902 touch screen monitor can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch responses. These seamless touch senses are identical to those used in smartphones and tablets.
CROSS-PLATFORM TOUCH CAPABILITY
Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.
IP65 DUST AND WATER PROTECTION
The TX-1902 front IP65 touch screen monitor is designed to protect against dust and liquid spills. This makes the TX-1902 a durable touch monitor ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.
CONSISTENT FORM FACTOR DESIGN
Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, the TX-1902 uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.
ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

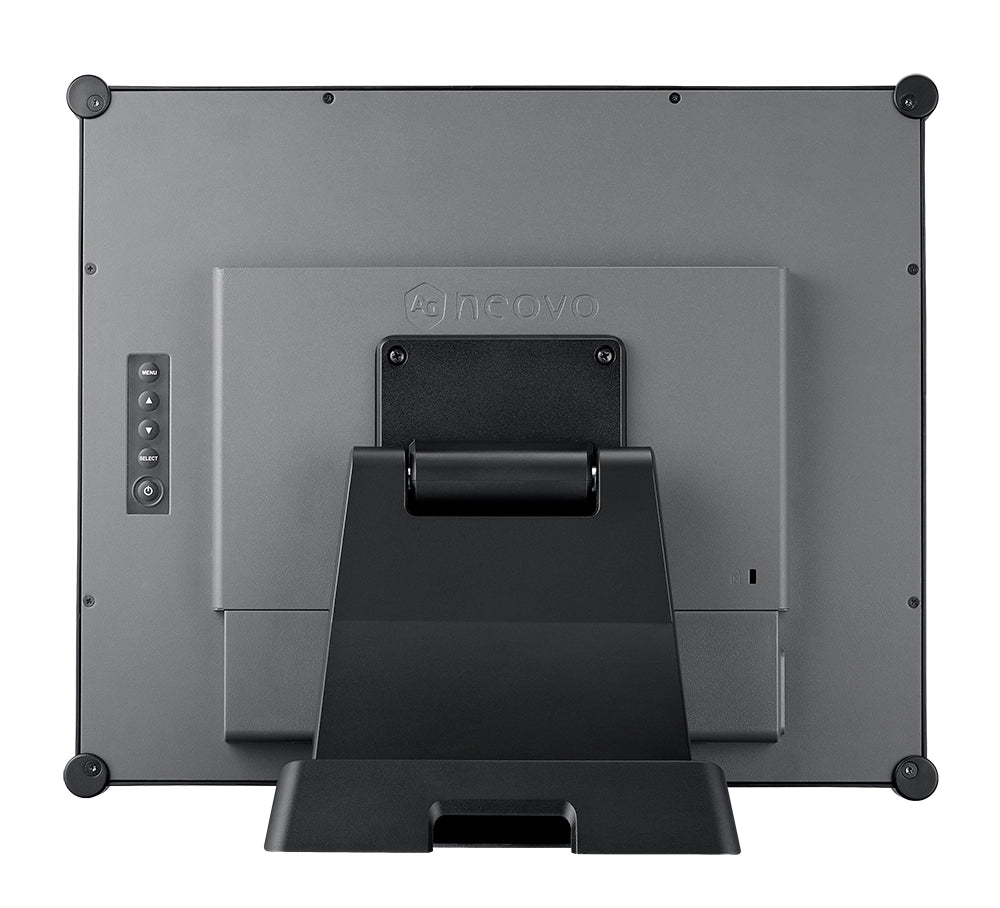

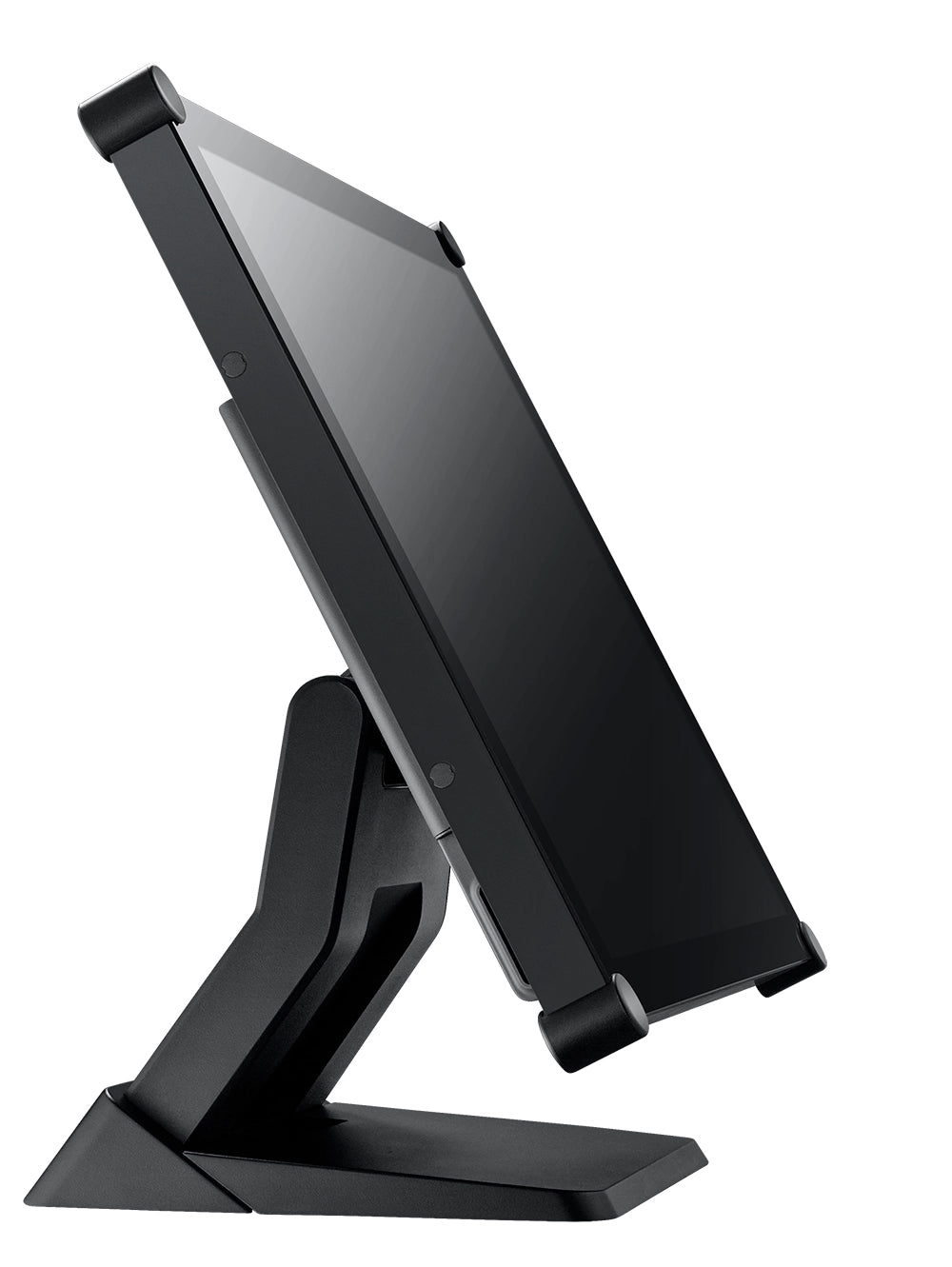

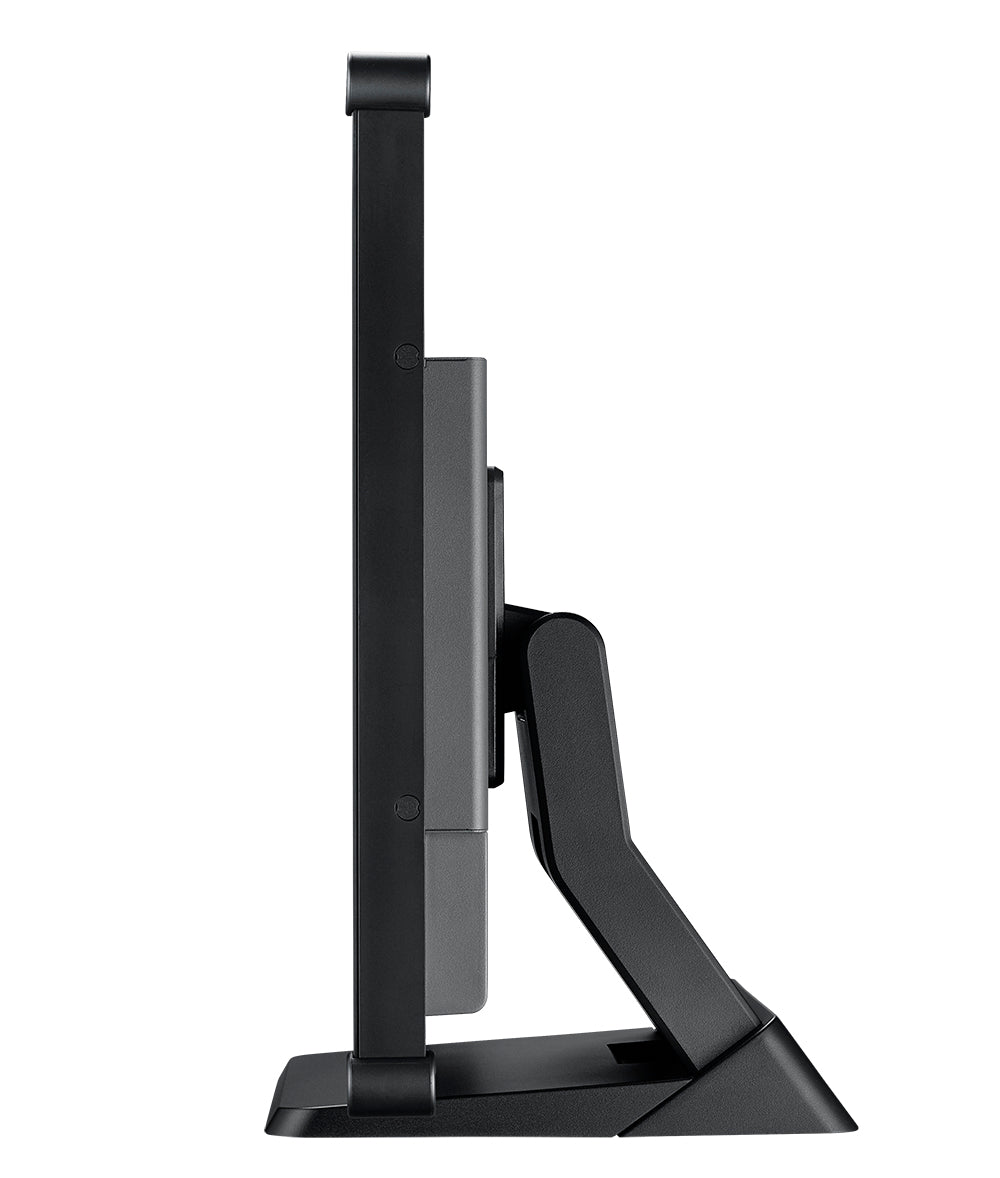

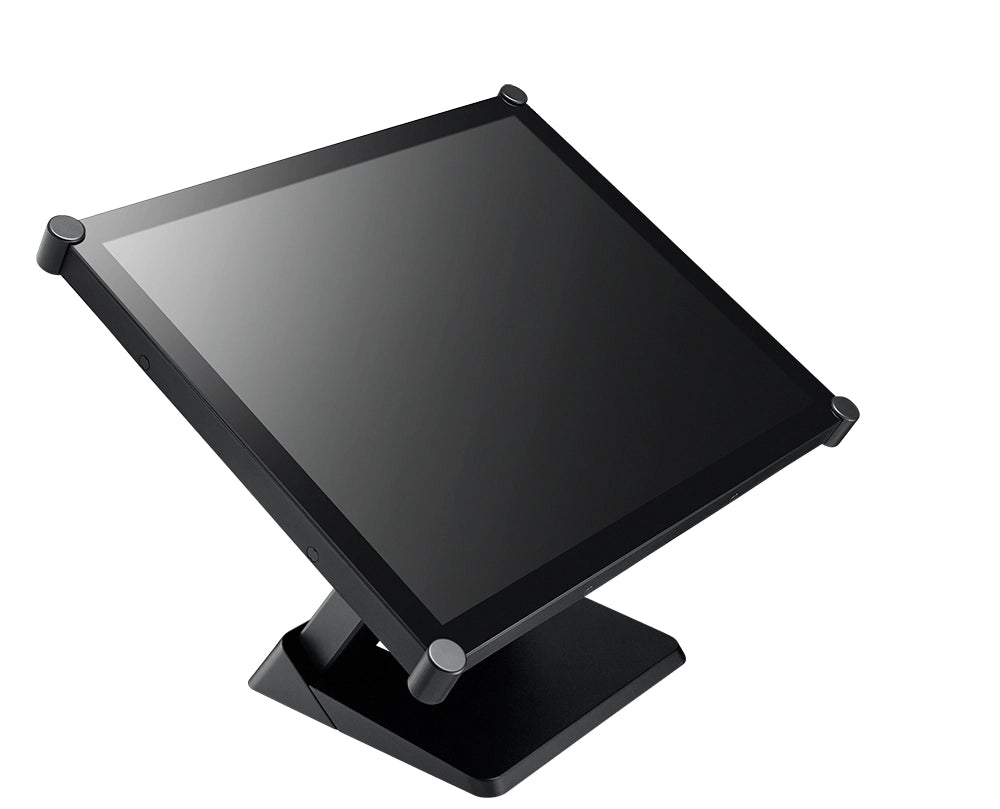

The TX-1902 touch monitor offers flexible mounting options, from the adjustable stand that come with the monitor to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. The TX-1902 features adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.
VERSATILE CONNECTIVITY

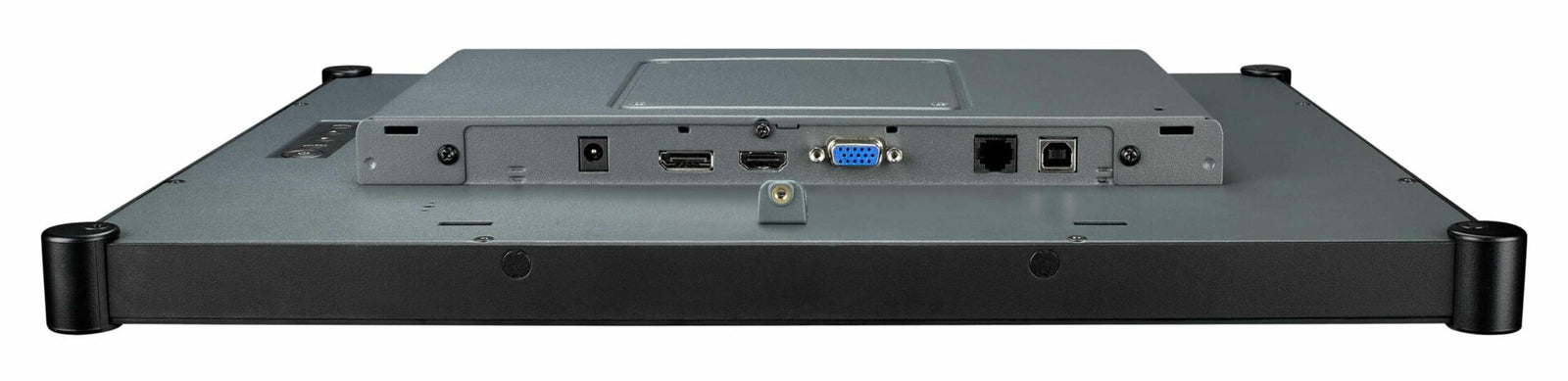

The TX-1902 provides new and legacy systems the best of both worlds since it has both analogue (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.
| Feature | Specification |
|---|---|
| Panel Type | TN |
| Panel Size | 19" |
| Max. Resolution | SXGA 1280 x 1024 |
| Pixel Pitch | 0.294 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 170°/160° |
| Display Colour | 16.7M |
| Response Time | 3 ms |
| Surface Treatment | Anti-Glare Treatment (Haze 25%),3H Hard Coating |
| Frequency (H) | 31 kHz-80 kHz |
| Frequency (V) | 50 Hz-75 Hz |
| Signal Input | DisplayPort x 1, HDMI 1.4 x 1, VGA 15-Pin D-Sub x 1 |
| External Control | RJ11 |
| Touch Screen Technology | Projective Capacitive |
| Positional Accuracy | ± 2.0 mm |
| Multi-touch Plug & Play | 10-point touch Windows® 7、8、10、11 |
| Single Touch Support by Driver | Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14 |
| Multi-touch Support by Driver | 10-point touch for Linux、Android 2.3-4.x |
| Power Supply | External |
| Power Requirements | DC 12V, 2.5A |
| On Mode Power | 12W (On) |
| Standby Mode Power | < 0.8W |
| Off Mode Power | < 0.3W |
| Glass Thickness | 3.1 mm (0.12") |
| Transmission Rate | > 85% |
| Hardness | > 7H |
| Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 20%-80% (non-condensing) |
| VESA FPMPMI | Yes (100 x 100 mm) |
| Tilt | -5° to 90° |
| Kensington Security Slot | Yes |
| Product with Base (W x H x D) | 427.0 x 374.6 x 214.2 mm (16.8" x 14.7" x 8.4") |
| Product w/o Base (W x H x D) | 427.0 x 355.0 x 48.8 mm (16.8" x 14.0" x 1.9") |
| Packaging (W x H x D) | 500.0 x 460.0 x 300.0 mm (19.7" x 18.1" x 11.8") |
| Product with Base Weight | 6.5 kg (14.3 lb) |
| Product w/o Base Weight | 4.5 kg (9.9 lb) |
| Packaging Weight | 8.3 kg (18.7 lb) |
| Certifications & Compliance | CE, LVD, WEEE, RoHS, REACH, EAC |
| Supplied Accessories | HDMI Cable, Power Adaptor, Power Cord, Quick Start Guide, USB Cable, VGA Cable |
| Optional Accessories | Wall Mount (Landscape only), PMK-01, WMK-01, WMK-03 |
AG Neovo provides the following limited warranty. This limited warranty applies only to the original End User and to no other purchaser or transferee.
AG Neovo warrants its LCD Monitor products and parts against defects in materials and workmanship under normal use for a period of Three (3) Years for parts from the date of initial retail purchase. AG Neovo warrants LCD Panel for a period of Three (3) years from the date of initial retail purchase. During this period, AG Neovo will repair or replace a defective product or part without charge.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
The AG Neovo warranty obligations for the product are limited to the terms set forth below.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
AG Neovo warrants its accessories to be free from defects in material and workmanship under normal operating conditions for a period of 12 months limited warranty.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
For information on obtaining warranty service, call your AG Neovo dealer, AG Neovo’s Customer Support hotline, or email service centers.
