Full HD 1920 x 1080 resolution
Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
10-point projected capacitive touch technology
Windows 10 ready – plug and play support for Windows 7/8/10/11
Flexible dual-hinge stand design to maximise viewing comfort for multiple users
10 POINT MULTI-TOUCH MONITOR

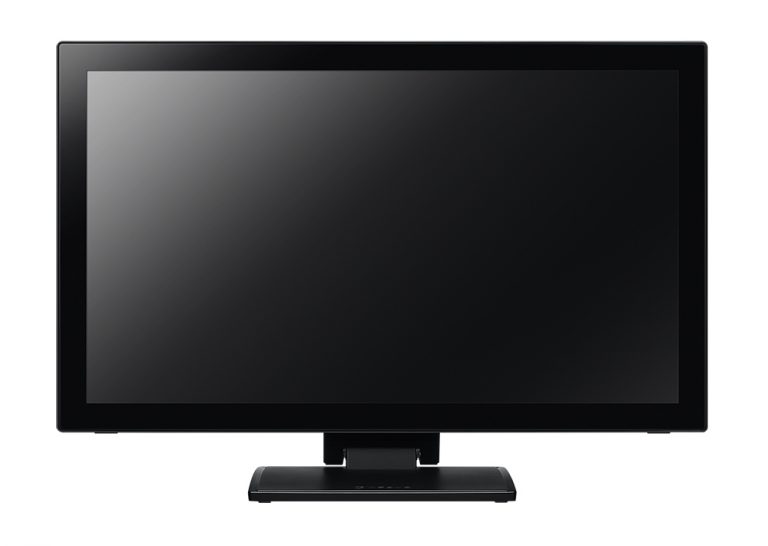

The TM-23 PCAP touch screen monitor, with 10-point touch capability, offers a smooth and responsive touch experience. Designed with a flat surface and edge-to-edge glass overlay, the TM-23 gives an invitingly modern appeal that fits the professional environment.
ERGONOMIC MONITORS MAXIMISE USERS COMFORT

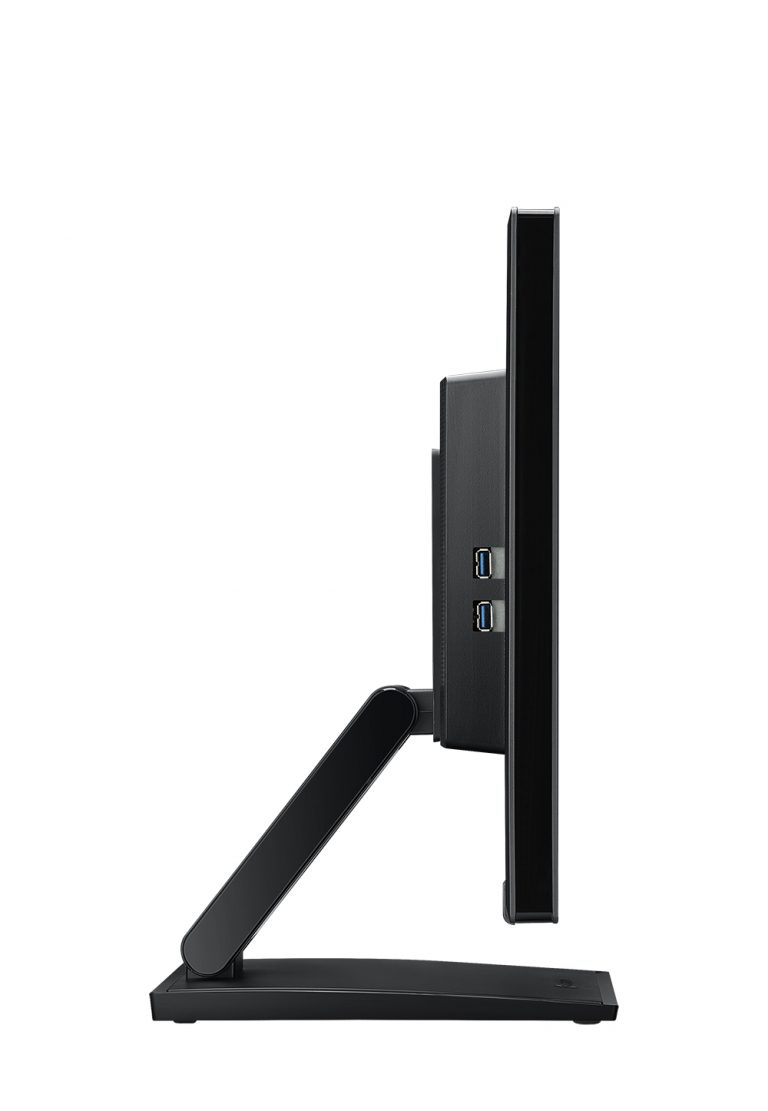

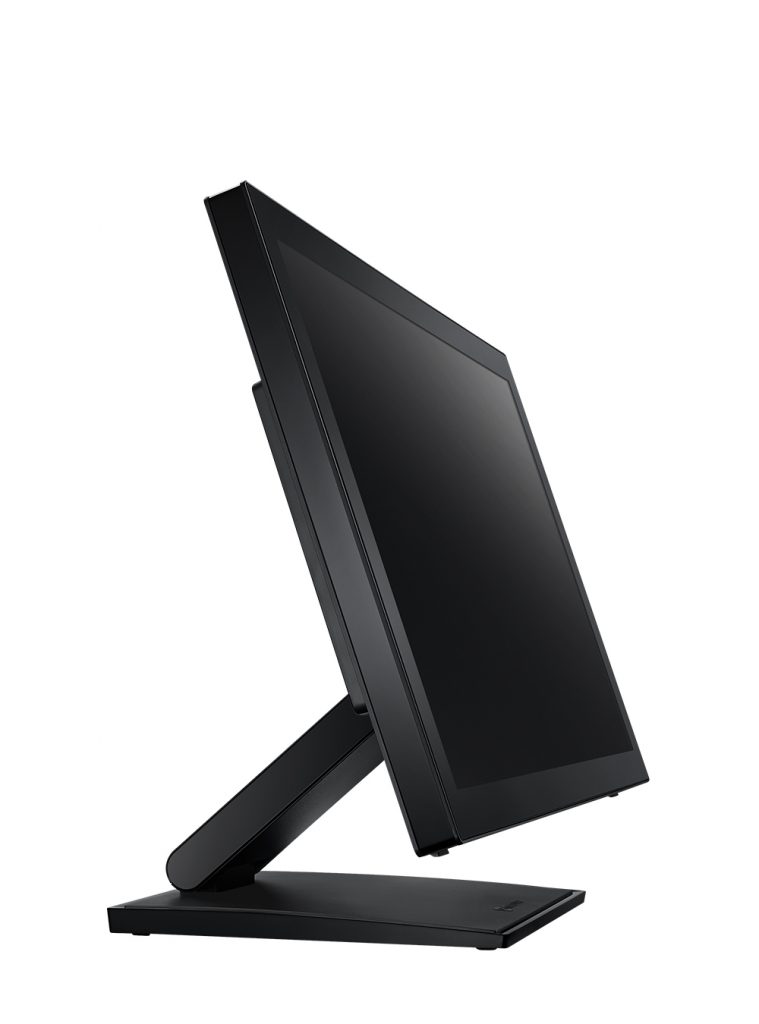

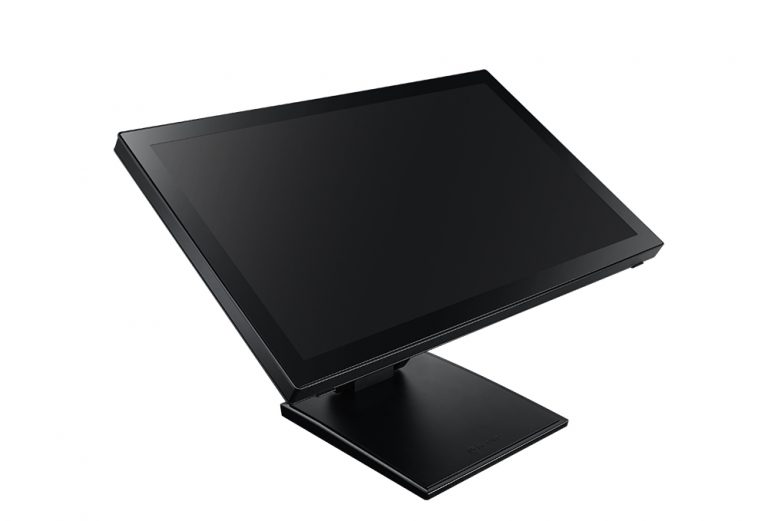

With an ergonomic monitor stand, the TM-23 touch screen provides height adjustability and a wide tilt range from –5° to 90° to optimise users’ ergonomic working position and productivity. Given a 178-degree wide viewing angle, it allows multiple users to view a single screen comfortably.
EASY SYSTEM INTEGRATION

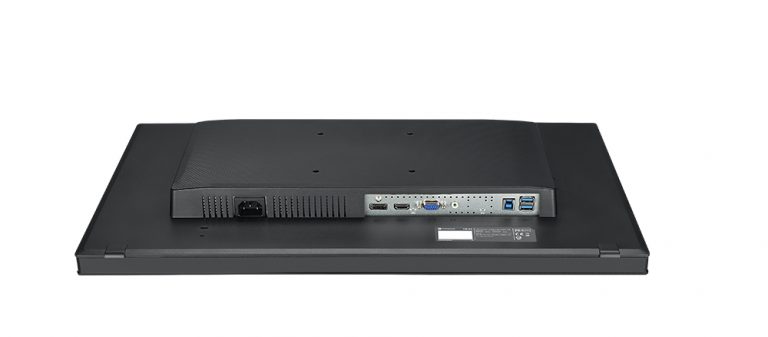

Plug-and-play multi-touch capability for systems with Windows 7/8/10/11, versatile connectivity (DisplayPort, HDMI, VGA) and built-in speakers enable effortless system integration. The built-in USB Port (USB 3.0) also allows a touch monitor easy connect to peripheral devices.
| Panel | |
|---|---|
| Panel Type | IPS |
| Panel Size | 23.0" |
| Max. Resolution | FHD 1920 x 1080 |
| Pixel Pitch | 0.265 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 20,000,000:1 (DCR) |
| Viewing Angle (H/V) | 178°/178° |
| Display Colour | 16.7M |
| Response Time | 5 ms |
| Frequency (H) | 30 kHz-83 kHz |
| Frequency (V) | 50 Hz-76 Hz |
| Signal Input | |
| DisplayPort | x 1 |
| HDMI | 1.3 x 1 |
| VGA | 15-Pin D-Sub x 1 |
| Other Connectivity | |
| USB | USB HUB (3.0 x 4) |
| Audio | |
| Audio In | Stereo Audio Jack (3.5 mm) |
| Internal Speakers | 2W x 2 |
| Touch Screen | |
| Technology | Projective Capacitive |
| Positional Accuracy | ± 1.0 mm |
| Panel Interface | USB (Type-B) |
| Multi-touch Plug & Play | 10-point touch Windows® 7、8、10、11 |
| Single Touch Support by Driver | Windows XP |
| Power | |
| Power Supply | Internal |
| Power Requirements | AC 100-240V 50/60 Hz |
| On Mode | 14W (On) |
| Standby Mode | < 0.7W |
| Off Mode | < 0.3W |
| Glass | |
| Thickness | 2.4 mm (0.09") |
| Transmission Rate | > 90% |
| Hardness | > 7H |
| Operating Conditions | |
| Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 10%-85% (non-condensing) |
| Storage Conditions | |
| Temperature | -25°C-55°C (-13°F-131°F) |
| Humidity | 5%-93% (non-condensing) |
| Mounting | |

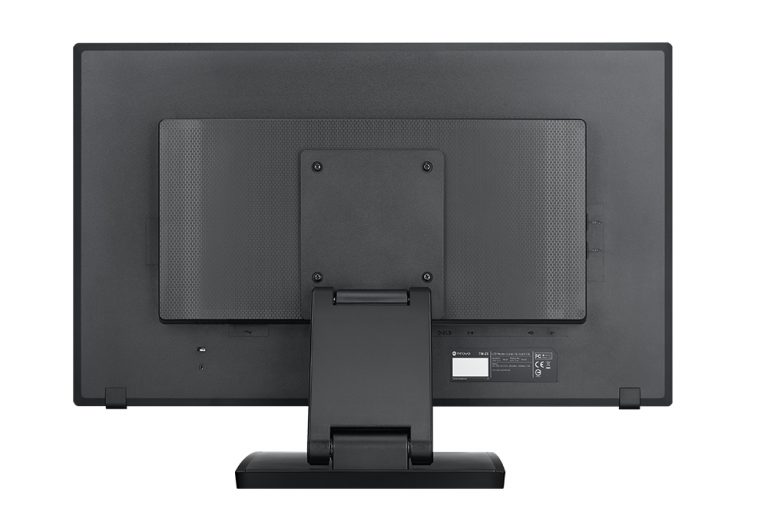

| VESA FPMPMI | Yes (100 x 100 mm) |
| Stand | |
| Tilt | -5° to 90° |
| Height Adjustment | 131.5-400.0 mm |
| Security | |
| Kensington Security Slot | Yes |
| Dimensions | |
| Product with Base (W x H x D) | 561.0 x 400.0 x 238.5 mm (22.1" x 15.7" x 9.4") |
| Product w/o Base (W x H x D) | 561.0 x 338.2 x 57.2 mm (22.1" x 13.4" x 2.3") |
| Packaging (W x H x D) | 632.0 x 448.0 x 186.0 mm (24.9" x 17.6" x 7.3") |
| Weight | |
| Product with Base | 6.6 kg (14.6 lb) |
| Product w/o Base | 4.3 kg (9.5 lb) |
| Packaging | 8.7 kg (19.2 lb) |
| Regulation Approval | |
| Certifications & Compliance | CE, FCC, LVD, BSMI, WEEE, RoHS, REACH, EAC, UKCA |
| Accessories | |
| Supplied | Audio Cable, CD, HDMI Cable, Power Cord, USB Cable, VGA Cable, Warranty Card |
| Optional Accessories | Wall Mount (Landscape only), PMK-01, WMK-01, WMK-03 |
AG Neovo provides the following limited warranty. This limited warranty applies only to the original End User and to no other purchaser or transferee.
AG Neovo warrants its LCD Monitor products and parts against defects in materials and workmanship under normal use for a period of Three (3) Years for parts from the date of initial retail purchase. AG Neovo warrants LCD Panel for a period of Three (3) years from the date of initial retail purchase. During this period, AG Neovo will repair or replace a defective product or part without charge.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
The AG Neovo warranty obligations for the product are limited to the terms set forth below.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
AG Neovo warrants its accessories to be free from defects in material and workmanship under normal operating conditions for a period of 12 months limited warranty.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
For information on obtaining warranty service, call your AG Neovo dealer, AG Neovo’s Customer Support hotline, or email service centers.
