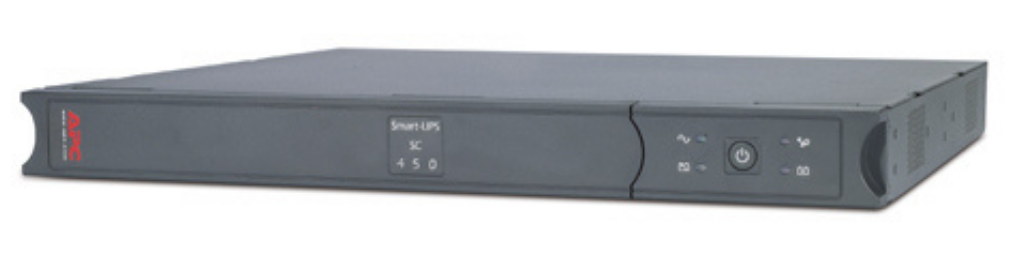

APC SC450RMI1U Smart-UPS SC 450VA 230V - 1U Rackmount/Tower
SKU: SC450RMI1U
£282.33 (Excl. VAT)
- Description
- Specifications
- Downloads
-
APC SC450RMI1U Smart-UPS SC 450VA 230V - 1U Rackmount/Tower
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.
-
Main Run time for load 280 W Min-max: 28-280 W 5min 54s Max. Capacity Used 100 % Main Input Voltage 230 V Main Output Voltage 230 V Rated power in W 280 W Rated power in VA 450 VA Input Connection Type IEC 320 C14 Output Connection Type 4 IEC 320 C13 2 IEC Jumpers Number of rack unit 1U Battery type Lead-acid battery Provided equipment User manual Rack mounting brackets Smart UPS signaling RS-232 cable CD with software Batteries & Runtime Number of battery blocks per string 10 Device mounting Enclosed battery cartridge Number of battery filled slots 0 Number of battery free slots 0 Number of battery replacement quantity 1 Battery voltage 12 V Replacement battery RBC18 Battery charger power 22 W rated General Number of power module filled slots 0 Number of power module free slots 0 Product web sub-family Entry level Redundant No Physical Colour Grey Height 4.4 cm Width 43.2 cm Depth 38.3 cm Net weight 10.18 kg Mounting location Front Mounting preference Lower Mounting mode Rack-mounted Two post mountable USB compatible No Input Input voltage limits 151...302 V adjustable 195...265 V Network frequency 50/60 Hz +/- 3 Hz auto-sensing Output Harmonic distortion Less than 5 % at full load Maximum configurable power in VA 450 VA Maximum configurable power in W 280 W Transfer time 4 ms typical : 8 ms maximum UPS type Line interactive Wave type Stepped approximation to a sinewave Output frequency 47...53 Hz for 50 Hz nominal sync to mains 57...63 Hz for 60 Hz nominal sync to mains Conformance Product certifications C-Tick CE EAC GOST TISI VDE Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 38 dBA Heat dissipation 38 Btu/h Operating altitude 0...10000 ft Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…45 °C Storage altitude 0.00…15240.00 m Relative humidity 0…95 % non-condensing Storage Relative Humidity 0…95 % non-condensing Communications & Management Emergency power off Optional Free slots 0 Control panel LED status display with on line : on battery : replace battery and overload indicators Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and Filtering Data line protection RJ45 10/100 Base-T Ethernet protection Data line protection RJ11 2-Way Modem/Fax/DSL splitter with protection (four wire dual line) Surge energy rate 320 J Noise suppression Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 16.4 cm Package 1 Width 47.6 cm Package 1 Length 58.9 cm Package 1 Weight 11.73 kg Unit Type of Package 2 PAM Number of Units in Package 2 32 Package 2 Height 143.8 cm Package 2 Width 100 cm Package 2 Length 120 cm Package 2 Weight 403.2 kg Logistical informations Country of origin PH Contractual warranty Warranty 2 years repair or replace -
Description Downloads SC450RMI1U:Datasheet Download SC450RMI1U:User Guide Download
