Cloud Electronics MA80 80W Mini Mixer Amplifier | MA80EK
SKU: MA80EK
£315.16 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Cloud MA80 Mini Mixer Amplifier | 80W Mono 4Ω | Mic & Line Inputs | Compact Design

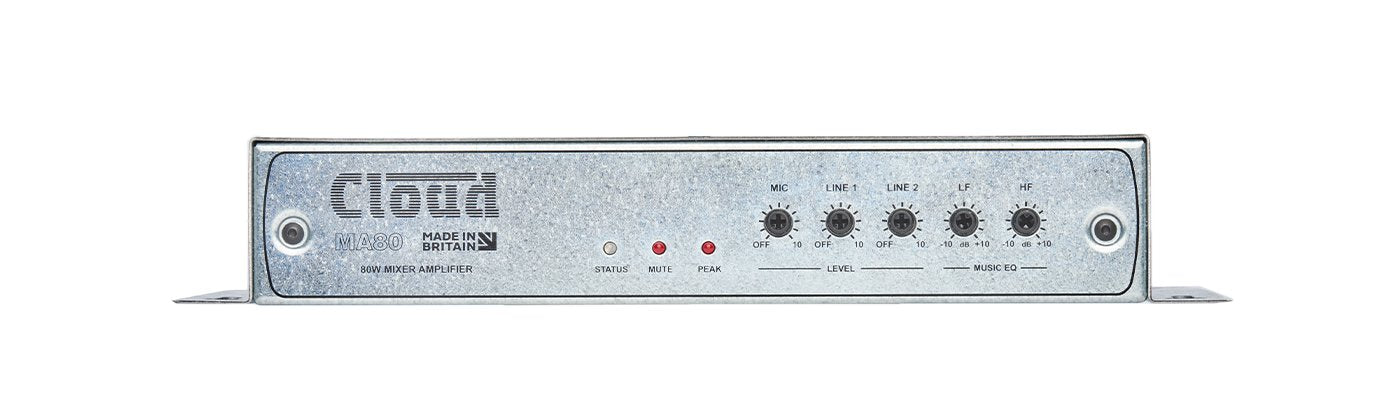

The MA80 is a compact Mini Amplifier providing 80W Mono Output at 4Ω (low impedance). Designed for integration into commercial audio installations and AV systems where de-centralisation of the system component is an advantage. It is intended as an "install and forget" component and is small enough to be fitted into a wall or ceiling void, or directly adjacent to a projector, flat screen or loudspeaker.

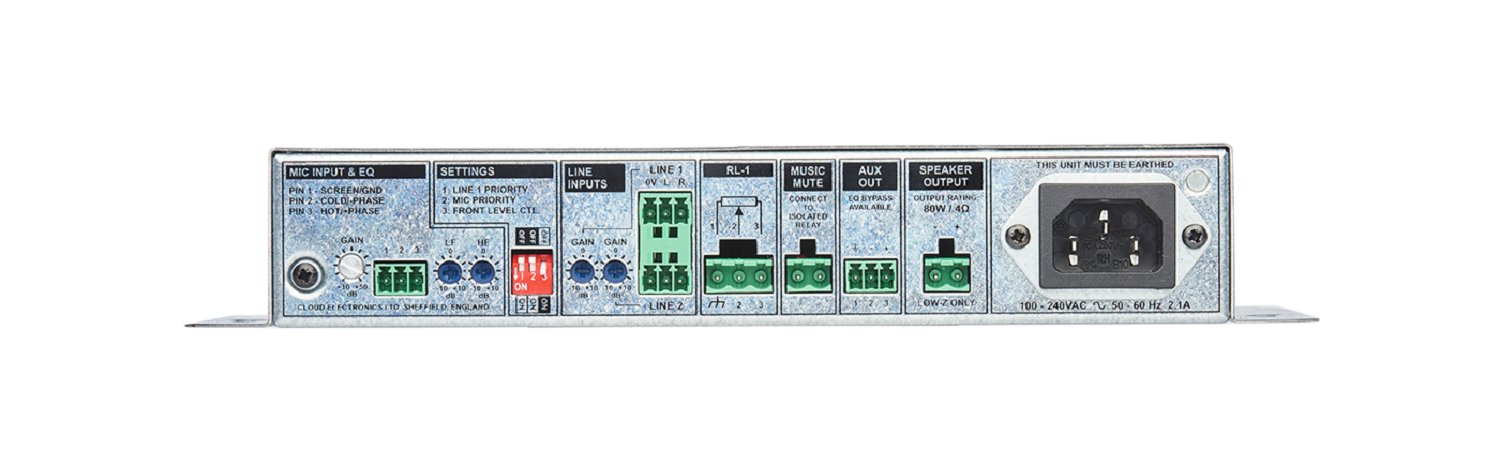

Fitted with a Microphone Input with EQ and input gain adjustment, a further two line inputs, an RL-1 remote wall plate connection, music mute connection and dip switch settings providing Line 1 priority and mic priority switching in addition to switching on/off of the RL-1 functionality.
• 1 x 80W Mono 4ohm Output (<1% THD @ Full Output)
• Line 1 over Line 2 Priority
• APD - Auto Wake & Hibernation
• Mic Input with EQ and Input Gain
• Music EQ Plus Optional EQ Card
• Mic Output Level Control + Priority
• Music Mute
• RL-1 Remote Control Interface
• Aux Out
• Dynamic Clip, Thermal & Short Protection
• Integrated Universal Power Supply
• Variants: EK, AUS, NA -
Category Specification Line Inputs - Frequency Response ±1 dB, 20 Hz – 20 kHz Line Inputs - THD+N <0.05% (1 kHz, full power, 22 kHz bandwidth) Line Inputs - Sensitivity -12 dBu (195 mV) to +8 dBu (2.0 V) Line Inputs - Gain Control 20 dB range Line Inputs - Impedance 47 kΩ Line Inputs - Headroom 16 dB Line Inputs - Noise <-95 dB Line Inputs - EQ LF: ±10 dB @ 50 Hz
HF: ±10 dB @ 10 kHzMic Input - Frequency Response -3 dB @ 100 Hz (filter) to 20 kHz ±1 dB Mic Input - THD+N <0.05% (1 kHz, full power, 22 kHz bandwidth) Mic Input - Gain 10 dB to 50 dB Mic Input - Impedance 2.7 kΩ (balanced) Mic Input - Headroom 16 dB Mic Input - Noise EIN: -127 dB (22 kHz bandwidth, Rs=150Ω) Mic Input - Phantom Power +12 V (internal jumper) Mic Input - EQ LF: ±12 dB @ 100 Hz
HF: ±12 dB @ 5 kHzMain Output Power 80 W into 4Ω (1 kHz continuous sine wave) High Pass Filter -3 dB @ 65 Hz (selectable by internal jumper) Aux Output Max Level 0 dBu (0.775 Vrms) Power Supply Universal, 100–240 V, 50–60 Hz Power Consumption Standby: 0.88 W / 7.35 VA
Idle: 5.41 W / 13.39 VA
1/8th Power (4Ω): 17.4 W / 31.75 VA
1/3rd Power (4Ω): 30.4 W / 50.58 VAHeat Loss Standby: 3.2 kJ/hr (3.0 BTU/hr)
Idle: 19.5 kJ/hr (18.5 BTU/hr)
1/8th Power: 26.3 kJ/hr (24.9 BTU/hr)
1/3rd Power: 27.0 kJ/hr (25.6 BTU/hr)Amplifier Protection Fixed limiter, protection against DC, PSU/amp overcurrent, over-temp. Resettable internal breaker (no fuses). Cooling Natural convection Dimensions (Net) 260 × 41 × 180 mm (10.24” × 1.61” × 7.09”) Dimensions (Shipping) 400 × 145 × 255 mm (15.75” × 5.71” × 10.0”) Weight (Net) 1.35 kg Weight (Shipping) 2.05 kg -
Description Downloads Cloud Electronics MA80 80W Mini Mixer Amplifier | MA80EK DataSheet Download
