TOA A-3548D 5 Inputs Digital Mixer Amplifier
SKU: A-3548D
£473.86 (Excl. VAT)
- Description
- Specifications
- Downloads
-

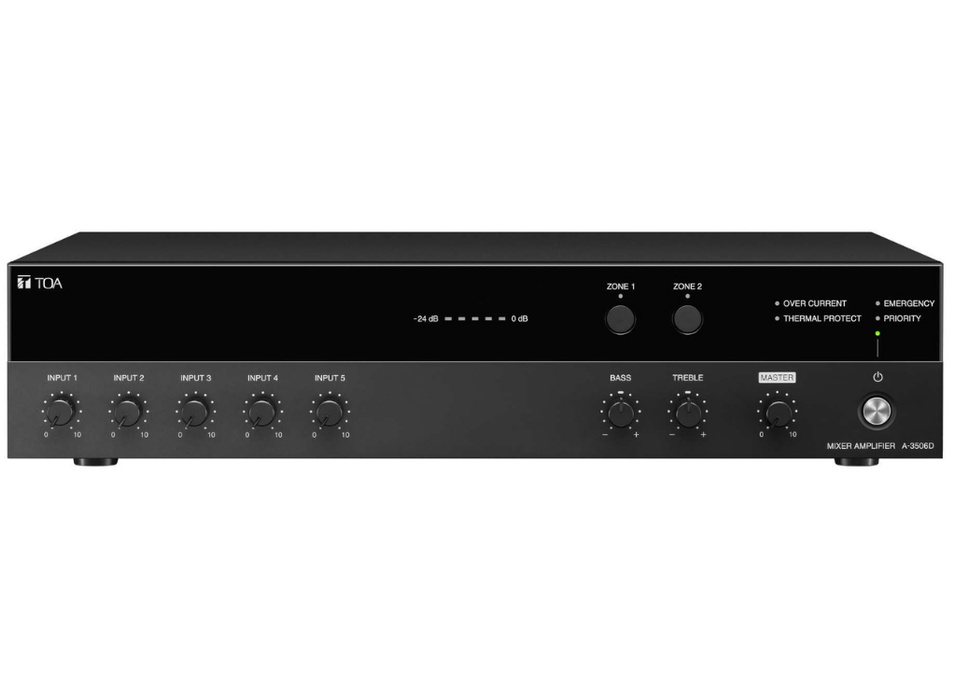

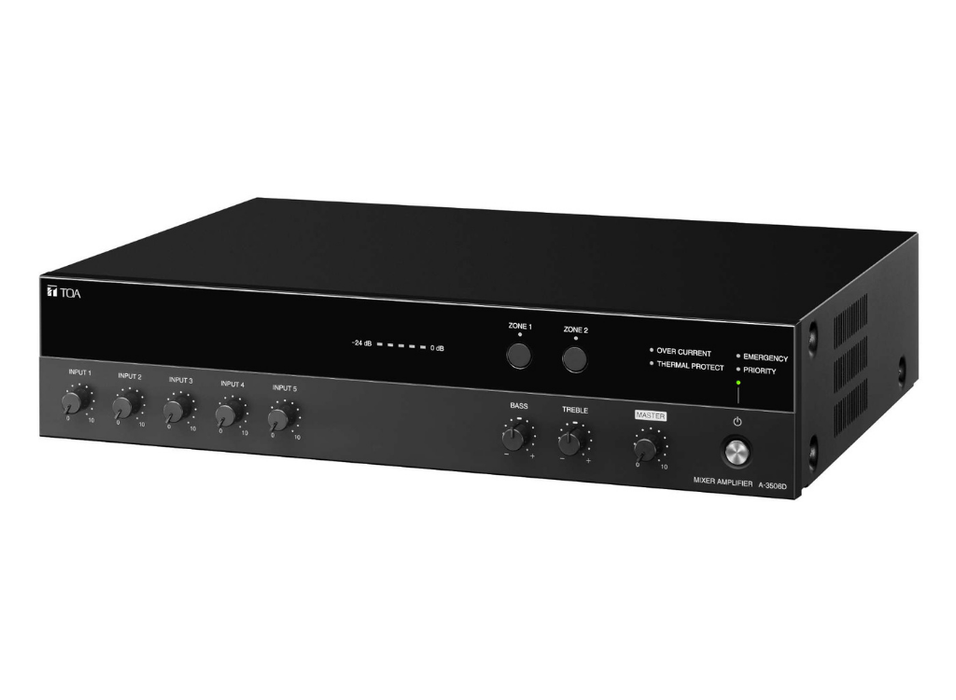

TOA A-3548D 5 Inputs Digital Mixer Amplifier
The A-3548D is a class D mixer / amplifier with 480 watts output. It comes with emergency and priority paging, is equipped with 3 MIC/LINE inputs, 1 MIC input, 1 AUX input can be also used for music source. With 2-channel speaker zone selectors it is ideal for paging announcements and background music applications in retail shops, schools, offices and production facilities.- 480 W Class D mixer amplifier for high and low impedance speakers
- 5 Inputs: 1 Mic, 1 AUX, 3 x MIC / AUX (selectable) , 2 Phantom power
- 2 Zone speaker selector (high impedance only)
- 2 Line out, 1 Rec out
- 2 Zone control inputs / outputs
- 1 Emergency output
Application examples for this product:
Bars
Supermarkets
Sport facilities
Restaurants
Houses of worship -
Category Specification Power Source 100 - 240 V AC, 50 / 60 Hz Power / Current Consumption 601 W (at rated output), 113 W (EN62368-1) Frequency Response 50 Hz - 20 kHz Rated Output 480 W Speaker Output Direct, zones 1 & 2 Control Input 2 channels, no-voltage make contact input, open voltage: 35 V DC or less Control Output Power remote, emergency, zone control: Open collector output, withstand voltage: 30 V DC or less Operating Temperature –10 to +40 °C Finish ABS resin, Steel plate, black Dimensions 420 x 96 x 313 mm (W x H x D) Weight 5.1 kg Distortion ≤ 1 % (at 1 kHz, rated power) Amplifier Type Class D S/N Ratio 88 dB(A) (A-weighted) Connectable Microphones 3 Inputs INPUT 1, 2: –60 dB* (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 5 pins)/ø6.3 mm phone jack (2P) Outputs REC, LINE 1/1: 0 dBV, 600 ohms, unbalanced, RCA pin jack, SPEAKER direct, zones 1 and 2: 4-16 ohms or 100 V -
Description Downloads Datasheet Downloads
