BluStream 2x2 8K HDMI 2.1 Matrix | MX22AB-8K

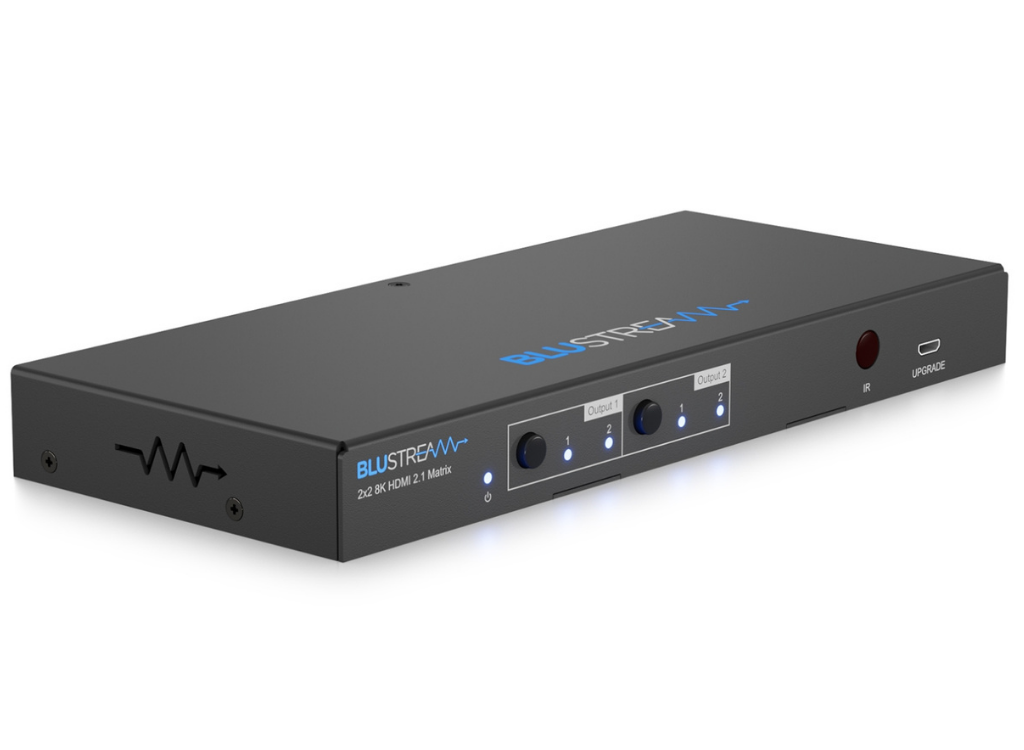

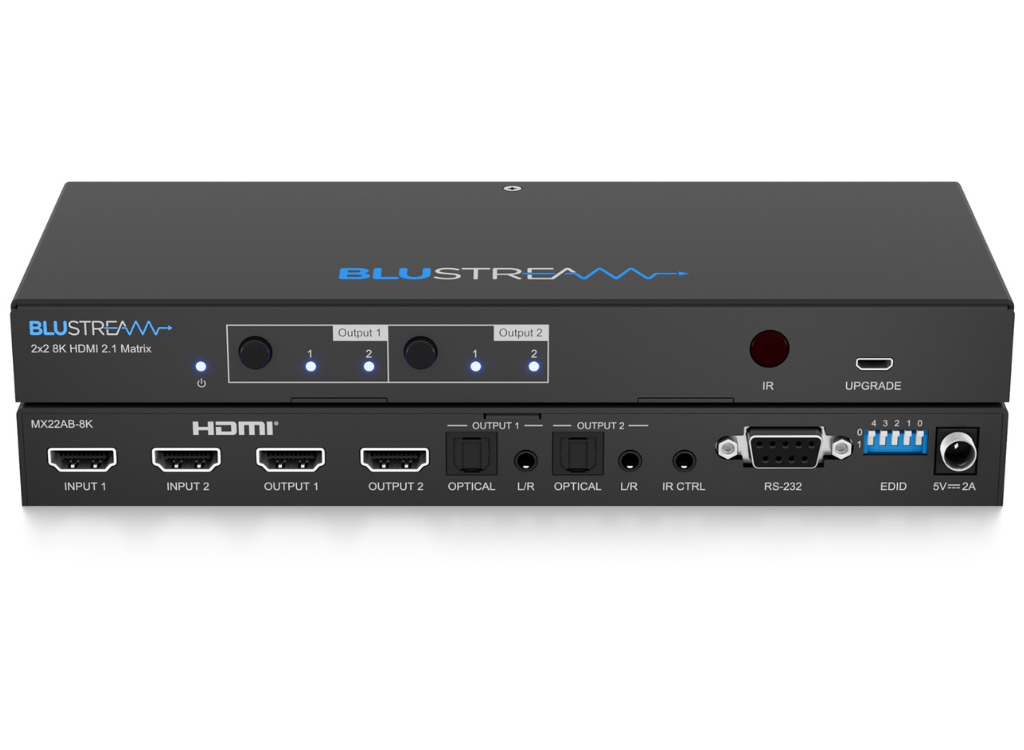

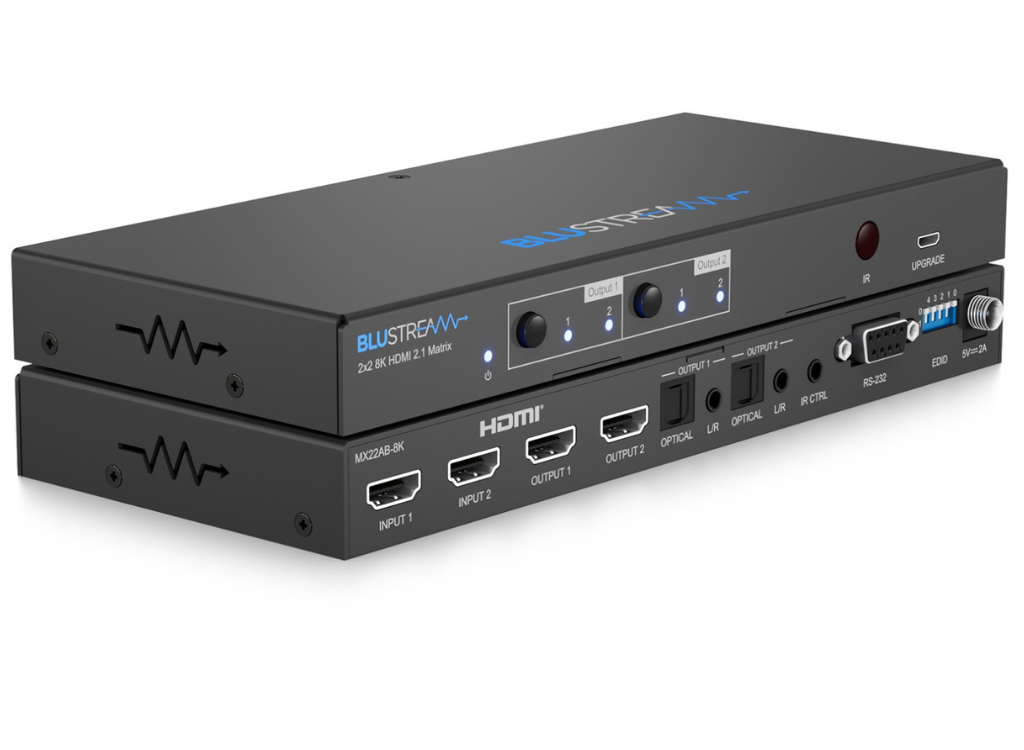

The MX22AB-8K HDMI2.1 matrix integrates source and display devices where the features and functionality of the HDMI2.1 chipset are being utilised for 8K 60Hz and 4K 120Hz signals.
Independent routing of 2 x HDMI input sources to 2 x HDMI2.1 displays, the MX22AB-8K can auto-switch based on either detecting a 5V hot plug, or a new TMDS signal; or be manually controlled using RS-232, IR, or from the units front panel.
Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. The MX22AB-8K is HDCP2.3 compliant and has advanced EDID management of source devices connected.
Key Features
• Features 2 x selectable HDMI2.1 inputs that can be independently routed to 2 x HDMI2.1 outputs
• Supports HDMI2.1 specification including HDR (40Gbps maximum)
• Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz
RGB/YCbCr 4:4:4 10bit
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Auto HDMI source switching via 5V and / or TMDS signal sensing

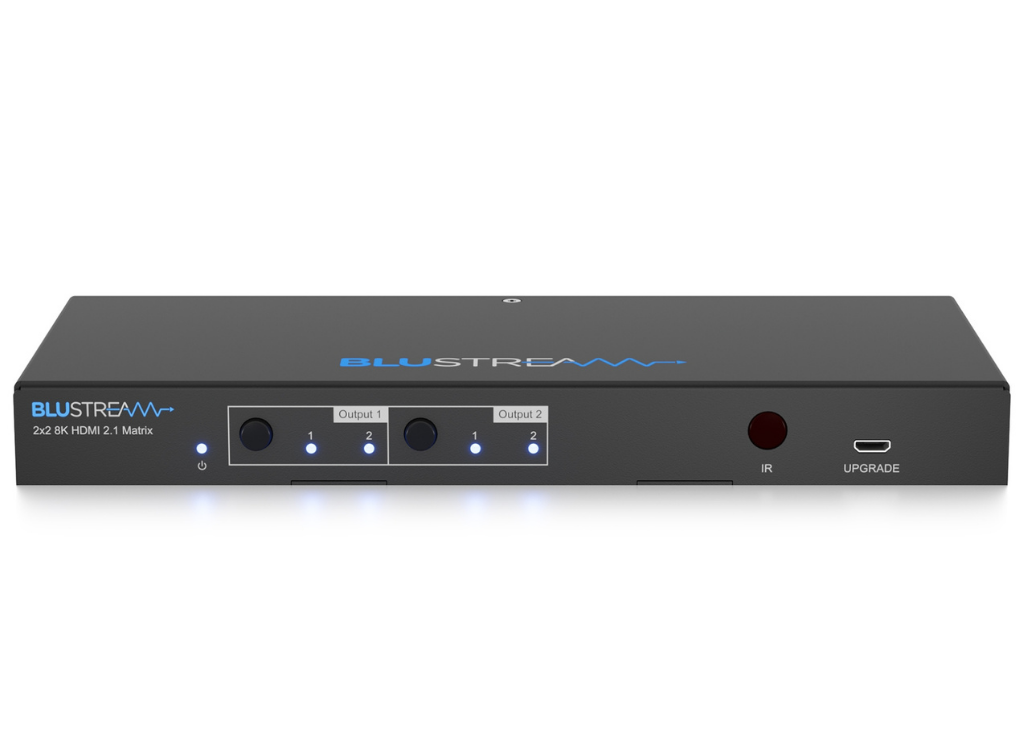

• Manual HDMI source switching via front panel, IR and RS-232
• Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
• 5V / 12V IR Compatible
• HDCP 2.3 compliant with advanced EDID management
Box Contents
1 x MX22AB-8K
1 x REM42 Remote Control
1 x 5V/2A DC Power Supply
1 x IR Receiver (IRR)
1 x Mounting Bracket Set
4 x Rubber Feet
1 x User Manual
| Feature | Specification |
|---|---|

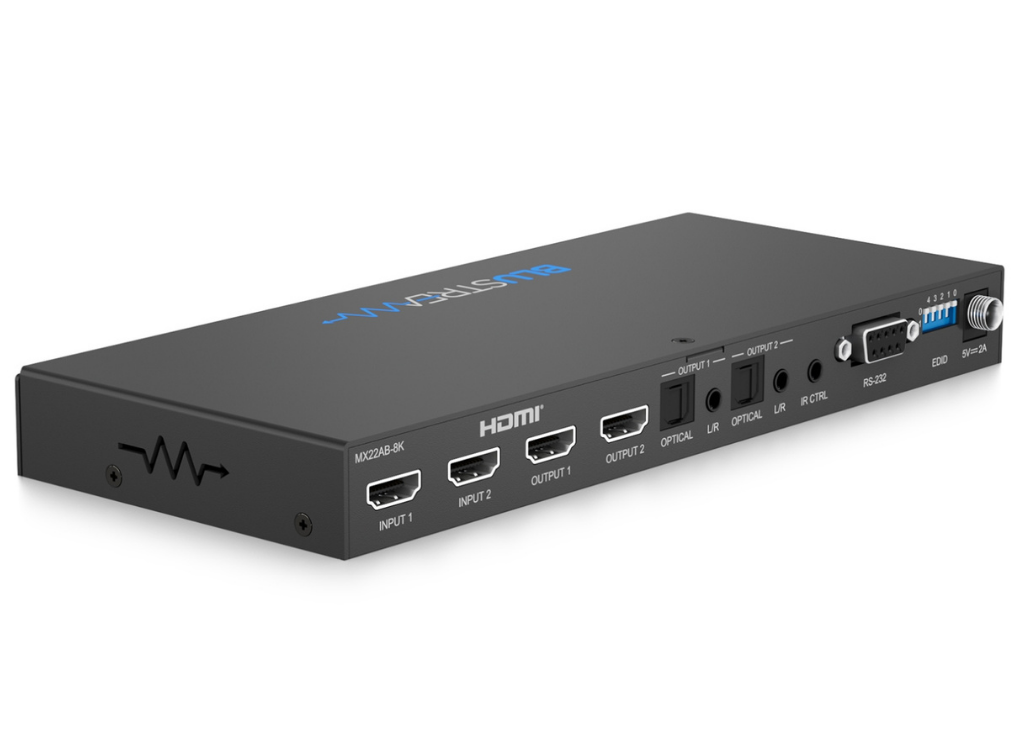

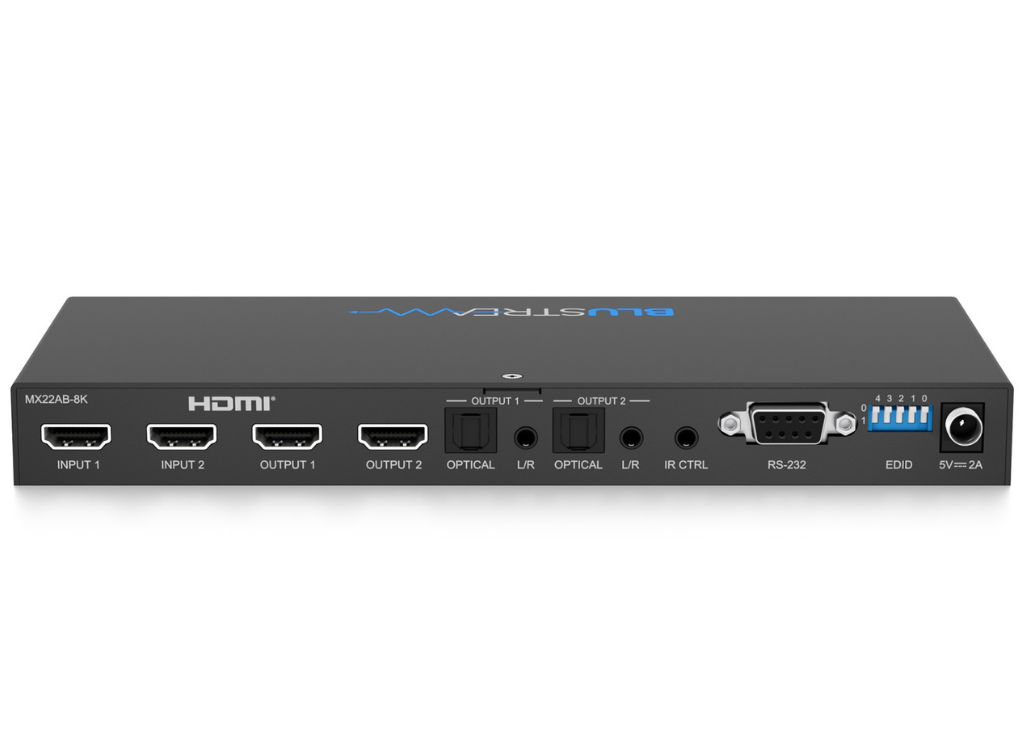

| Video Input Connectors | 2 x HDMI Type A, 19-pin, female |
| Video Output Connectors | 2 x HDMI Type A, 19-pin, female |
| Audio Output Connectors | 2 x Optical (S/PDIF) & 2 x Analogue L/R (3.5mm) |
| IR Input Ports | 1 x 3.5mm stereo jack |
| RS-232 Serial Port | 1 x DB9, female |
| Dimensions (WxDxH) | 218mm x 94mm x 23mm |
| Shipping Weight | 1.0kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 1 x 5V/2A DC |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
