Lindy 1m DisplayPort 1.4 Extension Cable, Anthra Line | 36496
SKU: 36496
£11.72 (Excl. VAT)
- Description
- Specifications
- Downloads
-

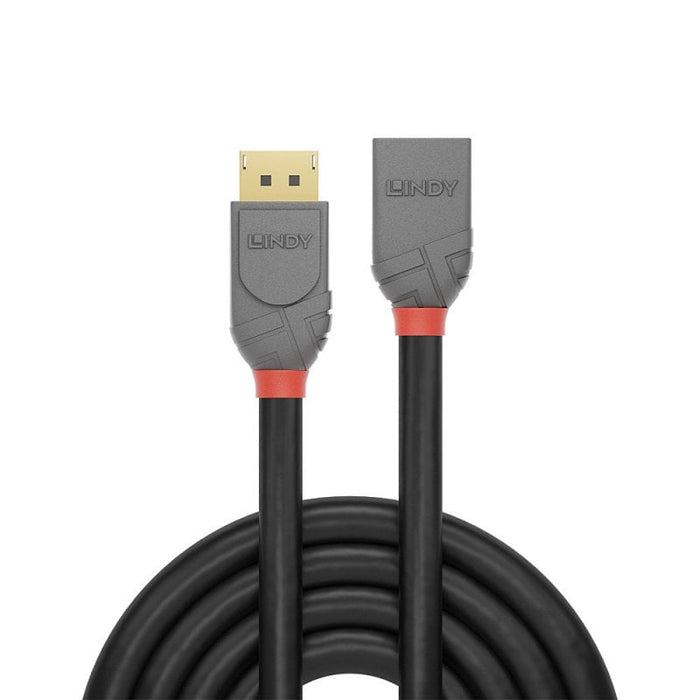

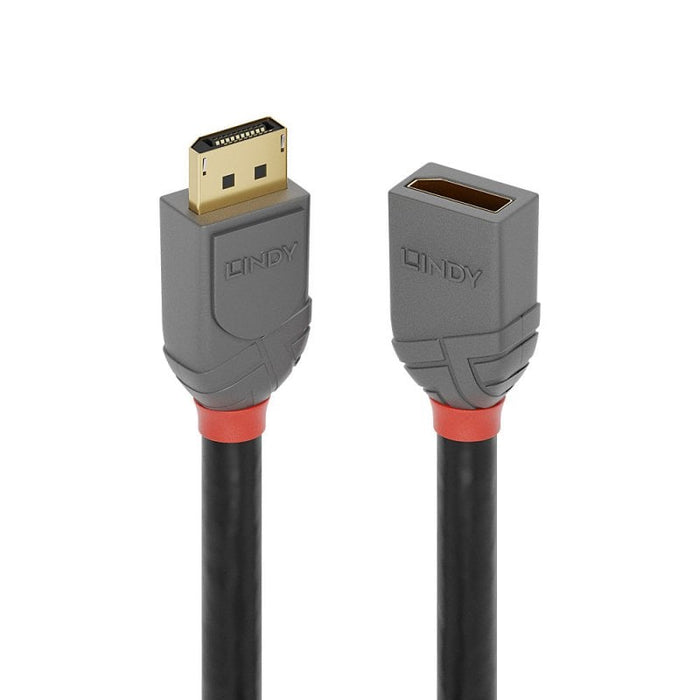

Lindy 1m DisplayPort 1.4 Extension Cable, Anthra Line | 36496
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 7680x4320@60Hz 4:2:2 8bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.4 technology ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 3m.
-
Category Feature Connectors Connector A DP Male Connector B DP Female Housing Material ABS (Male) / PVC (Female) Connector Plating Gold Pin Construction Copper Alloy Pin Plating Gold Dimensions (WxDxH) Male: 20.5x36.0x12.5mm Female: 20.9x35.0x11.8mm Cable Construction Length 1m (3.281ft) Standard DP 1.4 Colour Black Type Round Jacket Diameter 7.0mm (0.28in) Jacket Material PVC Conductor Material Copper Alloy Conductor Gauge 28AWG Shielding Aluminium Magnesium Braid 85% Specifications Supported Bandwidth 32.4Gbps Maximum Resolution 7680x4320@60Hz 4:2:2 8bit Nominal Attenuation 1.35GHz > -5.5dB (HBR1) 2.7GHz > -8.5dB (HBR2) 4.05GHz > -11.0dB (HBR3) Minimum Bend Radius 70mm (2.76in) Operating Temperature -10°C to 80°C (14°F to 176°F) Storage Temperature -20°C to 85°C (-4°F to 185°F) Miscellaneous Packaging Type Polybag Warranty 10 Years Certifications RoHS, REACH, CP65, UL Purchasing Information Product Number 36496 EAN 4002888364966 -
Description Downloads Product Safety Information Downloads
