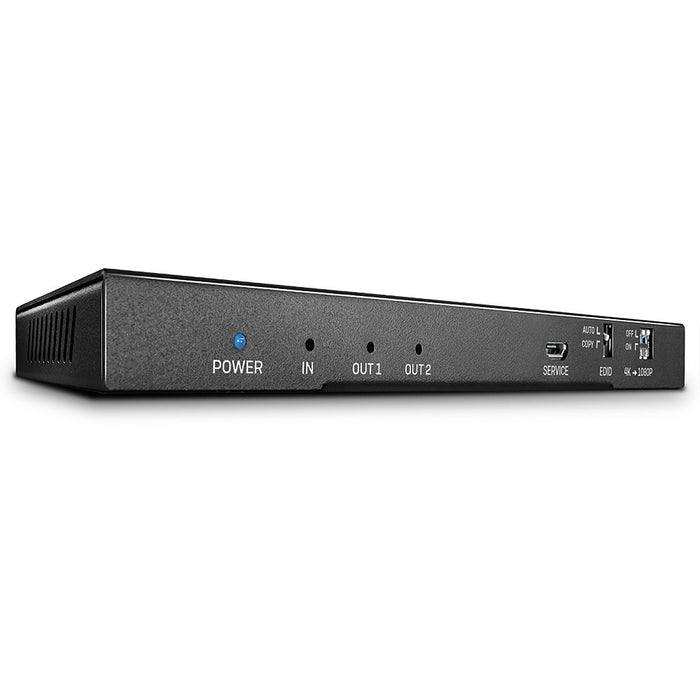

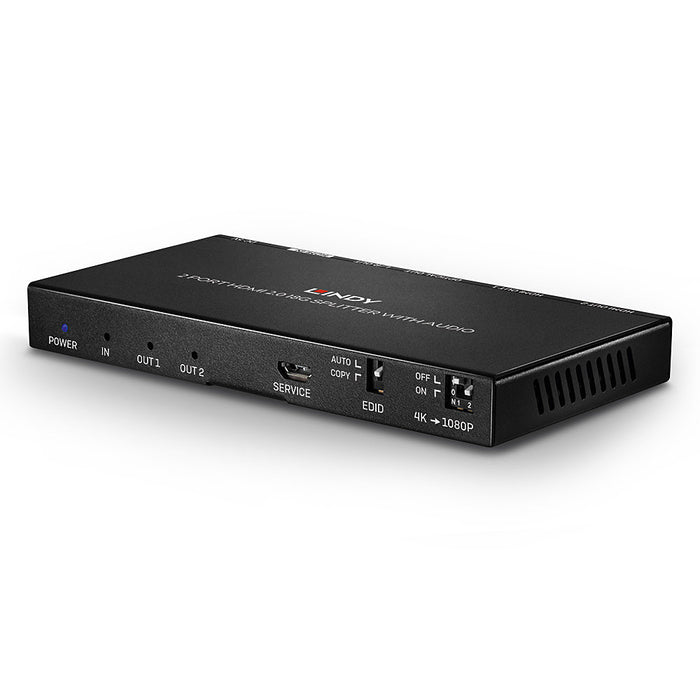

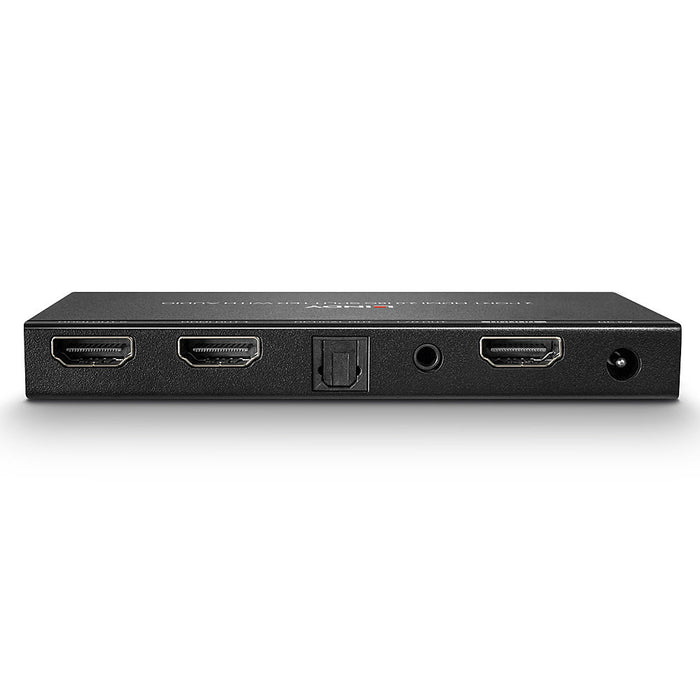

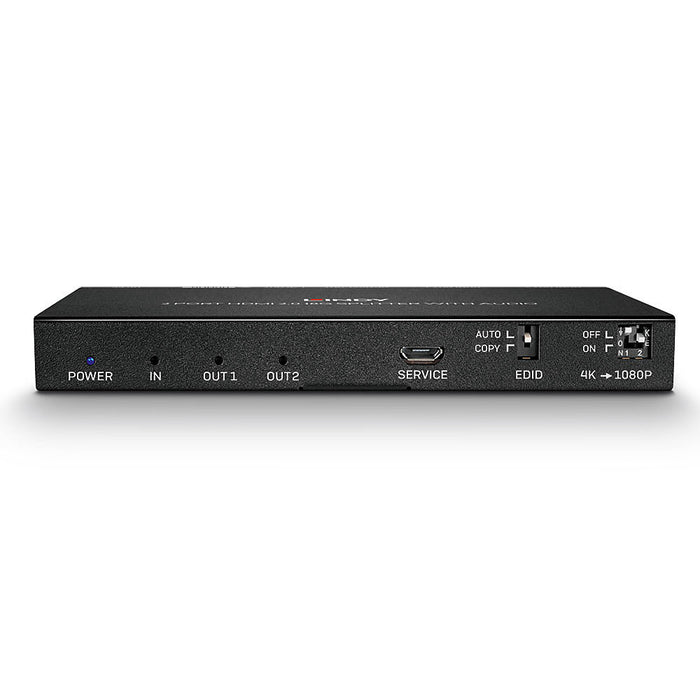

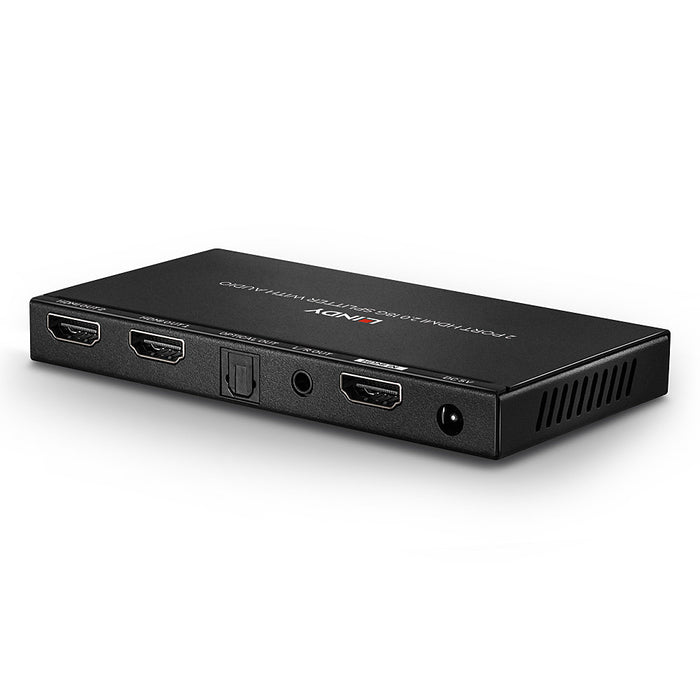

Lindy 2 Port HDMI 18G Splitter with Audio & Downscaling | 38230
SKU: 38230
£71.43 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Lindy 2 Port HDMI 18G Splitter with Audio & Downscaling
Displays HDMI signals across 2 displays simultaneously from one source device
Supports resolutions up to 4K 60Hz 4:4:4, with additional support for HDR
Extract digital and analogue audio from HDMI for non-HDMI amplifiers
Features a neat switch for downscaling from 4K to 1080p
2 year warranty
The Lindy 2 Port HDMI 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI signals across 2 displays simultaneously from one source device, while extracting digital or analogue audio separately.With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching dual display digital signage in retail scenarios, displaying live video across two screens at event venues or distributing engaging multiscreen educational presentations at tradeshows.
The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The additional ability to cascade this splitter up to three further levels allows for an extended HDMI splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices.
The splitters also features an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
-
Specifications AV Interface HDMI Interface Standard HDMI 2.0 Supported Bandwidth 18Gbps Maximum Resolution 4096x2160@60Hz 4:4:4 8bit HDCP Support 2.2 Supported Audio Audio Pass-through, LPCM 2CH, Up to 7.1CH (Optical) Separate Audio Ports 3.5mm (Female), Toslink (Optical) CEC Support - Serial Interface - Special Features Downscaler Function, EDID Emulation Connectors Input HDMI Type A (Female) Output 2 x HDMI Type A (Female), Toslink (Optical), 3.5mm (Female) Control - Power 5.5/2.1mm Physical Properties Dimensions (WxDxH) 120x14.4x63mm (4.72x0.57x2.48in) Housing Material Metal Net Weight 0.29kg (0.64lb) Operating Temperature 0°C - 40°C (32°F - 104°F) Storage Temperature -20°C - 60°C (-4°F - 140°F) Humidity 20-90% RH (non-condensing) Power Requirements 5VDC 1A Colour Black Miscellaneous Packaging Type Carton Box Packaging Dimensions 206x64x117mm (8.11x2.52x4.61in) Gross Weight 0.396kg (0.87lb) Warranty (Years) 2 Certificated CE, FCC, RoHS, REACH & California Proposition 65 Package Contents 2 Port HDMI Splitter with Audio Multi-Country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No. 38230 EAN 4002888382304 -
Description Downloads User Manual Downloads
