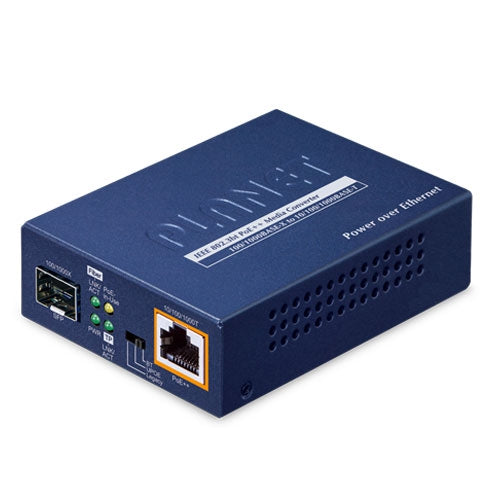

Planet 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter - GUP-805A-60W
802.3bt PoE++ 60-watt Power over 4-pair UTP Solution
As PLANET GUP-805A-60W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 60 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
PoE PTZ speed dome cameras
Network devices
Thin clients
AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
Remote digital signage displays
PoE lightings
With a total power budget of up to 60 watts for different kinds of PoE applications, the GUP-805A-60W provides a quick, safe and higher 802.3bt PoE++ network solution for small businesses and enterprises.
High Performance and Steady Network Communications Guaranteed Despite Distance Extension
The GUP-805A-60W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GUP-805A-60W provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications. The available SFP LC fiber interfaces are shown below:
802.3bt PoE++ and DIP Switch for PoE Power Output Mode Options
To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-60W provides one DIP switch for multi-PoE operation modes that include 60-watt 802.3bt type-4 PoE++ mode, UPOE and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
802.3bt PoE++ Power Output Mode
UPOE Power Output Mode
Legacy Power Output Mode
-
| Interface |
|
| Copper Port |
10/100/1000BASE-T Ethernet RJ45 interface |
|
Auto-negotiation, auto MDI/MDI-X with PoE injector function |
| SFP Interface |
100/1000BASE-X SFP interface |
| Fiber Mode |
May vary on SFP Module |
| Fiber Port Type |
SFP, LC type |
| Fiber Maximum Distance |
May vary on SFP Module |
| Power Over Ethernet |
|
| PoE Output |
IEEE 802.3af Power over Ethernet PSE |
|
IEEE 802.3at Power over Ethernet Plus PSE |
|
IEEE 802.3bt Power over Ethernet Plus Plus PSE |
| Power Output |
PoE 52-55V DC, 60 watts |
| PoE Power Budget |
60 watts |
| PoE Power Supply Type |
End-span + Mid-span |
| Power Pin Assignment |
802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
|
End-span: 1/2(-), 3/6(+) |
|
Mid-span: 4/5(+), 7/8(-) |
| Hardware Specifications |
|
| Enclosure |
Metal case |
| Dimensions |
94 x 70 x 26 mm |
| Weight |
144g |

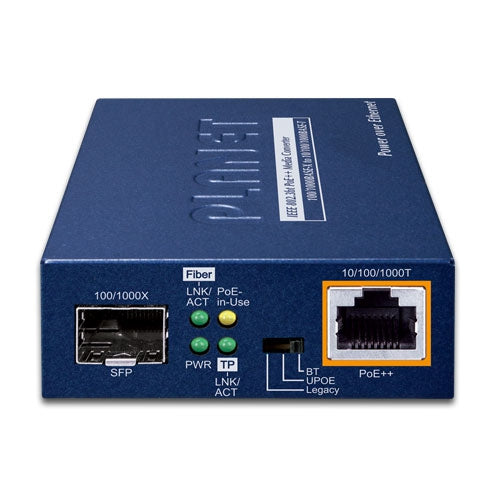

| LED |
System: PWR (Green) |
|
Fiber 100/1000BASE-X: LNK/ACT(Green) |
|
TP 10/100/1000BASE-T: LNK / ACT(Green) |
|
PoE: Power-in-use (Amber) |
| DIP Switch |
PoE power feeding options (BT/UPOE/Legacy) selection |

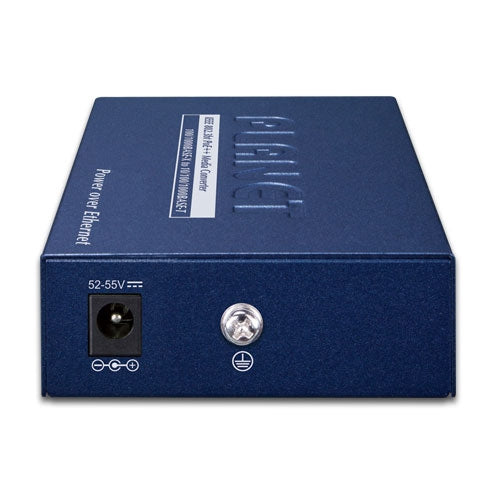

| Power Supply |
DC 52V~55V Power Socket, external AC-to-DC adapter |
| Installation |
Wall-mount or DIN-rail installation(Optional) |
| Layer 2 Features |
|
| Switch Architecture |
Store-and-Forward |
| Forwarding Rate |
Non-blocking full wire-speed forwarding rate |
| Flow Control |
Back pressure for half duplex mode |
|
IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size |
9K |
| Standards Conformance |
|
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Protocols and Standards Compliance |
IEEE 802.3 Ethernet |
|
IEEE 802.3u 100BASE-TX/100BASE-FX |
|
IEEE 802.3ab Gigabit Ethernet over TP |
|
IEEE 802.3z Gigabit Ethernet over Fiber Optic |
|
IEEE 802.3x Flow Control |
|
IEEE 802.3af Power over Ethernet |
|
IEEE 802.3at Power over Ethernet Plus |
|
IEEE 802.3bt Power over Ethernet Plus Plus |
| Cables |
TP: Cat 3/4/5/5e/6 UTP cable |
|
Fiber: Multi-mode: 50/125μm or 62.5/125μm optic fiber |
|
Single-mode: 9/125μm optic fiber |
| Environment |
|
| Temperature |
Operating: 0 ~ 50 degrees C |
|
Storage: -10 ~ 70 degrees C |
| Humidity |
5% ~ 95% non-condensing |
| Ordering Information |
|
| GUP-805A-60W |
100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts) |
-
