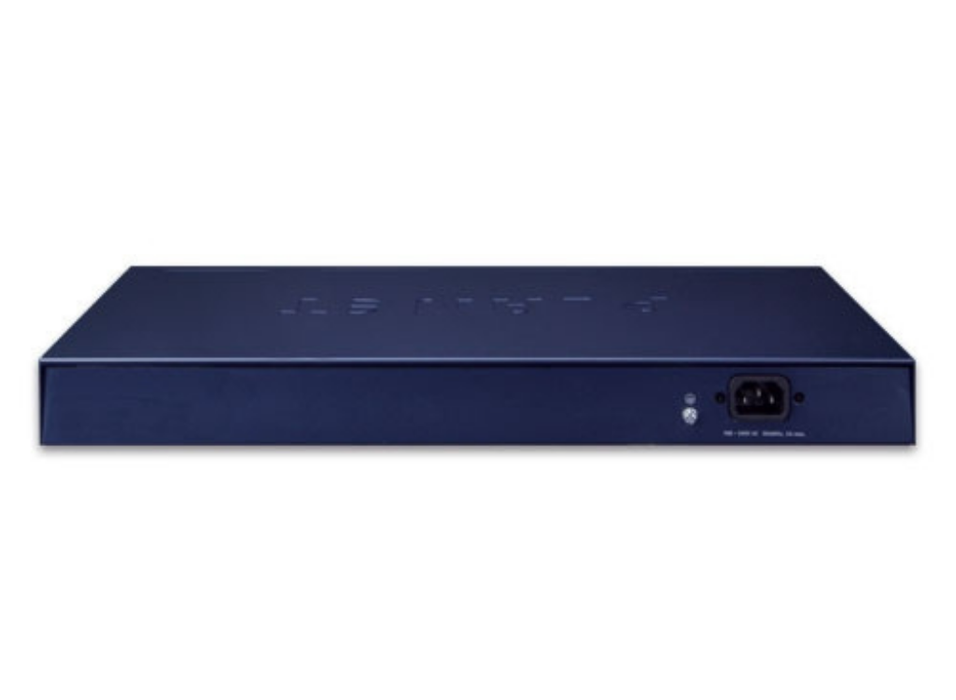

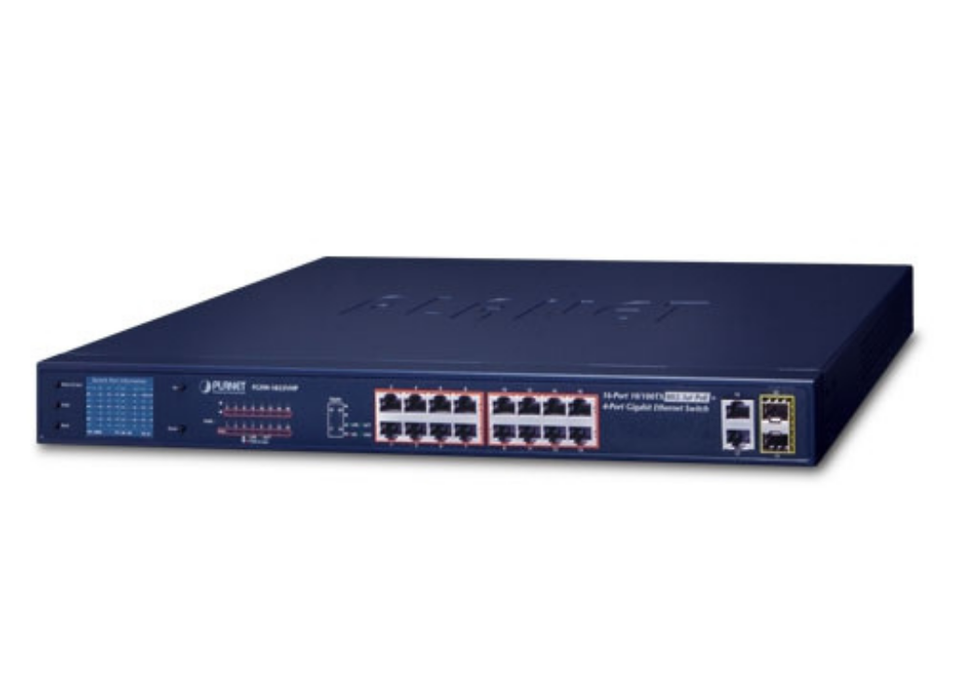

Planet 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP + 2-Port SFP Ethernet Switch with LCD PoE Monitor | FGSW-1822VHP

Simple “Plug and Watch” for a Quick Solution
PLANET FGSW-1822VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.

The FGSW-1822VHP is equipped with 16 10/100BASE-TX ports with each port taking up 30 watts of PoE+ power and 2 Gigabit TP and 2 Gigabit SFP interfaces with inner power system. With a total PoE+ power budget of 300 watts and non-blocking data switching performance, the FGSW-1822VHP can fulfill the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.

Smart and Intuitive LCD Control

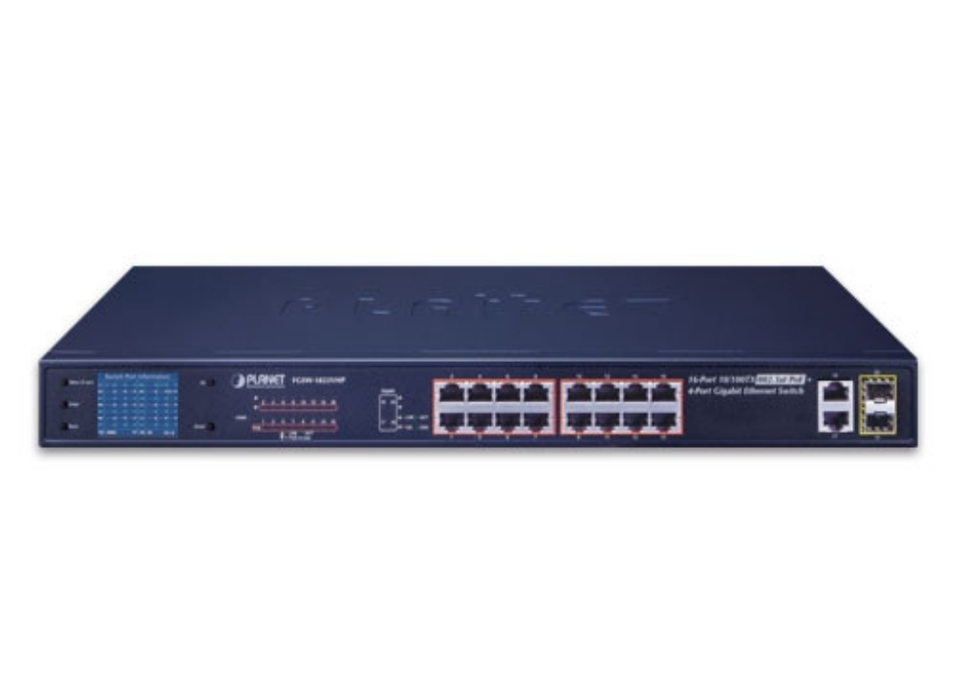

PLANET FGSW-1822VHP provides an intuitive color panel on its front panel that facilitates the Ethernet management and PoE PD management. They greatly promote management efficiency in large-scale networks for enterprises, hotels, shopping malls, government buildings and other public areas, and feature the following special management and status functions:

PoE management and status
Port management and status
Switch mode: Standard, VLAN, Extend
Budget and bandwidth control
PD alive check
Maintenance: Screen saver, fan control, factory default and save configuration

Standard, VLAN and Extend Operation Modes
PLANET FGSW-1822VHP provides Standard, VLAN and Extend operation modes. The FGSW-1822VHP operates as a normal IEEE 802.3af/at PoE Switch in the Standard operation mode. The VLAN operation mode features the port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.

In the Extend operation mode, the FGSW-1822VHP operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FGSW-1822VHP provides an additional solution for 802.3af/at PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so as to prevent broadcast storm and defend DHCP spoofing in the Extend operation mode.

Flexible Extension Solution
The two mini-GBIC slots built in the FGSW-1822VHP is compatible with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver, uplinked to the backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Robust Protection
The FGSW-1822VHP provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Easy Installation and Cable Connection
As data and power are transmitted over one cable, the FGSW-1822VHP does not need a second cable and electrical outlets on the wall, ceiling or any unreachable place. Thus, it helps to lower the installation costs and simplify the installation effort. All the RJ45 copper interfaces of the FGSW-1822VHP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Applications

Perfectly-integrated Solution for PoE IP Camera and NVR System
To fulfill the needs of the high power consumption of PoE network applications, the FGSW-1822VHP provides 16 IEEE 802.3at Power over Ethernet Plus (PoE+) ports that combine up to 30 watts of power output and data per port over one Cat5E/6 Ethernet cable. With its 11.2Gbps high-performance switch architecture and 300-watt PoE power budget, the FGSW-1822VHP is an ideal device for catering to a medium-scale IP surveillance or public PoE network at a lower total cost.

For instance, one FGSW-1822VHP can be combined with one 16-channel NVR and 16 PoE IP cameras as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet. The recorded video files from the 16 PoE IP cameras powered by the FGSW-1822VHP can be saved in the 16-channel NVR systems or surveillance software to perform comprehensive security monitoring.

Department/Workgroup PoE Switch
Providing sixteen 802.3at PoE+ in-line power interfaces, the FGSW-1822VHP can easily build a power that centrally controls IP phone system, IP camera system and wireless AP group for enterprises. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the power-socket limitation, the FGSW-1822VHP makes the installation of cameras easier and more efficient.

Key Features

Physical Port
16 10/100BASE-TX Fast Ethernet RJ45 copper ports
2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP interfaces

Power over Ethernet
Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
Up to 16 ports of IEEE 802.3af/at devices powered
Supports PoE Power up to 32 watts for each PoE port
Each port supports 54V DC power to PoE powered device
300-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in standard mode and 250m in extend mode

Smart LCD
The LCD switch features Standard, VLAN and Extend modes; the Extend mode features 20-watt PoE transmission distance of 250m at speed of 10Mbps and VLAN isolation
The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing
Power low-voltage, power over-voltage and PSE over-temperature protection
Screen saver, fan control, factory default and save configuration
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD alive check

Switching
Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
9216bytes packet size
Integrates address look-up engine, supporting 8K absolute MAC addresses
IEEE 802.1Q VLAN transparency
Automatic address learning and address aging

Hardware
19-inch desktop size, 1U height, rack mountable
2-inch color LCD with smart management functions
LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
3 silent fans to provide stable and efficient power performance
Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection
Supports ±6KV surge immunity
