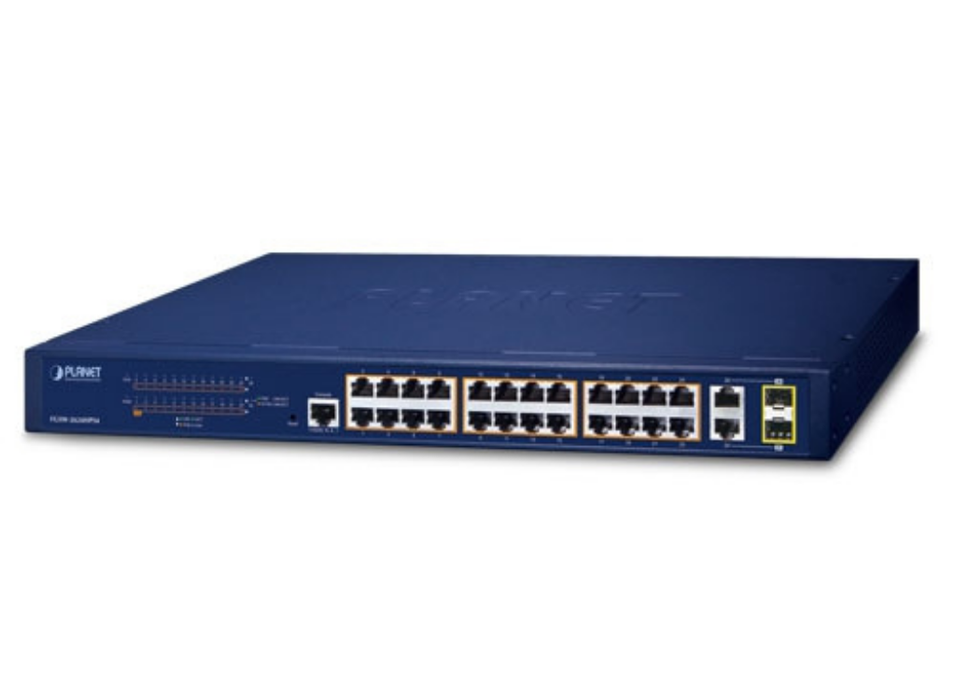

Planet 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch | FGSW-2624HPS4

PLANET’s newly-revised FGSW-2624HPS4 Layer 2 PoE+ Managed Switch is designed for enterprises and industries where a network of PDs can be centrally managed. The Switch’s management functions have been enhanced to include intelligent PoE management, IPv6 management, ACL, GVRP, and more.

Cost-optimized Managed PoE+ Switch with L2/L4 Switching and Security
PLANET FGSW-2624HPS4 is an ideal Managed PoE+ Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly-user web interface and stable operation. The model complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price; the FGSW-2624HPS4 is equipped with 24 10/100BASE-TX Fast Ethernet ports and 2 Gigabit TP/SFP combo interfaces with inner power system. With its 24 Fast Ethernet ports integrated with 802.3at PoE+ injector function and total power budget of up to 370 watts, it offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.

Solution for IPv6 Networking
With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the FGSW-2624HPS4 is the ideal choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network.

Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for surveillance network, the FGSW-2624HPS4 features the following intelligent PoE management functions:

PD Alive Check
PoE Port Sequence
PoE Schedule

Intelligent Powered Device Alive Check
The FGSW-2624HPS4 can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the FGSW-2624HPS4 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.


PoE Port Sequence
To prevent all the PoE ports of the FGSW-2624HPS4 from being active at the same time when the Switch has booted up, the PoE ports of the FGSW-2624HPS4 can be configured to allow each port to be activated at an interval time. In addition, the “Delay” setting is to delay power feeding on each port when the FGSW-2624HPS4 has completely booted up.

PoE Schedule for Energy Saving
Besides being used for IP surveillance, the FGSW-2624HPS4 is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the FGSW-2624HPS4 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.

Ethernet Data Transmission Distance Extension
In the “Extended” operation mode, the FGSW-2624HPS4 operates on a per-port basis at 10Mbps duplex operation but can support PoE power output over a distance of up to 250 meters overcoming the 100 meters limit on Ethernet UTP cable.

Robust Layer 2 Features
The FGSW-2624HPS4 can be programmed for advanced switch management functions, such as Multiple Spanning Tree Protocol (MSTP), BPDU filtering, BPDU Guard, dynamic port link aggregation, IGMP/MLD snooping, DHCP relay agent, loop detection and GVRP, voice VLAN and the Link Layer Discovery Protocol (LLDP). The Layer 2 protocol included is to help discover basic information about neighboring devices in the local broadcast domain. Other features included are the port-based/802.1Q VLAN and Q-in-Q VLAN, Layer 2/4 QoS, port mirroring, broadcast storm control and bandwidth control.

Enhanced Security and Traffic Control
The FGSW-2624HPS4 offers the comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP/MAC address or defined typical network applications. The FGSW-2624HPS4 also provides DHCP Snooping, ARP Inspection and MAC Verification functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. Also included are per port MAC/IP address binding and MAC address binding.  The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.

Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity features that virtually need no effort and cost to have included the protection of the switch management and the enhanced security of the mission-critical network. Both SSH and SSL protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

Efficient Management
For efficient management, the FGSW-2624HPS4 is equipped with Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the FGSW-2624HPS4 offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard Simple Network Management Protocol (SNMP), the FGSW-2624HPS4 can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the FGSW-2624HPS4 offers secure remote management by supporting SNMPv3 connections which encrypt the packet content at each session.

Flexible and Extendable Uplink Solution
The FGSW-2624HPS4 provides 2 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through these fiber SFP slots occupied by the 1000BASE-SX/LX SFP (small form-factor pluggable) fiber transceivers, it can be uplinked to a backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2km (multi-mode fiber) to 10/20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well-suited for applications within the industrial data centers and distributions.

Applications

PDs are Centrally Managed
Providing 24 10/100BASE-TX PoE+ ports, in-line power interfaces and two Gigabit TP/SFP combo interfaces, the FGSW-2624HPS4 can easily build an IP camera system for the enterprises where its power is centrally controlled. It can work with one 25-channel NVR to perform comprehensive security monitoring with 24 IP cameras via one Gigabit TP/SFP combo port. The FGSW-2624HPS4 comes with non-blocking design, desktop size and SFP fiber-optic modules, bringing flexibility to building a network infrastructure at a low cost.

High-performance PoE Network Connectivity
All of its ports are 802.3af/at compliant, thus making high-performance Fast Ethernet network connectivity with PoE IP telephones, PoE IP cameras, PoE wireless access points and other devices possible, all at reasonable costs. The FGSW-2624HPS4 improves the network efficiency and protects the network clients with its following powerful features:

Layer 2 to Layer 4 security
QoS, 802.1Q VLAN, static trunk, LACP
Multicast IGMP snooping

Key Features

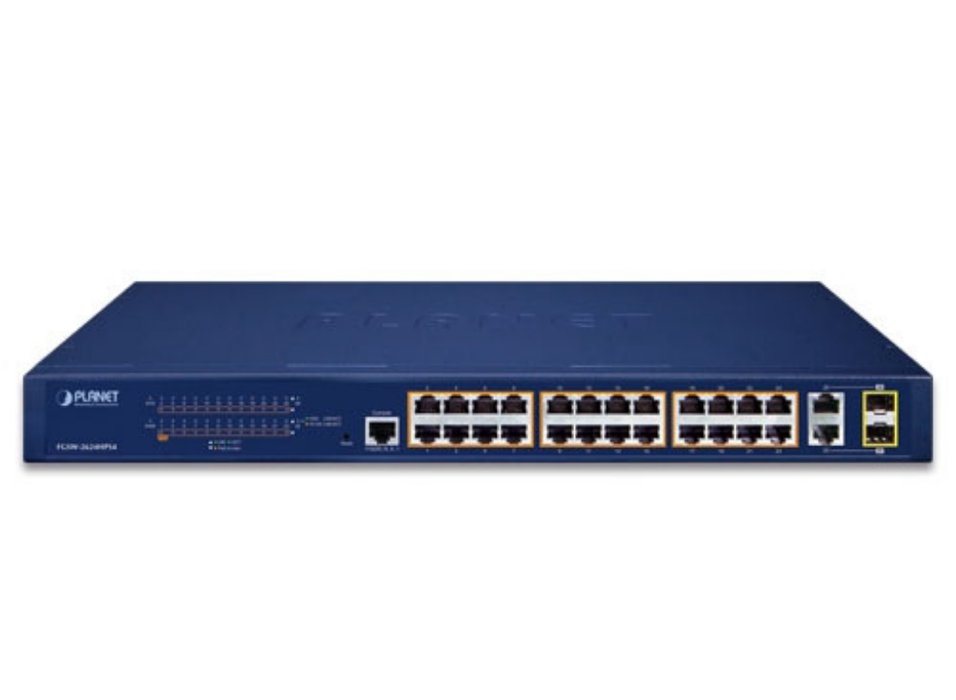

Physical Port
24 10/100BASE-TX RJ45 copper ports with IEEE 802.3at/af PoE+ injector function
2 10/100/1000BASE-T Gigabit RJ45 copper ports
2 1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-26
Reset button for system factory default

Switching
Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
Automatic address learning and address aging
Supports CSMA/CD protocol

Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus
Complies with IEEE 802.3af Power over Ethernet
Up to 24 ports of IEEE 802.3af/802.3at devices powered
Supports PoE Power up to 30 watts for each PoE port
370-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 250m via extend mode
PoE Management
Per port PoE function enable/disable
Per port PoE operation mode selection
Per PoE port power budget control
PD classification detection and  PoE consumption usage status
Intelligent PoE features
PD alive check
PoE port sequence
PoE schedule

Layer 2 Features
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Supports VLAN
Port-based VLAN, up to 26 VLAN groups
IEEE 802.1Q tagged VLAN
Protocol VLAN
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
GVRP
Voice VLAN
Supports Spanning Tree Protocol
STP (IEEE 802.1D Spanning Tree Protocol)
RSTP (IEEE 802.1w Rapid Spanning Tree Protocol)
MSTP (IEEE 802.1s Multiple Spanning Tree Protocol)
STP BPDU filtering, BPDU Guard
Supports Link Aggregation
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
1 LACP group, up to 2 ports per LACP group
Cisco ether-channel (static trunk)
1  trunk group, up to 2 ports per trunk group
Provides port mirror (many-to-1)
Loop detection

Quality of Service
Ingress/Egress Rate Limit per port bandwidth control
Storm Control support
Broadcast/ Multicast /DLF (Destination Lookup Fail)/ARP/ICMP
Traffic classification
IEEE 802.1p Qos/CoS
TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast
Supports IPv4 IGMP snooping v1/ v2 and v3
Supports IPv6 MLD snooping v1, v2

Security
Access Control List
IPv4/IPv6 IP-based ACL
MAC-based ACL
Port-MAC-IP Address Binding
Port-MAC-IP Port Setting
Port-MAC-IP Entry Setting
MAC Address Binding
Static MAC
MAC Filtering
DHCP snooping to filter distrusted DHCP messages
ARP Inspection discards ARP packets with invalid MAC address to IP address binding

Management
IPv4 and IPv6 dual stack management
Switch management interface
Web switch management
Telnet command line interface
SNMP v1, v2c and v3
BOOTP and DHCP for IP address assignment
System maintenance
Firmware upgrade via HTTP
Configuration upload/download through web interface
Hardware-based reset button for system reset to factory default
SNTP Network Time Protocol
Link Layer Discovery Protocol (LLDP)
Event message logging to remote Syslog server
PLANET Smart Discovery utility
