Planet 6-slot Layer 3 IPv6/IPv4 Routing Chassis Switch | CS-6306R

Outstanding Flexibility and High Performance
PLANET CS-6306R Core Layer Routing Switch is specially designed for large network applications such as enterprises, campuses, communities, ISPs and data center networks where flexible configuration, large capacity, high density, high reliability and advanced traffic management are required.

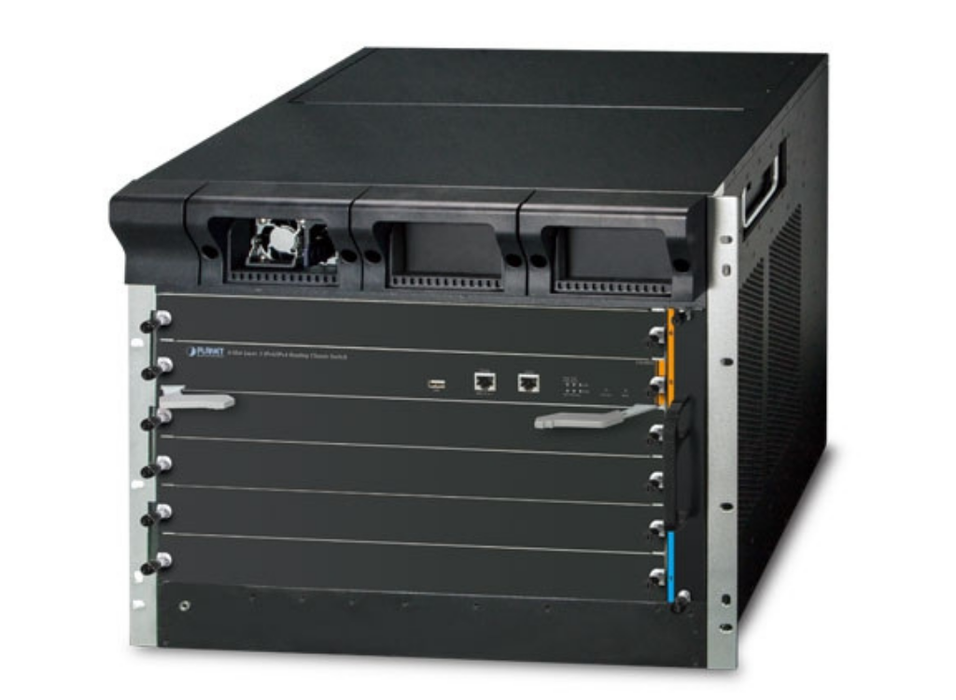

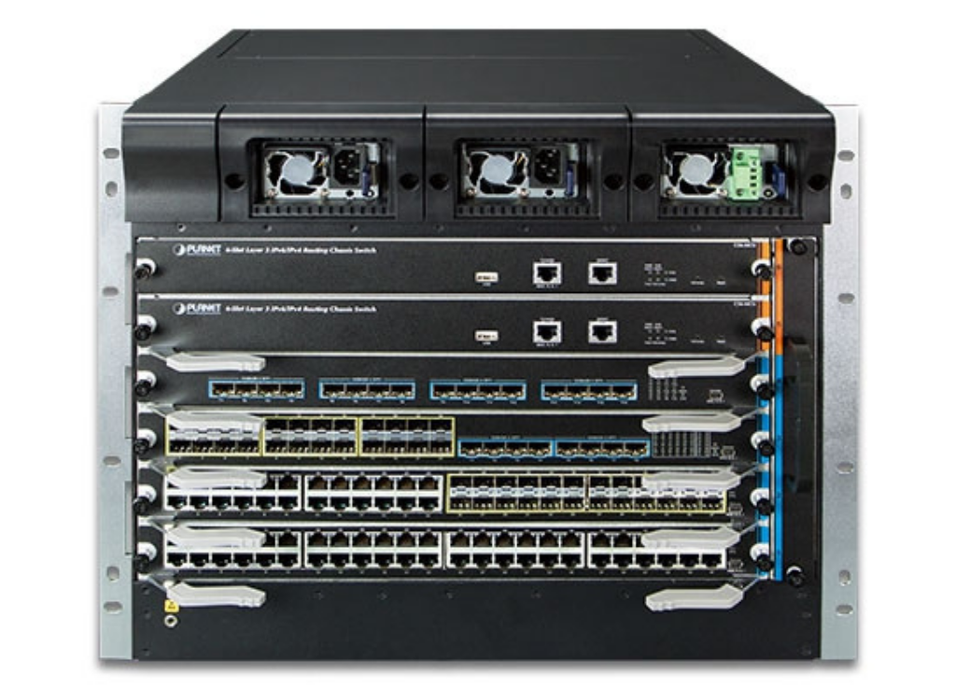

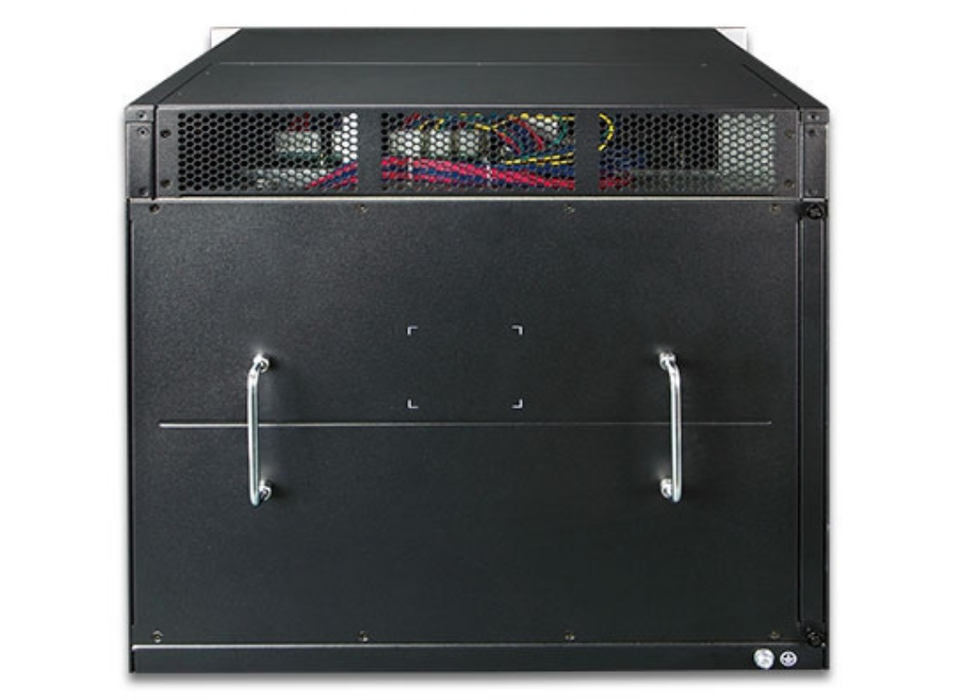

The CS-6306R is the High-density Chassis Ethernet Switch built with 6 module slots and redundant power supply. It provides great porting flexibility for network deployment by offering various combinable management modules and switch modules. For instance, one management module can be collaborated with four switch modules, or two management modules work to mutually perform system backup. Within the 9U height, single chassis, the maximum configuration can be:

192 10/100/1000BASE-T Copper Slots
192 100/1000BASE-SX/LX SFP Fiber Slots
64 10G SFP+ Fiber Slots
16 40G QSFP+ Fiber Slots

Positioned as the core layer switch, the CS-6306R serves ideally for large-sized networks and IP metropolitan networks by supplying advanced intelligent and secure features and giving high performance and flexibility.

Scalable 10-Gigabit and 40-Gigabit Performance
The CS-6306R delivers Gigabit, 10-Gigabit and 40-Gigabit Ethernet connectivity in a highly-flexible and resilient modular platform. With high switching capacity, the CS-6306R Chassis Switch supports wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. The scalable and flexible modular architecture supports up to 3Tbps forwarding performance in a single system. The CS-6306R is ideal for the core layer of campuses, enterprise networks and the aggregation layer of IP metropolitan networks and wide area networks.

Rich Multi-Layer Networking Protocols
The CS-6306R comes with the complete Layer 3 managed function with comprehensive protocols and applications to facilitate the rapid service deployment and management for both the traditional L2 and L3 networks. With support for advanced features, including RIP, RIPng, OSPFv2, OSPFv3, BGP, BGP4+ etc., this chassis switch is ideal for the traditional or fully virtualized data center.

Strong Multicast
The CS-6306R supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions. In Layer 3 multicast protocols, it features PIM-DM, PIM-SM and PIM-SSM which make the CS-6306R great for any robust networking.

Full IPv6 Support
The CS-6306R Chassis Switch supports IPv4-to-IPv6 technologies including IPv4 manual/automatic tunnel, IPv6-to-IPv4 tunnel, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel. It comprehensively supports IPv6 Neighbor Discovery, DHCPv6, Path MTU Discovery, IPv6-based Telnet, SSH and ACL, meeting the need of IPv6 network device management and service control.

High Reliability
The key components of the CS-6306R such as management module, power system and the fan system support redundancy design. All system modules support hot-swap and seamless switching without manual intervention.

It supports In-service Software Upgrade (ISSU) and Graceful Restart (GR) for OSPF/BGP routing protocol, guaranteeing the user data non-stop forwarding when the system is upgrading. It supports Bidirectional Forwarding Detection (BFD) that realizes fault detection and service recovery in seconds through linking with Layer 2 or Layer 3 protocol.

Redundant Ring, Fast Recovery for Critical Network Applications
The CS-6306R supports redundancy protection mechanism and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Layer 3 Virtual Router Redundancy Protocol (VRRP) protocol, Layer 2 Spanning Tree Protocol IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) technology into customer’s network to enhance system reliability and uptime. In a certain simple Ring network, the recovery time could be less than 50ms to quickly bring the network back to normal operation.

Centralized Hardware Stacking Management
Several CS-6306R Chassis Ethernet Switches can be used to build a virtually logical facility. The CS-6306R gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The CS-6306R can connect as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

Powerful Security from Layer 2 to Layer 4
The CS-6306R offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Advanced IP Network Protection
The CS-6306R also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent from IP snooping attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Enhanced Quality of Service
The CS-6306R Switch fully supports DiffServ module, so users can specify a queue bandwidth on each port.  WRR/SP/SWRR scheduling is also provided. The CS-6306R supports the port security to enable trusted CoS, DSCP, IP precedence and port priority. Users can modify packets’ DSCP and COS values so that the traffic can be classified by port, VLAN, DSCP, IP precedence and ACL table. User can also modify packets’ DSCP and IP precedence values to specify different bandwidths for voice, data and video to customize different qualities of service.

Efficient and Secure Management
For efficient management, the CS-6306R is equipped with console, Web and SNMP management interfaces.

With the built-in Web-based management interface, the CS-6306R offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the CS-6306R offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches
For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.
Moreover, the CS-6306R offers secure remote management by supporting SSHv2, TLSv1.0 and SSLv3 connection which encrypts the packet content at each session.

Extractive Power Supply Design to Increase Flexibility
The CS-6306R is equipped with one extractive 100~240V AC power supply unit, so it is easy to replace the power for users. Besides, the CS-6306R reserves another two backup power slots on the front panel and users can add the second AC or DC power to the redundant power supply installation. The AC power or DC power is optional. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

Applications

Carrier Class Backbone Switch for Campuses and Communities
For large area network communications designed for the enterprises, campuses and communities, PLANET CS-6306R Chassis Switch is the best choice for an affordable and scalable network deployment. It offers a high-capacity chassis platform with high quality and reliability in 10/100/1000BASE-T, 1000BASE-SX/LX, 10GBASE-SR/LR and 40GBASE-SR4/LR4 scalable solutions that integrate easily into any large network.

The CS-6306R can provide a maximum of up to either 192 high-density Gigabit Ethernet ports, 192 SFP ports, 64 10G SFP+ ports or 16 40G QSFP+ ports which are available for remote uplink connectivity in a single system and provide the uplink to the edge network through 1Gbps to 40Gbps optical transceiver modules. The CS-6306R offers a comprehensive set of modules for complex network and gives network manager the flexibility to expand large area network when needed.

Reliable, High-performance and High-density Enterprise Backbone Switch
10/40-Gigabit Ethernet supported equipment has become the fundamental unit of enterprises and network servers. PLANET CS-6306R is the cost-effective, high-density and high-bandwidth chassis switch, which meets today’s market requirements. Its dedicated chassis architecture feature makes all modules in the platform operate together as one much larger switch providing multiple high-performance 10/40-Gigabit Ethernet network for backbone of enterprises, campuses or telecoms.

The redundant management modules and three power supplies provide the CS-6306R with nonstop network service ability. Moreover, all modules are hot-swappable. They can be added or exchanged without interrupting the operation of the whole system. The CS-6306R Chassis Switch is ideal for being a server farm switch connecting to servers and perfectly suitable for those networking environments requiring constant access to critical business applications.

Key Features

Hardware and Performance
6 open module slots design:
Up to 2 Management Modules
Up to 4 Switch Modules
Hot-swappable switching modules
1 RJ45 serial console interface on Management Module for switch basic management and setup

Redundant Power System
3 power slots
100~240V AC and 36-72V DC power redundancy
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply

IP Routing Features
IPv4 Routing protocol supports RIP v1/v2, OSPFv2 and BGP4
IPv6 Routing protocol supports RIPng, OSPFv3 and BGP4+
Routing interface provides VLAN routing mode
Policy-based Routing (PBR) for IPv4
VRRP protocol for redundant routing deployment
Supports route redistribution

Multicast Routing Features
Supports Multicast Routing Protocols:
PIM-DM (Protocol Independent Multicast - Dense Mode)
PIM-SM (Protocol Independent Multicast - Sparse Mode)
PIM-SSM (Protocol Independent Multicast - Source-Specific Multicast Mode)
Supports IGMP v1/v2/v3

Layer 2 Features
Supports VLAN
IEEE 802.1Q tag-based VLAN
Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
GVRP for dynamic VLAN management
Private VLAN
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Supports Spanning Tree Protocol
STP, IEEE 802.1D (Classic Spanning Tree Protocol)
RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to 1)
Loop protection to avoid broadcast loops
Link Layer Discovery Protocol (LLDP)
Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731

Quality of Service
Ingress shaper and egress rate limit per port bandwidth control
8 priority queues on all switch ports
IEEE 802.1p CoS/DSCP/Precedence
VLAN ID
Policy-based ingress and egress QoS

Multicast
Supports IPv4 IGMP snooping v1, v2 and v3
Supports IPv6 MLD snooping v1 and v2
Querier mode support
MVR (Multicast VLAN Registration)

Security
Authentication
IEEE 802.1x port-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers
RADIUS/TACACS+ users access authentication
Access Control List
IP-based Access Control List (ACL)
MAC-based Access Control List (ACL)
Time-based ACL
DHCP Snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks

Management
IPv4 and IPv6 dual stack management
Switch Management Interfaces
Console and Telnet Command Line Interface
HTTP web switch management
SNMP v1 and v2c switch management
SSHv2, SSLv3, TLSv1.0 and SNMP v3 secure access
SNMP Management
Four RMON groups (history, statistics, alarms, and events)
SNMP trap for interface Link Up and Link Down notification
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP
Reset button for system reboot or reset to factory default
Dual images
DHCP Functions:
DHCP Relay
DHCP Option 82
DHCP Server
User Privilege levels control
Network Time Protocol (NTP) and SNTP
Network Diagnostic
SFP-DDM (Digital Diagnostic Monitor)
ICMP remote IP ping
Syslog remote alarm
System Log

Stacking Management
Virtualized multiple CS-6306R switches integrated into one logical device
Single IP address stack management, supporting up to 2 hardware units stacked together
Stacking architecture supports redundancy Ring mode
