Startech 4K 30Hz HDMI over Cat6 Extender with IR, 40m | EXTEND-HDMI-4K40C6P1
SKU: EXTEND-HDMI-4K40C6P1
£89.54 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Startech 4K HDMI Extender over CAT6/CAT5 Ethernet Cable, 4K 30Hz or 1080p 60Hz Video Extender, HDMI over Ethernet Cable, HDMI Transmitter and Receiver Kit, IR Remote Control

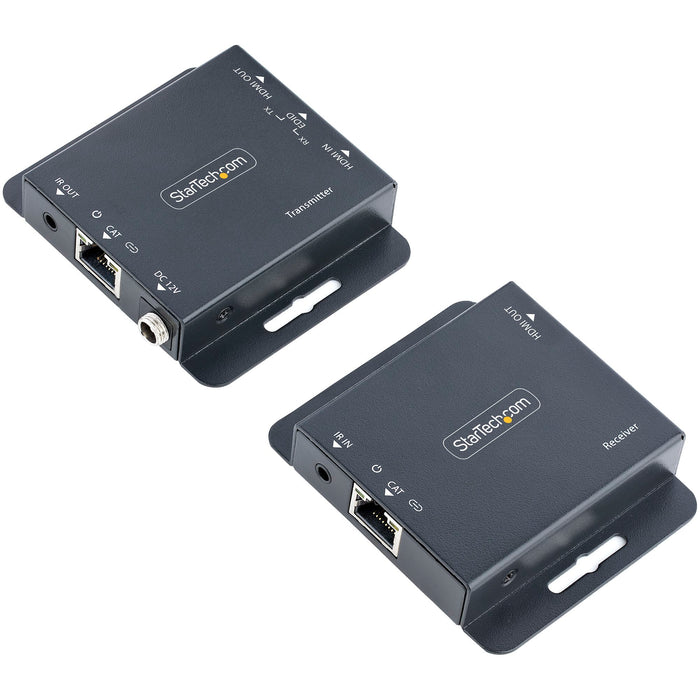

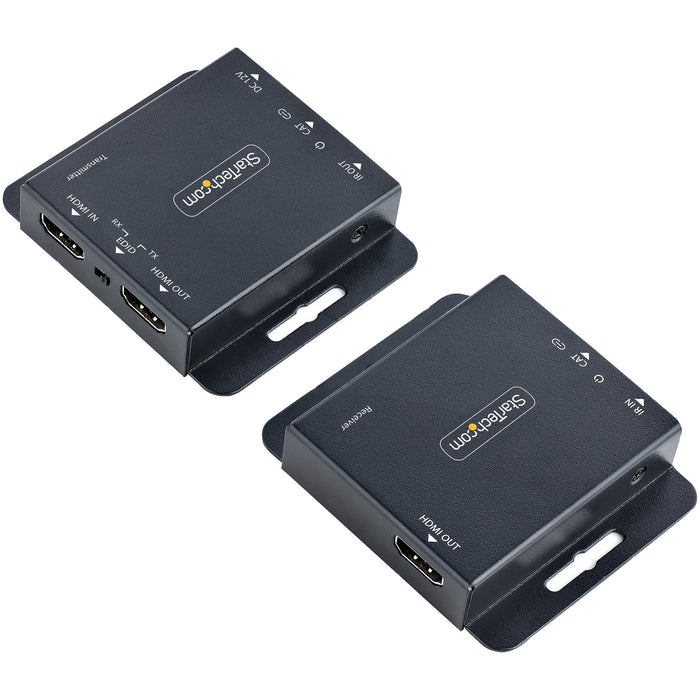

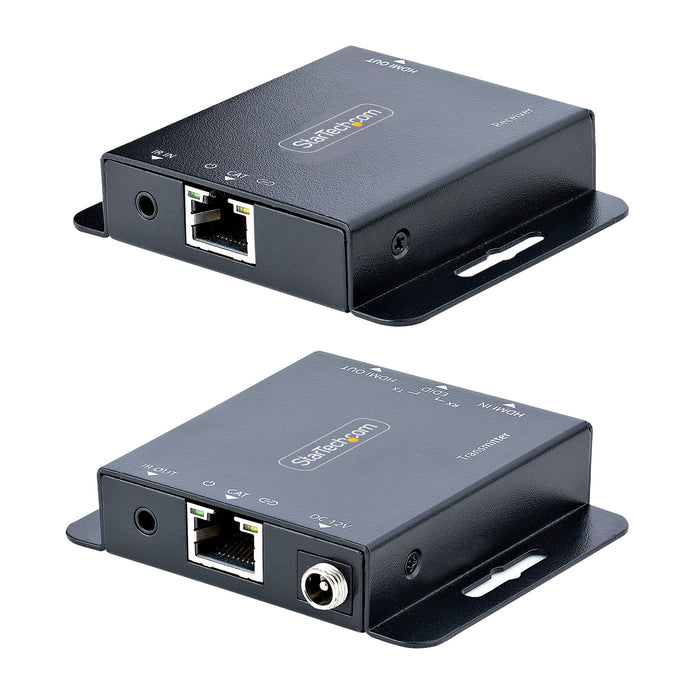

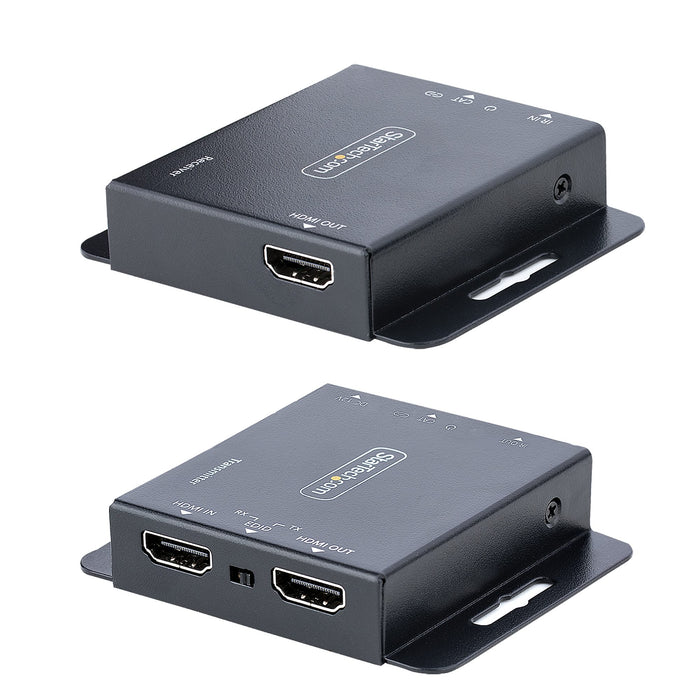

This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
4K Picture Quality
This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.
Simplify your setup

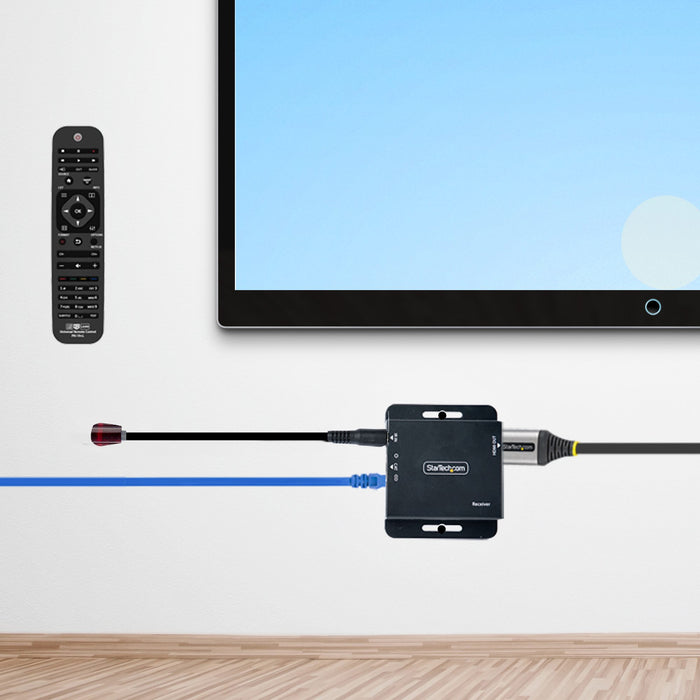

With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.
Easy Installation

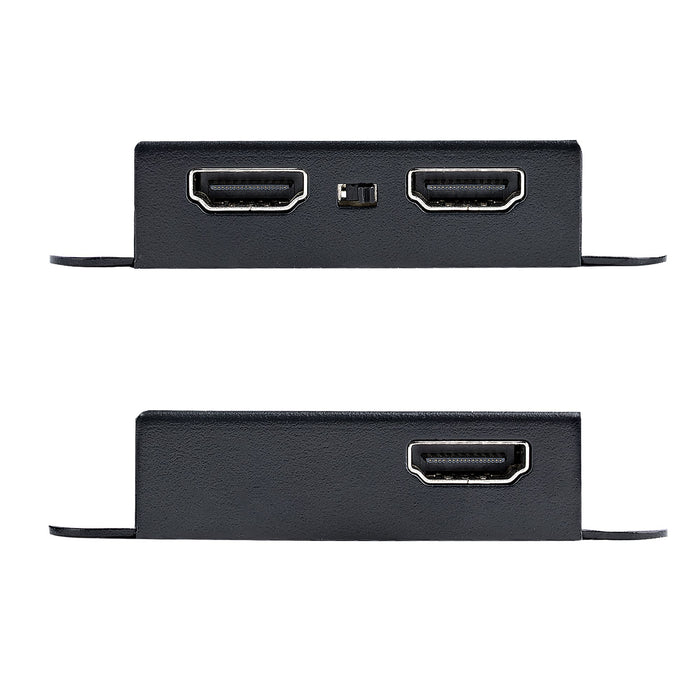

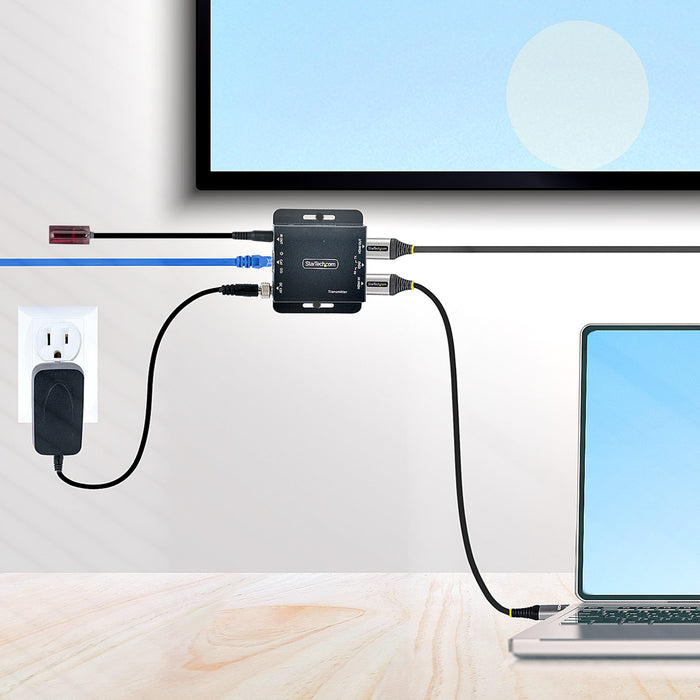

The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.
EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Applications
Extend your 4K HDMI signal in offices, building lobbies, shopping centers, airports and more
Use existing CAT6 infrastructure to create digital signage
Extend your HDMI signals to locations that lack power outlets -

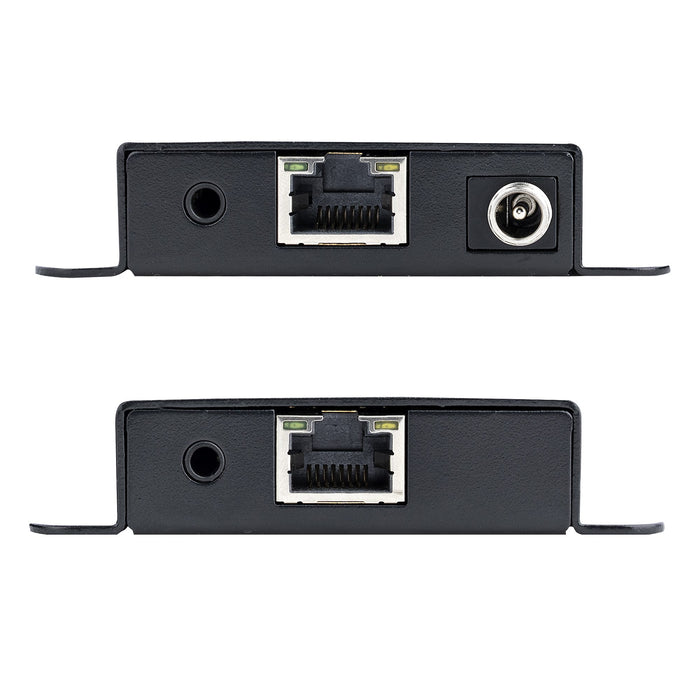

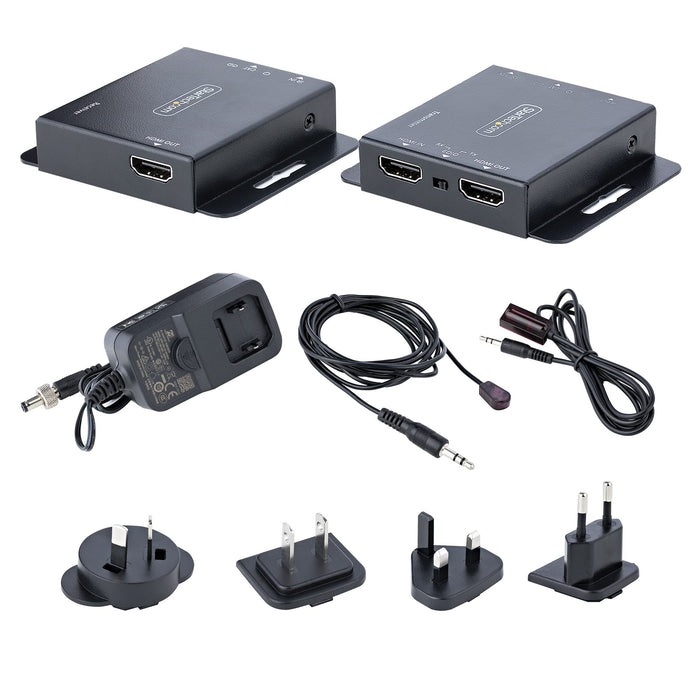

Category Attribute Value Warranty Warranty Period 2 Years Connector(s) Local Unit Connectors 1 - HDMI, 1 - RJ-45, 1 - 3.5mm Remote Unit Connectors 1 - HDMI, 1 - RJ-45, 1 - 3.5mm Environmental Operating Temperature 0°C to 40°C Storage Temperature -20°C to 60°C Humidity 20% - 90% RH (non-condensing) Hardware Cabling Cat 5e UTP or better Audio Yes Rack-Mountable No Daisy-Chain Yes Indicators LED Indicators 2 - Power LED, 2 - Link LED Packaging Information Package Height 7.7 cm Package Length 20.5 cm Shipping Weight 0.6 kg Package Width 11.6 cm Performance Maximum Data Transfer Rate 10.2 Gbps Max Distance 70m (230ft) Maximum Digital Resolutions CAT6: 4K @ 30Hz, CAT5e: 4K @ 30Hz Audio Specifications HDMI Audio 7.1 Channel Audio Physical Characteristics Color Black Product Height 1.7 cm Product Length 8.0 cm Weight of Product 212g Product Width 7.1 cm Power Power Source AC Adapter Included Input Voltage 100 - 240 AC Output Voltage 12V DC Output Current 1A Power Consumption (In Watts) 0.1 W What's in the Box Included in Package 1 - Local HDMI Transmitter, etc. -
Description Downloads Startech 4K 30Hz HDMI over Cat6 Extender with IR, 40m | EXTEND-HDMI-4K40C6P1 DataSheet Downloads Startech 4K 30Hz HDMI over Cat6 Extender with IR, 40m | EXTEND-HDMI-4K40C6P1 Quick Start Guide Downloads
