Startech 4K 60Hz 2-Port HDMI Splitter with HDR | ST122HD202
This 2-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.
True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 2-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.Easy Installation
For hassle-free setup, the 1x2 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.ST122HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Applications
Distribute HDMI video to multiple displays in a conference room for presentations and meetings
Display the same digital signage on multiple displays in different areas of shopping centers, arenas, or healthcare facilities
Split the same image to multiple displays in storefronts -

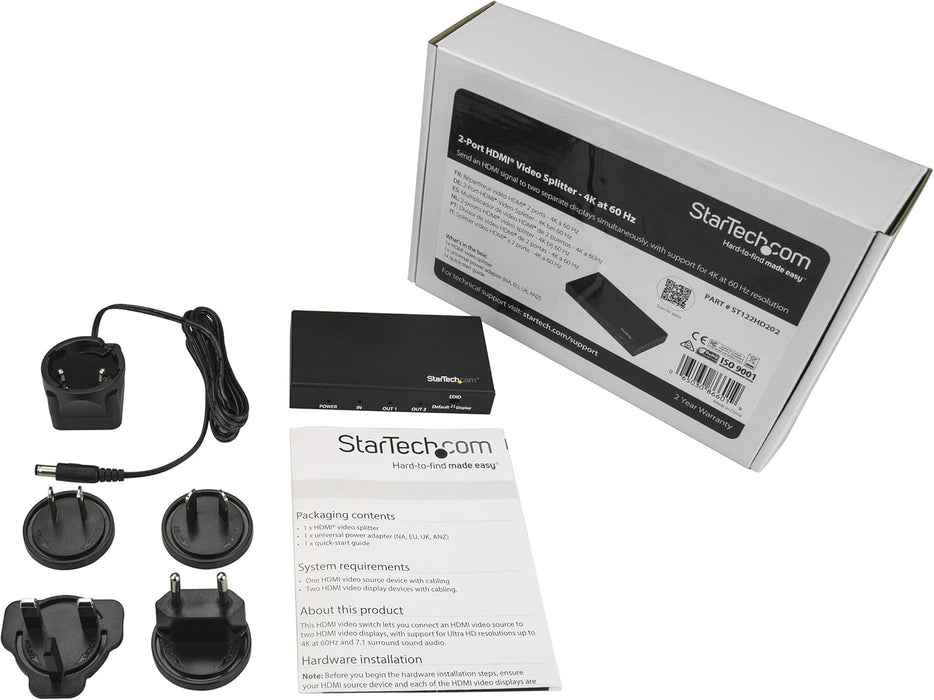

Category Details Warranty 2 Years Connector A 1 × HDMI (19 pin) Connector B 2 × HDMI (19 pin) AV Input HDMI AV Output HDMI Audio Yes HDMI Version HDMI 2.0 Max Resolutions 4096×2160 @ 60Hz, 3840×2160 @ 60Hz Max Data Rate 18Gbps Max Cable Length 5m (16.4 ft) LED Indicators Power ×1, Input ×1, Output ×2 Operating Temp 0°C to 40°C Storage Temp -20°C to 60°C Humidity 20–90% RH (non-condensing) Material Steel Product Size 10.0 × 5.5 × 1.5 cm Product Weight 155g (5.5 oz) Power Input 100–240V AC Power Output 5V DC, 1A Power Consumption 5 Watts Included in Box Splitter, Power Adapter, Guide -
Description Downloads Startech 4K 60Hz 2-Port HDMI Splitter with HDR | ST122HD202 DataSheet Downloads Startech 4K 60Hz 2-Port HDMI Splitter with HDR | ST122HD202 Quick Start Guide Downloads
