Startech SDI2HD SDI to HDMI Converter – 3G SDI to HDMI Adapter w/ SDI Loop Through Output
SKU: SDI2HD
£145.48 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Startech SDI2HD SDI to HDMI Converter – 3G SDI to HDMI Adapter with SDI Loop Through Output
The SDI2HD 3G SDI to HDMI converter enables you to turn a 3G SDI video signal into an HDMI video output. The adapter features a built-in 3G SDI daisy chain port, giving you the ability to further extend the SDI source to up to 755ft (230m) over standard coaxial cable, for large scale HD-SDI video broadcasting distribution.
To ensure you maintain perfect high-definition video quality the SDI-HDMI converter features supports resolutions up to 1080p, allowing you to convert SDI to HDMI without sacrificing video quality.
For hassle-free installation, the SDI to HDMI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation.
The SDI2HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Convert a 3G SDI video run to HDMI from up to 755ft (300m) away
Connect your HDMI display to a 3G SDI video run
Output to an HDMI Display and continue your 3G SDI run up to an additonal 755ft (300m) using the daisy chain port
The StarTech.com Advantage
Increase scalability, with built-in 3G SDI daisy chain port
Maintain High-definition video quality while converting from 3G SDI to HDMI, with support for resolutions up to 1080p
Hassle-free installation, with pre-installed mounting brackets and no software or drivers required -

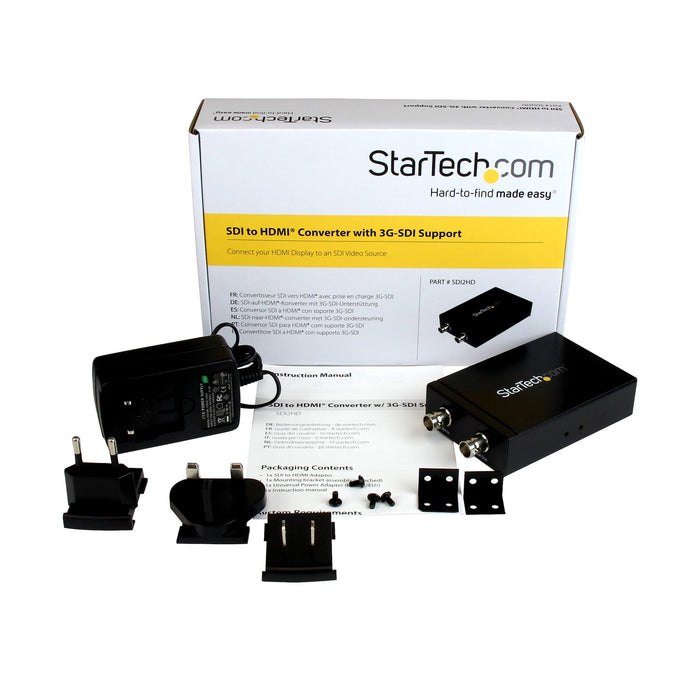

Category Attribute Warranty 2 Years Connector A 1 x SDI (BNC) Connector B 1 x HDMI (19 pin) Operating Temp 0°C to 70°C Storage Temp -10°C to 80°C Humidity 5% to 90% RH Adapter Type Active AV Input SDI (BNC) AV Output HDMI Ports 1 Cabling Coaxial Audio Support Yes Rack-Mountable Yes Chipset ID Gennum - GV7600 Daisy-Chain Yes Max Data Rate 2.97 Gbps Max Cable Length 230 m Max Resolution 1080p Supported Resolutions 1080p/i, 720p @ 24–60 FPS Wide Screen Yes SD Formats 525i & 625i Video Formats 8/10-bit RGB/YUV Product Weight 207 g Color Black Material Steel Dimensions (LxWxH) 11.2 x 6.5 x 2.5 cm Power Source AC Adapter Included Input Voltage 100 - 240 AC Output Voltage 5 DC Output Current 2 A Power (Max) 10 W Included Items Adapter, Mount, PSU, Manual -
Description Downloads Startech SDI2HD SDI to HDMI Converter – 3G SDI to HDMI Adapter with SDI Loop Through Output DataSheet Downloads Startech SDI2HD SDI to HDMI Converter – 3G SDI to HDMI Adapter with SDI Loop Through Output Instruction Manual Downloads
