Trendet Gigabit Power over Ethernet (PoE) Injector | TPE-113GI
SKU: TPE-113GI
£23.40 (Excl. VAT)
- Description
- Specifications
- Downloads
-

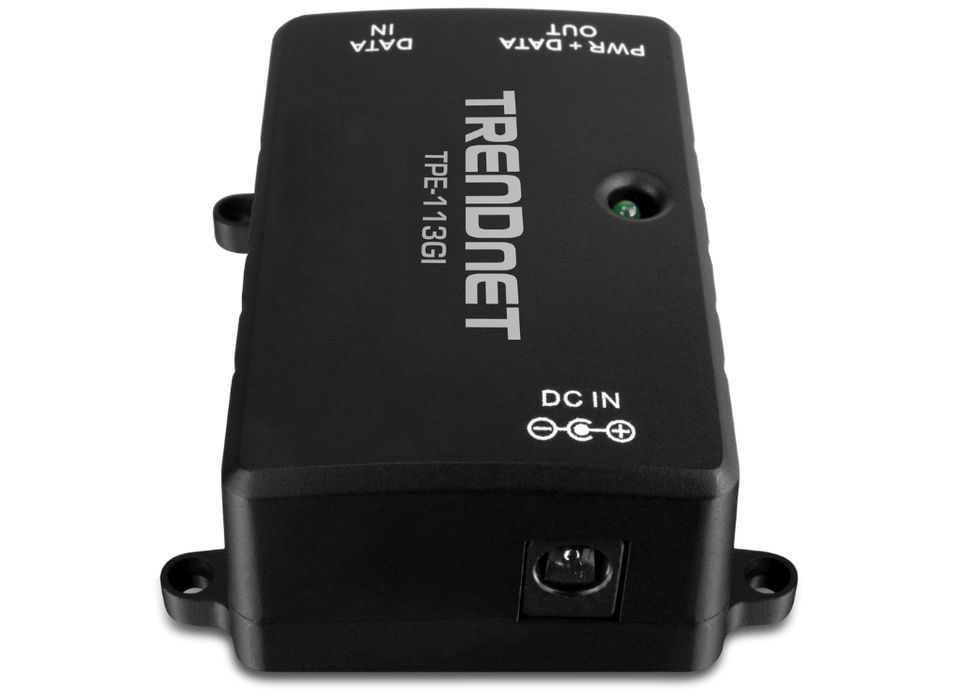

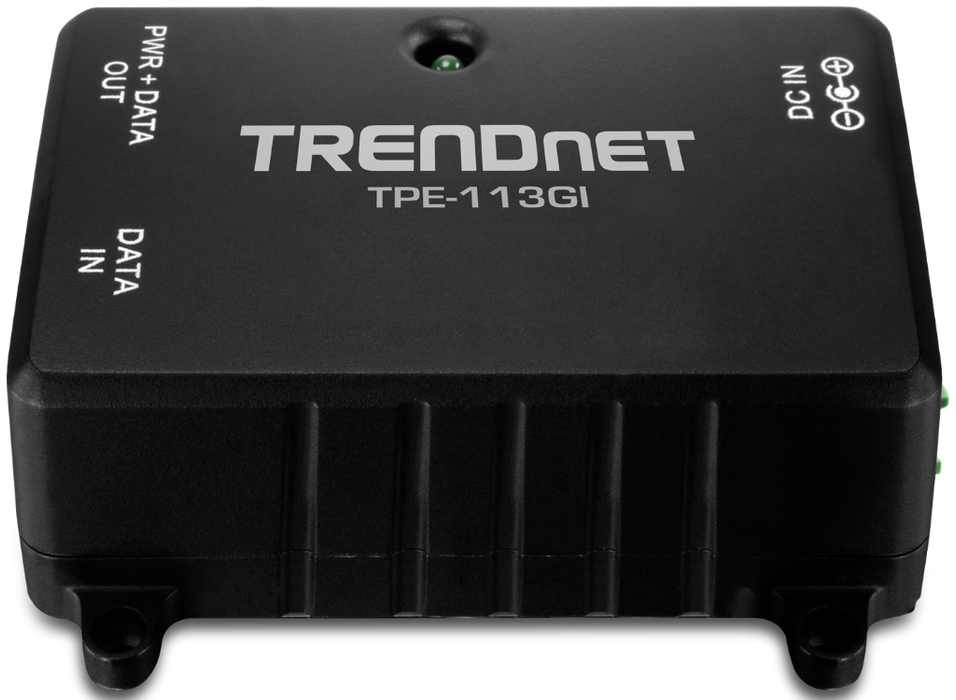

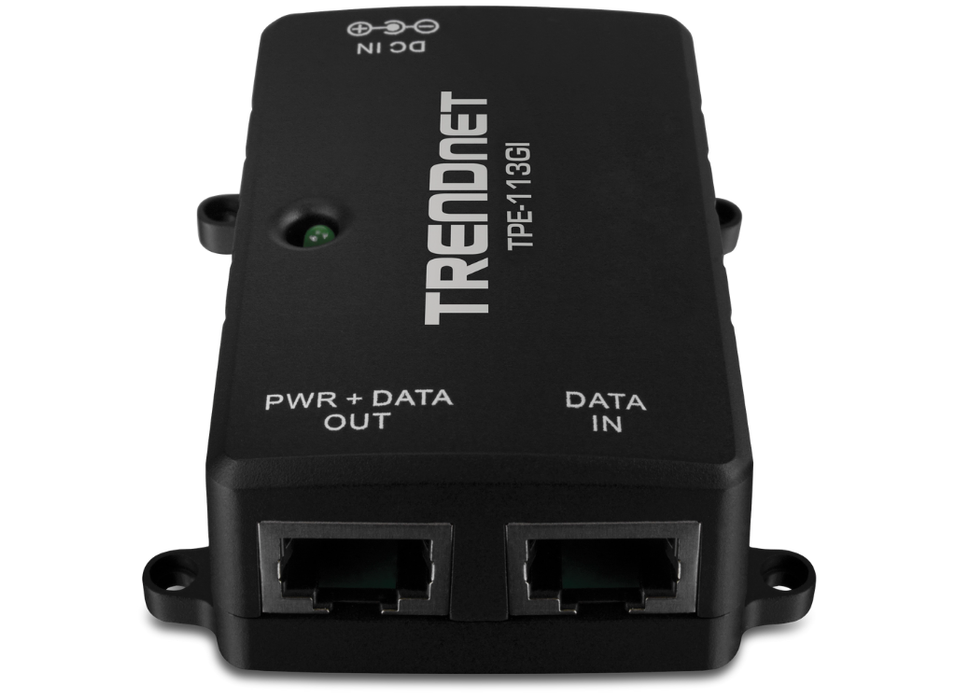

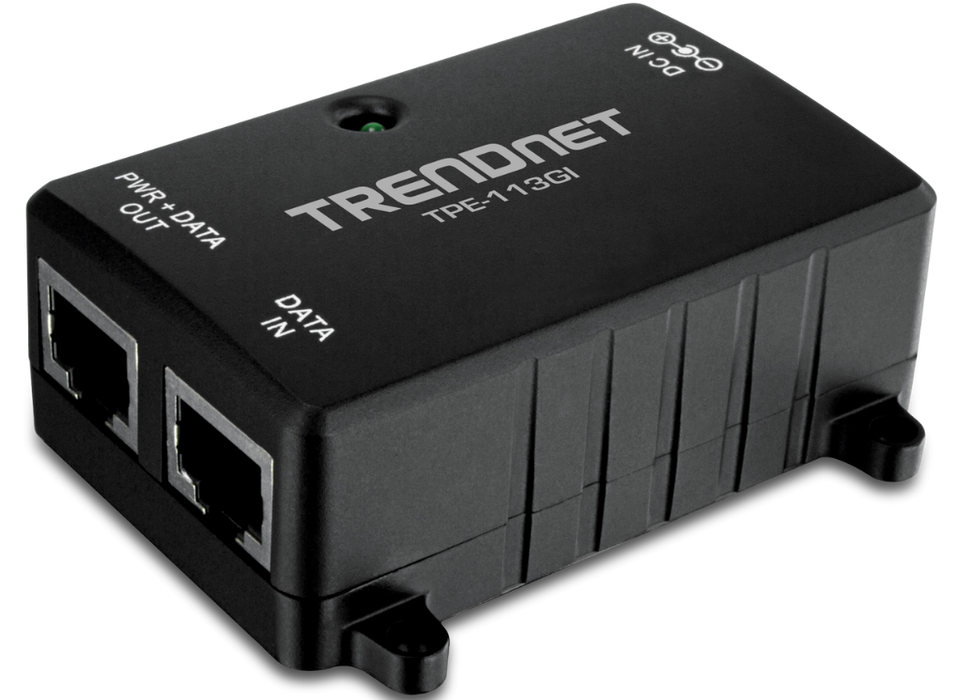

Trendet Gigabit Power over Ethernet (PoE) Injector | TPE-113GI
The Gigabit Power over Ethernet Injector, model TPE-113GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal. Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 Ft.) to network PoE devices.
No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations. This compact device safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network at Gigabit speeds.
IEEE 802.3ab Gigabit and 802.3af PoE compliant
Gigabit Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)
1 x 10/100/1000 Mbps Auto-MDIX Data In port
1 x 10/100/1000 Mbps PoE Auto-MDIX Data Out port
Power port
Power LED indicator
Supplies power up to 15.4 Watts
Easily install a PoE device where a power outlet is not available
Reduce installation and network equipment costs
Safeguards network devices with short circuit protection
Plug and Play in remote location
Light weight and compact size
Wall mounting points
3-year limited warranty -
Category Specification Standard - IEEE 802.3 10Base-T - IEEE 802.3u 100Base-TX - IEEE 802.3ab Gigabit Ethernet - IEEE 802.3af Power over Ethernet Network Media - 10 Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters - 100 Mbps: UTP/STP Cat. 5, 5e up to 100 Meters - Gigabit: UTP/STP Cat 5e and 6 up to 100 meters Ports - 1 x 10/100/1000 Mbps DATA-IN (Data only) - 1 x 10/100/1000 Mbps PWR+DATA OUT (Data + Power) Data Lines - Pair 1: Pin 1, 2 - Pair 2: Pin 3, 6 Power - Input: 100 240V, 5060Hz, 0.4A max.- Output: 48V DC, 0.4A 18W max. Power Consumption - 15.4 Watts (max.) Dimensions - 70 x 45 x 25mm (2.75 x 1.8 x 1 in.) Weight - 45 g (1.6 oz.) Temperature - Operation: 0°C 50°C (32°F122°F)- Storage: -20°C 60°C (-4°F140 °F)Humidity - Max. 90% (non-condensing) Certifications - CE, FCC Package Contents - TPE-113GI - Quick Installation Guide - Power Adapter (48V DC, 0.4A) -
Description Downloads Datasheet Downloads
