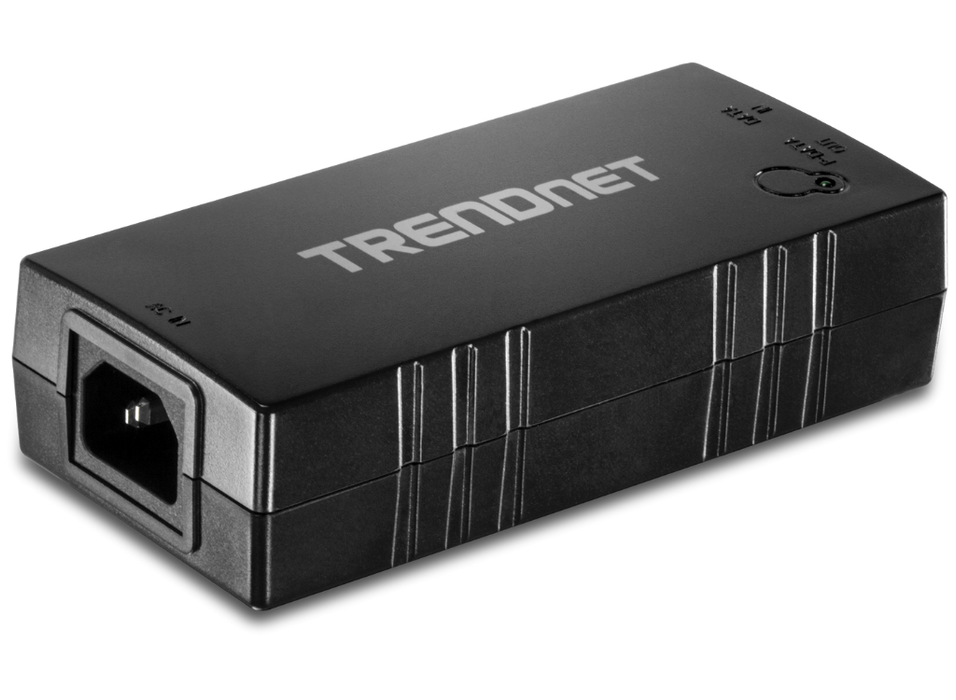

Trendnet TPE-115GI Gigabit PoE+ Injector
SKU: TPE-115GI
£28.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Trendnet TPE-115GI Gigabit PoE+ Injector
The Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet Plus (PoE+) signal. Connect this device to a non-PoE Gigabit switch and then run an Ethernet cable for up to 100 meters (328 ft.) to network PoE+ or PoE devices. The integrated power supply reduces installation clutter.
Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.
IEEE 802.3at PoE+ (30 Watt) compliant
Backwards compatible with IEEE 802.3af PoE (15 Watt) devices
Automatically supplies a PoE+ (30 Watts) or PoE (15 Watts) connection to the device
Integrated power supply
Network devices for distances of up to 100 meters (328 ft.)

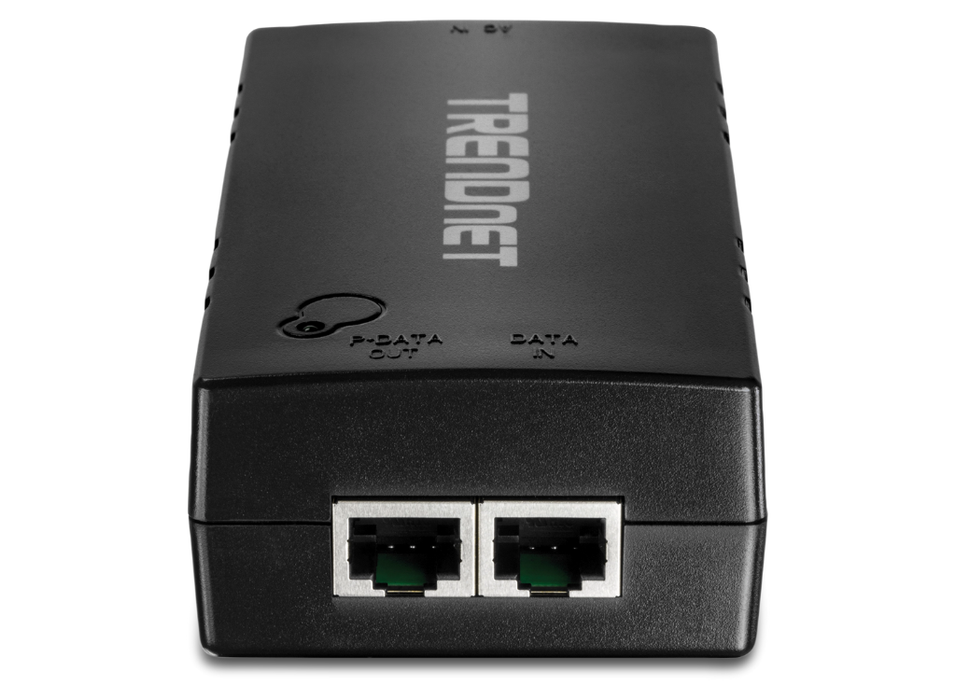

1 x 10/100/1000 Mbps Auto-MDIX Data In port
1 x 10/100/1000 Mbps PoE+ Auto-MDIX Data Out port

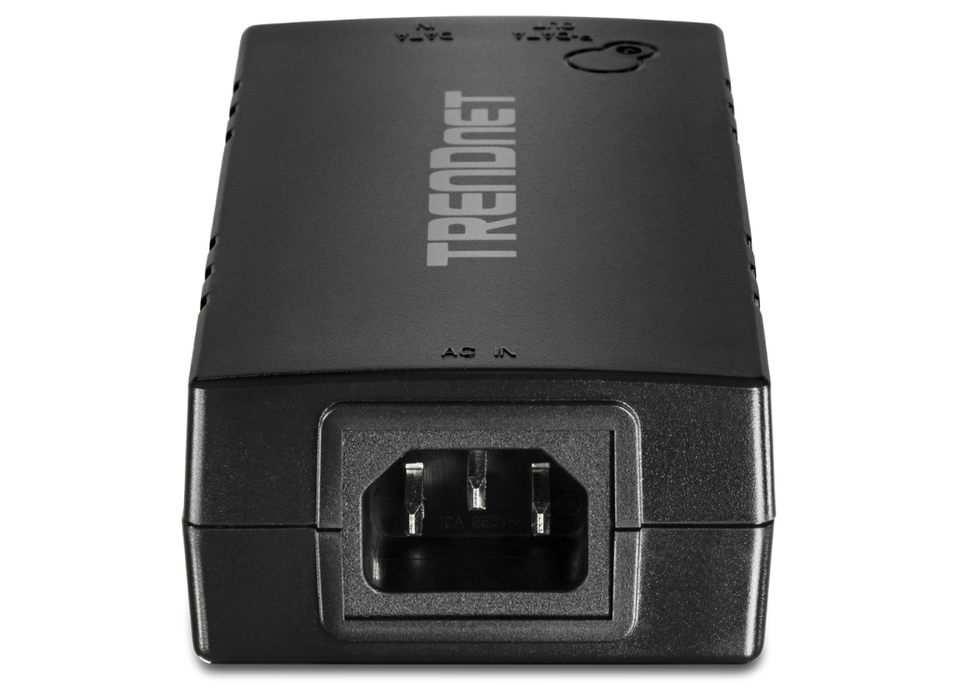

Power port with LED indicator
Easily install a PoE+ or POE device where a power outlet is not available
Reduce installation and network equipment costs
Safeguards network devices with short circuit protection
3-year limited warranty -
Category Specification Hardware Standard IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af Power over Ethernet, IEEE 802.3at PoE+ Network Media 10 Mbps: UTP/STP Cat. 5 and 5e up to 100 meters, 100 Mbps: UTP/STP Cat. 5 and 5e up to 100 meters, Gigabit: UTP/STP Cat 5e and 6 up to 100 meters Ports 1 x 10/100/1000 Mbps Data-In (Data only), 1 x 10/100/1000 Mbps PWR+Data out (Data + Power) PoE Delivery Pair 1: Pin 1, 2; Pair 2: Pin 3, 6 Power Input: 100 240 V, 5060 Hz, 0.65 A max.Power Consumption Max 30 Watts Dimensions (W x D x H) 133 x 63 x 35 mm (5.2 x 2.5 x 1.4 in.) Weight 162 g (5.7 oz.) Temperature Operation: -10°C 45°C (14°F113°F), Storage: -20°C60°C (-4°F140°F)Humidity Max 95% (non-condensing) Certifications CE, FCC Package Contents TPE-115GI, Quick Installation Guide, Power cord -
Description Downloads Datasheet Downloads
