Vivolink 300m True 4K Fiber Extender - VLHDMIEXTFIB
SKU: VLHDMIEXTFIB
£1,357.43 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Vivolink 300m True 4K Fiber Extender - VLHDMIEXTFIB
True 4K Fiber Extender 300m

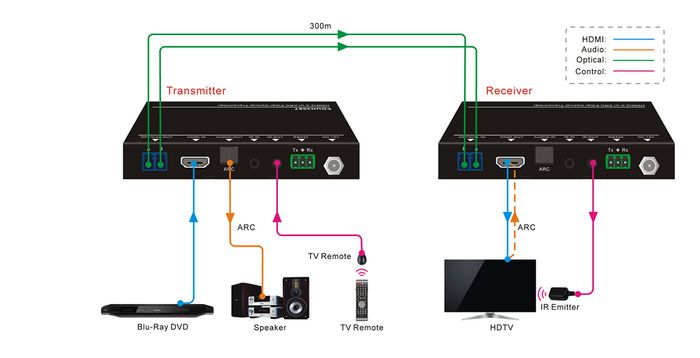

Transmitter/Receiver HDMI 2.0 Uncompressed 18G, HDR HDCP2.2, two ways IR, RS232Typical installation:
For thrue 4K signal HDMI 1:1 extention up to 300m
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.Function:
HDMI 2.0 extender over two fiber, multi-mode for 300M
Point to point,Tx to Rx uncompressed 4:4:4
Two way IR, RS232Full HDMI 2.0 compliant
18 Gbps bandwidth
Support Bi-directional IR and RS232
HDCP2.2 compliant
-
Category Detail Features Bandwidth 18 Gbit/s CEC pass-through Yes Fiber optic connector LC HDBaseT certified Yes HDCP & EDID bypass Yes HDCP pass-through Yes IR pass-through Yes LED indicators Yes Maximum resolution 2560 x 1440 Pixels Maximum transfer distance 300 m Product colour Black Remote control type IR + RS232 RS-232 pass-through Yes Supported video modes 3840p Type AV transmitter & receiver Wall mountable Yes Legal Information EU ECCN Code N/A US ECCN Code 5A992 Operational conditions Operating relative humidity (H-H) 10 - 90 % Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 55 °C Package dimensions (verified) Depth Verified 21.2 cm Gross Weight Verified 0.912 kg Height Verified 9.6 cm Width Verified 30.8 cm Packaging content AC adapter included Yes Included power plug types EU/GB IR blaster included No IR receiver included No Mounting brackets included Yes Ports & interfaces 3.5 mm (1/8-inch) in Yes 3.5 mm (1/8-inch) out Yes Audio input 1 Audio output 1 Connectivity technology Wired DC-in jack Yes Digital audio optical in 2 Digital audio optical out 2 HDMI in 1 HDMI version 2.2 Number of HDMI outputs 1 Remote (IR) input 1 Remote (IR) output 1 RJ-45 input ports 1 RJ-45 output ports 1 RS-232 input ports 1 RS-232 output ports 1 Serial interface type RS-232 Serial ports quantity 1 Video in 1 Video out 1 Power AC input frequency 50/60 Hz AC input voltage 100 - 240 V External power adapter Yes Power consumption (receiver) (max) 9 Watt Power consumption (transmitter) (max) 9 Watt Power consumption (typical) 9 Watt Power over Ethernet (PoE) Yes Product dimensions Net Weight (Product, kg) 0.18 kg Product Depth 8.4 cm Product Height 0.2 cm Product Width 13 cm Technical details Audio support Yes Vendor information Brand Name Vivolink Warranty 3 Year(s) - VLHDMIEXTFIB : Product Sheet
