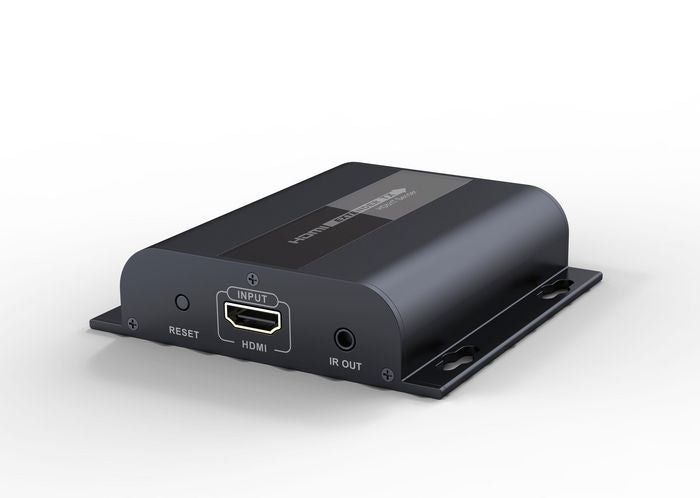

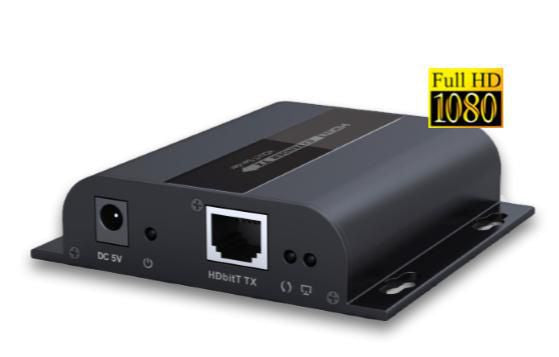

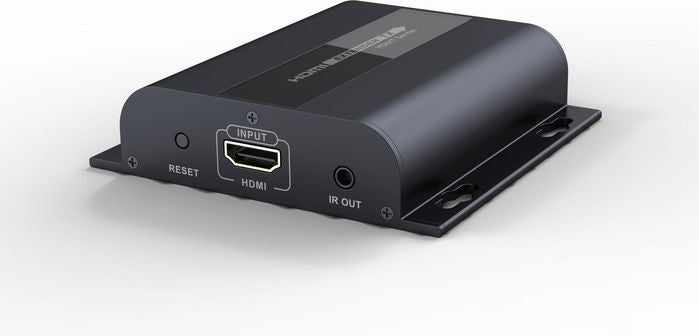

Vivolink HDMI Over IP 120m 1:253 + IR Transmitter
HDMI over IP 120m 1:253 + IR, Transmitter
Transmitter unit with IR transmitter Max resolution 1080P@60hzVLHDMIEXT1-TV2 is transmitter for VLHDMIEXT1-RV2
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 120 meters via single network cable (Cat 5e/6)
Up to 253 receivers can be connected to one transmitter using Gbit switch.
One receiver will occupy 18Mbit bandwith.Note that this product is not compatible with HDBaseT receivers

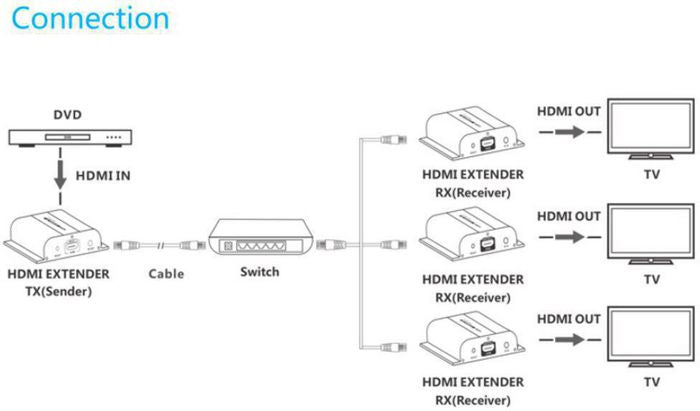

Typical installation:
It can be installed anywhere to extend HDMI signal up to 120m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 120m 1080P@60Hz
Signal can be spitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network
TX: 192.168.1.210
RX: 192.168.1.220
Supports Full HD resolution 1080P@60 Hz
Maximum transmission distance 120m
Supports IR control (IR receiver and transmitter included)
Signal can be spitted with a GBit Switch to several receivers
-
Category Specification Features Cable length 120 m Cable types supported Cat5e/Cat6 HDCP Yes HDCP & EDID bypass Yes HDCP pass-through Yes HDCP version 1.4 IR pass-through Yes LED indicators Yes Maximum resolution 1920x1080p Pixels Maximum transfer distance 120 m Product colour Black Remote control type IR Supported video modes 1080p Type AV Transmitter Video compression formats H.264 Wall mountable Yes Legal Information EU ECCN Code N/A US ECCN Code 5A992 Operational conditions Operating relative humidity (H-H) 10 - 90 % Operating temperature (T-T) 0 - 60 °C Package dimensions (verified) Depth Verified 11.9 cm Gross Weight Verified 0.306 kg Height Verified 8 cm Width Verified 15.3 cm Packaging content AC adapter included Yes Included power plug types EU IR blaster included No IR receiver included Yes Ports & interfaces 3.5 mm (1/8-inch) in Yes 3.5 mm (1/8-inch) out Yes Connectivity technology Wired DC-in jack Yes Ethernet LAN Yes HDMI in 1 HDMI version 1.4 Number of HDMI outputs 1 Remote (IR) input 1 Remote (IR) output 1 RJ-45 output ports 1 Video in 1 Video out 1 Power AC input frequency 50 / 60 Hz AC input voltage 100 - 240 V Power consumption (typical) 3.5 Watt Product dimensions Net Weight (Product, kg) 0.206 kg Product Depth 9.4 cm Product Height 2.37 cm Product Width 9.68 cm Technical details Audio support Yes Vendor information Brand Name Vivolink Warranty 3 Year(s) Categories Main category ProAV Solutions Subcategory Signal Management Subcategory Extenders Subcategory AV Extenders - VLHDMIEXT1-TV2 : Datasheet
