Vivolink USB-C 4K KVM Extender Over HDBT3.0 - VLUSBCEXT151
SKU: VLUSBCEXT151
£589.71 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Vivolink USB-C 4K KVM Extender Over HDBT3.0 - VLUSBCEXT151
USB-C 4K KVM Extender over HDBT3.0

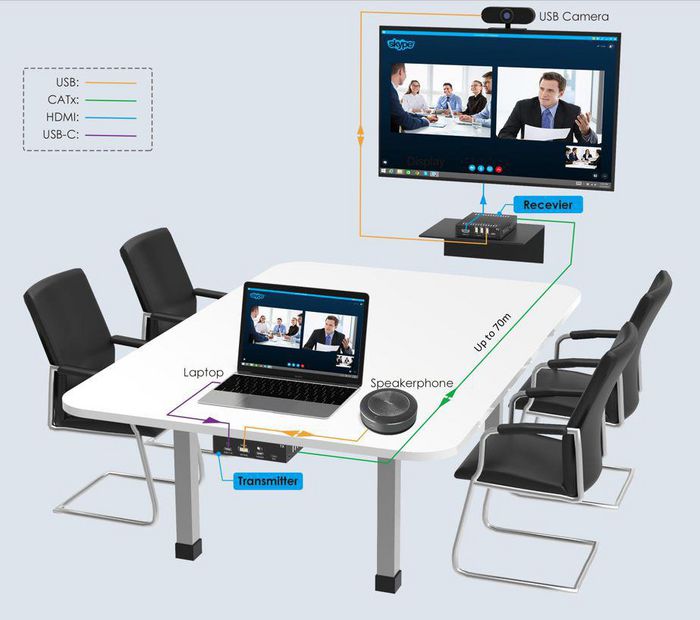

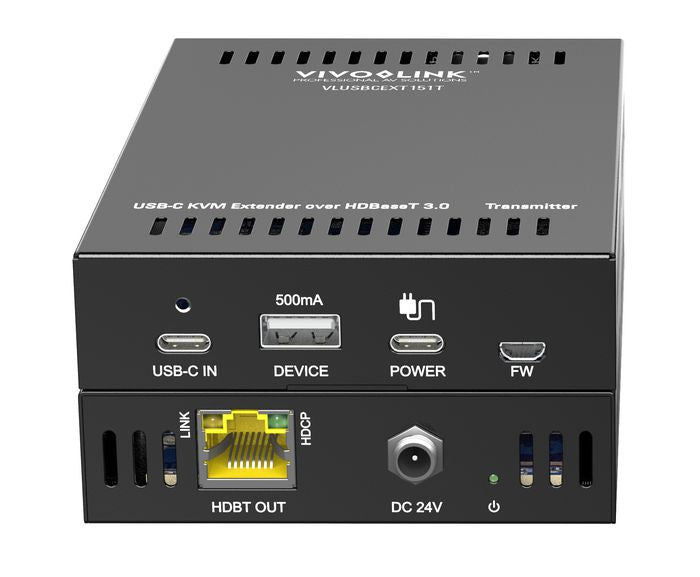

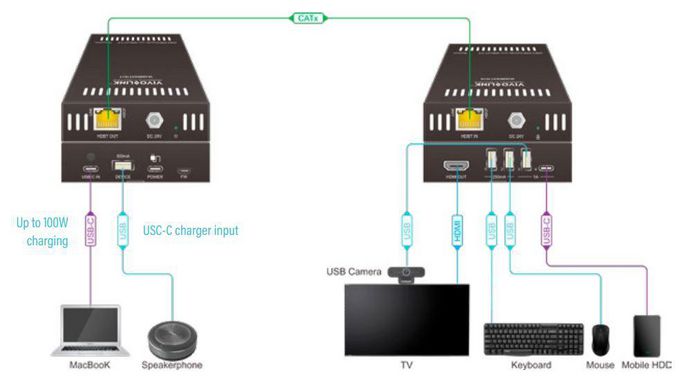

The VLUSBCEXT151 is an USB-C extender kit that can be used for meeting rooms with both screen and USB devices like cameras. HDBaseT 3.0 support the the highest performing long distance video distribution solution in the AV market. It allows one USB-C channel to be transmitted over distances of up to 70m at 4K@30Hz (40m 4K@60Hz) 4:4:4 via CAT6a cable using the latest HDBaseT VS3000 chipsetTransmitter unit has USB-C input for Laptop and 100W charge port (charger is not included in the package but you can connect any USC-C charger for laptop here) + USB-A connection for example desk speaker microphone. HDBaseT output to receiver unit and support 100m lenght of CAT6A cable

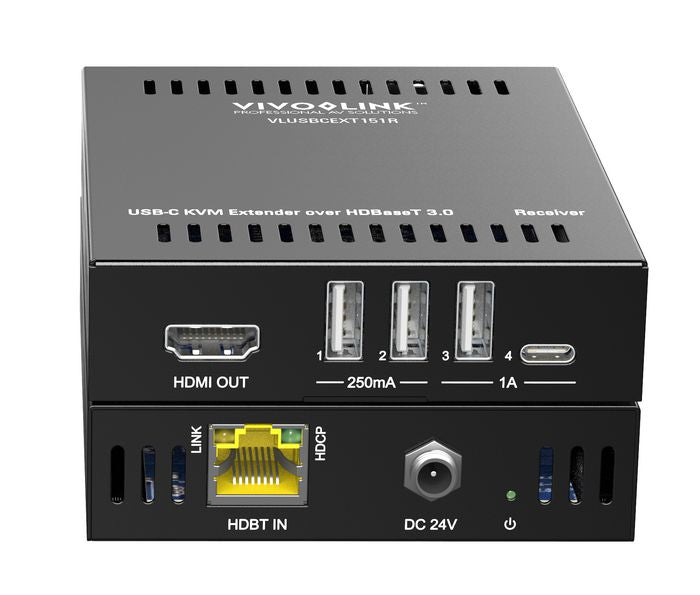

Receiver unit have HDMI 4K output for screen and 4 USB 2.0 inputs for devices at the screen side, like PTZ camera, soundbar and USB touch plate from screen.
Support following formats: DisplayLink, DP Alt mode, DisplayPort

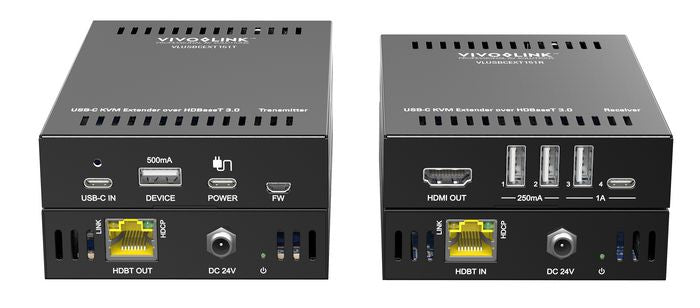

The USB-C extender Kit includes one transmitter with USB-C input for Laptop and a receiver for the screen. There is one power supply that can be mounted at the transmitter or receiver.
Supports HDMI 2.0b, 4K@60Hz 4:4:4, HDCP 2.2 compliant.
USB-C input supports 4K@60Hz 4:4:4 HDR10+
USB-C 100W charge port
4K@30Hz 70m transmission 18Gbit uncompressed
3 x USB + 1 x USB-C supporting USB 2.0 transfer speed up to 300Mbps
Supports bi-direction 24V PoC power supply
HDCP 2.3 compatible
Support Dolby Vison and HDR10+
-
Category Specification Features Audio support Yes Cable types supported Cat6a Connectivity technology Wired Easy to install Yes LED indicators Link/Power Maximum digital resolution 4096x2160@60Hz Pixels Maximum transfer distance 70 m Plug and Play Yes Product colour Black Supported resolutions 4K@60Hz 4:4:4 USB 2.0 ports quantity 4 Legal Information EU ECCN Code N/A UNSPSC Code 43211601 US ECCN Code 5A992 Operational conditions Operating temperature (T-T) -5 - 55 °C Storage temperature (T-T) -25 - 70 °C Package dimensions Depth (package, cm) 16.1 cm Gross Weight (Package, kg) 0.82 kg Height (package, cm) 12.8 cm Width (package, cm) 18.3 cm Packaging content AC adapter included Yes Included power plug types EU/GB Manual Yes Mounting bracket(s) included Yes Quick installation guide Yes Ports & interfaces RJ-45 ports quantity 1 USB port type USB Type A/USB Type-C Power AC adapter output current 1.25 A AC adapter output voltage 24 V AC input voltage 100 - 240 V Power consumption (receiver) (max) 18.2 Watt Product dimensions Net Weight (Product, kg) 0.5 kg Product Depth 16.1 cm Product Height 12.8 cm Product Width 18.3 cm Receiver RJ-45 ports quantity (receiver) 1 Technical details Dimensions (WxDxH) 90 x 21.7 x 120 mm Maximum resolution 4096x2160 Pixels Video in USB-C Weight 265 g Transmitter Number of displays supported 1 RJ-45 ports quantity (transmitter) 1 Transmitter local keyboard/mouse port type USB Transmitter local video port Yes Transmitter video port type HDMI Vendor information Brand Name Vivolink Warranty 3 Year(s) - VLUSBCEXT151 : Datasheet
