Immersive Projection
Built for Space-Limited Immersive Projects
Ultra Short Throw
High brightness
Offset
Blending Ready Mode
360° degree Installation
BenQ White Balanced Adjustment
Dustproofing
Remote Device
BenQ Immersive Entertainment Projector Series
Ready for Space Restricted Rooms and Fast Deployment
Design for Tight & Flexible Installation
Ultra-Short Throw
Offset
2D Keystone
Compact & Lightweight Body
Installer Ready
Fast, Consistent Setup and Deployment
Blending Ready Mode
One-click preset in the projector menu that applies key settings to prepare images for multi-projector blending.
*Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.
Seamless Multi-Projector White Calibration
BenQ’s factory white balance adjustment (WBA) reduce variables between images projected from different projectors, significantly reducing manual calibration effort. It can save up to a full day of setup time in large-scale installations while ensuring seamless multi-projector alignment for edge blending.
Bright and True
Bright, Clear Visuals in Light
sRGB mode
Vivid mode
High brightness
Wide Color
1920 x 1020
Dust Protection and Easy Maintenance
1.IP6X Sealed Engine Design
Shields the projector’s optical engine from dust intrusion, ensuring long-term stability and reliable performance.

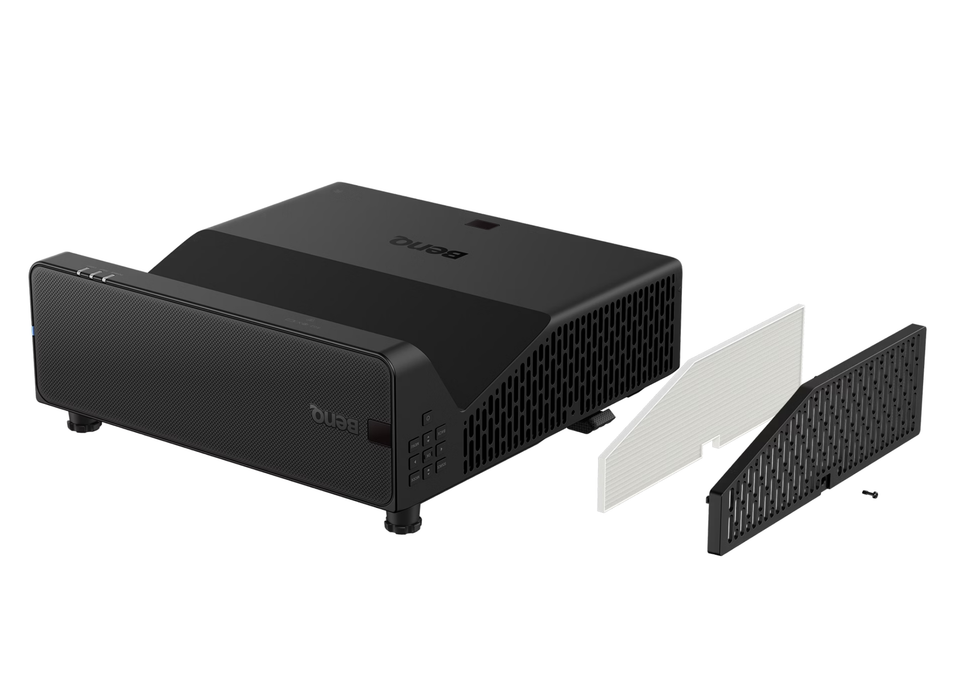

2.Optional Filter for Extra Protection
Provides added protection for easier daily maintenance and helps extend projector life.
3.Auto Reset Mechanism
Automatically tracks filter usage and resets the timer when a new filter is installed, without any manual setup.
| Display | |||
| Brightness (ANSI lumens) | 5000 | Resolution | WUXGA (1920x1200) |
| Native Aspect Ratio | 16:10 | Contrast Ratio (FOFO) | 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) | Light Source | Laser |
| Light Source Life | a. Normal 20000 hrs, b. ECO 30000 hrs | ||
| Optical | |||
| Throw Ratio | 0.253 | Zoom Ratio | Fixed |
| Lens | 'F 2.44, f: 3.7 mm | Projection Offset (Full-Height) | 117% |
| Keystone Adjustment | 2D, Vertical ± 15 degrees; Horizontal ± 14 degrees | ||
| Picture | |||
| Rec. 709 Coverage | 93% | Picture Modes | Simulation, 3D, Bright, HDR10, HLG, Presentation, sRGB, User 1, User 2, Vivid |
| Compatibility | |||
| Input Lag | 16.7 ms (WUXGA 60Hz) | Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~135KHz | Vertical Scan Rate | 23~120Hz |

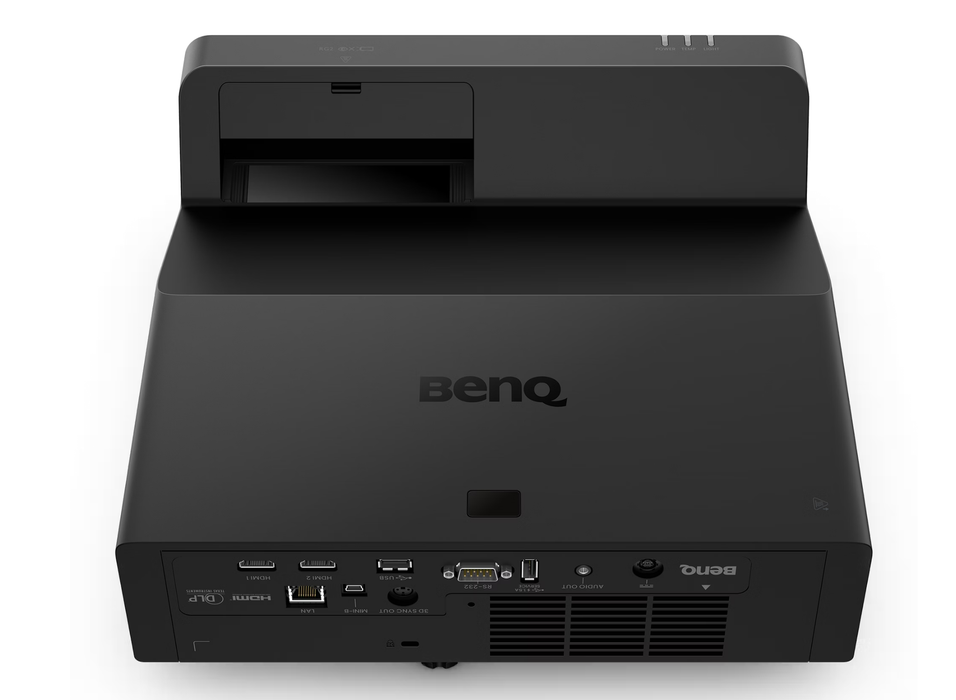

| I/O Interface | |||
| HDMI in | (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2) | LAN (RJ45) | (x1) |
| 3D Sync out | (x1) | USB Type A | (x2) |
| USB Type Mini B | (x1) | RS232 in (DB-9pin) | (x1) |
| Audio | |||
| Speaker | (x1), 10W | Audio out (3.5mm Mini Jack) | (x1) |
| Environment | |||
| Operating Temperature | 0~40℃ | Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption (110V) | 255W @110VAC | Stand-by Power Consumption | <0.5W |
| Network Stand-by Power Consumption | <2W | Acoustic Noise (Typ./Eco.)(dB) | 34/30 |
| Accessories | |||
| Remote Control w/ Battery | RCA011 | Power Cord (by region) | x1 (1.8M) |
| Quick Start Guide | (x1) 22L | Warranty Card (by region) | Yes |

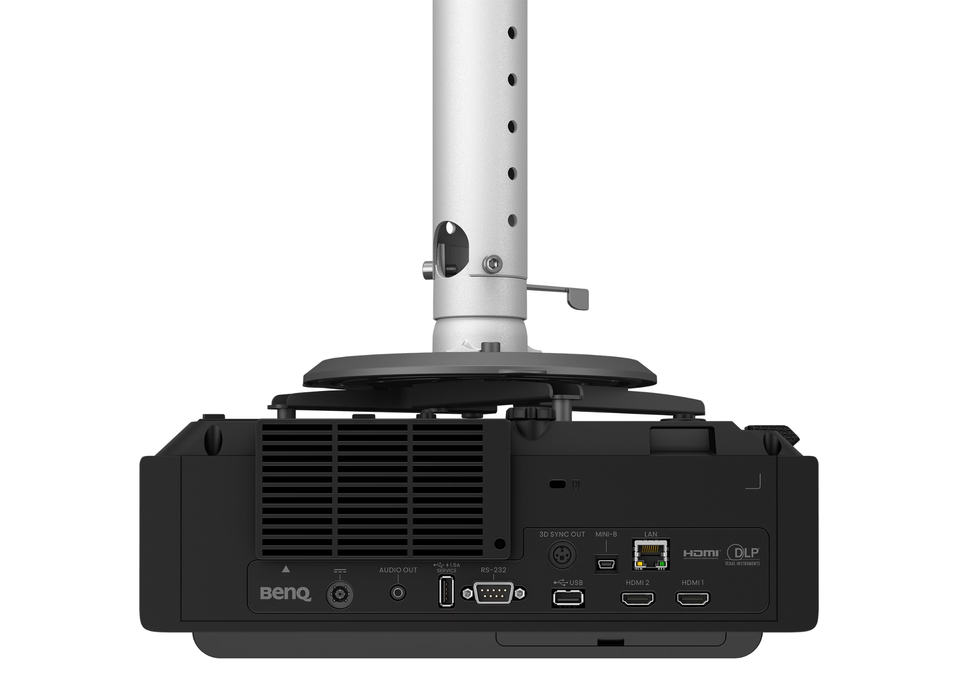

| Anti-dust Filter | (Optional) | Universal Ceiling Mount | CM00G3, (Optional) |
| Dimension & Weight | |||
| Dimensions (WxHxD) (mm) | 327*328.3*131.6 (mm) | Net Weight (kg) | 4.5 Kg+/- 100g |
| Dimensions (WxHXD) (inch) | 12.87*12.93*5.18 | Net Weight (lb) | 9.92 lbs + 0.22 lbs |
| Projection System | |||
| Projection System | DLP | ||
