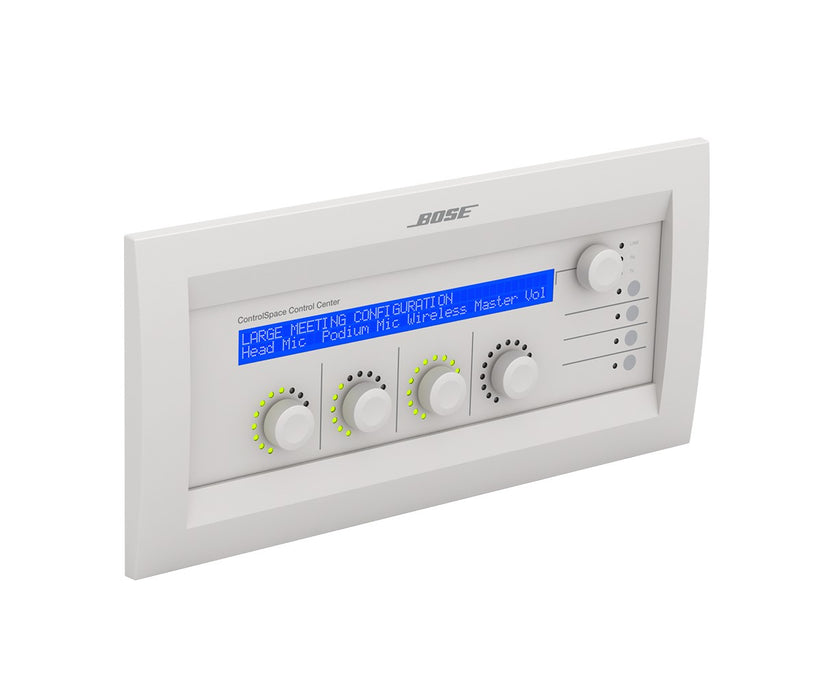

Bose ControlSpace CC-64 Rotary Volume Control | 41760
The Bose Professional ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system. The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed "scenes" or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling.
FEATURES
Elegant styling with easy-to-read dynamic labeling for simplified end user operation
2-line by 40-character backlit LCD screen
4 gain/selector control knobs (rotary/push) with LED rings
4 bank switch buttons to change Gain/Selector control knob mapping for 16 unique controls
1 master scene/preset recall knob (rotary scroll/push to select)
Simplified drag-and-drop setup using ControlSpace Designer software
Customizable on-screen wording provides easier system operation
Supports programming of easy-to-select scenes, allowing multiple room usage scenarios to be recalled from the CC-64 by end users
Programmable software lock-out
Fits into a standard 5-gang electrical wall box
| Feature | Description |
|---|---|
| Compliance | EMC: ICES-003 Class B, EN55103-1, EN55103-2, FCC Part 15 Class B |
| Cable Requirements | Cat 5, unshielded twisted-pair (UTP) |
| Max Controller Quantity | 16 per ControlSpace network |
| Max Cable Length | 328 ft (100 m) |
| Connectors | (1) RJ-45 port / (1) Euroblock, 2 pins |
| Power Range | 15–24 VDC, 300 mA |
| Front Panel Controls | (4) gain/select knobs (rotary/push), (4) bank-switch buttons, (1) master scene/preset recall knob (rotary/push) |
| Display | 2-line × 40-character LCD, backlit blue |
| LED Indicators | (4) volume LED rings, (4) bank LEDs, (1) network LED, (1) transmit LED, (1) receive LED |
| Colors | White |
| Mounting | 5-gang electrical box (North America) |
| Dimensions (H×W×D) | 5.4 in × 11.1 in × 2.0 in (137 mm × 282 mm × 51 mm) |
| Product Codes | 41760 (ControlCenter CC-64, white) |
| Included in Packaging | (1) ControlSpace CC-64, (1) installation guide, (1) Cat 5 power adapter |
| Description | Downloads |
|---|---|
| Bose ControlSpace CC-64 Rotary Volume Control | 41760 DataSheet | Downloads |
