BOSE DesignMax DM5P 60W Pendant Loudspeakers (1 pair)
SKU: 841166-0120
£428.40 (Excl. VAT)
- Description
- Specifications
- Downloads
-

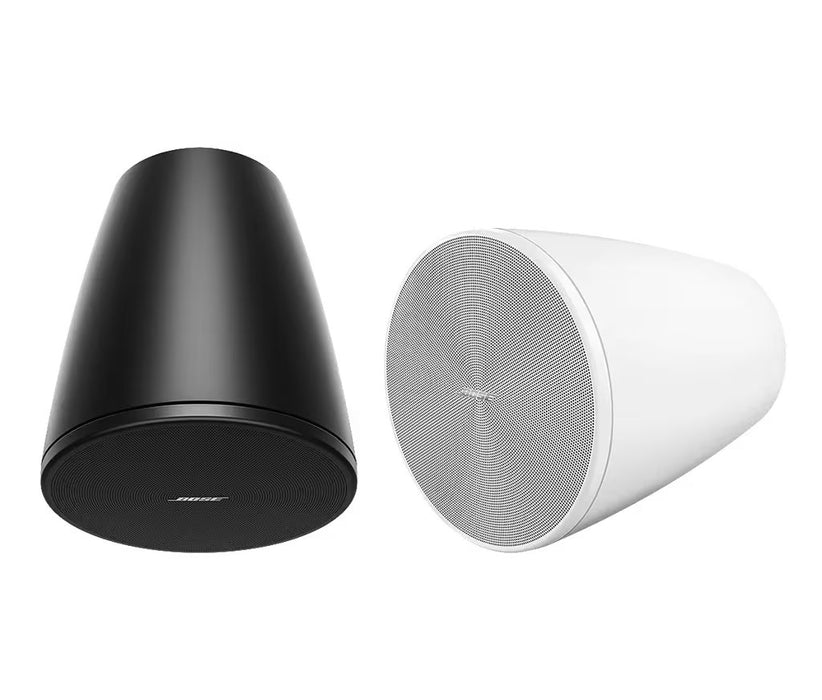

Bose DesignMax DM5P Pendant Loudspeakers –5.25" Coaxial, 60W, 120° Coverage, Single-Point Suspension (Pair)
With a coaxial two-way design, the 60-watt Bose Professional DesignMax DM5P loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 5.25-inch woofer and 1-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
FEATURES
Complete any commercial sound installation with 15 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
Choose from three DM5 models — the in-ceiling DM5C, the surface-mounted, outdoor-rated DM5SE, and the sleek DM5P pendant loudspeaker
Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

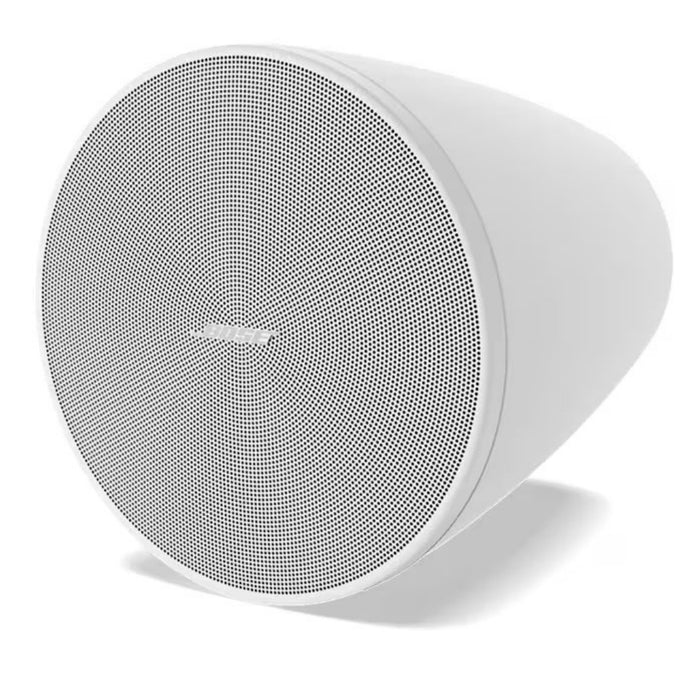

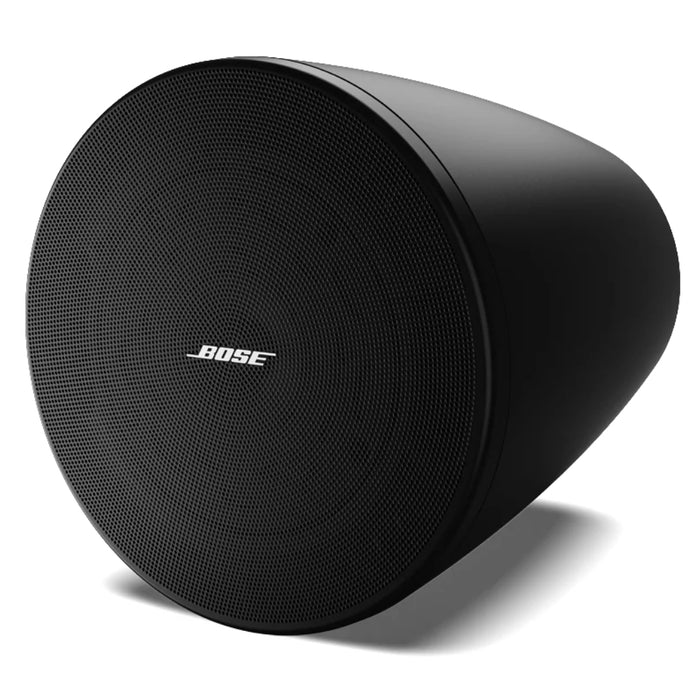

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

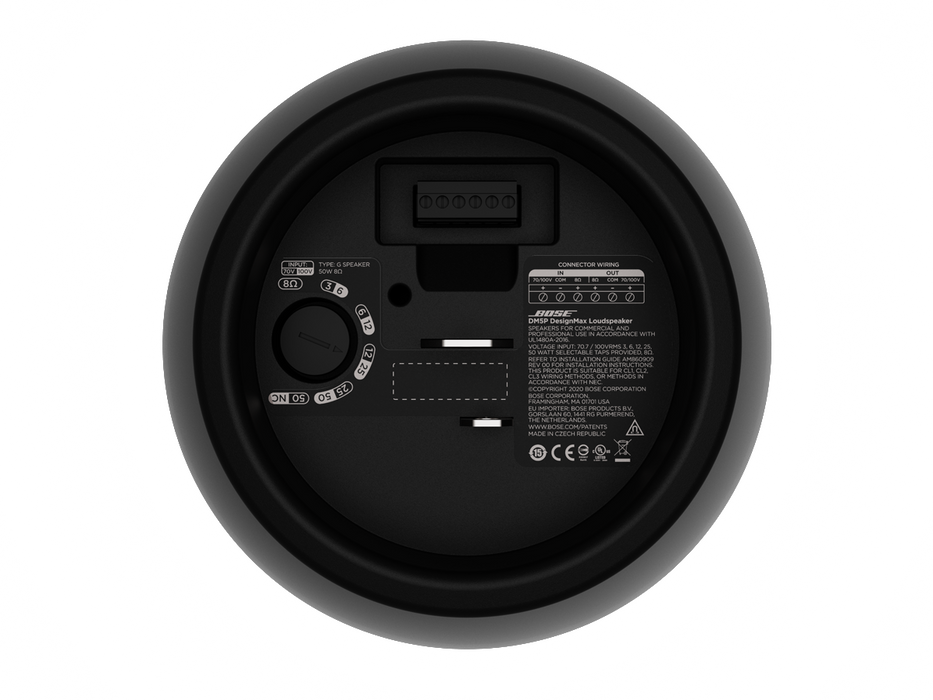

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

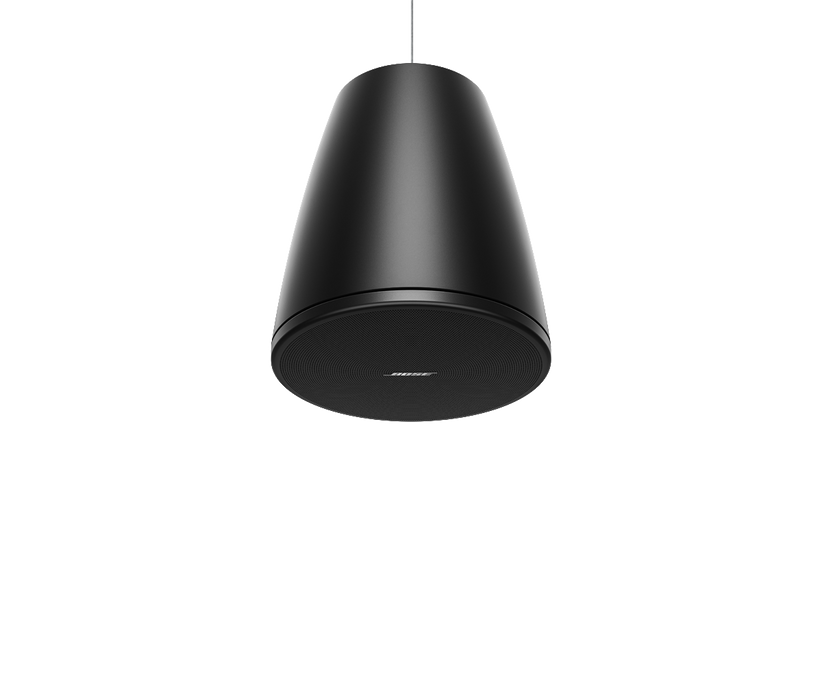

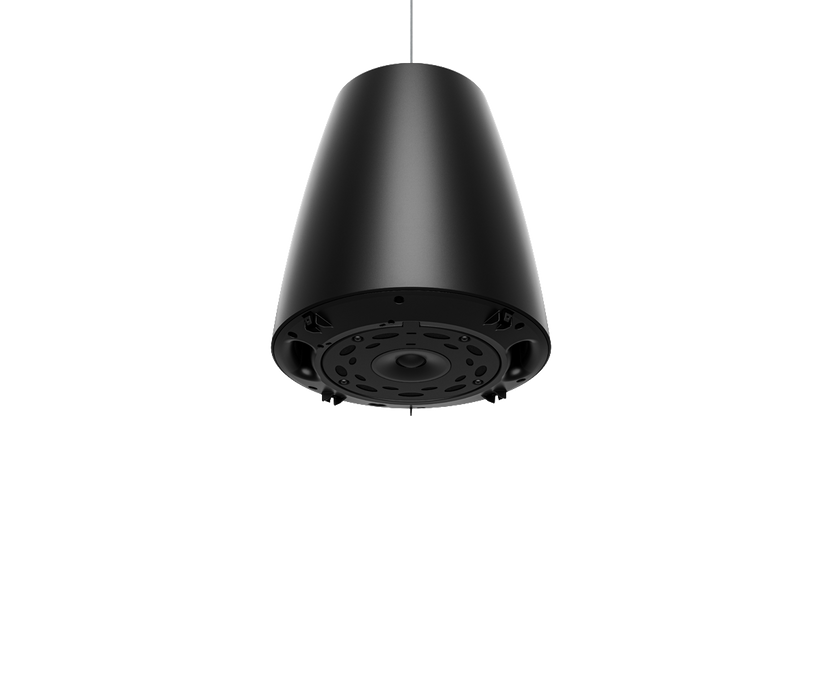

Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access -
Category Attribute Value COMPLIANCE Safety Ratings UL 1480A, UL 2239, NFPA 70/90A, CE-compliant PHYSICAL Colors Black, White, Paintable Enclosure Material Engineered plastics Environmental Indoor only Grille Powder-coated perforated steel Logo Rotatable, removable Mounting 1 suspension, 1 safety cable Operating Temp 0 °C to 50 °C (32 °F to 122 °F) Dimensions (H × D) 10.2 × 11.8 in (259 × 300 mm) Suspension Cable 15 ft × 0.1 in (4.6 m × 2 mm) Net Weight (single) 9.1 lb (4.1 kg) Shipping Weight (pair) 24.3 lb (11.0 kg) PERFORMANCE Frequency Range (-10 dB) 65 Hz – 20,000 Hz Coverage (H × V) 120° × 120° conical Max SPL @ 1 m 105 dB Nominal Impedance 8 Ω (bypass) Power Handling (Cont./Peak) 50 W / 200 W Sensitivity (1W @ 1m) 87 dB Signal Processing Optional Bose EQ & SmartBass Transformer Taps (100V) 6, 12, 25, 50 W, bypass Transformer Taps (70V) 3, 6, 12, 25, 50 W, bypass TRANSDUCERS Crossover 1.8 kHz passive 2-way Driver Protection 65 Hz HPF @ 24 dB/oct HF Driver 1" neodymium dome tweeter LF Driver 5.25" woofer PRODUCT CODES 841166-0110 / -0210 / -0120 / -0220 INCLUDED ITEMS 2 speakers, 2 cables, 8 ties, tools, guide WARRANTY Period 5 years -
Description Downloads BOSE DesignMax DM5P Black Loudspeakers (1 pair) | 841166-0120 DataSheet Downloads BOSE DesignMax DM5P Black Loudspeakers (1 pair) | 841166-0120 Installation Guide Downloads BOSE DesignMax DM5P Black Loudspeakers (1 pair) | 841166-0120 Painting Guide Downloads BOSE DesignMax DM5P Black Loudspeakers (1 pair) | 841166-0120 Design Guide Downloads
