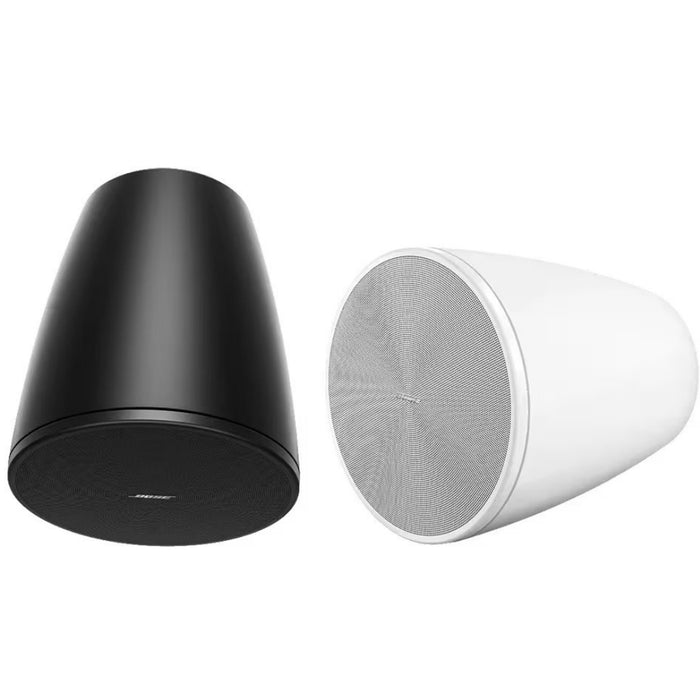

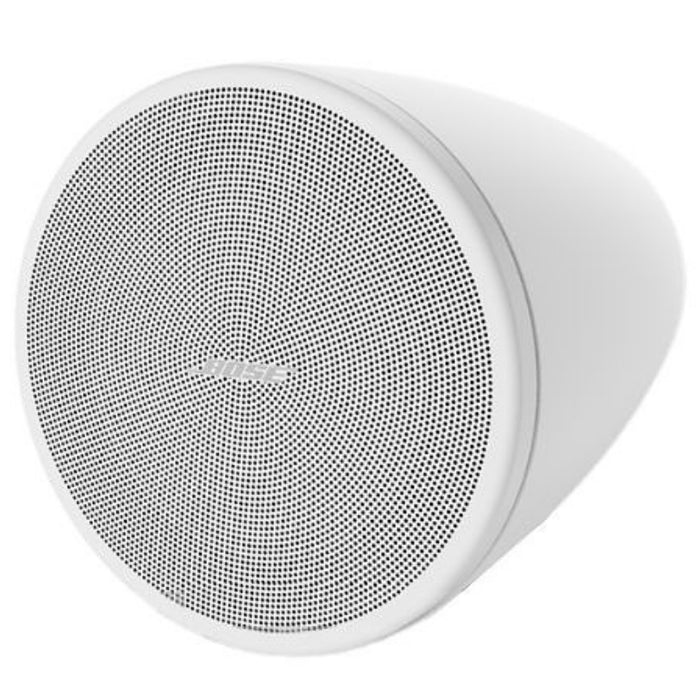

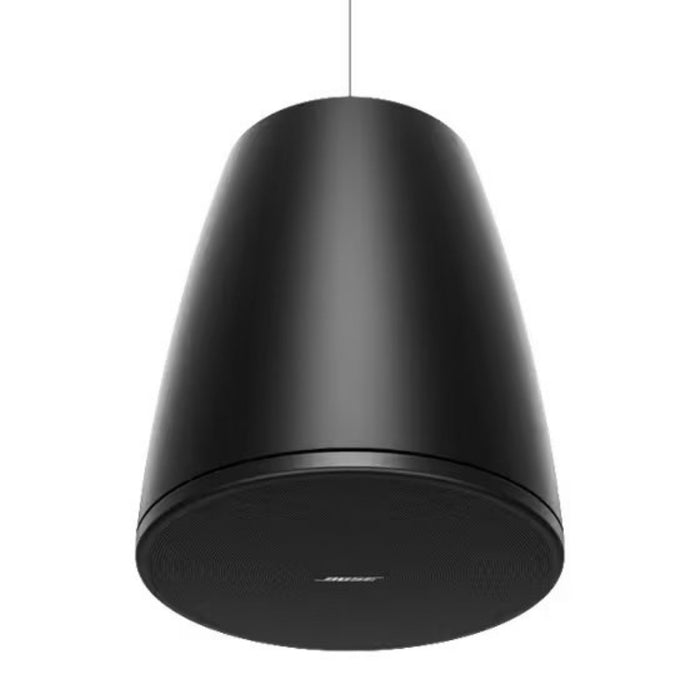

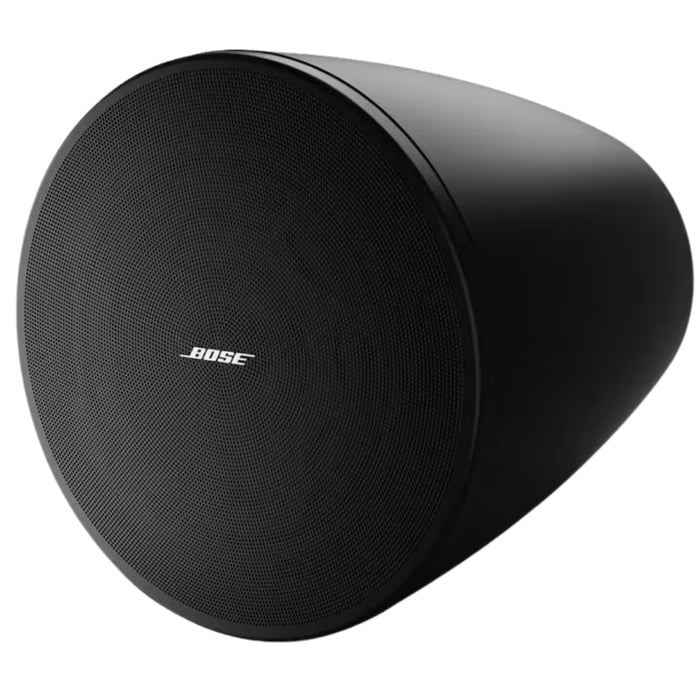

BOSE DesignMax DM6PE 125W Loudspeakers (1 pair)
SKU: 841168-0120
£603.56 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Bose DesignMax DM6PE Outdoor Pendant Loudspeakers – 6.5" Coaxial, 125W RMS, IP55 Weatherproof
With a coaxial two-way design, the 125-watt Bose Professional DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz – 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
FEATURES
Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
Choose from three DM6 models — the in-ceiling DM6C, the surface-mounted and outdoor-rated DM6SE, and the sleek, outdoor-rated DM6PE pendant loudspeaker
Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

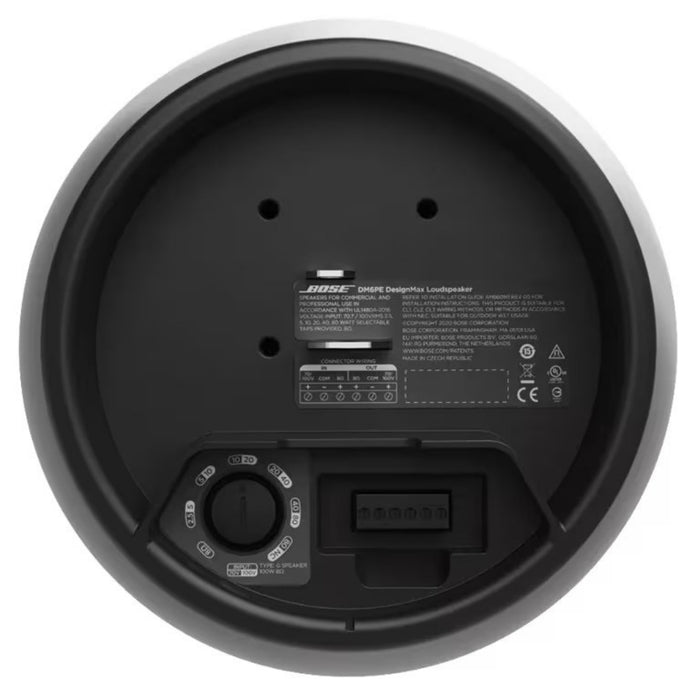

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install DM6PE outside — IP55 rating with powder-coated steel grille for outdoor -
Category Attribute Value COMPLIANCE Safety Ratings UL 1480A, UL 2239, NFPA 70 & 90A, CE-compliant PHYSICAL Colors Black (RAL 9005), White (RAL 9003), Paintable Enclosure Material Engineered plastics, UV fade-resistant Environmental Outdoor, IP55, weather-resistant input cover Grille Powder-coated perforated steel Ingress Protection IP55 Logo Rotatable, removable Suspension/Mounting 1 suspension, 1 safety cable point Operating Temp -25 °C to 65 °C (-13 °F to 149 °F) Dimensions (H×D) 12.1 × 14.8 in (308 × 375 mm) Net Weight 12.5 lb (5.7 kg), single Shipping Weight 33.1 lb (15.0 kg), pair PERFORMANCE Frequency Range (-10 dB) 62 Hz – 20,000 Hz Coverage (H × V) 115° conical Max SPL @ 1 m 110 dB Nominal Impedance 8 Ω (bypass) Power Handling (Cont./Peak) 100 W / 400 W Signal Processing Optional Bose EQ & SmartBass Sensitivity (1W @ 1m) 89 dB Transformer Taps (100V) 5, 10, 20, 40, 80 W, bypass Transformer Taps (70V) 2.5, 5, 10, 20, 40, 80 W, bypass TRANSDUCERS Crossover 1.7 kHz passive 2-way Driver Protection High-pass 60 Hz @ 24 dB/oct High-Frequency Driver 1.25" neodymium tweeter, coaxial Low-Frequency Driver 6.5" weather-treated woofer PRODUCT CODES 841168-0110 DM6PE PAIR BLACK 841168-0210 DM6PE PAIR WHITE 841168-0120 DM6PE PAIR BLACK (NEW) 841168-0220 DM6PE PAIR WHITE (NEW) INCLUDED ITEMS (4) Cable ties (2) Suspension cables (4.5 m) (1) Weather-resistant input cover -
Description Downloads BOSE DesignMax DM6PE Black Loudspeakers (1 pair) DataSheet Downloads BOSE DesignMax DM6PE Black Loudspeakers (1 pair) Installation Guide Downloads BOSE DesignMax DM6PE Black Loudspeakers (1 pair) Painting Guide Downloads
