Bose DM2C-LP Full Range Wired 20 W Loudspeakers
SKU: 815011-0210
£222.30 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Bose DesignMax DM2C‑LP Low‑Profile In‑Ceiling Loudspeakers – 2.25″ Driver, 20W, 85Hz‑19kHz, QuickHold Mount

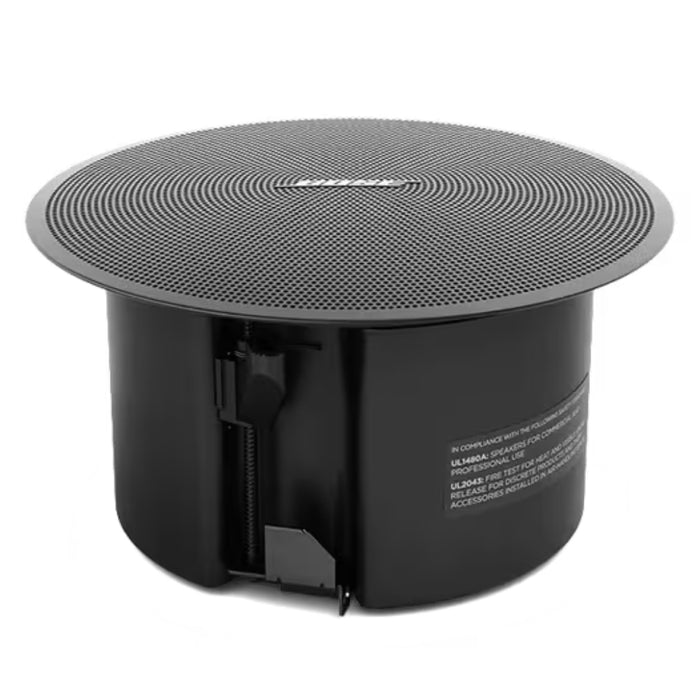

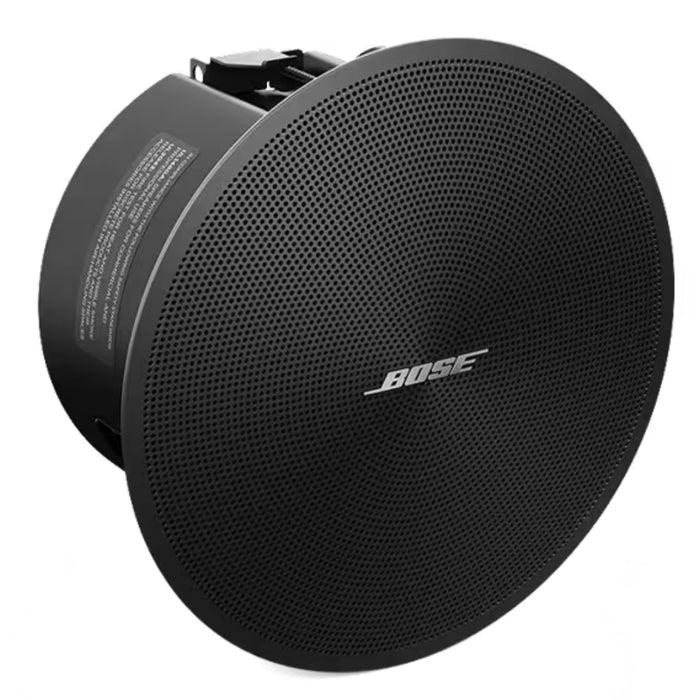

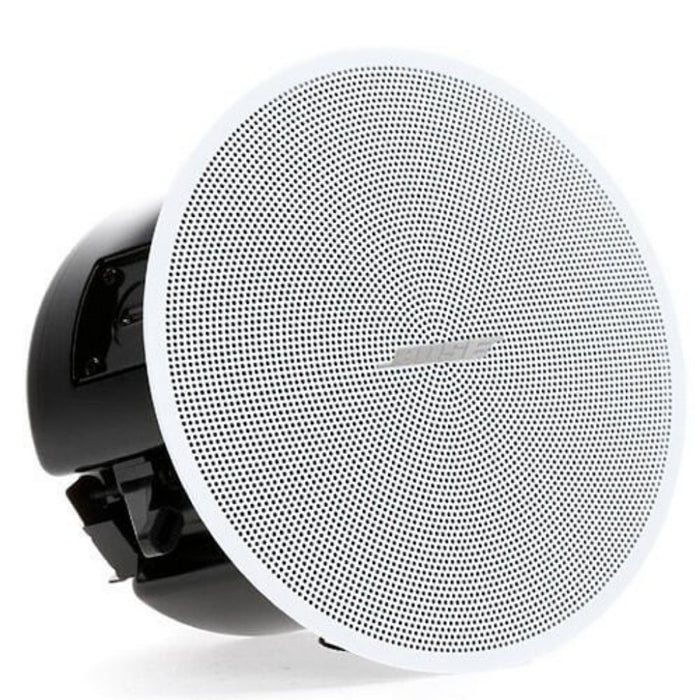

A complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The 20-watt Bose Professional DesignMax DM2C-LP loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2C-LP loudspeaker features a 2.25-inch transducer and 85 Hz – 19 kHz frequency range. The in-ceiling DM2C-LP has a low-profile backcan and is installed easily via QuickHold mounting arms.

FEATURES
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver instantly impressive sound with custom Bose Professional drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.

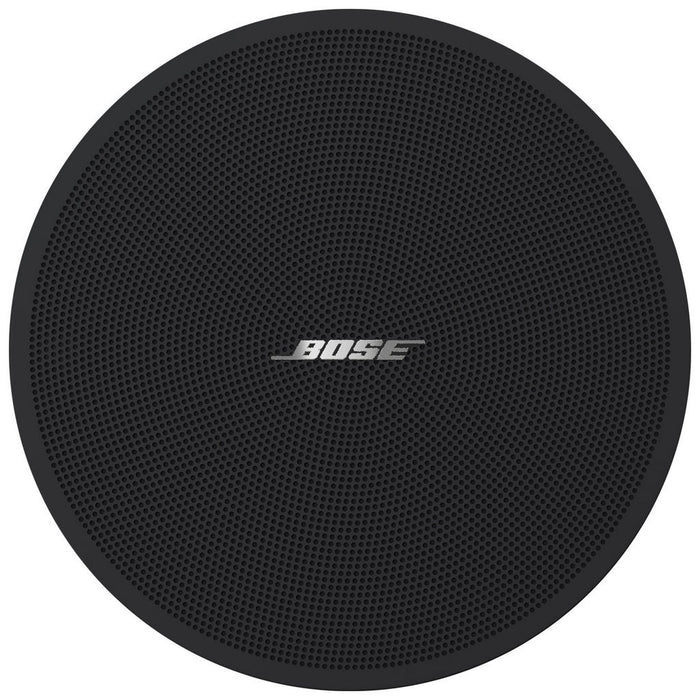

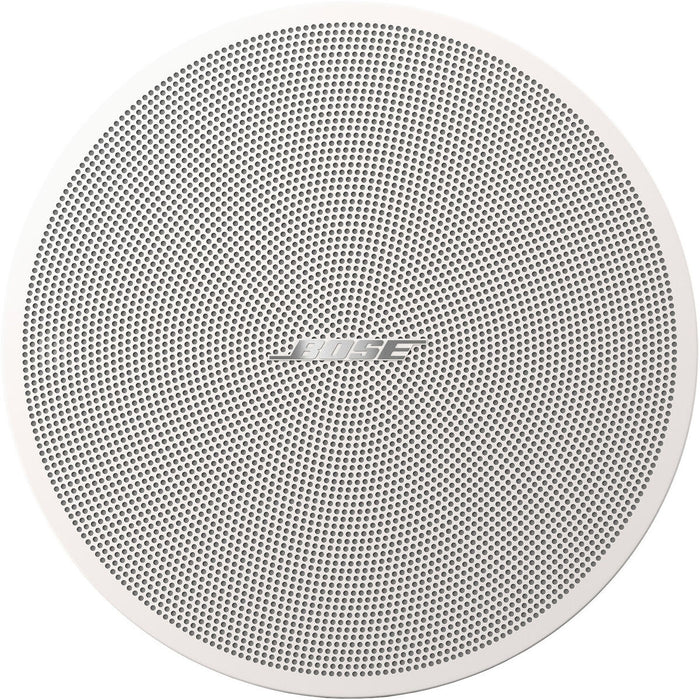

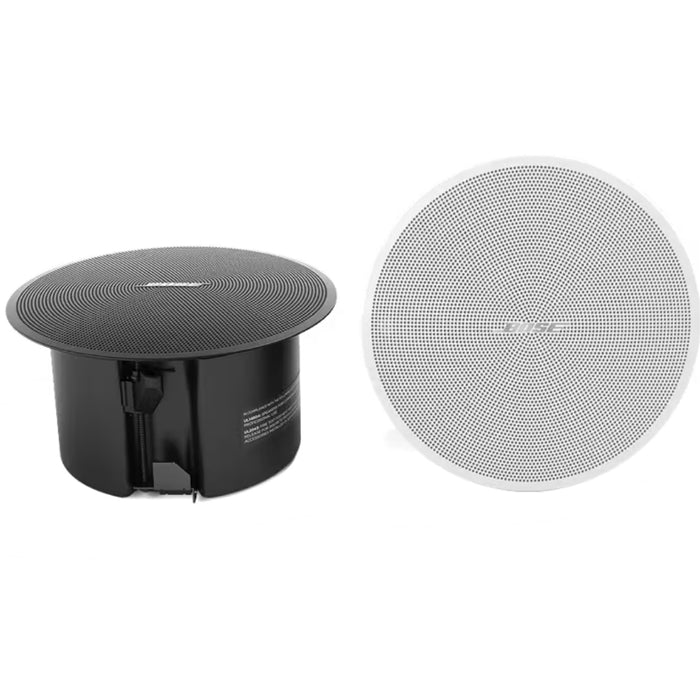

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

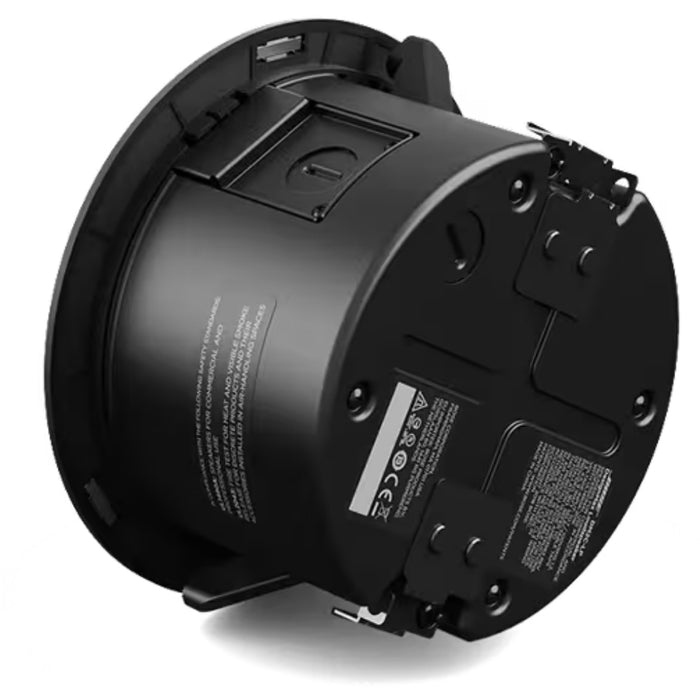

Install in confined ceiling spaces with low-profile backcan measuring just 10 centimeters (3.9 inches) high
Applications
Designed for a wide range of applications, including:
Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues -

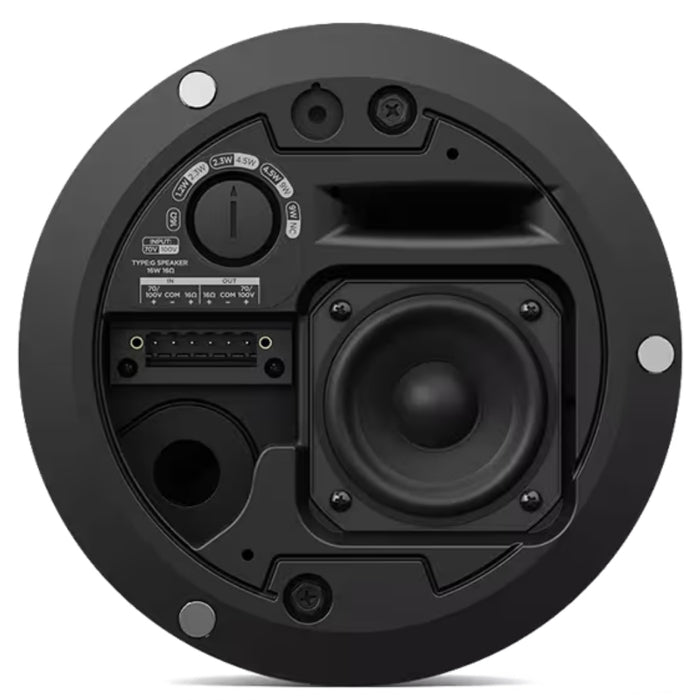

Feature Description Safety Agency Ratings UL-1480A, S5591 / UL Listed, UL2043 plenum-space compliant, NFPA70 & NFPA90-A, CE compliant Colors Black (RAL 9005), White (similar to RAL 9003), Paintable Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan Environmental Indoor only Grille Magnetically attached perforated steel, powder-coated, paintable, with safety tether Ceiling Cutout 6.5 in (165 mm) Logo Rotatable, removable Mounting (2) QuickHold spring-loaded mounting arms, (2) safety cable attachment points Operating Temp 0 °C to 50 °C (32 °F to 122 °F) Dimensions (Ø × D) 7.8 × 4.3 in (198 × 110 mm) loudspeaker / 6.1 × 3.9 in (155 × 99 mm) backcan Net Weight 3.6 lb (1.6 kg) loudspeaker / 1.6 lb (0.7 kg) tile bridge Shipping Weight 13.2 lb (5.9 kg) pair Frequency Range (-10 dB) 85 Hz – 19,000 Hz Coverage 150° conical Max SPL @ 1 m 97 dB Nominal Impedance 16 Ω (transformer bypass) Power Handling (Continuous) 20 W Power Handling (Peak) 80 W Recommended Processing Bose EQ voicing and SmartBass available Sensitivity 84 dB Transformer Taps (100V) 2.3, 4.5, 9 W, bypass Transformer Taps (70V) 1.2, 2.3, 4.5, 9 W, bypass Driver Protection High-pass at 85 Hz, 24 dB/octave Low-Frequency Driver 1 × 2.25 in (57 mm) woofer Product Codes 815011-0110: DM2C-LP Pair Black
815011-0210: DM2C-LP Pair WhiteIncluded in Packaging (1) Cutout template
(2) DM2C-LP loudspeakers
(2) Grilles
(2) Tile bridges
(1) Installation guide -
Description Downloads Bose DesignMax DM2C-LP Loudspeakers DataSheet Downloads Bose DesignMax DM2C-LP Loudspeakers Painting Guide Downloads Bose DesignMax DM2C-LP Loudspeakers Design Guide Downloads
