86" 4K UHD
Large-format 3840 × 2160 professional digital signage.
Official Partner
LG 86UH5N-M 86" 4K UHD Large Format Digital Signage Display
In Stock33 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
LG 86UH5N-M · 86UH5N

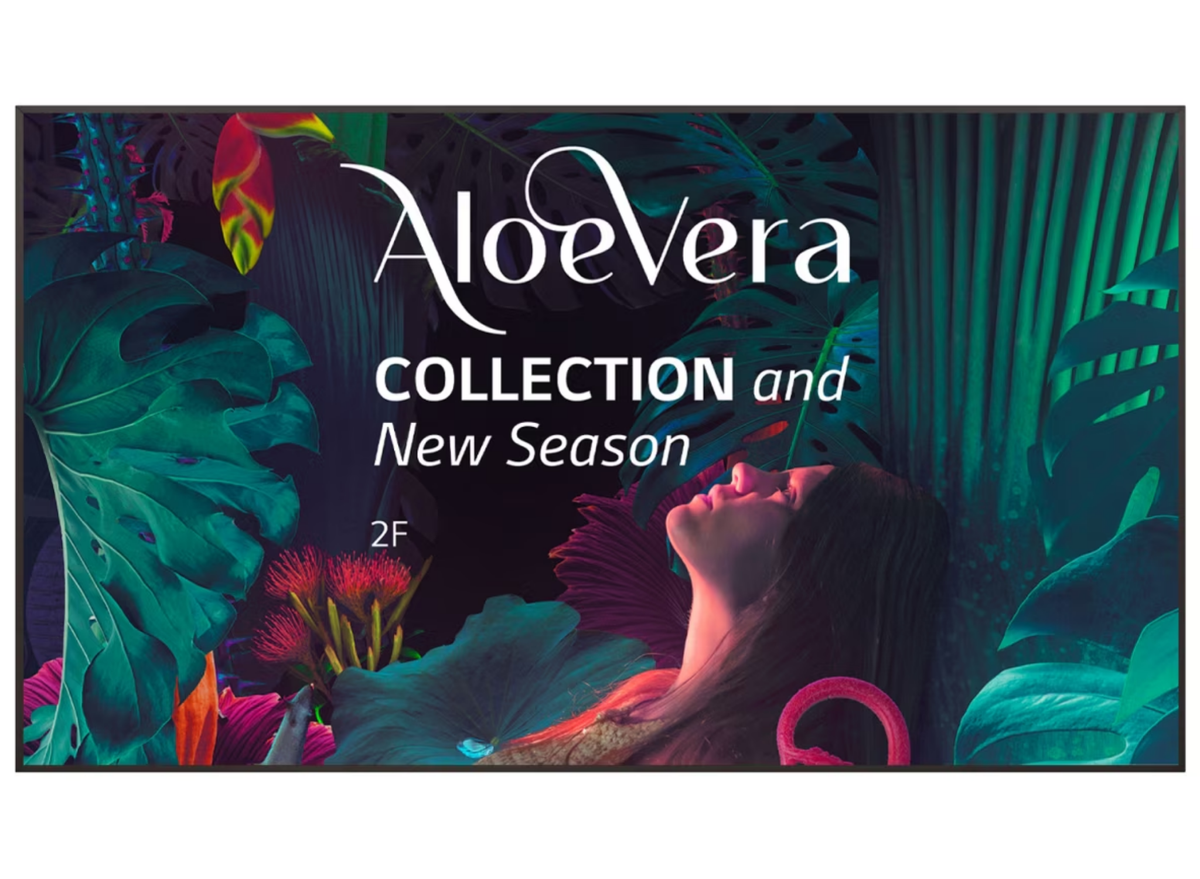

LG 86UH5N-M 86" 4K UHD 120Hz Professional Digital Signage Display
The LG 86UH5N-M is an 86-inch professional 4K UHD commercial digital signage display combining 500 nit brightness, 120Hz refresh rate, webOS 6.0, IP5X protection and 24/7 professional operation.
Designed for large retail environments, corporate spaces, universities, hospitality venues, public areas and other large-format AV installations, the LG 86UH5N-M combines an ultra-slim 29.7mm chassis with built-in Wi-Fi and Bluetooth, three HDMI inputs, DisplayPort, SuperSign compatibility and professional control features. Explore the wider LG Digital Signage range for more LG commercial display sizes and solutions.
86" 4K UHD
3840 × 2160 resolution
120Hz
Smooth large-screen content
500 nit
Professional signage brightness
24/7 Operation
Continuous commercial use
Description
LG 86UH5N-M Commercial Display
Large-format 86-inch digital signage with smooth 120Hz performance.
The LG 86UH5N-M, also commonly searched as 86UH5N M, LG 86UH5N M and 86UH5N, is a professional UHD signage display built for installations where large screen size and smooth content playback are important.
Its native 3840 × 2160 4K UHD resolution, 500 nit typical brightness, 120Hz refresh rate, 1,200:1 contrast ratio and 178° viewing angles make it suited to large-scale commercial signage and presentation environments.
- 86-inch professional commercial display
- 3840 × 2160 4K UHD resolution
- 120Hz refresh rate
- 500 nit typical brightness
- 1,200:1 contrast ratio
- 1.07 billion colours
- 25% haze treatment
- 24/7 professional operation
- 50,000-hour panel lifetime
86UH5N-M specifications at a glance.
120Hz
Smoother motion and content playback than standard 60Hz signage.
500 nit
Professional indoor signage brightness with wide-angle visibility.
webOS 6.0
Integrated smart signage platform with 16GB internal memory.
IP5X
Dust-resistant commercial display design with conformal coating.
24/7 Operation
Designed for continuous professional commercial use.
120Hz Large-Screen Performance
Smoother content on an 86-inch professional display.
One of the major differences between the LG 86UH5N-M and smaller models in the UH5N-M range is its 120Hz refresh rate.
This allows moving content, presentations, video and animations to appear smoother across the large 86-inch screen, making the display especially suitable for high-impact professional environments.
- 120Hz native refresh rate
- 86-inch large-format screen
- 4K UHD resolution
- Smooth professional video playback
- Suitable for large visual applications

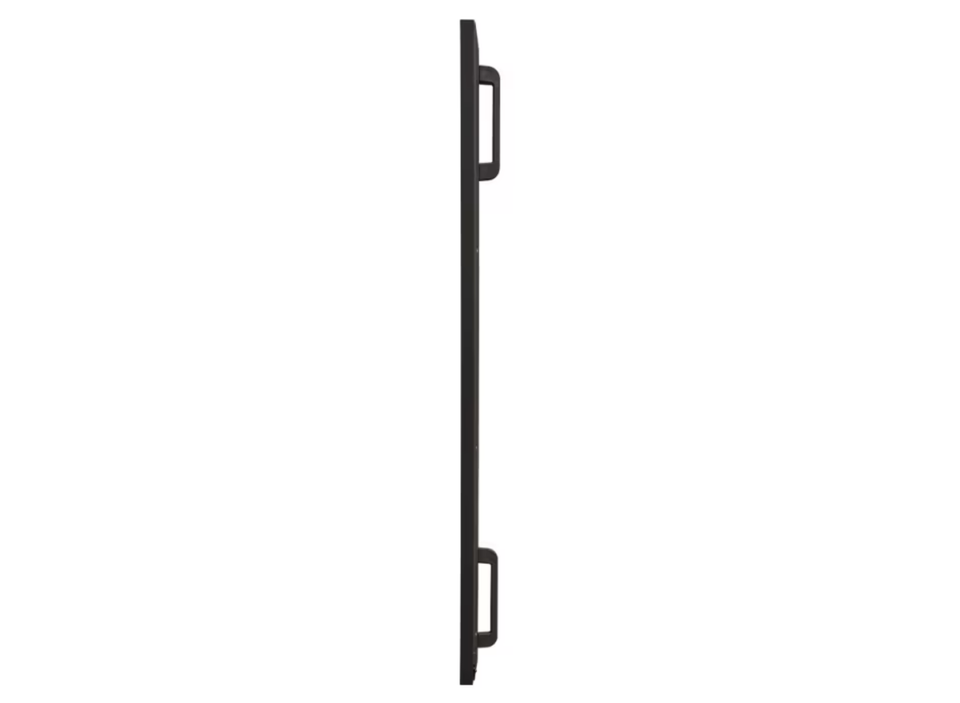

Ultra-Slim 29.7mm Design
Large 86-inch screen without excessive chassis depth.
Despite its large 86-inch panel, the LG 86UH5N-M measures only 29.7mm deep, helping it sit relatively close to the wall in professional installations.
Its even 13.4mm bezel also helps maintain a balanced appearance in both portrait and landscape installations.
- 29.7mm depth
- 13.4mm even bezel
- Landscape orientation
- Portrait orientation
- 600 × 400mm VESA mounting
4K UHD Resolution
Detailed large-format content across 86 inches.
The 3840 × 2160 UHD resolution provides four times the pixel count of Full HD, allowing large promotional imagery, video, presentations and business content to retain detail.
A 25% haze screen treatment helps reduce reflections under commercial lighting while wide 178° viewing angles allow content to remain visible from a broad range of positions.
- 3840 × 2160 UHD
- 120Hz refresh rate
- 1.07 billion colours
- BT.709 95% colour gamut
- 25% haze treatment
- 178° × 178° viewing angle
LG webOS 6.0
Integrated smart signage without a separate media player.
The LG 86UH5N-M uses webOS 6.0 and includes 16GB internal memory, allowing professional content and compatible signage applications to run directly from the display.
The webOS platform supports local content scheduling, USB Plug & Play, URL playback, Screen Share, PIP, PBP, gapless playback, Tile Mode and other professional signage functions.
- webOS 6.0
- 16GB internal storage
- Local content scheduling
- USB Plug & Play
- Play via URL
- PIP and PBP
- Screen Share
- Gapless playback

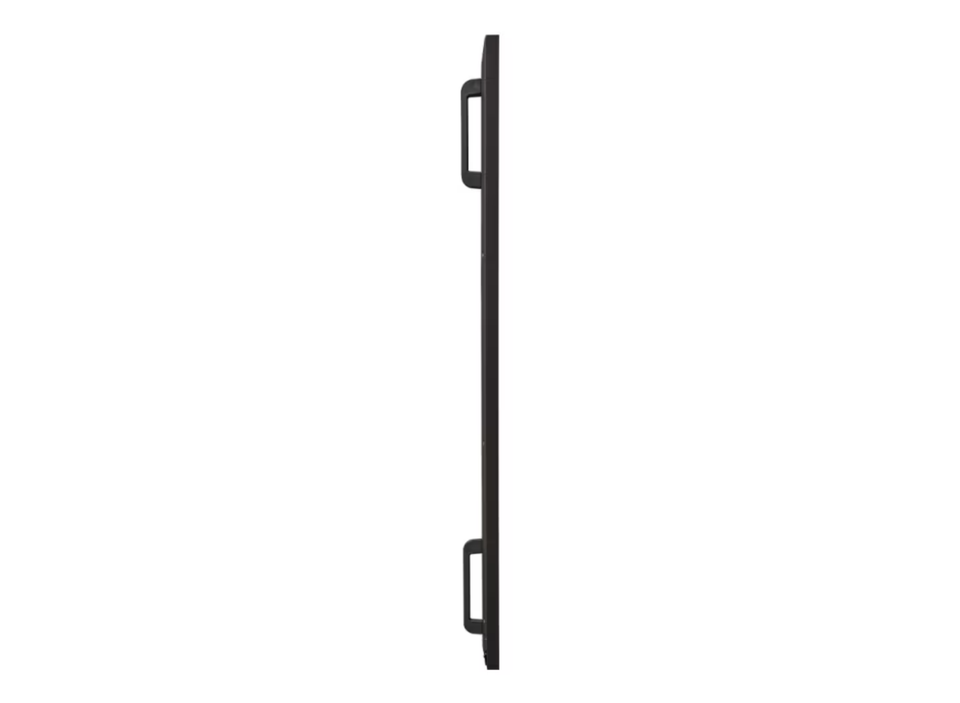

Professional Connectivity
Three HDMI inputs, DisplayPort, LAN and RS-232C.
The 86UH5N-M provides a broad commercial connectivity set for professional AV and digital signage integration.
- 3 × HDMI inputs
- 1 × DisplayPort input
- 2 × USB 2.0 Type-A ports
- RJ45 LAN
- RS-232C input
- RS-232C output
- IR input
- Audio output
- Built-in Wi-Fi
- Built-in Bluetooth
- 2 × 10W speakers
IP5X & 24/7 Reliability
Built for continuous professional operation.
The LG 86UH5N-M is designed for 24/7 commercial use with a rated panel life of up to 50,000 hours.
Its IP5X rating and conformal coating help protect the internal electronics from dust and environmental contaminants in professional environments.
- 24/7 operation
- IP5X protection
- Conformal coating
- 50,000-hour panel lifetime
- 0°C to 40°C operating temperature
- 10% to 80% operating humidity
Enhanced Security
Security features designed for professional signage networks.
The UH5N-M platform includes professional security capabilities designed to help protect content, device settings and business data.
This is particularly useful where large displays are deployed across corporate, public-sector, educational or customer-facing networks.
LG SuperSign
Professional digital signage content management.
The LG 86UH5N-M is compatible with LG's SuperSign ecosystem, supporting professional content management, monitoring and display administration.
- SuperSign CMS
- SuperSign Control+
- SuperSign WB
- SuperSign Cloud
- Mobile CMS
- ConnectedCare

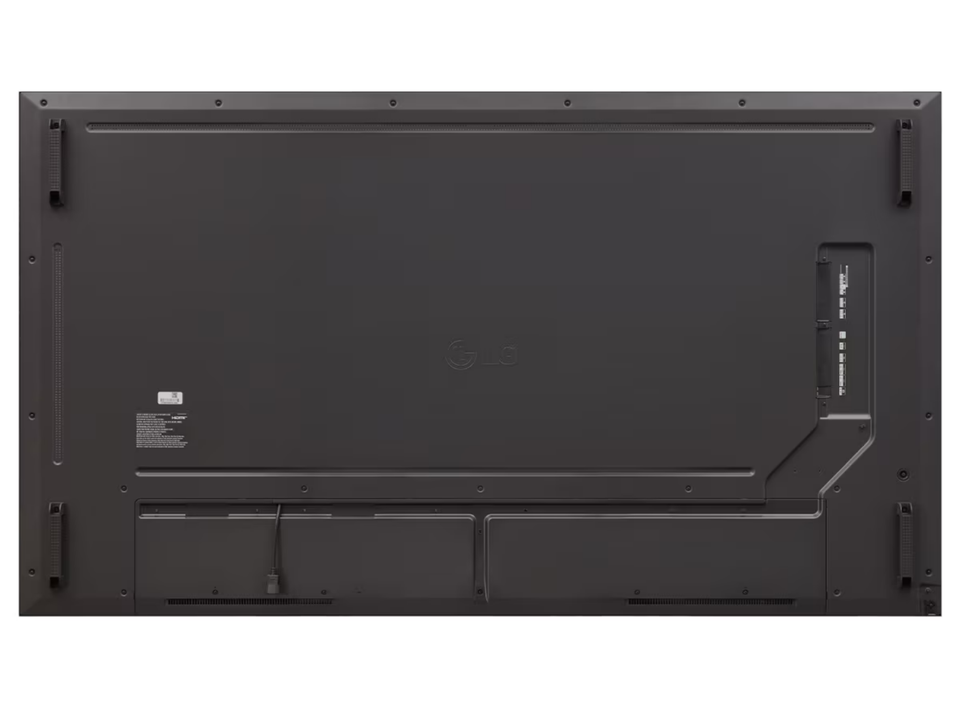

Professional AV Control
Designed for centrally managed commercial installations.
Professional control features include RS-232C Sync, Local Network Sync, SNMP, Wake on LAN, HDMI-CEC, Control Manager and Crestron Connected compatibility.
- RS-232C control
- LAN control
- SNMP
- Wake on LAN
- HDMI-CEC
- Control Manager
- Crestron Connected
- Setting Data Cloning

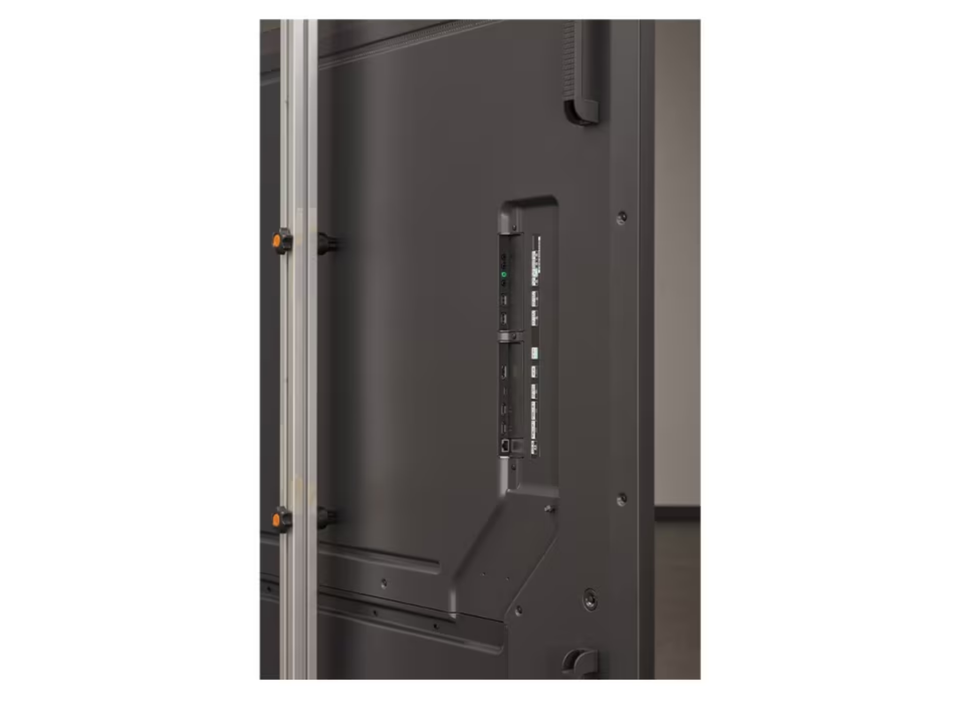

86-Inch Commercial Display
Large-format presence with a 29.7mm chassis.
The LG 86UH5N-M measures approximately 1928.8 × 1099.8 × 29.7mm and weighs approximately 52.7kg.
Despite the substantial 86-inch display area, the 29.7mm chassis allows for a relatively clean, low-profile professional installation.
- 1928.8mm width
- 1099.8mm height
- 29.7mm depth
- Approx. 52.7kg display weight
- Approx. 65.5kg packaged weight
- 600 × 400mm VESA
Specifications
86UH5N-M Technical Specification
LG 86UH5N-M specifications.
Technical specifications for the LG 86UH5N-M 86-inch 4K UHD 120Hz professional commercial digital signage display.
| Specification | LG 86UH5N-M Details |
|---|---|
| Panel | |
| Model | LG 86UH5N-M |
| Screen Size | 86" |
| Panel Technology | IPS / wide-angle professional LCD |
| Backlight Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 × 2160 UHD |
| Refresh Rate | 120Hz |
| Brightness | 500 nit typical |
| Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Colour Gamut | BT.709 95% |
| Colour Depth | 1.07 billion colours |
| Viewing Angle | 178° × 178° |
| Response Time | 8ms GTG |
| Surface Treatment | 25% haze |
| Panel Lifetime | Up to 50,000 hours |
| Operation | 24/7 |
| Orientation | Portrait / Landscape |
| Connectivity | |
| HDMI Inputs | 3 × HDMI - up to 3840 × 2160 @ 60Hz |
| HDMI HDCP | 2.2 / 1.4 |
| DisplayPort Input | 1 × DisplayPort - up to 3840 × 2160 @ 60Hz |
| DisplayPort HDCP | 2.2 / 1.3 |
| USB | 2 × USB 2.0 Type-A |
| RJ45 LAN | 1 |
| RS-232C Input | 1 × 4-pin phone jack |
| RS-232C Output | 1 × 4-pin phone jack |
| IR Input | 1 |
| IR Output | No - IR daisy chain supported through RS-232C |
| Audio Output | 1 |
| Built-in Speakers | 2 × 10W |
| Mechanical | |
| Bezel Colour | Black |
| Bezel Width | 13.4mm even |
| Display Dimensions | 1928.8 × 1099.8 × 29.7mm |
| Display Weight | Approx. 52.7kg |
| Packaged Dimensions | Approx. 2100 × 1250 × 253mm |
| Packaged Weight | Approx. 65.5kg |
| VESA | 600 × 400mm |
| Handle | Yes |
| Hardware | |
| Internal Memory | 16GB eMMC |
| Wi-Fi | Built-in |
| Bluetooth | Built-in |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes |
| Acceleration / Gyro Sensor | Yes |
| Local Key Operation | Yes |
| Software | |
| Operating System | webOS 6.0 |
| Local Content Scheduling | Yes |
| Group Manager | Yes |
| USB Plug & Play | Yes |
| Failover | Yes |
| Booting Logo Image | Yes |
| No Signal Image | Yes |
| RS-232C Sync | Yes |
| Local Network Sync | Yes |
| PIP | Yes |
| PBP | Yes - up to 4 |
| Screen Share | Yes |
| Video Tag | Yes - 4 |
| Play via URL | Yes |
| Screen Rotation | Yes |
| External Input Rotation | Yes |
| Gapless Playback | Yes |
| Tile Mode | Yes - up to 15 × 15 |
| Setting Data Cloning | Yes |
| SNMP | Yes |
| ISM Method | Yes |
| Status Mailing | Yes |
| Control Manager | Yes |
| Crestron Connected | Yes |
| Smart Energy Saving | Yes |
| Wake on LAN | Yes |
| Network Ready | Yes |
| Beacon | Yes |
| HDMI-CEC | Yes |
| webRTC | Yes |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% |
| IP Rating | IP5X |
| Conformal Coating | Yes - power board |
| Power | |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Type | Built-in |
| Typical Consumption | Approx. 197-205W depending on regional specification |
| Maximum Consumption | 297W |
| DPM | 0.5W |
| Power Off | 0.5W |
| Smart Energy Saving | Approx. 138-144W at 70% |
| Software Compatibility | |
| SuperSign CMS | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| SuperSign Cloud | Yes |
| Mobile CMS | Yes |
| ConnectedCare | Yes |
| Included Accessories | |
| Accessories | Remote control with batteries, power cord, Quick Setup Guide, regulation book, RS-232C adapter and cable holders |
| Optional Wall Mount | LSW640A/B |
Downloads
LG 86UH5N-M Downloads
86UH5N-M product documentation and related resources.
View Specifications Online
View the complete LG 86UH5N-M technical specification table.
LG Digital Signage Displays
Explore the complete ScreenMoove range of LG professional digital signage and commercial displays.
86" Commercial Displays
Compare the LG 86UH5N-M with other professional 86-inch displays.
LG 75UH5N-M Alternative
View the smaller 75-inch UH5N-M model for installations where an 86-inch screen is not required.
Commercial AV Support
Speak to ScreenMoove about mounting, installation and digital signage integration.

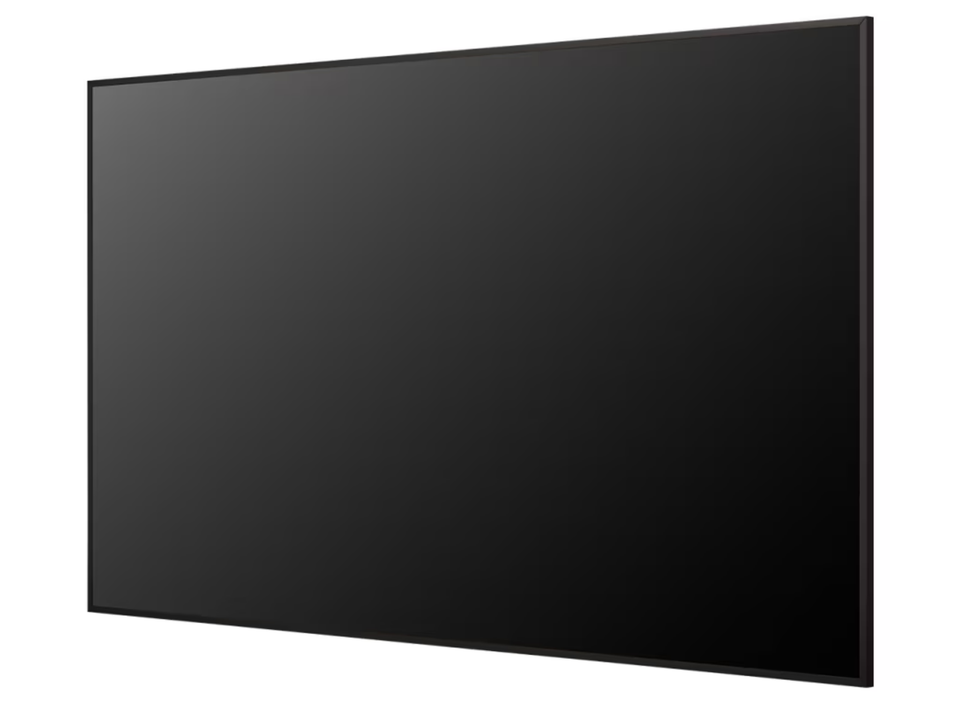

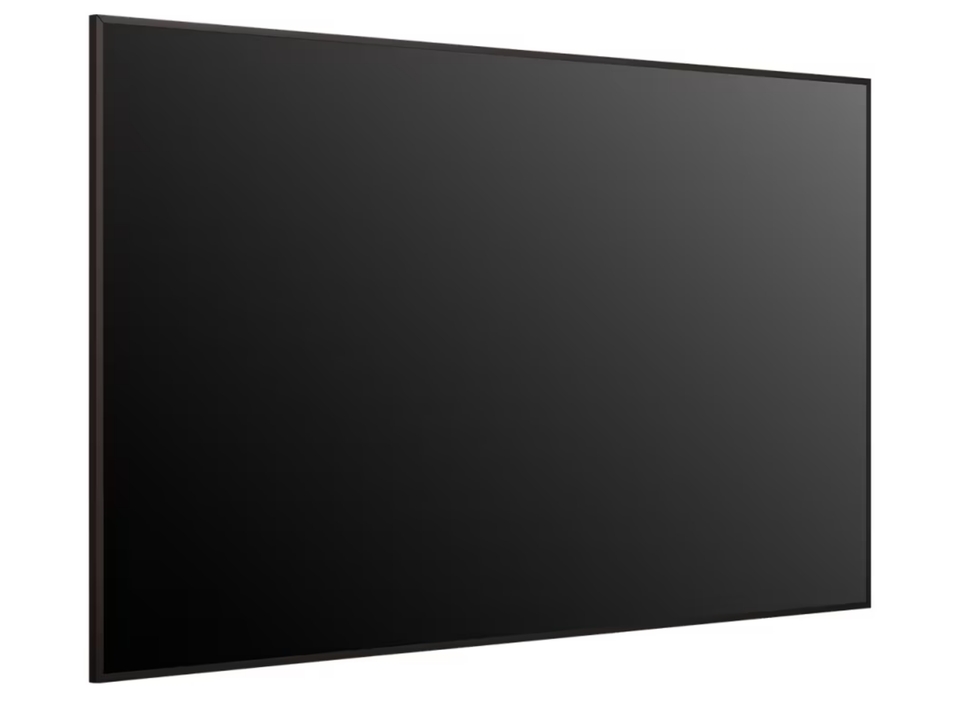

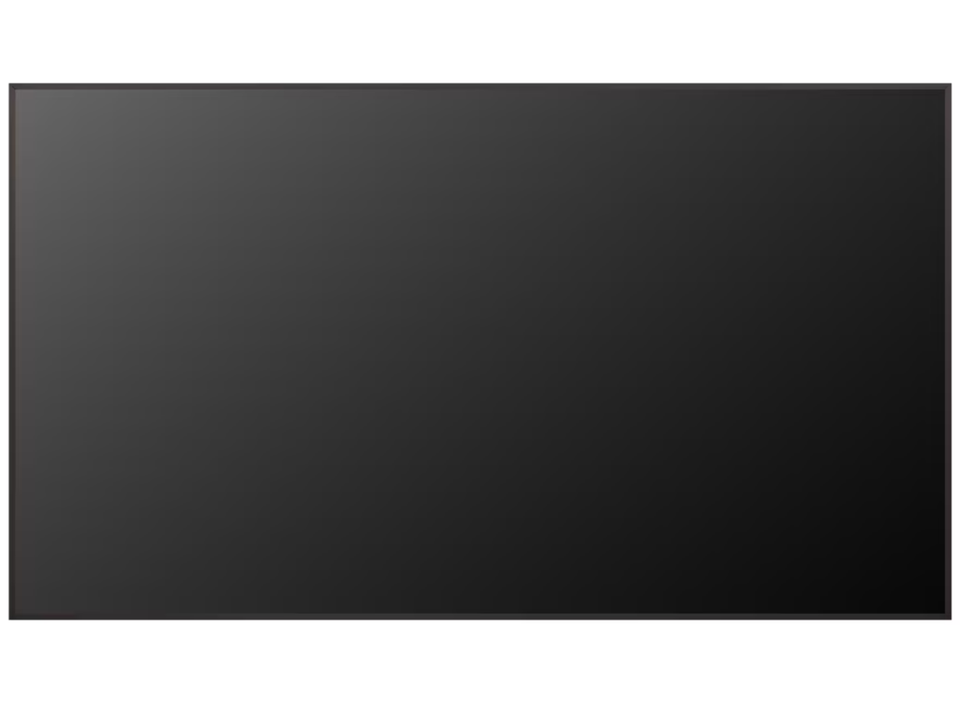

LG 86UH5N-M Product Gallery
86-inch professional digital signage details.
Commercial Applications
Where can the LG 86UH5N-M be used?
Retail Digital Signage
Create large-format promotional content, product campaigns and advertising.
Hospitality
Display venue information, promotions, menus and branded content.
Corporate AV
Use the 86-inch screen for presentations, dashboards and executive meeting spaces.
Education
Display campus announcements, presentations and large-scale information.
LG Digital Signage
Explore other LG commercial signage displays for professional retail, corporate, education and hospitality installations.
Professional Installation
Add professional wall mounting, cabling and commercial AV integration.
LG UH5N-M Size Comparison
Is 86 inches too large? Compare the LG 75UH5N-M.
LG 75UH5N-M 75" 4K UHD Digital Signage Display
The 75UH5N-M provides a smaller alternative for spaces where the 86UH5N-M would be oversized.
Both models provide 4K UHD resolution, 500 nit brightness, webOS 6.0, IP5X protection and 24/7 operation, while the 86UH5N-M adds a larger screen and 120Hz refresh rate.
Frequently Asked Questions
LG 86UH5N-M FAQs.
What is the LG 86UH5N-M?
The LG 86UH5N-M is an 86-inch professional 4K UHD commercial digital signage display with 500 nit brightness, 120Hz refresh rate, webOS 6.0 and 24/7 operation.
Is 86UH5N the same as 86UH5N-M?
86UH5N and 86UH5N M are commonly used shortened search variations for the LG 86UH5N-M model.
What resolution does the LG 86UH5N-M have?
The display has a native 3840 × 2160 4K UHD resolution.
What refresh rate does the LG 86UH5N-M have?
The LG 86UH5N-M supports a 120Hz refresh rate.
How bright is the LG 86UH5N-M?
The display provides 500 nit typical brightness.
Can the LG 86UH5N-M operate 24/7?
Yes. It is designed for 24/7 professional commercial operation.
What operating system does the 86UH5N-M use?
The display runs LG webOS 6.0 and includes 16GB internal memory.
Does the LG 86UH5N-M have Wi-Fi?
Yes. The display includes built-in Wi-Fi and Bluetooth.
How many HDMI inputs does the LG 86UH5N-M have?
It provides three HDMI inputs plus one DisplayPort input.
Does the LG 86UH5N-M have USB-C?
No. The current specification lists two USB 2.0 Type-A ports.
What VESA mount does the LG 86UH5N-M use?
The display uses a 600 × 400mm VESA mounting pattern.
How thin is the LG 86UH5N-M?
The display is approximately 29.7mm deep, excluding the IR sensor and handle.
How much does the LG 86UH5N-M weigh?
The display weighs approximately 52.7kg.
What is the IP rating of the LG 86UH5N-M?
The 86UH5N-M carries an IP5X dust-resistance rating.
What is the difference between the LG 86UH5N-M and 75UH5N-M?
The LG 75UH5N-M has a 75-inch panel and 60Hz refresh rate, while the LG 86UH5N-M increases the screen size to 86 inches and supports 120Hz operation.
Where can I view other LG digital signage displays?
You can explore the full LG Digital Signage collection at ScreenMoove to compare other LG professional commercial displays.
LG 86" Commercial Digital Signage
Is the LG 86UH5N-M right for your project?
The LG 86UH5N-M combines an 86-inch 4K UHD professional display, 500 nit brightness, 120Hz refresh rate, webOS 6.0, built-in Wi-Fi and Bluetooth, IP5X protection, SuperSign compatibility and reliable 24/7 professional operation.
Technical Highlights
- Display size / Screen sizes
- 86"
- Resolution
- Ultra HD (4K)
- Panel type
- IPS Panel
- Screen type
- Flat
- Brightness
- 500 cd/m2
- Response time
- 8ms
- Screen ratio
- 16:9
- Refresh rate
- 120Hz
- Display orientation
- Landscape & Portrait
- Operating hours
- 24/7
- Operating system
- WebOS
- Player features
- USB Plug and Play
- VESA patterns
- 600x400
- Warranty
- 3 Year Warranty
LG 86UH5N-M 86" 4K UHD Large Format Digital Signage DisplaySKU: 86UH5N-M
£2,016.54
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
