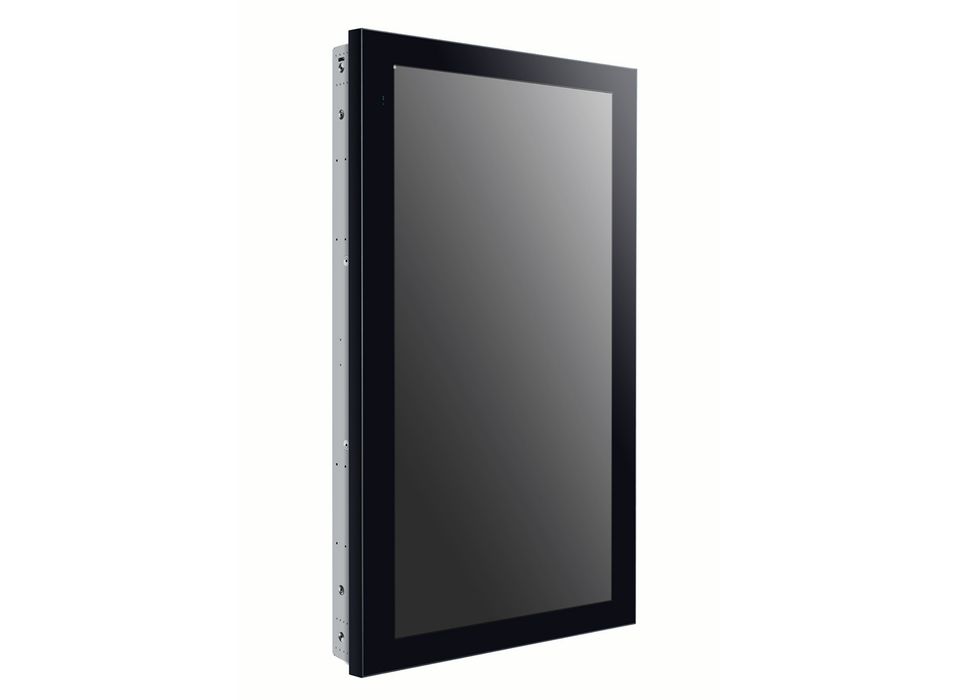

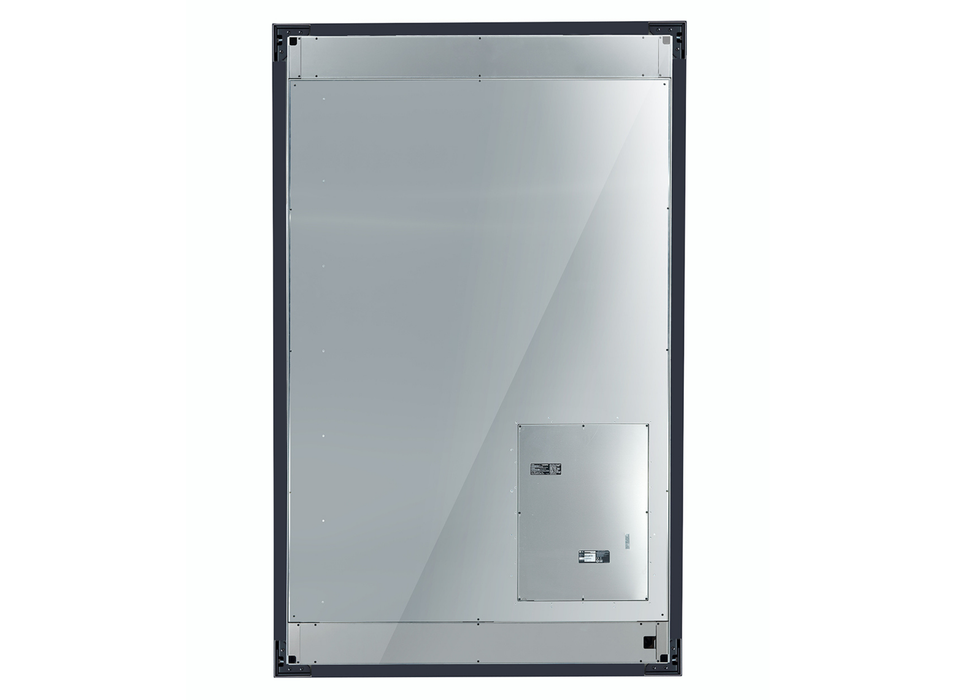

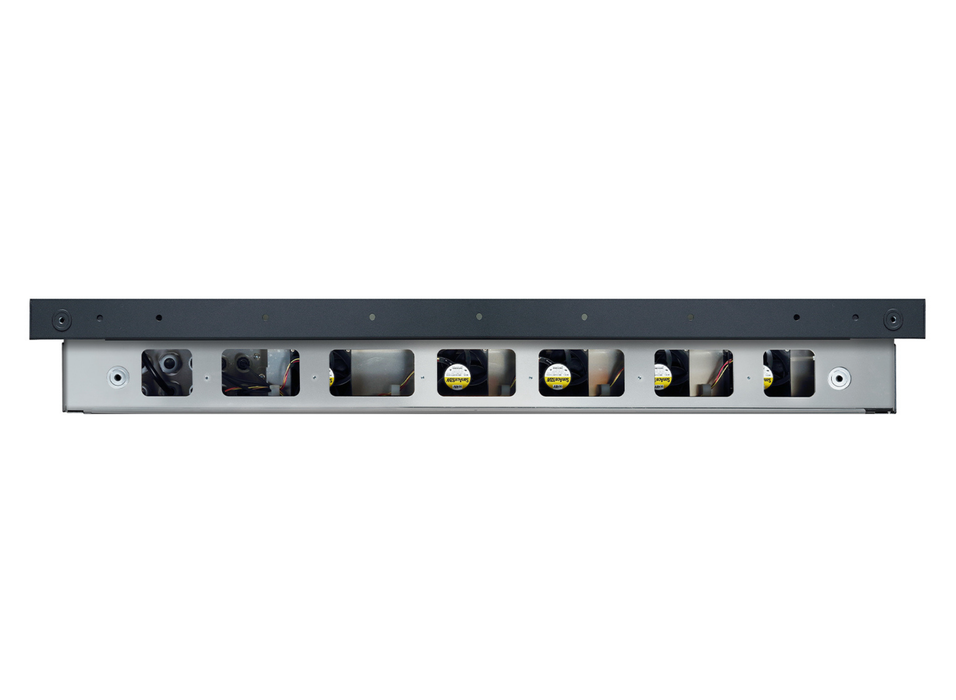

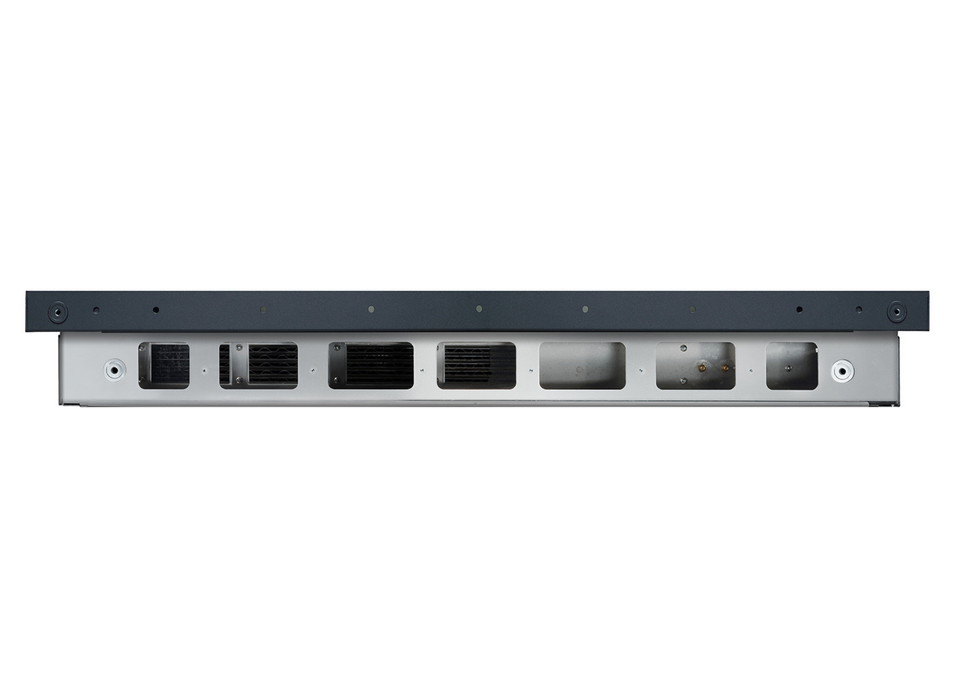

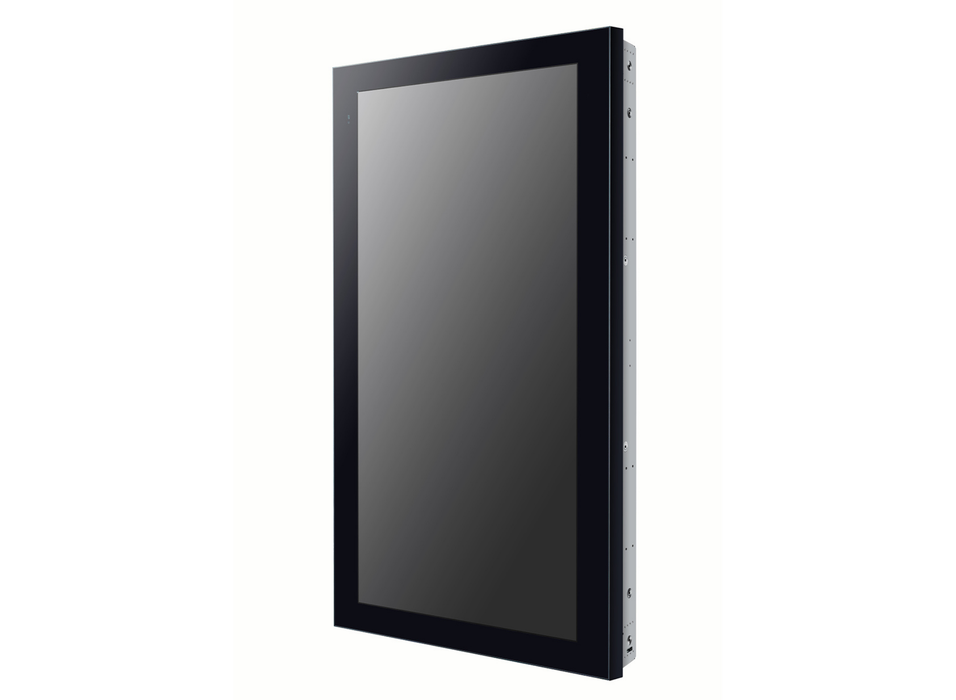

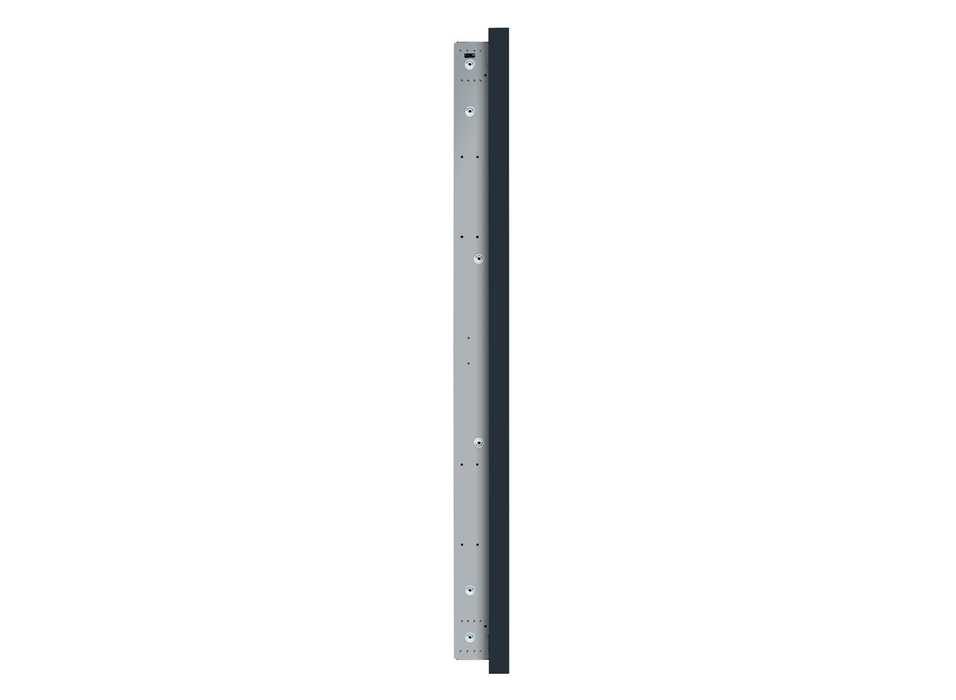

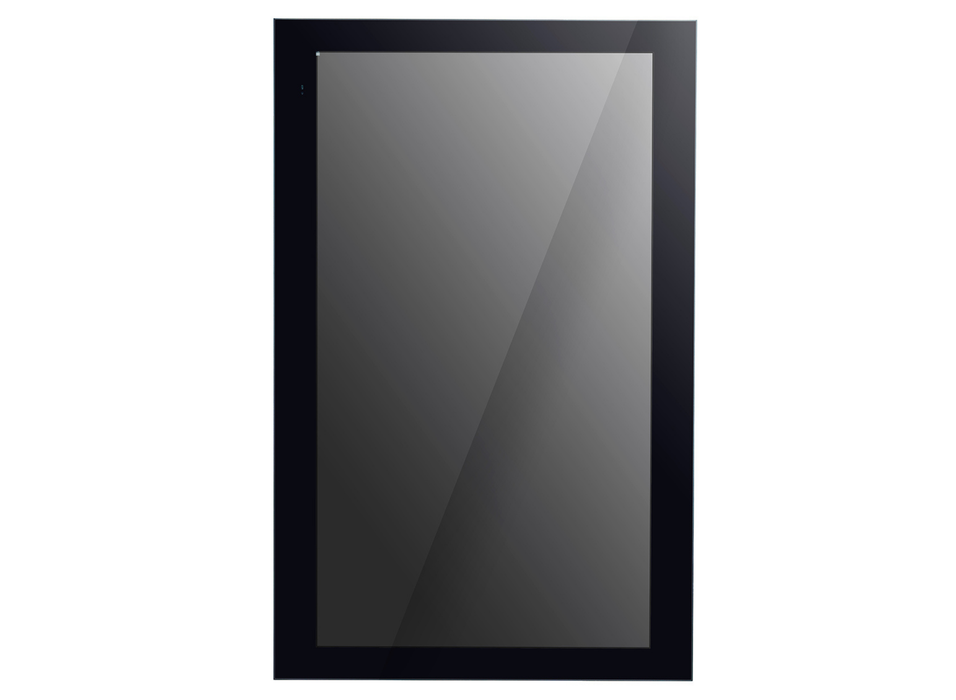

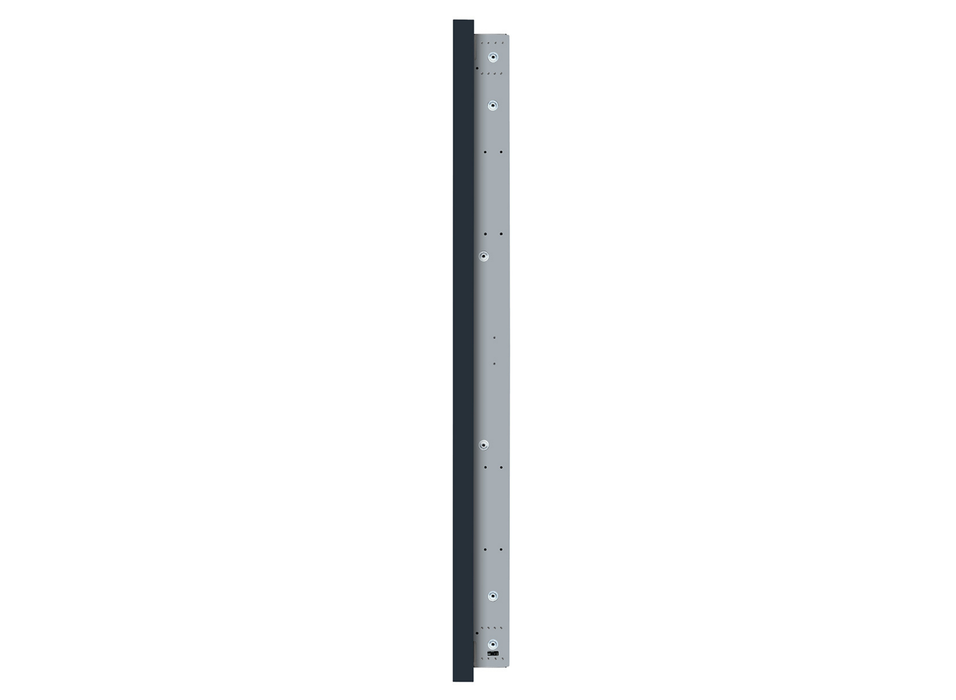

LG 86XE3FS-B 86" 4K Ultra HD High Brightness Digital Signage Display

Brilliant 3,000-Nit Outdoor Visibility

Outstanding Visibility with High Reliability
Boasting a high brightness of 3,000 nits, LG’s outdoor display, 86XE3FS, captures the attention of passersby even under direct sunlight. Carefully designed to withstand a variety of extreme changes in the environment, the display will stably deliver eye-catching content for as long as you need it to.

High Brightness
With outstanding high brightness at 3,000 nits (Typ.), the 86XE3FS outdoor display delivers contents clearly while captivating passersby, making it the ultimate display for outdoor visibility.

Visible with Polarized Sunglasses
QWP(Quarter Wave Plate) enables clear visibility even when the viewer is wearing polarized sunglasses.

Smart Brightness Compensation
The built-in BLU* sensor constantly measures the brightness of the display and automatically compensates for reduced brightness during operation.
* Back Light Unit

Auto Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

Wide Range of Operating Temperature
The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar-loading test which causes a lot of thermal energy. So the 86XE3FS requires fewer constraints for outdoor installations which are usually exposed to strong direct sunlight and various environmental changes.
* 86XE3FS is tested under humidity of 30% (55°C) and 99% (40°C).

Secured Protection with IP56 Design
The display is sealed with IP56* design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
* IP Code or Ingress Protection Code classifies the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water.
** IP56 means the product is protected from limited dust ingress and resists high-pressuer, heavy sparys of water.
*** 86XE3FS is certified as IP56 by CTK in May 2019.

Electrical Safety
Circuit breaker is inside ensuring strong protection from overcurrent short circuits, and unwanted voltages. This type of integration establishes preventative solutions for signage’s from having future damages.

Protective Glass
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts*.
* When 1,040g of iron is dropped from a height of 60cm, the front protective glass should not be broken or cracked while normal glass can be broken or cracked by the same level of impacts.

webOS Smart Platform
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.

Web Monitoring
The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, pixel, door, ambient light, and gyro sensors. It can be easily controlled at all times.
* Enabled by wired LAN connection
