Panel Tech |
IPS, Direct LED backlights |
Screen Size |
86 inch / 217.4 cm |
Aspect Ratio |
16:9 |
Brightness |
500 cd/m² |
Contrast Ratio |
≥ 8000:1 |
Viewing Angle |
178° H / 178° V |
Colour Depth |
1.073 billion (10bit) |
Colour Gamut |
68% of DCI |
Response Time |
8 ms (typical) |
Refresh Rate |
60 Hz |
Haze Level |
Pro (28%) |
Orientation |
Landscape, Portrait |
Native Resolution |
3840 x 2160 (4K UHD) |
Supported Res. |
1024x768 to 7680x4320 |
Hor. Freq. |
15 – 135 kHz |
Vert. Freq. |
23 – 76 Hz |

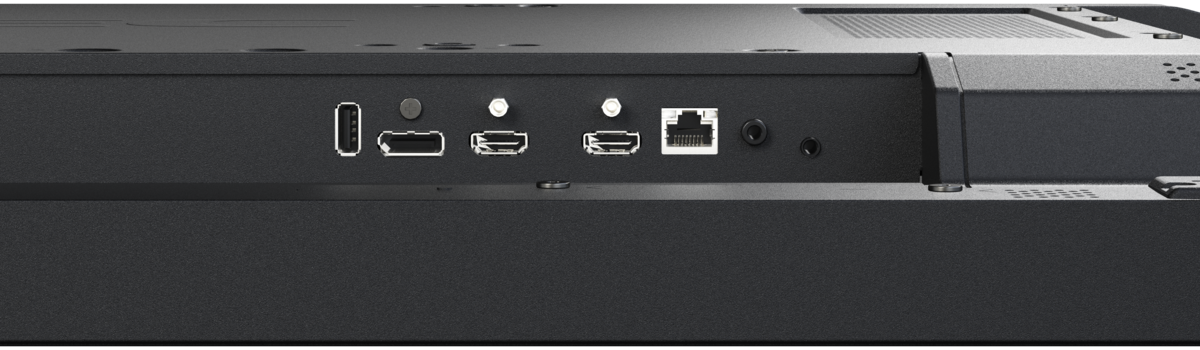

Video Inputs |
2 x DisplayPort, 2 x HDMI (all with HDCP) |
Audio Inputs |
1 x DisplayPort, 2 x HDMI |
Control Inputs |
LAN, RS232, 3.5mm jack remote |
Data Inputs |
2 x USB 2.0, 1 x USB 2.0 Type-B |
Video Outputs |
1 x DP, 1 x HDMI, DP to HDMI conversion |
Audio Output |
1 x 3.5 mm analog jack |
Control Output |
1 x LAN (100Mbit) |
Input Detect |
Custom, First, Last |
PiP / PbP |
Dual-Split, Quad-Split, Scalable |
Factory Calibration |
Gamma, RGB, Intensity, Uniformity, White Point |
Sensor Calibration |
USB Sensor (MDSVSensor3), White Copy |
Software Calibration |
NEC Wall Calibrator: Gamma, RGB, Uniformity, White Point |
Intel® SDM Slot |
Large & Small modules up to 66W |
Compute Slot |
Raspberry Pi Compute Module 4 compatible |
Light Sensor |
Integrated, programmable |
Temp. Sensors |
3 integrated, programmable |
Power Use |
320 W (shipping) |
Standby Power |
< 0.5 W / < 2 W (network standby) |
Power Supply |
100–240 V AC, 50/60 Hz, internal |
Op. Temp. |
0°C to 40°C |
Op. Humidity |
20% to 80% |
Storage Temp. |
-20°C to 60°C |
Storage Humidity |
10% to 80% |
Dimensions (mm) |
1927.6 x 1099.1 x 83.2 |
Weight (kg) |
47 kg |
Bezel Width |
14.3 mm (sides/top), 14.8 mm (bottom) |
VESA Mount |
600 x 400 mm, M8, 4 holes |
IP Rating |
Front: IP5x, Back: IP2x |
Package Size |
2090 x 1225 x 225 mm |
Package Weight |
65.1 kg |
Bezel Colour |
Pantone 426M (black) |
Material |
Metal |
Accessories |
Feet, Speaker, Trolley, Wall Mount options available |
Certifications |
CE, FCC, RoHS, VCCI, EnergyStar 8, ISO 9241-307 Class 1, UL94-5VB fire cert. |
Energy Use |
193 kWh/1000h, Class G, LED backlight |
Cisco |
Verified for Cisco Collaboration Devices |
Crestron |
Certified for Crestron Connected |
Audio |
2x10W speakers, 2x15W amp support |
Extras |
DICOM Sim, HDMI ARC, Powered USB (10W), Removable Logo |
Included |
Display, HDMI & Power Cable, Remote, Batteries, Manual |
Warranty |
3 years incl. backlight (extensions available) |
Operating Hours |
24/7 use supported |
External Control |
AMX, ASCII, Crestron, HDMI CEC, PJLink, HTTP, Timer, SNMP |
Remote Mgmt. |
Email alerts, NaViSet Admin 2 |
Security |
HW Button Lock, IR Lock, Emergency Notification |
