Panel Technology |
VA with Direct LED backlights |
Screen Size |
50" / 125.7 cm |
Aspect Ratio |
16:9 |
Brightness |
450 cd/m² |
Contrast Ratio |
5000:1 (typical) |
Viewing Angle |
178° H / V |
Colour Depth |
1.073 billion (8bit + FRC) |
Response Time |
6 ms (typical) |
Refresh Rate |
60 Hz |
Haze Level |
25% (Pro) |
Orientation |
Landscape / Portrait |
Native Resolution |
3840 x 2160 (4K UHD) |
Supported Resolutions |
Up to 4096 x 2160 |
Horizontal Frequency |
15 – 135 kHz |
Vertical Frequency |
23 – 76 Hz |

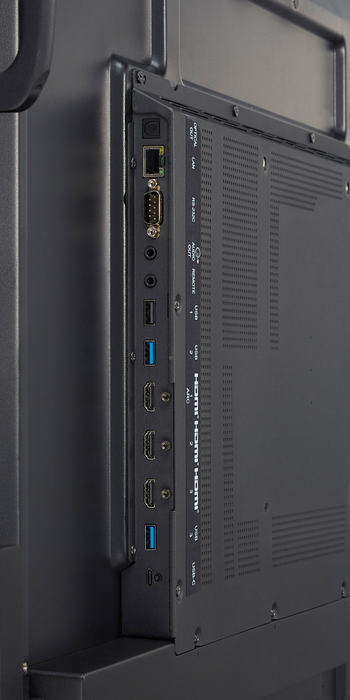

Input (Video) |
1x USB-C, 3x HDMI (with HDCP 1.3/2.2) |
Input (Audio) |
1x USB-C, 3x HDMI |
Control Inputs |
LAN, RS232, 3.5mm remote control wire |
USB Ports |
3 x USB 2.0 (Downstream) |
Audio Output |
1 x 3.5 mm jack |
Input Detection |
Custom / First / Last |
Power Consumption |
85 W (Shipping) |
Power Saving Mode |
<0.5 W / <2 W (Networked Standby) |
Power Supply |
100-240 V AC; 50/60 Hz; internal |
Operating Temp |
0°C to 40°C |
Operating Humidity |
20% to 80% |
Storage Temp |
-20°C to 60°C |
Storage Humidity |
10% to 90% |
Dimensions (WxHxD) |
1118.6 x 639.2 x 62 mm |
Weight |
11.7 kg |
Bezel Width |
9.9 mm |
VESA Mounting |
400 x 400 mm (M6), 4 holes |
IP Rating |
IP5x front & back |
Packaging Size |
1202 x 719 x 156 mm |
Packaging Weight |
17.5 kg |
Bezel Colour |
Pantone (Process Black M) |
Material |
Metal |
Media Support |
MPG, MP4 (up to 4K@60fps) |
Embedded OS |
Android 13 |
System Memory |
4 GB RAM |
Internal Storage |
32 GB ROM |
Built-in Apps |
File Manager, Web Browser |
Accessories |
Feet, Presence Sensor, Soundbar, Speakers, Trolley, Wall Mount |
Certifications |
BSMI, CE, FCC B, RoHS, VCCI, Energy Star 8, etc. |
Pixel Failure Class |
ISO 9241-307, Class 1 |
Fire Resistance |
UL94-5VB Certified |
Energy Use |
96 kWh/1000 h (Energy Class G) |
Eco Standard |
EnergyStar 8.0 |
3rd Party Certs |
Crestron CCV2, XiO Cloud |
Special Features |
DICOM Sim, HDMI ARC, 15W USB Power, Removable Logo |
Audio |
2 x 10 W speakers |
Included in Box |
2x AAA batteries, Display, HDMI cable, Power cable, Remote, Manual |
Warranty |
3 years incl. backlight (optional 4th/5th year) |
Operating Hours |
18/7 |
External Control |
AMX, ASCII, Crestron, HDMI CEC, Timer |
Remote Management |
Email Alerts, NaViSet Admin 2 |
Security |
Disable HW Buttons, Disable IR Functionality |
