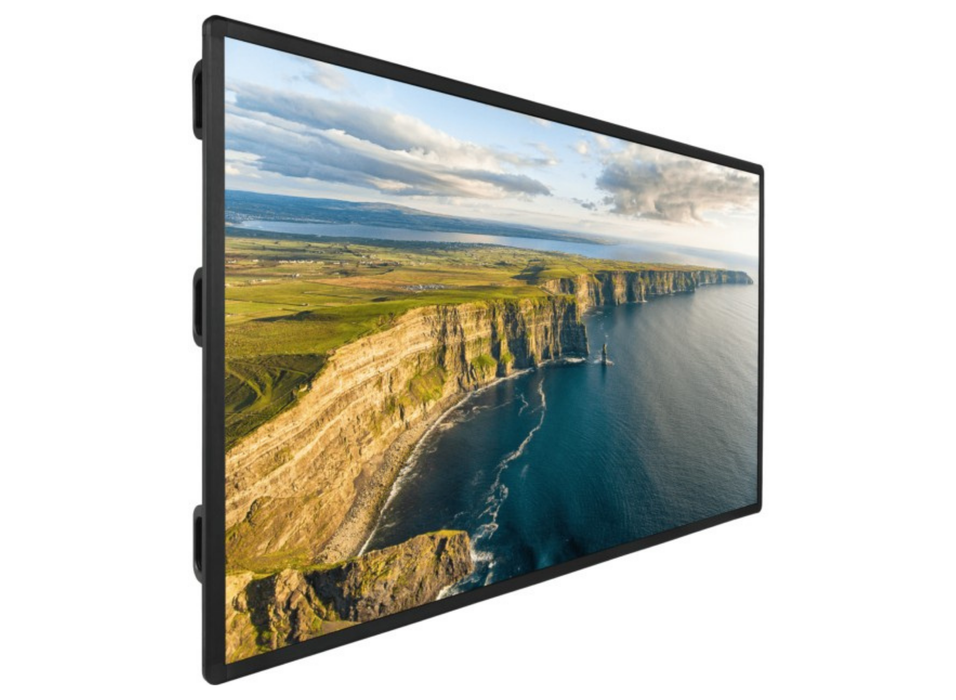

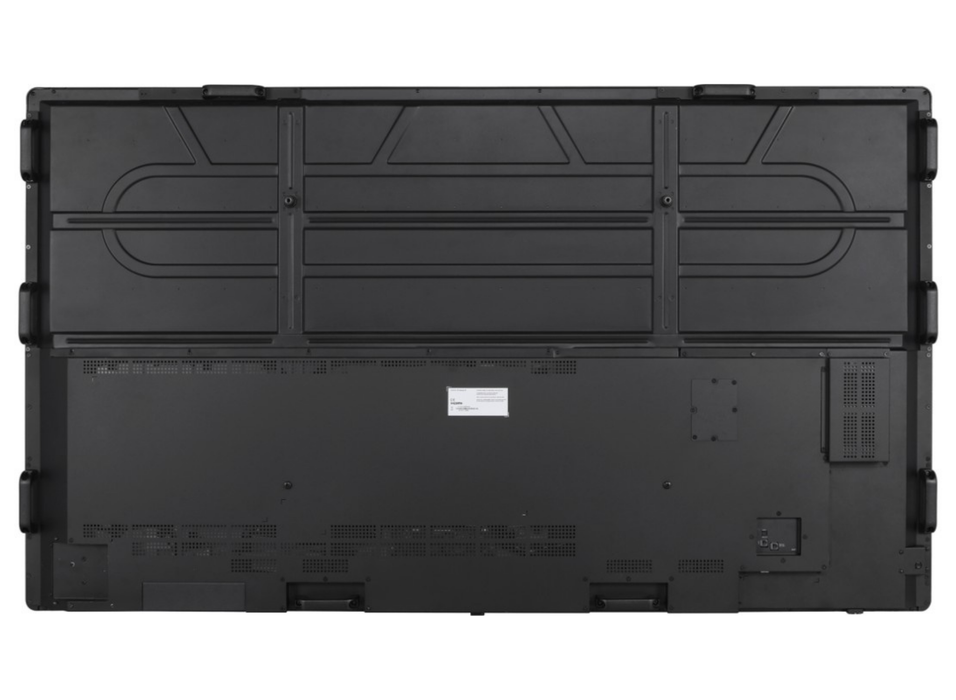

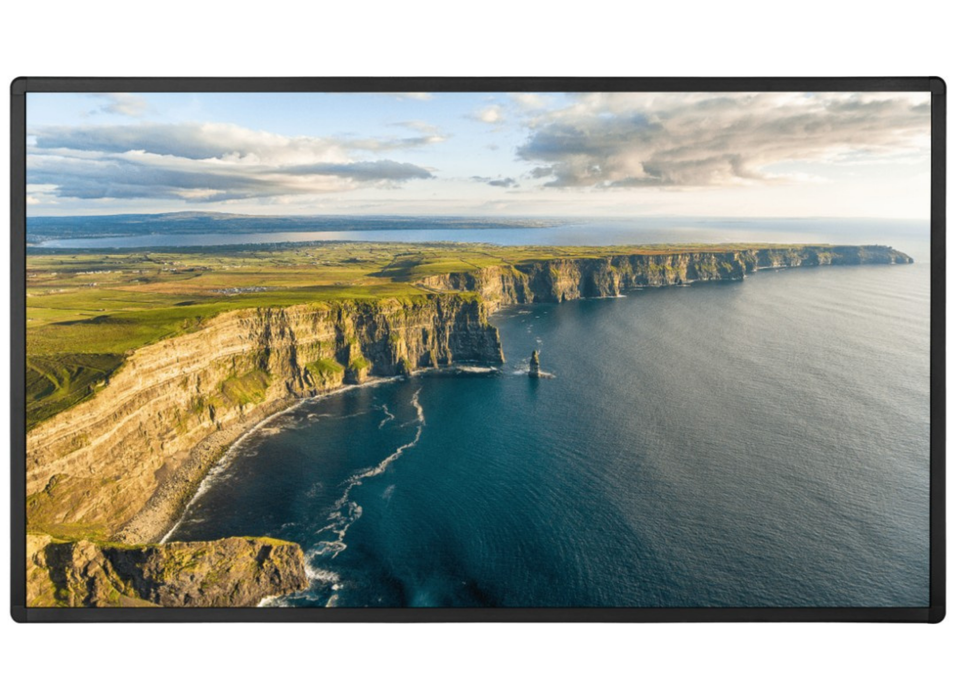

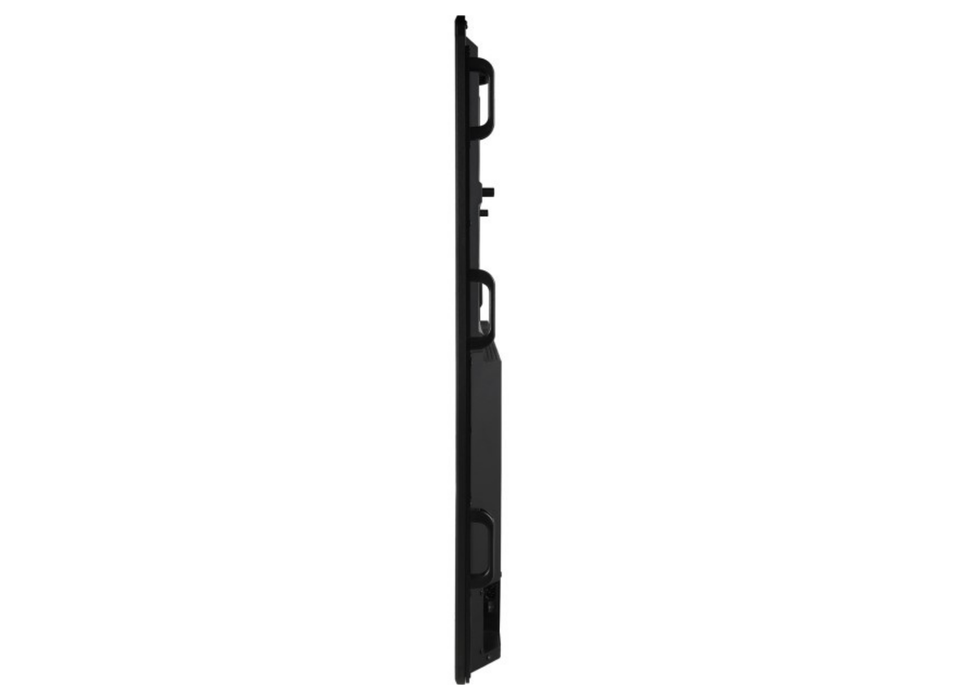

Vestel XD Series XD86D-4H 86" 4K Ultra HD Digital Signage Display
SKU: XD86D-4H
£1,405.57 (Excl. VAT)
- Display Size86"
- Operating SystemAndroid
- VESA Patterns800x600
- Panel TypeIPS Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Vestel XD86D-4H 86" 4K UHD Digital Signage Display | IPS, 400 nits, 16/7 Operation
Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.
Usb Security
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.
Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

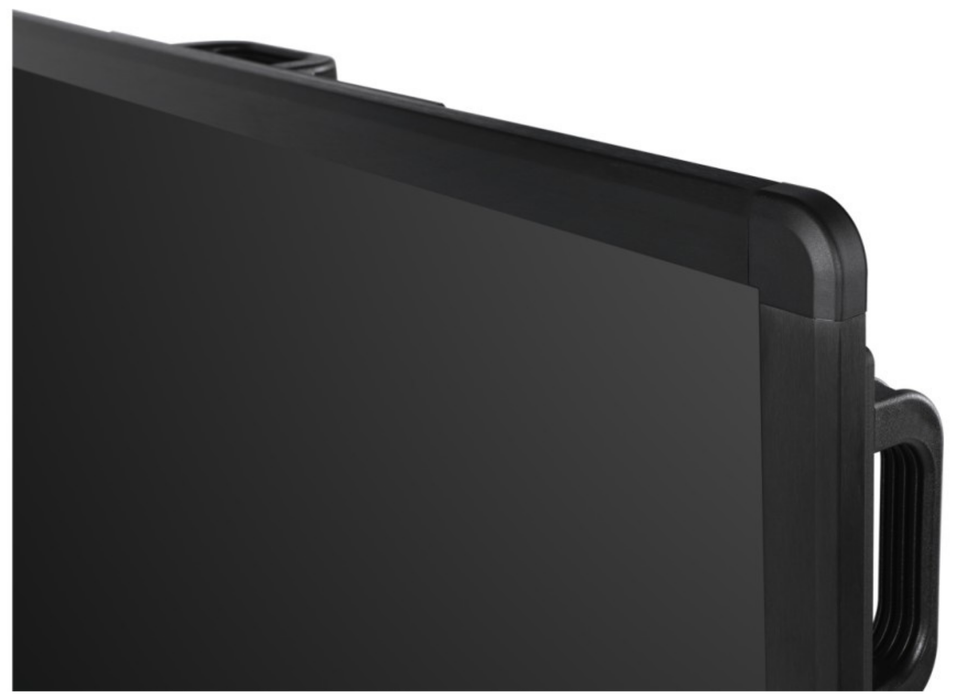

Subtle Design
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.
Signal Failover
Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.
Pixel Shifting
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.
Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.
External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.
Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time. -
Screen Size 86" Panel Technology IPS Backlight Type DLED Brightness 400 cd/m² Resolution 3840 x 2160 (UHD) Contrast Ratio 1200:1 (typ.) Dynamic Contrast 40000:1 Panel Lifetime 30000 Hrs Response Time 8 ms Active Area 1895 x 1066 mm Viewing Angle 178° Vert., 178° Hor. Color Value 1.07G (8bits + FRC) Color Gamut 72% NTSC Haze Level 25% Refresh Rate 60 Hz Orientation Landscape Operation Hours 16/7 Area of Usage Indoor Mainboard Model 17MB400VS Operating System Custom OS (AOSP) Memory 2 GB DDR4 Storage 16 GB eMMC Additional Storage Micro SD (up to 1TB) CPU Quad-Core Cortex-A55 GPU ARM Mali-G31 MP2 Ethernet 10/100 Mbps WiFi WiFi 5 (802.11 a/b/g/n/ac) Bluetooth BT 5.1 HTML5 Browser Vewd Wireless Display Miracast Video Input 4xHDMI2.0, 3xUSB-A, Micro USB Video Output 1x HDMI2.0 Audio Output Headphone, Optic SPDIF External Control RS232, RJ45, RJ12 External Sensor RJ12 Product Dimensions 1962 x 79 x 1133 mm Package Dimensions 2163 x 380 x 1490 mm Product Weight 62 kg Package Weight 83 kg VESA Mounting 800 x 600 mm (M8) Bezel Width 25 mm (All sides) Operating Temp. 0–40°C Operating Humidity 10–90% Power Supply 110–240 VAC, 50/60 Hz Deep Standby ≤0.5 W Speakers 2x12 W Features HTML5 CMS, Scheduler, USB-Autoplay, HDMI-CEC, Failover, Panel Lock, Video Rotation, NoSignalPowerOff, Pixel Shift, Videowall Support, SNMP Mechanical Joystick, Rocker Switch, Detachable Power & Logo, Internal USB Cover Accessories QSG, IB, Power Cord, Remote, RC Battery, Mounting Kit, IR Extender Certifications Safety, EMC, CE -
Description Downloads Specification Sheet Downloads Commercial Datasheet Downloads Mechanical Drawing Downloads
