Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
1. Please check TV size, VESA standard, weight, etc. before purchasing:

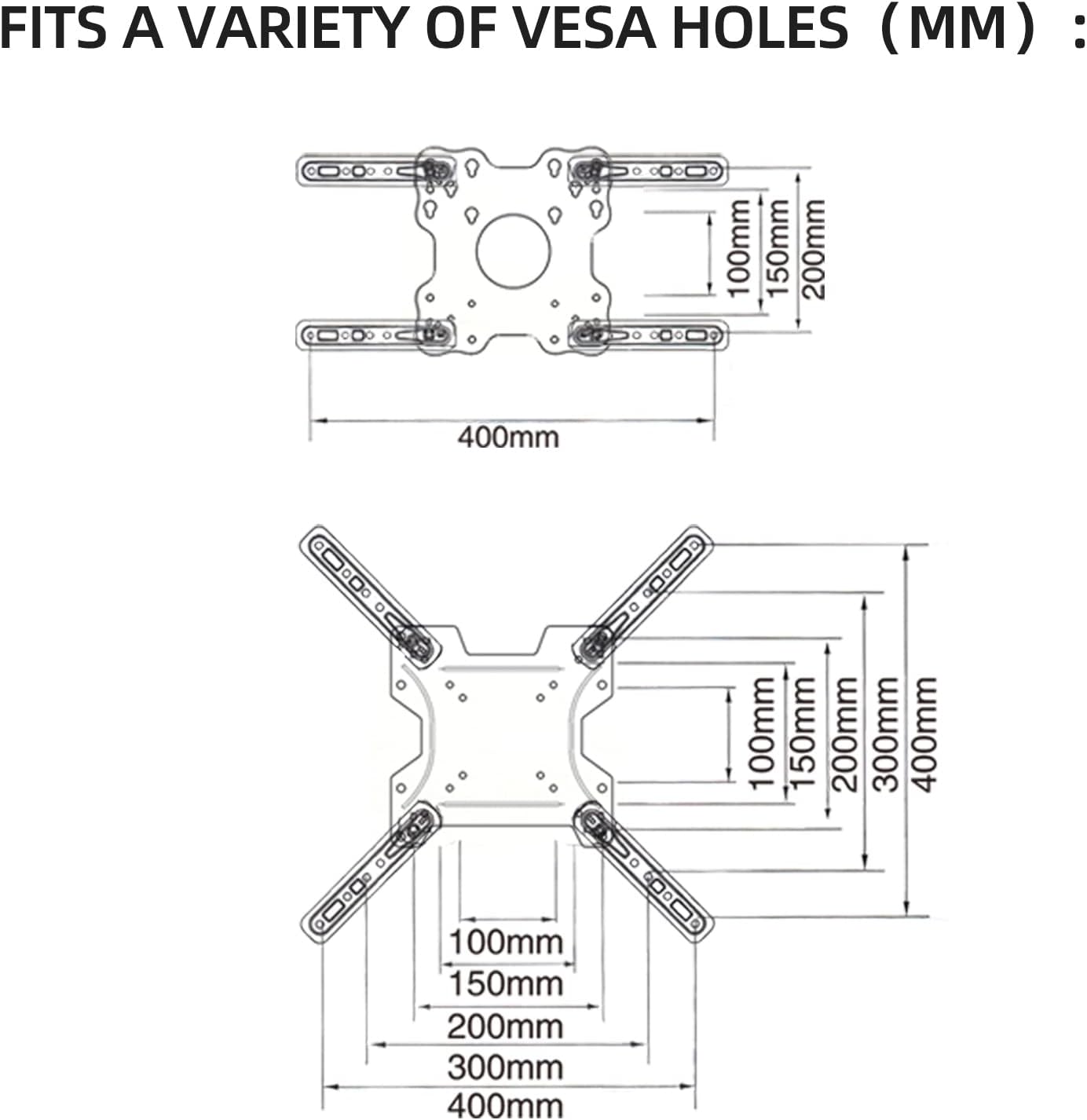

VESA = W x L: 100x100mm / 150x150mm / 200x100mm / 200x200mm / 300x300mm / 400x200mm / 400x300mm / 400x400mm
The TV/monitor weighs less than 43.7 lbs (19.8 kg)
Screen sizes range from 32" to 50" (if your TV's specs, VESA size and weight are within our assessed specs, decrease or increase the size of your TV.
2. After receiving the product, first check the accessories (including instructions). Also check that all parts required for installation are complete and that they are not damaged or dirty.
3. As long as your TV's specs are within the specs we've evaluated, there's no problem supporting your TV.

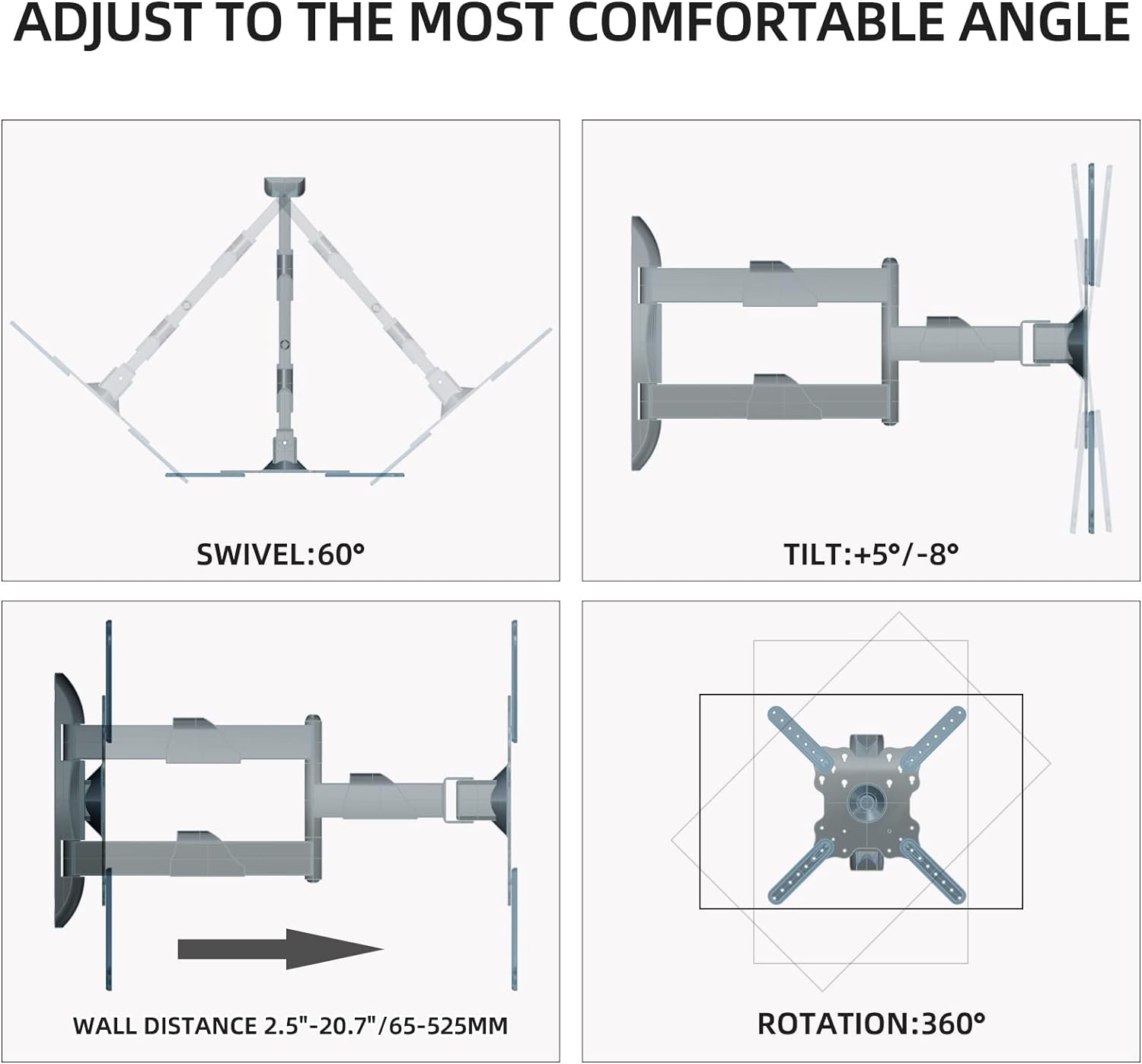

ANY ANGLE YOU WANT CAN BE ACHIEVED!
Minimum distance from wall 2.5"(39mm), maximum 20.7"(500mm).

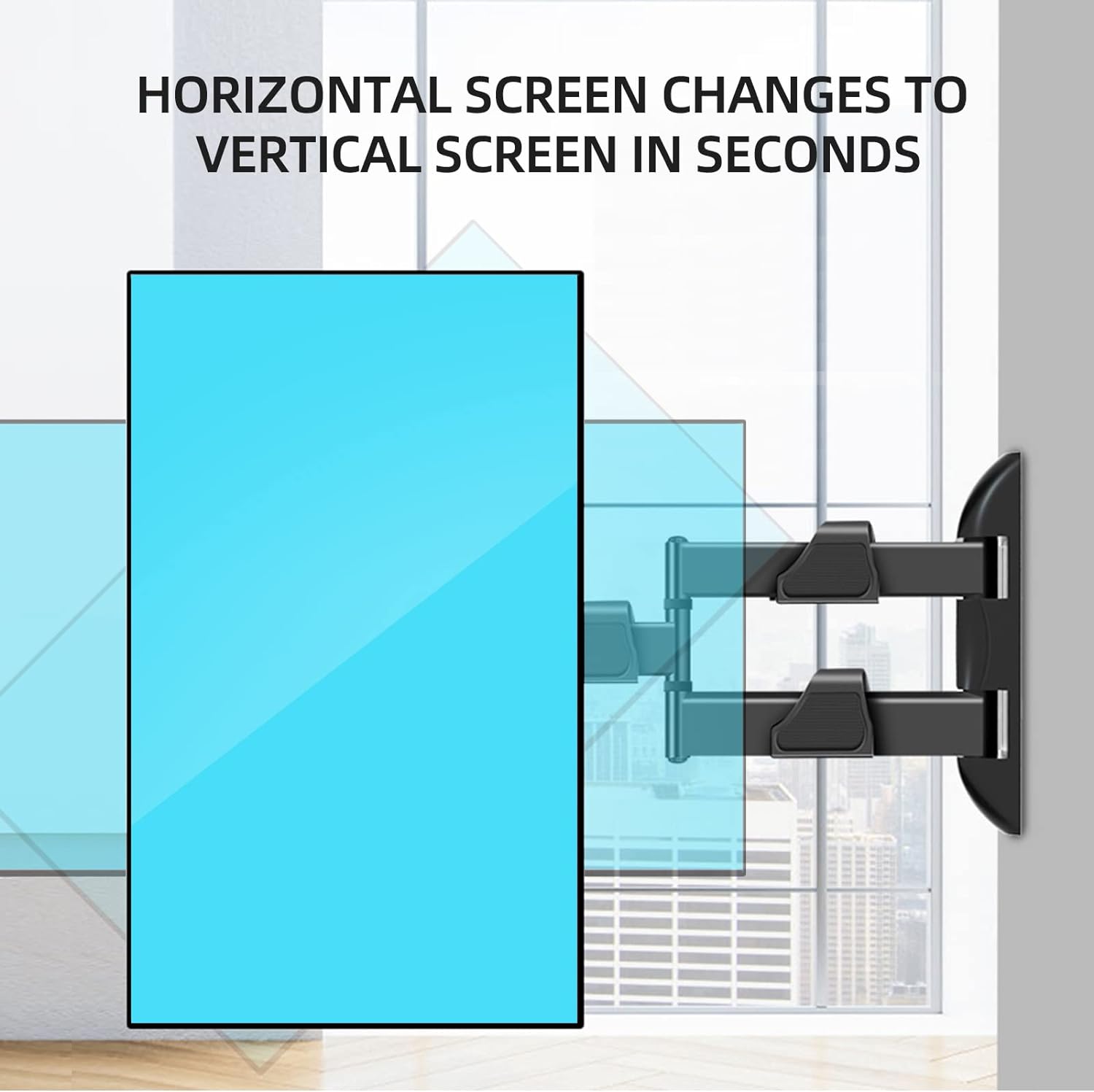

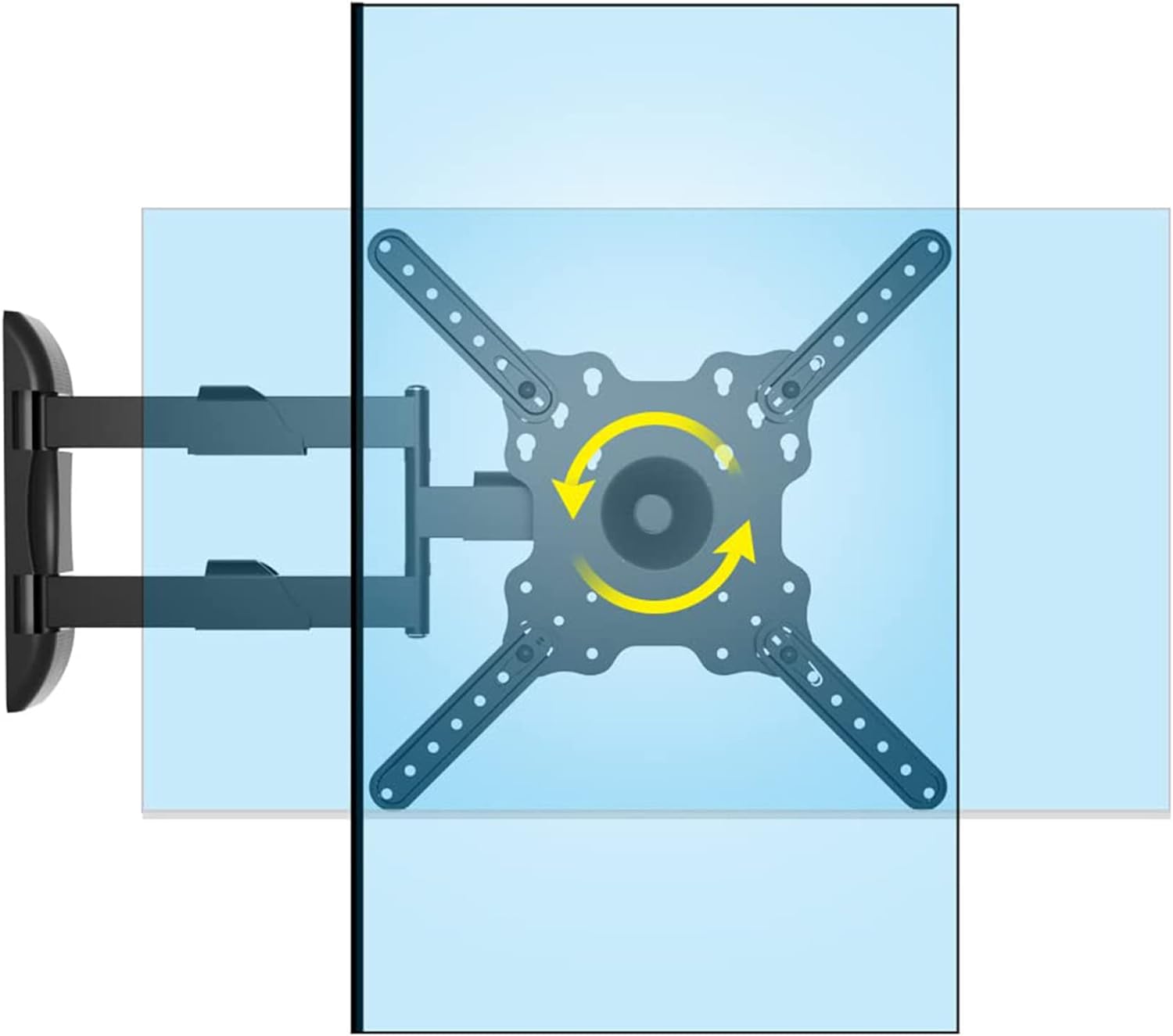

Support horizontal and vertical screen rotation 360°. Suitable for TVs with centered VESA mounting holes.
TVs up to 39" can swivel horizontally by 90°.
TVs up to 50" can swivel horizontally by 60°.
MORE PRODUCT DETAILS
2.16mm thickened wall panel
The load-bearing is strengthened and the safety factor is increased.
Wall panel mounting hole spacing
Reinforced installation, stable load-bearing.
Beamline Management
Neat and beautiful, neat lines.
Important Matters
Before installation, make sure you have received all the parts that match the provided checklist.
If any parts are missing or damaged, please tell us via the buyer message or the email provided in the manual.
Regularly (at least every three months) check if the TV bracket is safe and reliable. When used frequently, shorten the inspection interval for the stability of the screws.
Full Motion TV Wall Mount
Product Features:
1. The TV screen can freely rotate horizontally and vertically, allowing you to watch TV while also realizing the vertical projection of the mobile phone.
2. Made of high-quality cold-rolled steel, solid shaft design, to ensure that the TV does not sink, no matter how many times you adjust the angle, the bracket will not be deformed.
Package Includes:
1 x TV Mount
1 x User Manual
3 x Cable plastic shell
1 x Standard Mounting Hardware
| Feature | Specification |
|---|---|
| Screen size | 32"-50" |
| Rated Load | MAX 43.7 lbs (19.8 kg) |
| Distance to wall | 39-500mm (1.53"-19.7") |
| Left and right Swivel | 60° (for TVs within 50"), 90° (for TVs within 39") |
| Screen rotation | 360° (Rotate Clockwise) |
| VESA | 100×100mm~400×400mm |
| Material | High quality cold rolled steel |
