NetworkHD™ 500 Series 4K60 4:4:4 JPEG2000 In-Wall Encoder | NHD-500-IW-TX
SKU: NHD-500-IW-TX
£790.99 (Excl. VAT)
- Description
- Specifications
- Downloads
-
NetworkHD™ 500 Series 4K60 4:4:4 JPEG2000 In-Wall Encoder | NHD-500-IW-TX

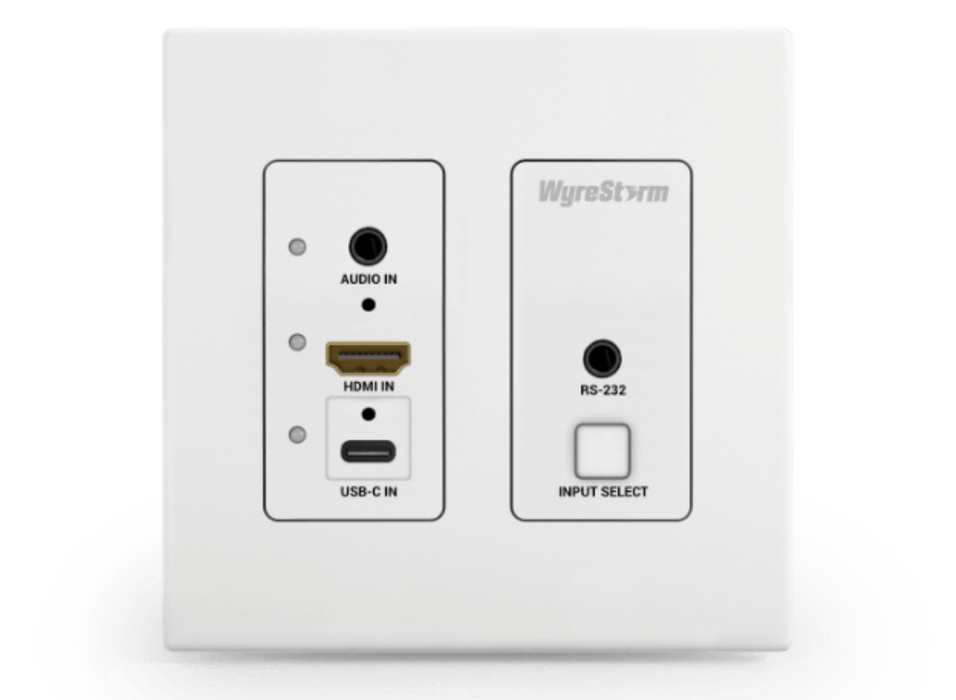

The NHD-500-IW-TX brings versatility to your AV over IP applications. This 2-gang in-wall 500 series encoder features HDMI and USB-C switching inputs suited for connecting today’s modern laptops and tablets. Perfect for education or corporate environments, install this encoder in a wall, table, desk, podium or anywhere a remote input is needed. Integrated USB extension allows laptops to also connect to peripheral components such as conference cameras, smartboards/touchscreens and more.
SWITCHING INPUTS
HDMI and USB-C inputs support the latest laptops and mobile devices, with Auto Switching or Manual switching modes. Whether using a Windows PC, Apple MacBook, or an iPad, you’ll be able to transmit video without needing to fumble with converters or adapters. The USB-C connection supports alt-mode capable of both video and data connection to a computer.
USB EXTENSION
Whether using the USB-C connection or HDMI with the USB A-C, connected computers can access remote USB peripherals connected to the NetworkHD system all without needing extra components. In a corporate application this can be a remote conference camera or in education a smartboard or touchscreen.
COMPACT DESIGN

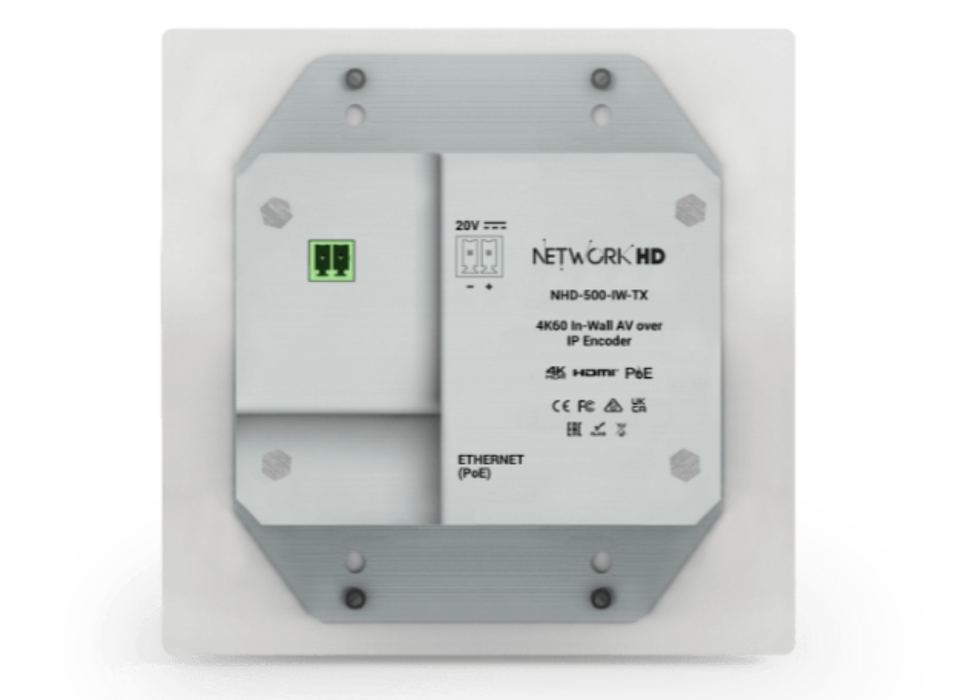

The simplistic white decora plate and small 2-gang size allows the encoder to be installed and blend in to a number of different environments. The front of the encoder isn’t crowded with unnecessary connections and the support for PoE means you don’t need to run extra cables through the wall.
ECOSYSTEM
The NHD-500-IW-TX is just one of many models within the NetworkHD 500 series. Mix and match different models to tailor your system to your requirements. All of which are controlled and maintained by the NHD-CTL-PRO controller. -
Category Specification/Feature AUDIO & VIDEO Inputs/Outputs 1x HDMI In, 1x USB-C In, 1x 3.5mm TRS Analog In Output Video Encoding JPEG 2000 Encoding Data Rate Max: 850Mbps (configurable) End to End Latency 4ms video latency @4K60 (pass-through mode), 16ms @ 4K60 (scaler/VW mode) Video Resolution (Max) 4096x2160p @ 60Hz 8bit 4:4:4 or RGB, 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision, 3840x2160p @ 60Hz 10bit 4:2:2 HDR10/HLG, 1920x1080p @60Hz 12bit Supported Standards RGB, DCI, USB 1.1, 2.0, BT.2020 Maximum Pixel Clock 600MHz COMMUNICATION & CONTROL HDMI HDMI 2.0b, HDCP 2.2, EDID RS-232 1x 3.5mm, 2-way, API Programmable Network 1x 1GbE RJ45 USB 1x USB-C Host (Up to 200Mbps upstream) Security Protocols AES 256, SSH, HTTPS POWER Power Supply 20V DC 6A, 802.3af PoE Compliant Max Power Consumption Max: 15.4W, Average: 8W Additional Features 4K60 Encoding Supports encoding full 4K60 4:4:4 8bit or RGB content Audio Input Dedicated stereo input for connecting external audio devices Input Switching Auto or manual input switching Scalable I/O Utilizes multicast technology for scalability Device Control Bidirectional RS-232 control for connected devices Batch Updates Batch firmware and settings updates for faster installation -
