OVERVIEW
The ViewSonic M1+ is an iF award-winning, smart ultra-portable LED projector that can deliver a convenient, enjoyable entertainment experience anywhere it goes. With a built-in battery, 300 LED Lumens and LED light source with up to 30,000 hours of lifespan, all packaged into less than 1 kg, the M1+ can deliver years of multimedia entertainment wherever it goes – from room to room, both inside and outdoors. Its smart stand enables simple 360-degree setup while doubling as a lens cover. Once the lens is uncovered, the projector automatically powers on to full brightness for instant entertainment. Stereo Harman Kardon speakers provide room-filling sound for an amplified experience, while more flexible audio needs can be achieved via Bluetooth. Integrated Wi-Fi connectivity makes streaming easier than ever – both wireless casting from smart devices and built-in content streaming is possible.
Express Yourself Anywhere You Go
M1+ Portable Cinema
iF Award Design
Metal Stand
Sturdy setup anywhere- no tripod needed.
Lens Cap
The stand also doubles as a lens cover to protect the lens from being damaged when being transported.
Power Combo
Swivelling the stand to uncover the lens powers the projector on in an instant.
Mirror the Screen from Your Phone to the Projector
Projecting your phone screen from your projector has never been easier. Wirelessly connect the M1+ to your smart device* and enjoy big-screen entertainment.
Intuitive Touch Control with your phone
Now you can turn your mobile device into an alternative powerful remote control - intuitive touch control, easy typing and simple annotation on the big screen, simply download the ViewSonic vCastSender app on your phone, make sure your phone and the projector are connected to the same Wi-Fi network, and pair them up in the app to get started.
Room-filling Sound
Dual speakers by Harman Kardon deliver vibrant treble, balanced mids, and strong bass for an all-around audio feast. What’s more, the projection shuts off when Bluetooth activates, so you’ll be immersed in pure acoustic heaven with no screen interference.
Movie Mode
Situate yourself in the movies; home theatre made perfect.
Music Mode
Balanced tuning to deliver you the authentic touch of original melodies.
User Mode
With our professional DSP technology, you can customise the way you want to enjoy the audio.
Bluetooth for Flexible Audio Needs
Turn the M1+ into a Bluetooth speaker to play your favourite music in high quality and amplify the pleasure. Or the other way around, output the audio of a thrilling game from the projector to your own Bluetooth headphones, immersing yourself in your own big-screen fun.
Projection in Every Direction
The M1+ is the perfect companion for lazy Sundays when you just want to relax and unwind. Whether you’re curled up in bed or lounging around on the sofa, watching the latest episode of your favourite TV show is more comfortable than ever with the M1+’s 360-degree perfection projection that lets you project images onto the ceiling, wall, floor or anywhere you please – with ease.

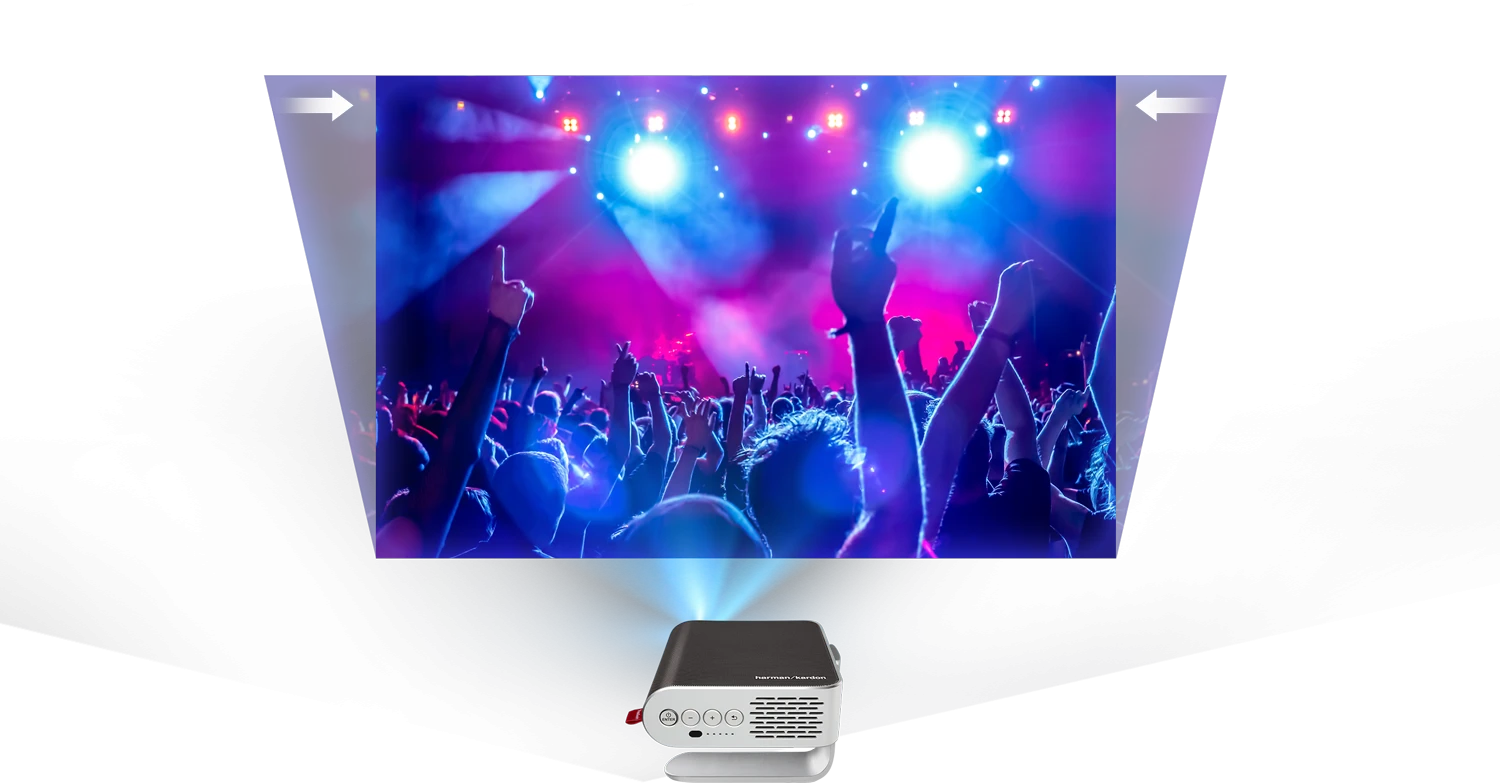

Perfectly Proportioned Images Every time
Say goodbye to distorted images for good. The M1+ projects perfectly proportioned images at every angle via the auto keystone feature that corrects images automatically from any angle.
Cinematic Experiences On-The-Go
M1+ is a must-have for your next camping trip or outdoor excursion. The built-in battery provides up to 6 hours* of entertainment for you and can be extended easily with a power bank via USB Type-C**, so you don't have to deal with tangled cords or plug the projector into a power source.
Stream Shows on Your Phone,
Project Them Anywhere You Go
M1’s USB Type-C connection puts a fun twist on streaming videos and facetiming your friends by allowing you to project content directly from your phone, laptop or tablet while also charging them simultaneously.
You can even play Switch games on the big screen via direct connection without the dock.
Fit for Spaces of All Shapes and Sizes
Project 100’’ images from only 2.6 meters away – perfect for projecting large images in small spaces.
Palm-Sized
The M1+ is small enough to fit in the palm of your hand and weighs 700g – making it easy to put in your bag or suitcase for presentations on-the-go.
Plug & Play
Smart UI for Intuitive Navigation
Free yourself from struggling to find the things you want. With our intuitive and user-friendly interface design, you can relaxingly navigate around and select a command.
Up to 30,000 Hours Light Source Life
LED technology offers up to 30,000 hours of usage – a significant upgrade when compared to traditional mercury lamp projectors.
Eye Care
Utilising reflective light, which bounces off the wall or projector screen before hitting your eyes, the projector makes the viewing experience virtually blue light-free, less invasive to your sight and reduces eyestrain over prolonged viewing periods.
TÜV-Certified Antibacterial Remote Control
Stay entertained, stay healthy. Our antibacterial remote control adopts a special coating with silver ions which prevents bacteria from attaching and remains effective even after a long period of use.
Green Design
Packaging for the M1+ portable projector is paper-based, biodegradable, and 99% recyclable – all the right ingredients for leaving a smaller carbon footprint.
Exterior & Rear I/O Connectors
-
| Specification |
Details |
| Projection System |
0.2 |
| Native Resolution |
854x480 |
| Brightness |
300 (LED Lumens) |
| Contrast Ratio |
120000:1 |
| Display Color |
1.07 Billion Colors |
| Light Source Type |
LED |
| Light Source Life (hours) with Normal Mode |
up to 30000 |
| Lamp Watt |
RGB LED |
| Lens |
F=1.7, f=5.5mm |
| Projection Offset |
100%+/-5% |
| Throw Ratio |
1.2 |
| Image Size |
24 |
| Throw Distance |
0.64m-2.66m (38 |
| Keystone |
+/- 40° (V) |
| Optical Zoom |
Fixed |
| Audible Noise (Normal) |
26dB |
| Audible Noise (Eco) |
25dB |
| Local Storage |
Total 16GB , (12GB available storage) |
| Input Lag |
33 ms |
| Resolution Support |
VGA(640 x 480) to FullHD(1920 x 1080) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency |
15h-135kHz |
| Vertical Scan Rate |
23-120Hz |
| Input |
|
| HDMI |
1, (HDMI 1.4/ HDCP 1.4) |
| SD Card |
Micro SD (32GB, SDHC) |
| USB Type C |
1 (5V/ 2A) |
| USB Type A |
1 (USB2.0 Reader, share with power) |
| Wifi Input |
1 (5Gn) |
| Bluetooth Input |
1 |
| Output |
|
| Audio out (3.5mm) |
1 |
| Audio-out (Bluetooth) |
1 (BT4.2) |
| Speaker |
3W Cube x2 |
| USB Type A (Power) |
1 , (USB2.0 - 5V/1A,, share with USB A Input) |
| Others |
|
| Power Supply Voltage |
Power adaptor: , Input: 100~240V, Output: 19VDC / 3.42A, , Battery:, 12000mAh(4000mAh 3.7Vx3), (2.5hrs@Normal, 3hrs@Eco) |
| Power Consumption |
Normal: 45W , Standby: <0.5W |
| Operating Temperature |
0~40℃ |
| Net Weight |
0.7kg |
| Dimensions (WxDxH) with Adjustment Foot |
151x126x40mm |
| OSD Language |
English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages |
| Standard Accessory |
|
| Power Cord |
1 |
| Remote Control |
1 |
| QSG |
Yes |
| USB-C Cable |
1 (1m) |
| Optional Accessory |
|
| Carry Bag |
PJ-CASE-010 |
-
