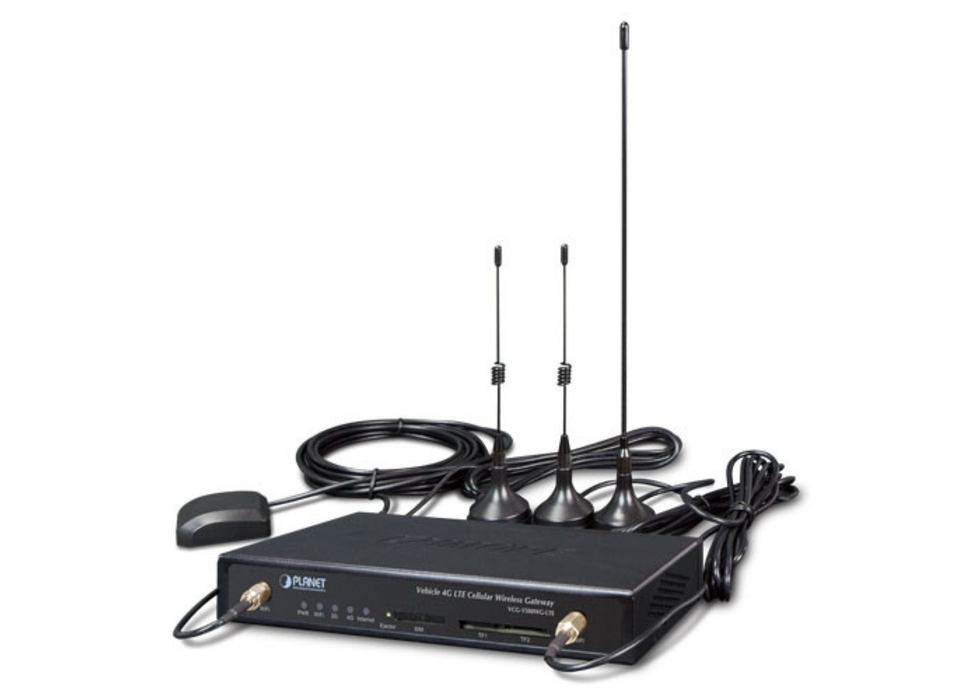

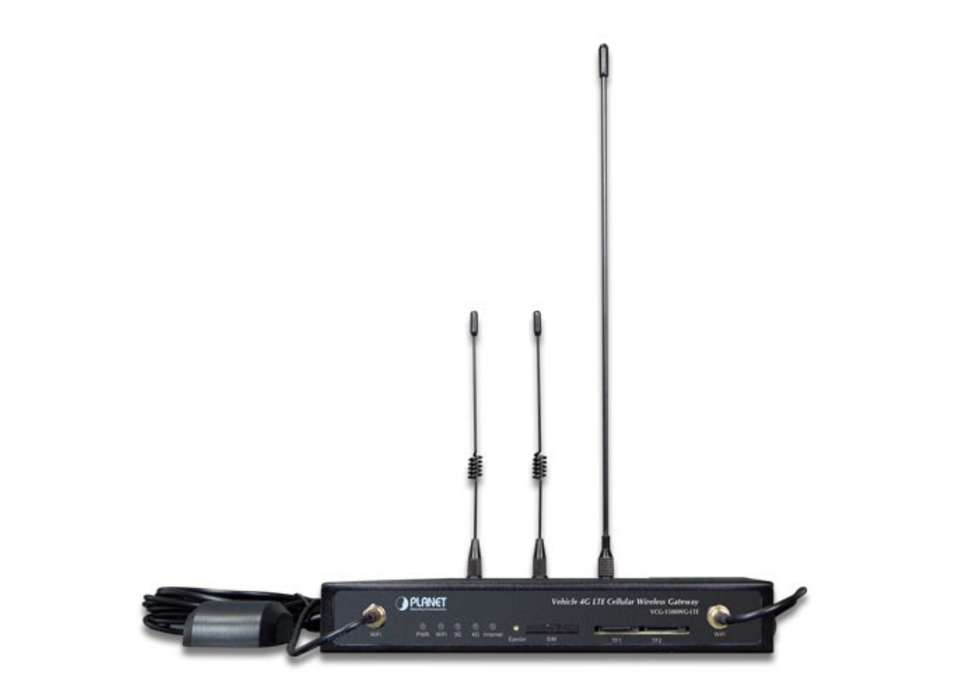

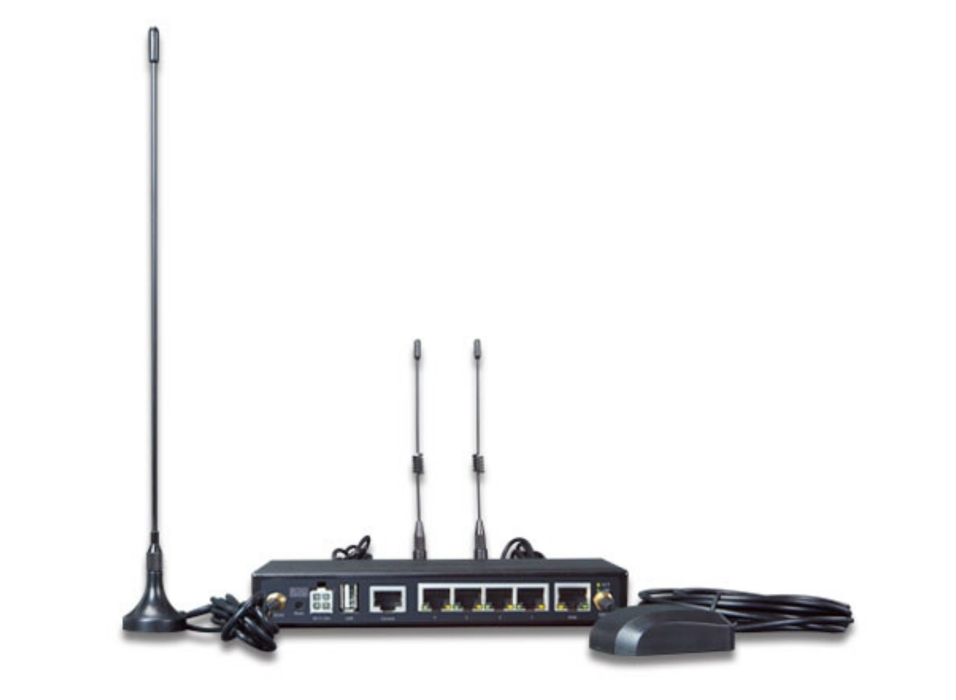

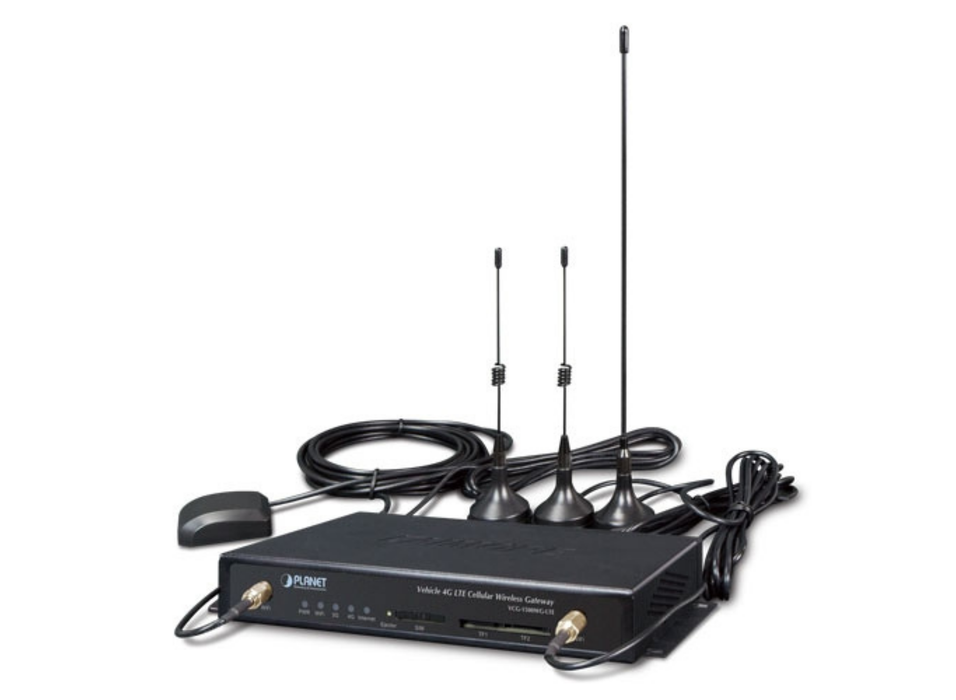

Planet Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX | VCG-1500WG-LTE-EU

Vehicle-Grade 4G LTE Wireless Gateway with GPS & Wi-Fi

Internet of Vehicles via 4G LTE Cellular Gateway
PLANET VCG-1500WG-LTE is a reliable, secure and high-bandwidth communications vehicle cellular gateway for demanding mobile applications and IoV (Internet of Vehicles) deployments. It features 4G LTE (Long Term Evolution), wireless AP, five Ethernet ports (4 LAN and 1 WAN), GPS,  VPN technology and bandwidth management bundled in a mountable metal case to establish a public network connection and allows passengers to access Internet.

High-performance 4G LTE
The VCG-1500WG-LTE is able to reach a download (DL) speed of up to 100Mbps and an upload (UL) speed of 50Mbps. The Cellular Gateway also supports multi-band connectivity including LTE FDD, TDD, HSDPA, WCDMA and GSM for a wide range of applications.

Wireless Access Point
With an integrated 802.11n Wireless Access Point, the gateway supports data rate up to 300Mbps and is also compatible with 2.4GHz 802.11b/g/n equipment. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over Wireless LAN.

GPS Included
The VCG-1500WG-LTE is equipped with one convenient feature and that is GPS (global positioning system). It is a positioning system based on a network of satellites that continuously transmit necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked anytime.

Cost-effective VPN Solution
The VCG-1500WG-LTE provides a complete data security and privacy feature for access and exchange of sensitive data. The full VPN capability of the VCG-1500WG-LTE including built-in PPTP, LT2P, and IPSec VPN client functions with DES/3DES/AES encryption and MD5/SHA-1 authentication makes the shared connection more secure and flexible. The IPSec VPN also makes the private tunnel over Internet more secure for enterprises doing business transactions.

Dual TF Cards for Wi-Fi Advertising Contents
The VCG-1500WG-LTE provides dual TF cards and the capacity of each card is up to 128GB. The TF cards can store thousands of advertising data and movie files. The administrator is able to upload these files to TF cards via FTP locally. Besides, through CMS (Central Management System), administrator is able to upload and maintain these files remotely. The device will display advertising contents when users access to the Wi-Fi after authentication.

Superior Management Functions
For networking management features, the VCG-1500WG-LTE provides such functions as  DMZ, QoS and Wifidog, as well as full secure functions including Network Address Translation (NAT), IP/URL/MAC filtering. The VCG-1500WG-LTE has 4G and WAN connection failover characteristics, which can automatically switch over to the redundant, stable WAN connection to keep users always online without missing any fascinating moments.

User-friendly and Secure Management
For efficient management, the VCG-1500WG-LTE is equipped with console, web and Wifidog management interfaces. With the built-in web-based management interface, the VCG-1500WG-LTE offers an easy-to-use, platform independent management and configuration facility. The VCG-1500WG-LTE supports Wifidog and it can be managed via CMS (Central Management System) for remote management and Wi-Fi advertising.

Applications

4G LTE Cellular Communication Solution
PLANET VCG-1500WG-LTE is a compact and advanced 4G/LTE embedded router running on multiple LTE bands including FDD, TDD, WCDMA, Edge and GSM, delivering 4G/LTE access speeds with peak download rate up to 100Mbps. Featuring superior failover/fallback functionality, the router can automaticallyfall back to the 3G network when it gets a poor and unstable 4G LTE environment. Integrating with an 802.11n (2.4GHz) access point, users can access to the Internet easily. Supporting Wifidog, the VCG-1500WG-LTE can be easily managed by a centralized device management system (CMS) for configuration, monitoring and advertising. It is an ideal solution for public bus, taxi, long tourist bus, bullet train Wi-Fi coverage.

Key Features

Physical Port
4 10/100BASE-TX RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
1 10/100BASE-TX RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
1 4G LTE 2.3 dBi antenna
2 2.4G WiFi 2dBi antennas
1 GPS antenna
1 SIM card slot
1 console port
2 TF card slots  to save files for Wi-Fi advertising

Cellular Interface
Supports multi-band connectivity with FDD LTE/ TDD LTE/ WCDMA/ GSM/ LTE Cat4
Built-in SIM and broadband backup for network redundancy
One detachable antenna for 4G LTE connection
 LED indicators for connection status (3G/4G)

Wi-Fi Interfaces
Complies with IEEE 802.11b/g/n 2.4GHz
Two detachable antennas for wireless connection
64-/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES encryption),
LED indicators for status

Case and Installation
IP30 metal case
Mounting brackets for vehicles
Power requirement: 6~32V DC
Supports 15KV DC Ethernet ESD protection
-25 to 65 degrees C operating temperature

Advanced Features
Supports demilitarized zone (DMZ).
Supports VPN client, including GRE, PPTP, IPSec, L2TP
Supports NAT port mapping function, such as SNAT, DNAT
Supports Static Routing to display current routing information of the gateway
Supports QoS for bandwidth management
Supports Dynamic DNS and PLANET DDNS
Supports WAN connection types: DHCP client, static IP and PPPoE client
Secures network connection
- IP filter
- URL filter
- MAC filter

Management
Gateway management interfaces
- Console/Telnet Command Line interface
- Web  management
Gateway Maintenance
- Firmware upload via HTTP, TFTP
- Restore or Reset button for reset to factory default
- Dual images
SNTP (Simple Network Time Protocol)
System log
System tool, such as ping and trace
Configuration backup and restore
Supports CMS (Central Management System) and Wifidog for remote management and  Wi-Fi advertising
