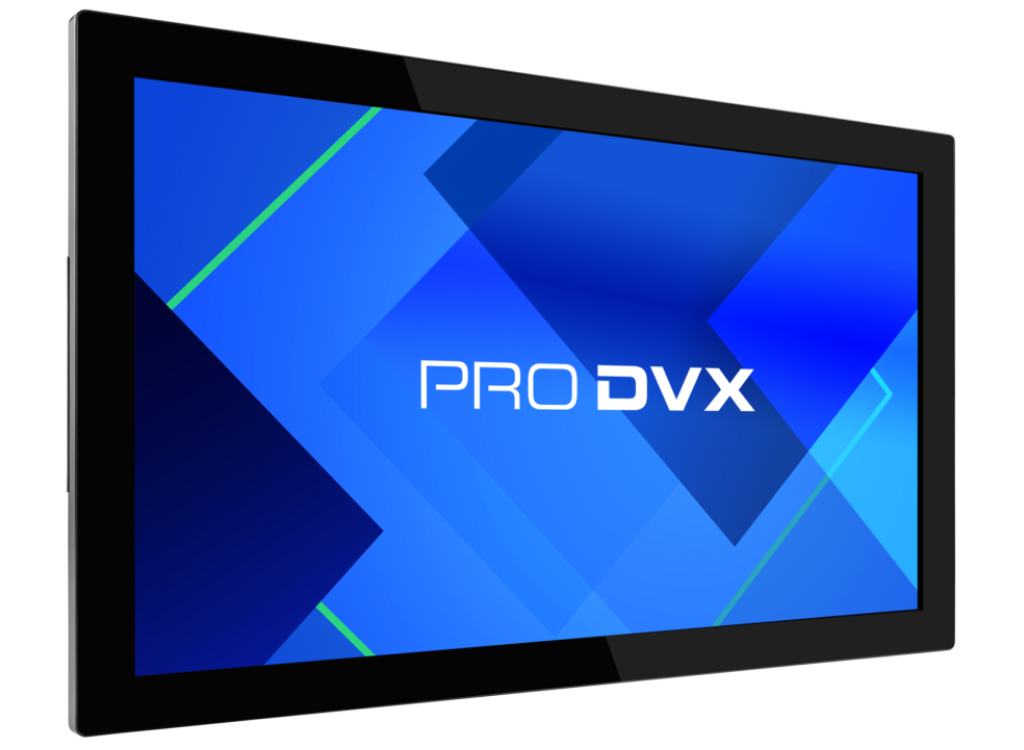

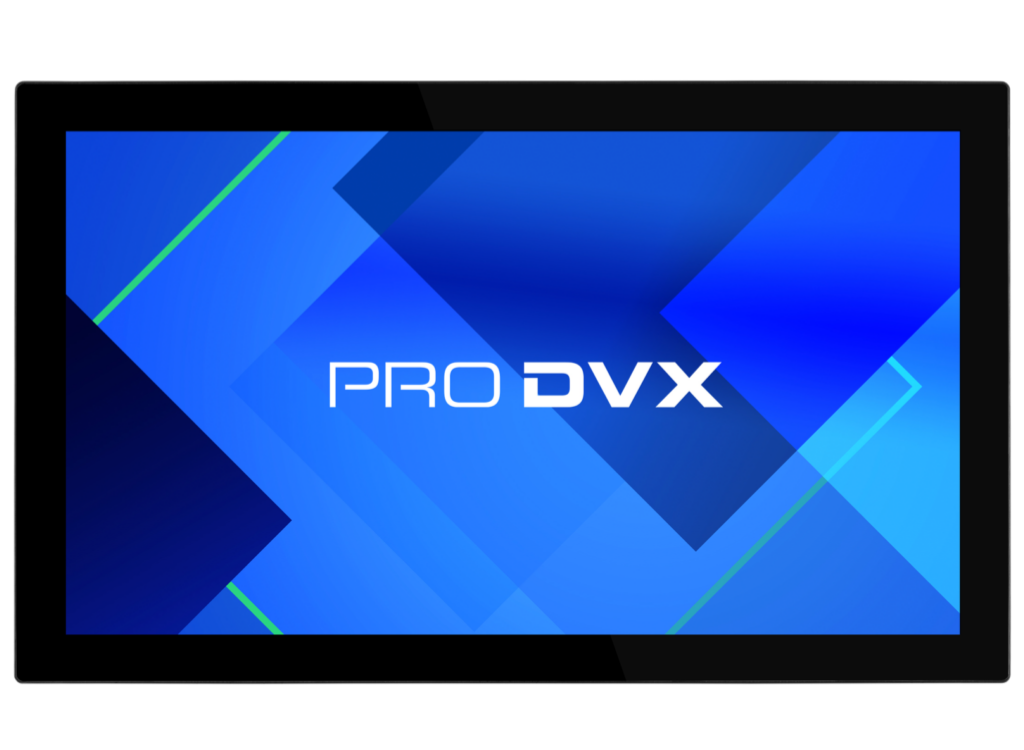

The APPC-22XP (R23-7222) is a 22-inch Android-based Panel PC, ready to improve your digital communication with its cutting-edge features. Featuring a high-performance Rockchip dual-processor and Mali-T860 GPU, it delivers a seamless user experience. Enhanced RAM and storage ensure multitasking capability, while Android 11 provides the APPC-22XP (R23-7222) with a soft ware agnostic operating system. In addition, the APPC-22XP (R23-7222) is easily installable thanks to its VESA mounting frame and PoE++ capability, eliminating the requirement for extra power cables. Its durable touch panel supports 10-point touch functionality, up to 250 cd/m2 and is treated for non-glare to provide the most optimal user experience. Moreover, the APPC-22XP (R23-7222) showcases a broad range of I/O ports, granting unmatched flexibility for various applications. Whether utilized for interactive kiosks, self-service, or interactive wayfinding, the APPC-22XP (R23-7222) effortlessly handles any solution.
| Category | Specification |
|---|---|
| Panel | |
| Panel Type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 250 cd/m² |
| Viewing Angle | H178° / V178° |
| Contrast Ratio | 3000:1 |
| Touch Type | 10-point P-Cap, 20 ms |
| Surface Treatment | Non-glare |

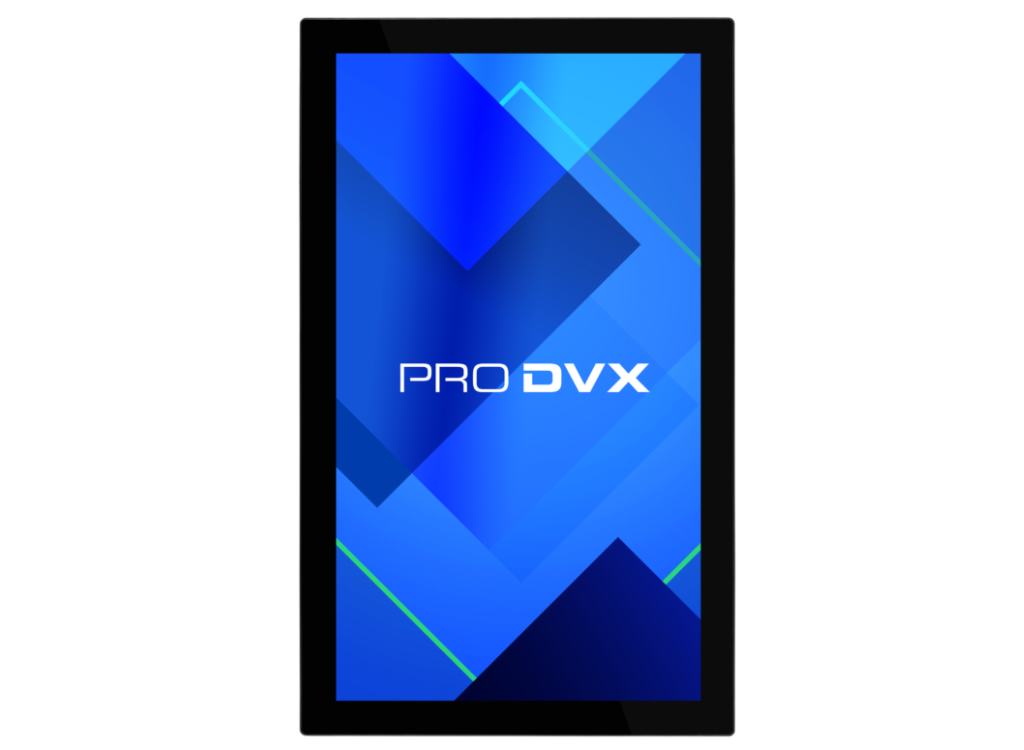

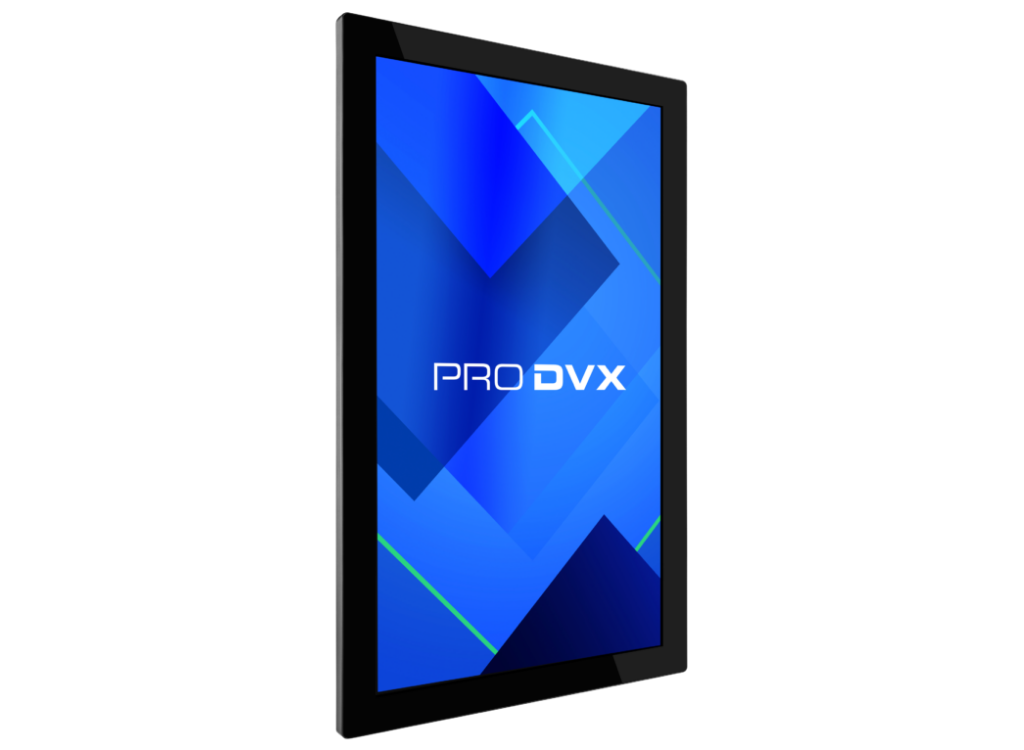

| Display Modes | Landscape, Portrait, Table Mode |
| Operation Hours | 24/7 |
| System | |
| CPU | RK3399 (Dual Core Cortex-A72 + Quad Core Cortex-A53) |
| GPU | Mali T860 / 3D Graphic Engine (4K) |
| Cooling | Fanless |
| System Memory | 4GB LPDDR4 SDRAM |
| Internal Storage | 16GB eMMC |
| External Storage | SD Card Slot (door) |
| OS | Android 11 |
| Video Input | N/A |
| Video Output | Yes, mini-HDMI out |
| LED Light Bar | via PoGo |
| Connectivity & I/O | |
| Power Input | 12V DC-IN |
| Pogo Pins | 3x (bottom, left, right) |
| COM Ports | 2x COM (RJ45) |
| USB Ports | 2x USB 2.0, 1x USB 3.0, 1x USB-C |
| Audio I/O | 3.5 mm jack in/out, S/PDIF |
| Network | 1x Ethernet RJ45 (10/100/1000 Mbps) |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 5 |
| Power over Ethernet | IEEE 802.3bt Type 3 (PoE++) |
| Integrated NFC | via PoGo & USB |
| Camera | via PoGo & USB |
| Multimedia | |
| Video Support | 3GP, ASF, AVI, DAT, FLV, MKV, MOV, VOB, WMV, MP4, MPG, RM, TS |
| Audio Support | AAC, ASF, MP2, OGG, WAV, WMA |
| Photo Support | JPG, JPEG, PNG, BMP, GIF |
| Microphone | Yes |
| Speakers | 2 x 3 W |
| Physical | |
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 3500 g |
| Dimensions (mm) | 530.5 x 321.22 x 35 mm |

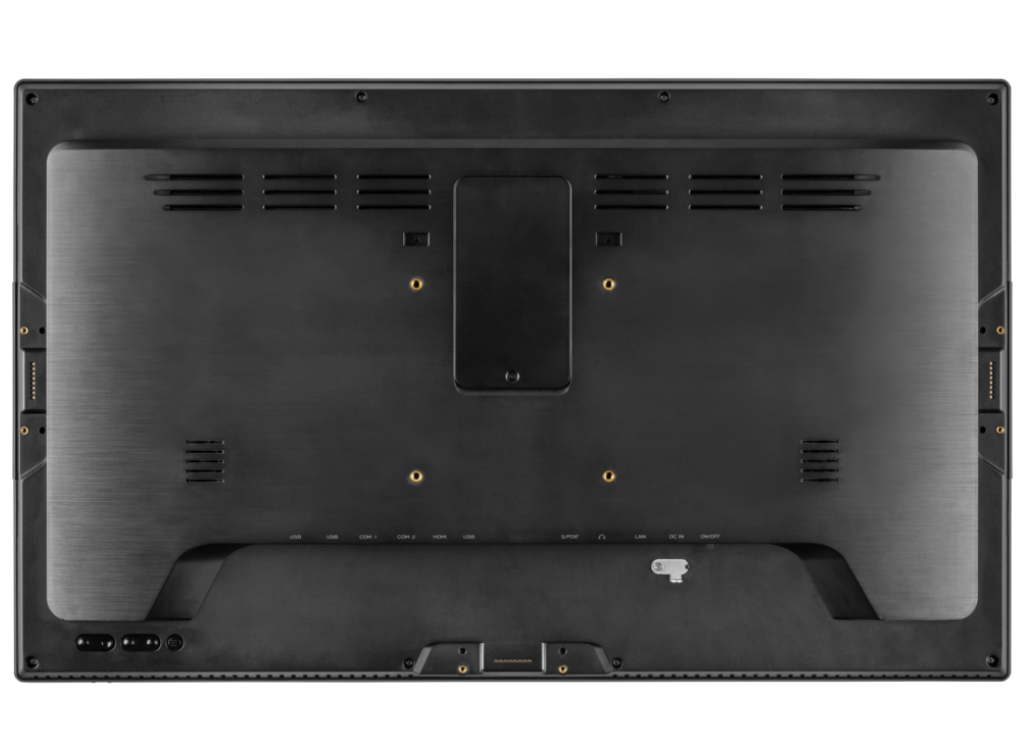

| Mounting | VESA 100 |
| Power Supply | 12V / 5A (Included) |
| Power Usage | 30 ~ 45 Watt |
| Environmental | |
| Storage Temp | -10 ~ 55°C |
| Working Temp | 0 ~ 40°C |
| Humidity | 10 ~ 90% non-condensing |
| MTBF | 50,000 hours demonstrated |
| Clock Battery | CR1220 Lithium (non-rechargeable) |
| Miscellaneous | |
| OSD Language | Multi-language |
| Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| SKU | 5022300 |
