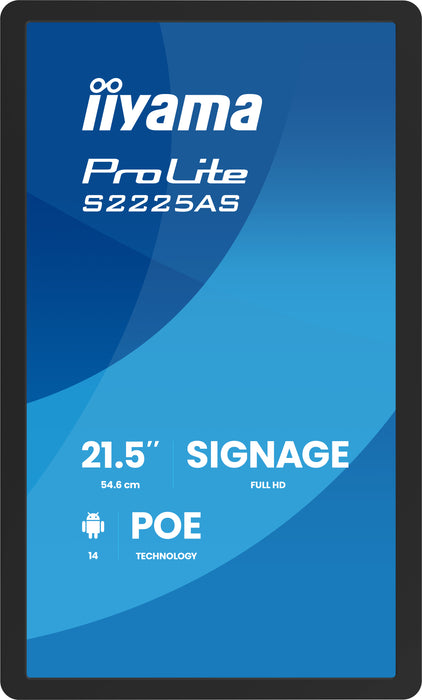

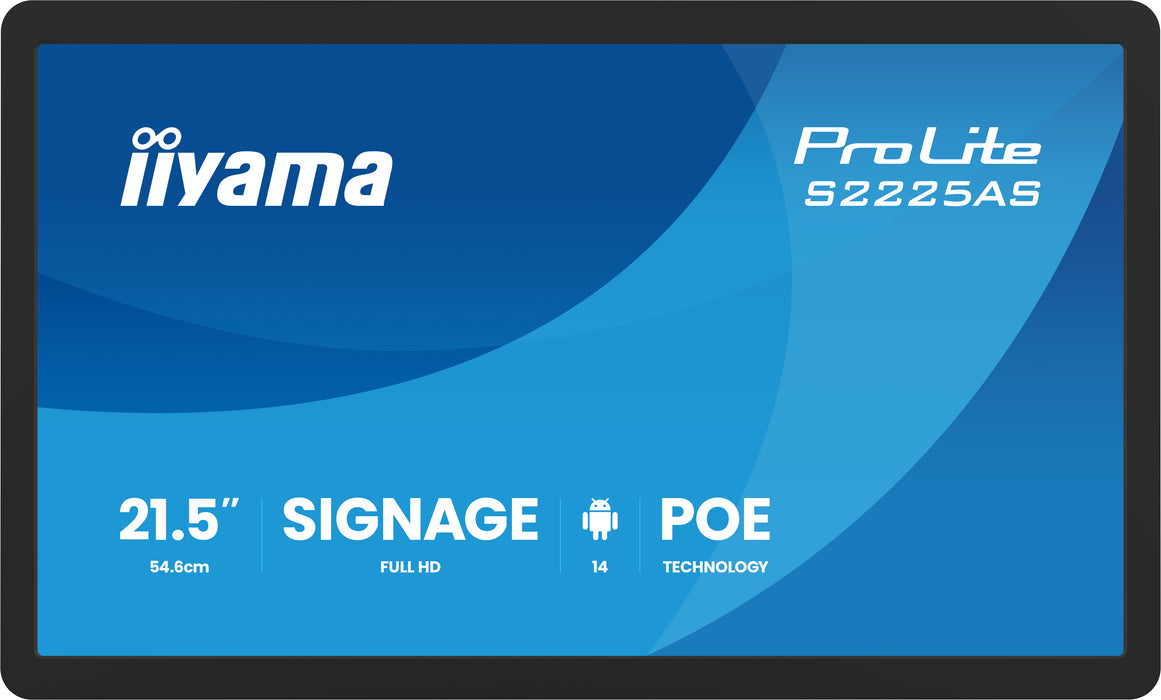

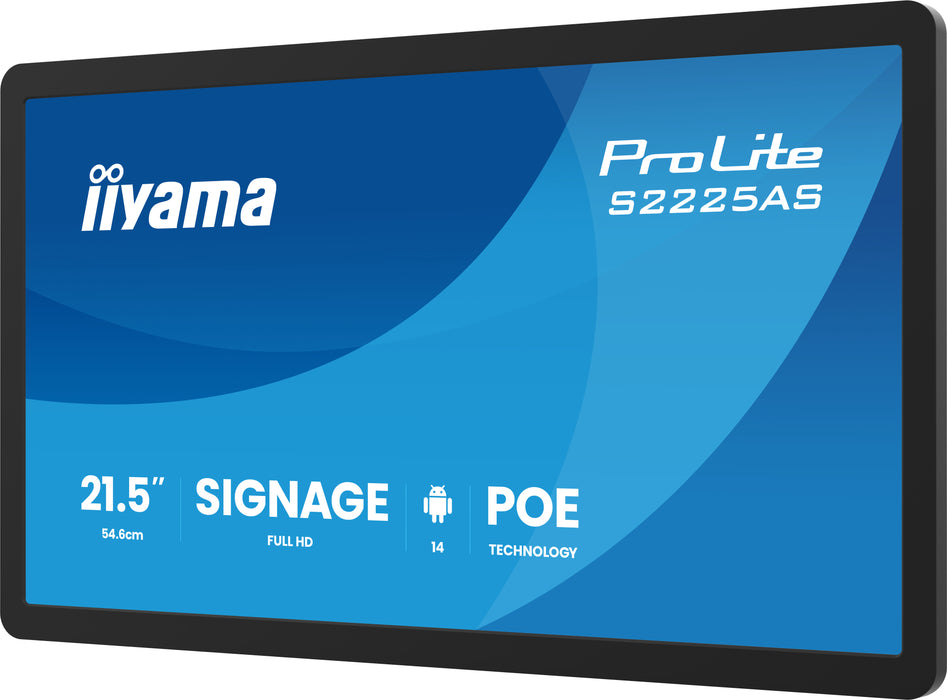

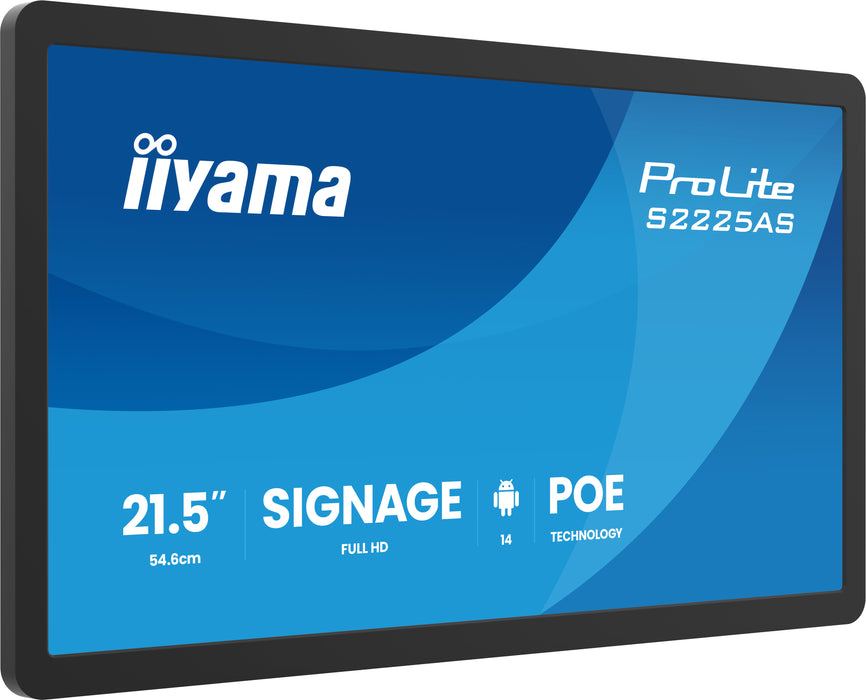

iiyama ProLite S2225AS-B1P 21.5" Full HD Professional Grade Small Format Signage
SKU: S2225AS-B1P
£266.68 (Excl. VAT)
- Display Size21.5"
- Operating SystemAndroid 14
- VESA Patterns100x100
- Panel TypeIPS Panel
- ResolutionFull HD (1080p)
- Response Time14ms
- Description
- Specifications
- Downloads
-
21.5" Compact Android Signage Display with PoE, 500cd/m² Brightness & 24/7 Reliability
The ProLite S2225AS-B1P is a 21.5” Android-based display created specifically for reliable content playback in professional environments. This specialist signage display is ideal for supermarkets, retail stores and public spaces where clear, continuous visual communication is required. The Full HD IPS panel with 500cd/m² brightness ensures excellent visibility, while Power over Ethernet (PoE) allows for a simple and efficient installation using a single cable for power and data.
iiyama guarantees compatibility with this platform for a minimum of 5 years, ensuring long-term reliability and peace of mind for professional installations.
Compact design
An ultra-compact form factor, making it ideal for environments where space is limited but visibility is essential. Its slim and lightweight design allows seamless installation on shelves, end caps, counters, or narrow wall areas. Perfect for retail stores, supermarkets, and hospitality spaces, this compact display delivers clear digital messaging without disrupting store layouts or customer flow.Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely. -
Design Thin bezel Diagonal 21.5", 54.6cm Panel IPS, Anti-Glare, Hard Coating(3H), haze 25% Native resolution 1920 x 1080 (2 megapixel HD) Aspect ratio 16:9 Panel brightness 500 cd/m² Static contrast 1500:1 Response time (GTG) 14ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7mln Horizontal Sync 31 - 83kHz Viewable area W x H 476.1 x 267.8mm, 18.7 x 10.5" Pixel pitch 0.284mm Bezel colour and finish black, matte Monitor control input RJ45 (LAN) x1 ((PoE x IEEE802.3at/72W (1000M))) Digital signal output USB-C x1 (5Gbps, video output only) Audio output Speakers 2 x 5W USB ports x2 (1x 2.0 (DC5V, 500mA), 1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA)) RJ45 (LAN) x1 (10M/100M/1000M) Microphone x1 Integrated software Android 14, OS, iiSignage² WiFi yes (802.11ax/ac/a/b/g/n) Hardware CPU: RK3576 Octo-core, GPU: G52 MC3, RAM: 4GB, ROM: 32GB Extra Bluetooth 5.3, PoE Max. non-stop operating time 24/7 Control buttons Power switch, Volume Orientation landscape, portrait, face-up VESA mounting 100 x 100mm Operation temperature range 0°C - 40°C Storage temperature range - 20°C - 60°C MTBF 50000 hours (excluding backlight) Cables power (1.8m) Power supply unit external Power supply DC 12 V Power usage 17.5W typical, 14W stand by, 3.5W off mode Regulations CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA Product dimensions W x H x D 510.5 x 308.5 x 33.5mm Box dimensions W x H x D 578 x 374 x 123mm Weight (without box) 2.80kg EAN code 4948570127177 -
Description Downloads User Manual Download Drawing Download Technical Specification Download
