Epson EB-L690U WUXGA 3LCD Laser Wireless Projector - 6500 Lumens
SKU: V11HB29040
£2,078.92 (Excl. VAT)
- Description
- Specifications
- Downloads
-
WUXGA Laser Projector for Professional Installations
The EB-L690U offers 6,500 lumens, WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode. Featuring a fixed centre lens with manual lens shift, 1.6x zoom and 10W speakers, it’s ideal for professional applications and offers flexible control options via HDBaseT, LAN and wireless.
Powerful, vibrant visuals for any space
The EB-L690U delivers 6,500 lumens of brightness and WUXGA resolution with 3LCD technology, ensuring sharp, vibrant visuals. Its precise lens shift and built-in 10W speakers enhance performance, while the compact white chassis allows for easy installation and quiet operation. Ideal for lecture halls, auditoriums, training rooms, and other professional environments, it performs exceptionally well even in brightly lit spaces.Easy-to-setup, big impact
With flexible installation options including a standard throw ratio of 1.35–2.2:1 and 1.6x optical zoom, the EB-L690U can project images up to 500 inches. Advanced geometry correction and the optional ELPEC01 camera, combined with the Epson Projector Professional Tool, enable quick, straightforward setup and calibration - streamlining advanced installation for any space.
Smart control for seamless experience
The EB-L690U enhances usability with NFC for easy large-scale rollouts using the Epson Projector Config Tool. Its user-friendly OSD menu simplifies navigation, while Epson’s EPMC cloud monitoring allows effortless remote management. Fully compatible with Crestron XiO Cloud, it offers centralised control. OTA firmware updates ensure the projector remains up-to-date, improving performance for a seamless experience.Proven brand reliability
Engineered for long-lasting performance, the EB-L690U features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity² and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.Stream and share easily
With Apple AirPlay 2 and Miracast connectivity¹, sharing content is quick and simple - users can wirelessly mirror their device screens to the display for seamless collaboration. The USB-A port also enables PC-free streaming, while additional options like HDBaseT and HDMI daisy-chaining further enhance flexibility.What is in the box?
Main unit
Power cable
Quick Start Guide
Remote control incl. batteries
User guide
Warranty document -

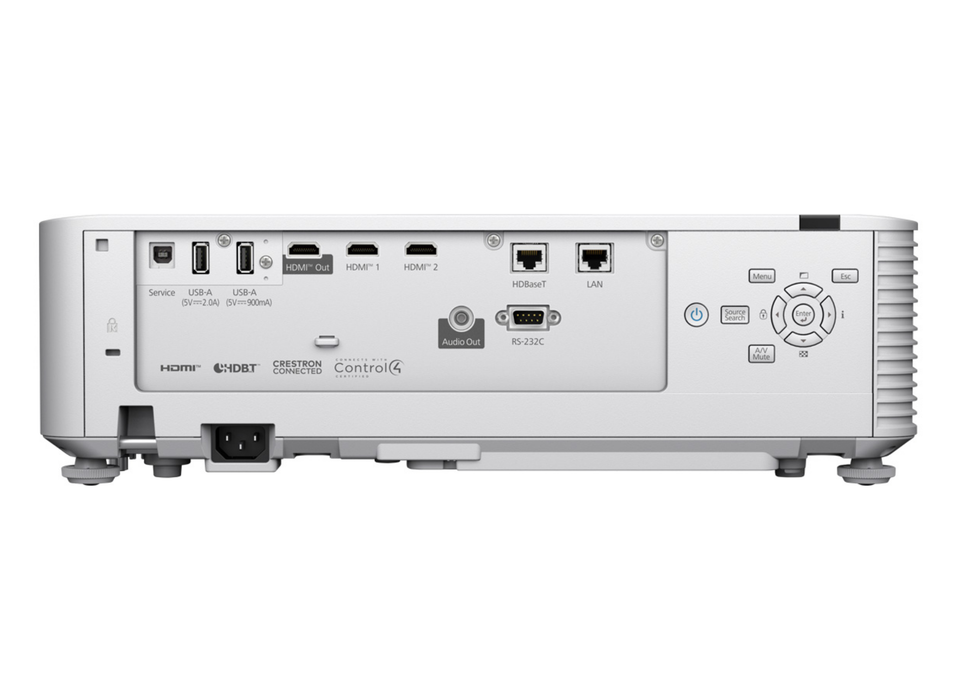

Projection System 3LCD Technology, RGB liquid crystal shutter LCD Panel 0.67 inch with C2 Fine Color Light Output 6,500 Lumen - 4,550 Lumen (economy) White Light Output 6,500 Lumen - 4,550 Lumen (economy) Resolution WUXGA Aspect Ratio 16:10 Contrast Ratio Over 5,000,000 : 1 Light Source Laser Laser Life 20,000h High / 30,000h Eco Keystone Correction Vertical ±30°, Horizontal ±30° Colour Processing 10 Bits Colour Reproduction Up to 1.07 billion colours Throw Ratio 1.35 - 2.20:1 Zoom Manual 1 - 1.6x Lens Shift Vertical ±50%, Horizontal ±20% Screen Size 50" - 500" Projection Distance 1.44m - 23.84m Lens Focus Manual Interfaces HDMI x2, USB x2, LAN, RS-232C, HDBaseT, Miracast, NFC, AirPlay 2 Network Protocol HTTPS, SNMP, PJLink Security Kensington lock, Password protection Colour Modes Dynamic, Natural, Cinema, Presentation Projector Control Crestron, Extron, AMX Power Consumption 336W Normal / 233W Eco Voltage AC 100 - 240V Dimensions 440 x 340 x 138 mm Weight 8.2 kg Noise Level 32dB / 25dB Eco Operating Temp -10°C to 60°C Humidity 20% - 80% Speaker 10W Positioning Ceiling / Desktop Colour White Warranty 36 months -
Description Downloads Datasheet Download
