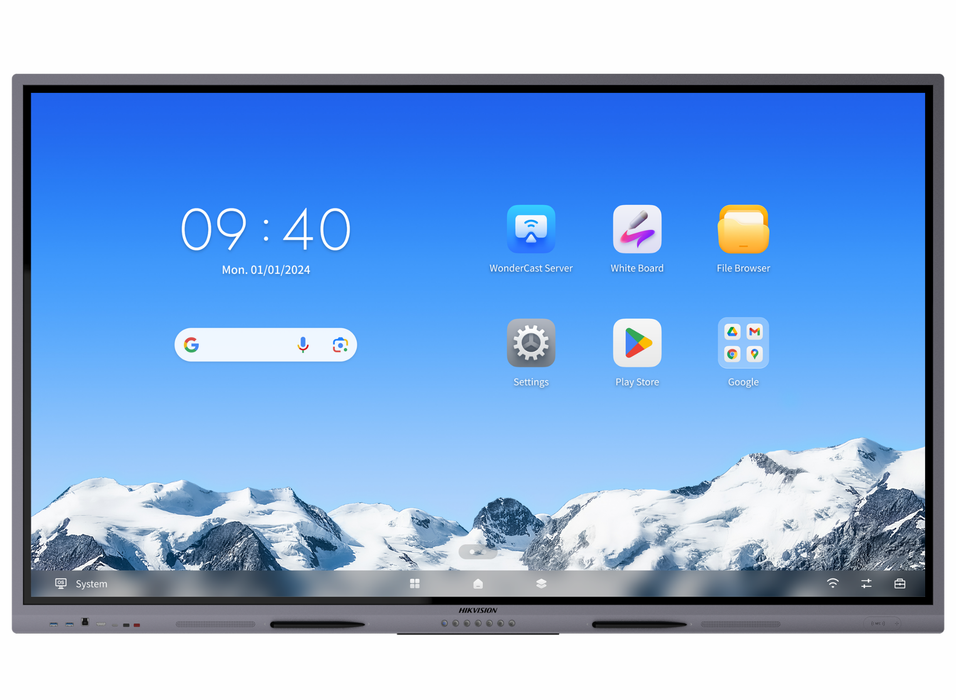

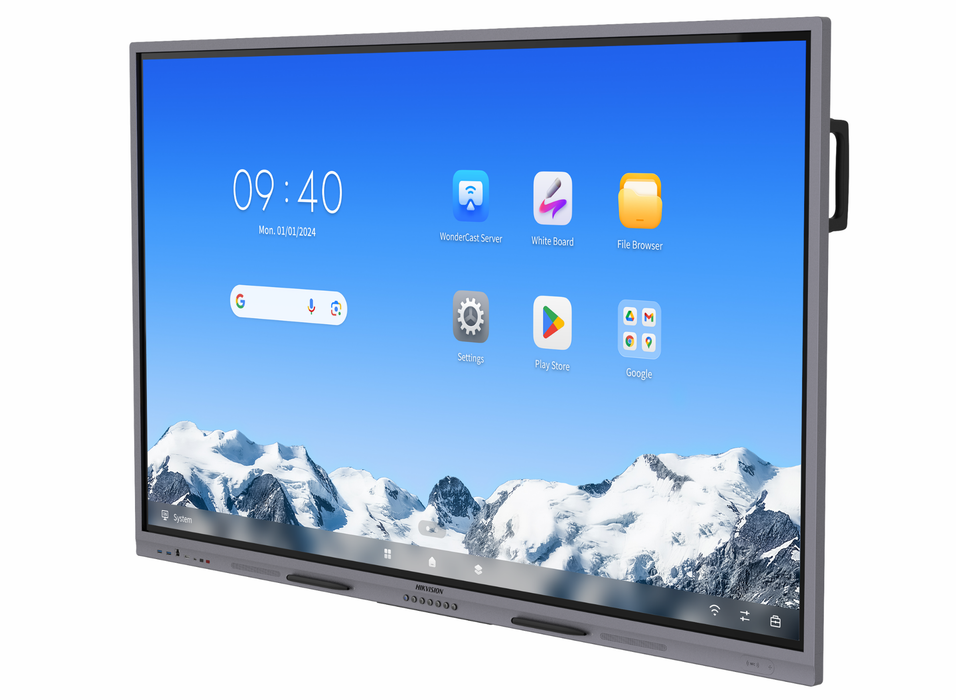

Hikvision DS-D5C86RB/A2L 86" 4K Ultra HD Android 14 EDLA Certified Interactive Display
SKU: DS-D5C86RB/A2L
£2,302.56 (Excl. VAT)
- Display Size86"
- Touch Capabilities50pt multi-touch
- Net Weight58.5kg
- Operating SystemAndroid 14
- VESA Patterns800x600
- Panel TypeVA Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Response Time5ms
- Screen Ratio16:9
- Brightness480 cd/m2
- Operating Hours16/7
- Description
- Specifications
- Downloads
-
86 inch 4K interactive display with Android 14 and EDLA certification
UHD 4K display with a resolution of 3840 × 2160 and 480 nits brightness.
Anti-glare and anti-blocking design to ensure smooth interaction.
Dual systems of Android and Windows (optional with 195×30×180mm OPS) saving cost and easy to use, video conferencing software is recommended to run on the Windows system.
Quick response, at most 50-point touch control and smooth writing experience.
Built-in network switch chip eliminates the need for an external network switch.
Multi-button front design for convenient classroom use.
All-in-one design with tempered glass and intelligent temperature control, making it environmentally friendly and safety-guaranteed.
Built-in Android 14 system, EDLA certified.
Dual full-function USB Type-C ports, supporting up to 100W total power delivery and DisplayPort 1.2 input.
Built-in sensors for light, humidity, and temperature monitoring.
-
Section Display Screen Size 86 inch Backlight DLED Pixel Pitch 0.164 (H) × 0.493 (V) mm Resolution 3840 × 2160 @60 Hz Brightness 480 cd/m² (Typ.) Color Depth 10 bit (8 bit + FRC) Display Color 1.07 G Response Time 5 ms Panel Type VA Contrast Ratio 5000:1 (Static)
30,000:1 (Dynamic)Color Gamut 72% NTSC (CIE1931) (Typ.) Refresh Rate 60 Hz Viewing Angle 178° (H)/178° (V) Aspect Ratio 16:9 Surface Hardness 9H (Pencil)
7 (Mohs)Surface Glass Anti-Glare & Anti-Fingerprint glass Surface Haze 25% Haze Glass Bonding Method Zero Lamination Display Area 1895.04 (H) × 1065.96 (V) Working Duration 7 × 16 H Transmittance 88% ± 3 Lifespan 50,000 hours Section Touch Type Infrared Touch Screen Touch Point Up to 50-point multi-touch Touch Response Time ≤ 2 ms Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area) Touch Precision ± 0.5 mm (≥ 90% touching area) Touch Resolution 32768 × 32768 Section Built-in System Operation System Android 14.0 Memory 8 GB Built-in Storage 128 GB Processor Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz） GPU Mali-G610 MC4 HDCP Version 2.3 & 2.0 & 1.4 Section Internal Function Loudspeaker Built-in 2 × 20 W + 25 W loudspeaker; Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4 NFC Support card reader
13.56 MHz, (ISO 14443A/ ISO 14443B/ ISO 15693)Light Sensor Yes Humidity and Temperature Sensor Relative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C Section Interface Video & Audio Input HDMI 2.1 TMDS × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.0 & 1.4; Support HDMI CEC protocol）
VGA × 1（Rear）
Audio × 1（Rear）Video & Audio Output HDMI 2.1 TMDS × 1（Rear）
Audio × 1（Rear）
SPDIF × 1（Rear）Control Interface TOUCH-USB 3.0 × 1（Front × 1）
TOUCH-USB 2.0 × 2（Rear × 2）
RS232 × 1（Rear）Network Interface LAN (1000 Mbps) × 2（Rear）
Wi-Fi AP & Station, 2.4 G/5 G
Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAPData Transmission Interface USB 3.0 × 4（Front × 2; Rear × 2）
USB 2.0 × 1（Rear）
Type-C × 2 (Front × 1; Rear × 1; Support USB 2.0, 100 W charging functions, DP IN 1.2 )Section Power Power Supply 100 to 240 VAC, 50/60 Hz Standby Consumption ≤ 0.5 W Average Consumption < 274 W Section Working Environment Working Temperature 0 °C to 40 °C (32 °F to 104 °F) Working Humidity 10%~90% RH Section General VESA 800 mm × 600 mm (4 × M8-25 mm) Accessory Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth. Package Dimensions (W × H × D) 2157 × 1345 × 223 mm Net Weight 58.5 ± 0.5 kg Gross Weight 78.5 ± 0.5 kg Product Dimensions （With Wall Attachment） 1960.4 × 1158.2 × 114.5 mm Product Dimensions （Without Wall Attachment） 1960.4 × 1158.2 × 82.5 mm -
Description Downloads Datasheet Download User Manual Download Dimensions Download
