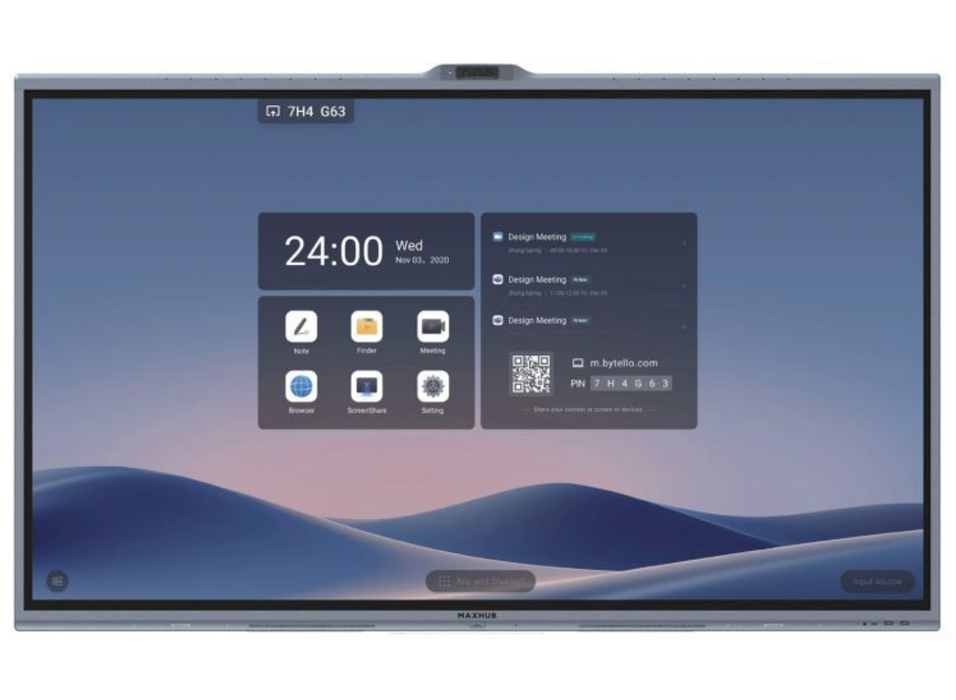

MAXHUB XBoard V5550 55” 4K Ultra HD All-in-One Interactive Display
SKU: V5550
£1,779.09 (Excl. VAT)
- Touch Capabilities50pt multi-touch
- Net Weight26.85Kg
- Operating SystemOther
- VESA Patterns400x200
- Panel TypeADS Panel
- ResolutionUltra HD (4K)
- Description
- Specifications
- Downloads
-
MAXHUB XBoard V7 V555Q 55-Inch 4K Interactive Collaboration Display
(OPS PC Not Included)
OPS PC Required; MAXHUB MT71E OPS PC Module
Experience the ultimate in video conferencing and collaboration with the MAXHUB XBoard V7 series. Powered by a Windows PC module, this all-in-one design device seamlessly integrates an intelligent triple camera, cutting-edge audio processing, interactive whiteboarding, and an intuitive meeting launcher, all housed within a single comprehensive collaboration display. This powerful combination enhances the dynamism of meetings and introduces a flexible and creative interaction to your organization.
Professional 4K Display
High color accuracy, ∆E≤1.5 Wide color gamut, NTSC 90% Non-glare technology, 25% haze
Precise Touch
Intelligent Touchscreen Technology
Revolutionary writing experience, Windows Ink supported
BYOM Anytime
Embrace seamless efficiency enabled by MAXHUB Share App or wireless dongle
Smart Whiteboard
Direct annotation Real-time collaboration
Get Spatial with Sound
16-mic array, 15 meters pick-up range. Multiple AI-enhanced audio algorithms
Built-in Speaker
2 × 10W + 20W speaker 2.1 sound channel
Trident Lens System
50 MP+50 MP+50 MP cameras 5x hybrid zoom, 99° ultra-wide FOV
Peak Performance
Unleash the power with MT71 series PC module. 12th Gen Intel Processor with Windows system, stably smooth -
Model V555Q Screen Size (Inch) 55 Aspect Ratio 16:9 Panel ADS Backlight DLED Brightness (Typ.) 350 nits Glass Zero parallax / 3mm thickness / 9H tempered Surface Technology 25% haze / Non-glare technology Resolution 3840 × 2160 Refresh Rate 60 Hz Contrast Ratio 1200:1 (typ.) Viewing Angle (H × V) 178° / 178° Color Gamut 90% NTSC Display Orientation Landscape Response Time 8 ms Life Time >50,000 hours Operation Hours (Hours / Day) 16 / 7 Display Color 1.07B (10 bit) Color Accuracy Delta E < 1.5 Sensor Ambient light sensor / Ultrasonic detection sensor Pixel Pitch 0.315(H) × 0.315(V) mm Display Area 1209.6(H) × 680.4(V) mm Touch Technology Intelligent Touchscreen Technology (infrared recognition) Touch Point 50 points touch Object Recognition Range ±15 mm Accuracy ±0.5 mm Response Time (Touch) ≤2.5 ms Writing Height ≤1 mm System (Touch Return) Windows11 / Windows10 / Windows8 / Windows7 / Android / Linux / Mac OS X / Chrome OS Touch Features Windows Ink / Direct Annotation / Palm Rejection / Shape Erase / Multi-input Recognition / Handwriting Recognition HDMI IN × 2 Up to 4K@60Hz, HDCP 2.2, CEC USB 2.0 × 1 For system upgrades USB 3.0 × 2 For external peripherals USB Type-C IN × 1 USB 2.0, supports DP 1.2 input, wireless dongle pairing, and BYOD TOUCH 2.0 × 1 USB 2.0 Type B AUDIO IN × 1 3.5mm Jack AUDIO OUT × 1 3.5mm Jack RS232 × 1 Baud rate 9600 RJ45 IN × 1 Mic in, supports 30W POE, microphone cascade, AES67 protocol HDMI OUT × 1 Up to 4K@30Hz USB 2.0 × 3 For external peripherals USB 3.0 × 3 For external peripherals RJ45 IN × 1 (PC Module) 10M / 100M / 1000Mbps MIC IN × 1 3.5 mm Jack, input for microphone PC Module Slot Module slot × 1 PC Module System Windows 10 IOT / Windows 11 Pro Wi-Fi Slot Module slot × 1 Wi-Fi (PC Module) Wi-Fi 6 supported / 802.11ax, 2.4GHz / 5GHz Bluetooth (PC Module) 5.2 Wide Camera 50MP × 1 / DFOV 99°, HFOV 86° Telephoto Camera 50MP × 2 / DFOV 68° (combined), HFOV 63° (combined) Zoom 5x hybrid zoom Privacy Shutter Yes Camera Features Personalized presets / Auto framing / Speaker tracking / Multiple-speaker tracking / Intelligent focus Sound Channel 2.1 Speaker Power 2 × 10W + 20W Microphone Quantity 16-mic array Pick-up Angle 180° Pick-up Range 0–15m Microphone Features Intelligent audio fence / AI spatial sound / AEC (Auto echo cancellation) / ANC (AI noise cancellation) / AGC (Auto gain control) System OS MAXHUB OS 7.0 powered by Windows Screen Share MAXHUB Share / Support BYOM / Miracast / Airplay / Chromecast / P2P Device Management MAXHUB Pivot Protocol Control RS232 / IP control / Supports integration with Crestron / Extron / Q-sys Special Features Microsoft Intune Power Cord 3m × 1 HDMI Cable 1.5m × 1 Stylus × 2 Wall Mount WB6540A Wireless Adapter SI07B Operating Temperature 0°C~40°C Storage Temperature -20°C~60°C Operating Humidity 10%~90% RH Storage Humidity 10%~90% RH Altitude Below 5000 meters Dimension (W × H × D) 1269.5 × 792.9 × 102.7 mm Shipping Dimension (W × H × D) 1372 × 875 × 187 mm Thickness of machine and wall mount 130.5 mm Wall-hanging Screw Spec M8 × 25 mm VESA 400 × 200 mm Net Weight 26.85 Kg Gross Weight 32.25 Kg Power Supply 100-240V~ 50/60Hz 4.0A Standby Power ≤ 0.5 W Power Consumption (Typ.) 101 W Power Consumption (Max.) 320 W Safety IEC 62368-1 EMC Class B Environment Energy Star IP Rating IP5X design standards Warranty 3 years warranty -
Description Downloads Datasheet Download
