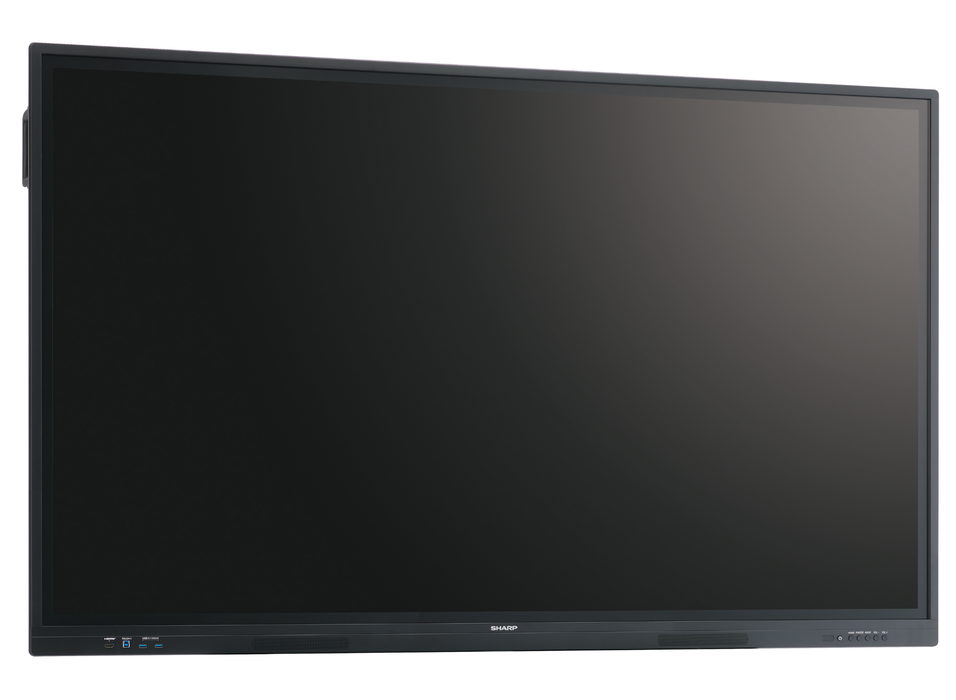

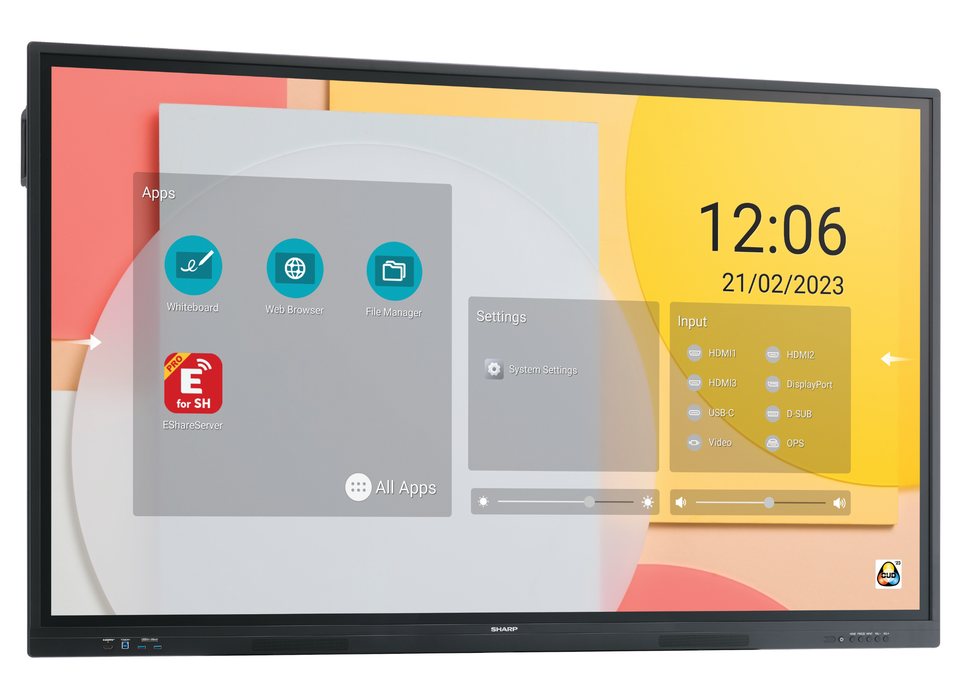

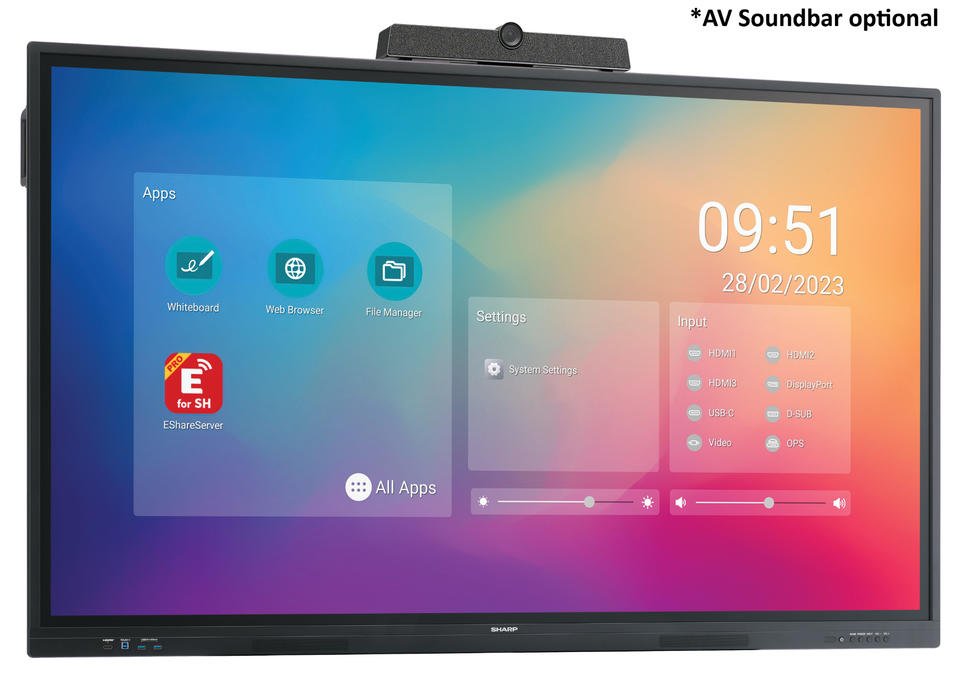

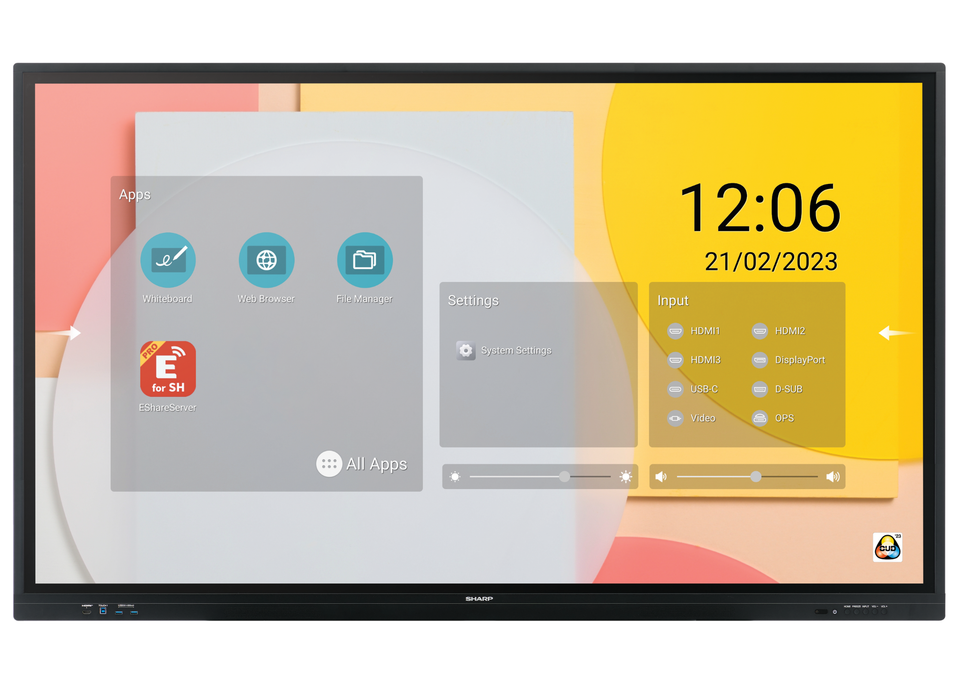

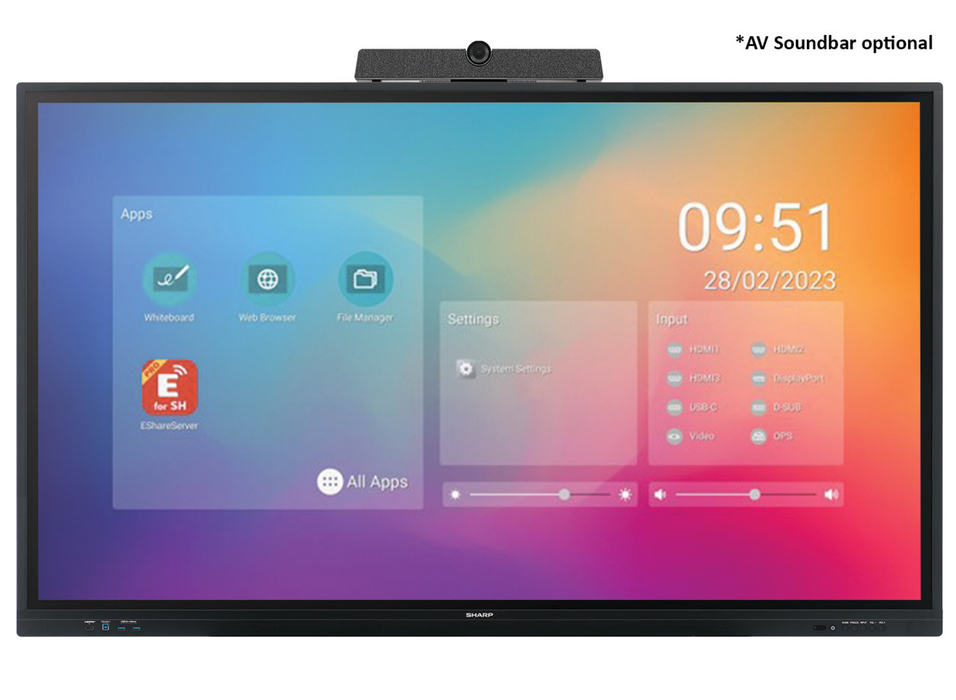

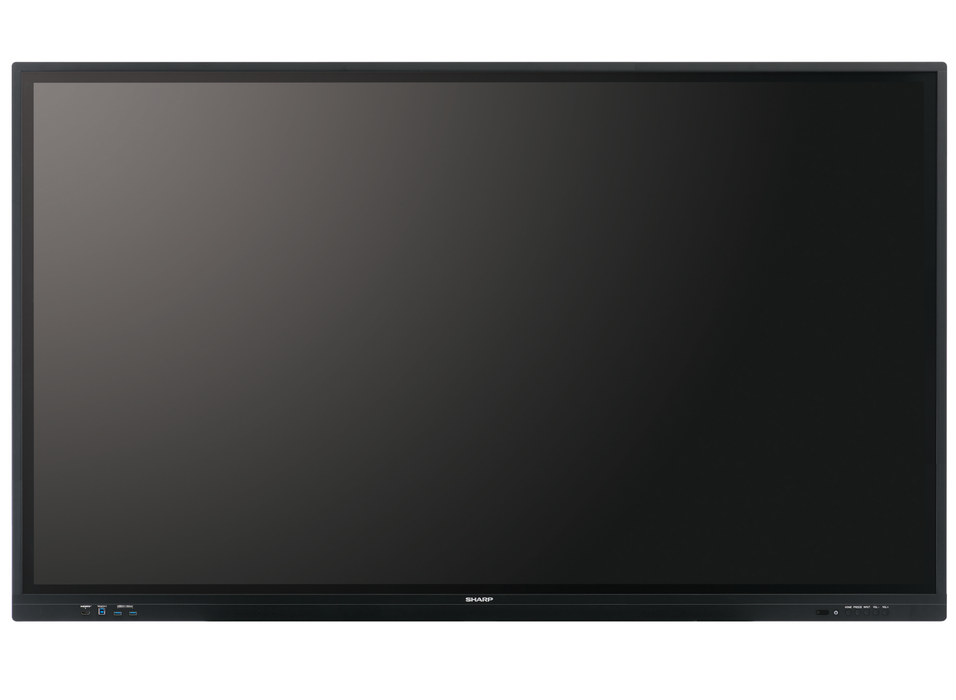

Sharp PN-LC862 86" 4K Ultra HD LCD Infrared Touch Display
SKU: 60005901
£2,327.40 (Excl. VAT)
- Display Size86"
- Touch Capabilities20pt multi-touch
- Net Weight65 kg
- Operating SystemAndroid 11
- VESA Patterns800x600
- Panel TypeIPS Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Response Time8ms
- Screen Ratio16:9
- Brightness450 cd/m2
- Operating Hours16/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Interactive 86-Inch 4K Touch Screen Display
Boost engagement in learning environments
When you need to engage your audience, you need to make your delivery interactive. NEC/Sharp’s expertise in touch screens for education brings forth the LC series, designed to meet the demand for Bring Your Own Device (BYOD) preferences. Equipped with seamless USB-C connectivity, just a single cable connects display to personal device whilst receiving charge in return. Size up your screen area by connecting another display or projector via HDMI-OUT to be seen by a bigger audience.
An all-in-one solution, the LC series features pre-installed functionality for instant interactivity, and with the EShare feature, content can be wirelessly shared between devices for best collaboration amongst peers and mentors.
For higher education in classrooms and small work groups, the LC series offers low cost, easy to use functionality to boost engagement in learning environments.
Benefits
Enjoy a natural writing experience – with precise and responsive touch interaction through bonded screen technology.
Get an out-of-the-box-ready experience – with interactive functionality pre-installed; no external devices needed for an all-in-one solution.
EShare – boosts participation by wirelessly sharing content from your device to the display, and from the display to multiple devices simultaneously.
USB-C connectivity – instantly appeals to today’s users who favour using their own device. A single cable transmits data, video/ audio output and power delivery for the simplest and seamless connection, even powering the connected device at the same time.
HDMI-OUT – allows connection of an additional output device such as a projector to present content on a larger canvas to reach a bigger audience. -
Panel Technology IPS with Direct LED backlights Active Screen Area 1895 x 1066 mm Screen Size 86 inch / 217.4 cm Aspect Ratio 16:9 Pixel Pitch 0.494 mm Brightness 450 cd/m² Contrast Ratio 1200:1 Viewing Angle 178°/178° Colour Depth 1.07 bn (8bit+FRC) Response Time 8 ms (GtG) Orientation Landscape Touch Technology Infrared Number of Touches Up to 20 Touch Method Finger, Gloves, Stylus Data Interface USB 2.0 HID, plug & play Accuracy +/- 1 mm Glass Type Thermal-tempered, anti-glare Thickness 3.2 mm Native Resolution 3840 x 2160 Supported Resolutions 640x480 to 4096x2160 Input Video Analogue 1 x VGA Input Video Digital DP, USB-C(65W), 3x HDMI Input Audio 1 x 3.5mm jack Input Control RS232; LAN Output Video 1 x HDMI loop Output Audio 3.5mm jack, SPDIF OPS Slot Intel OPS standard OPS Power 4.74A / 90W Power Consumption 260W Eco / 500W Power Supply 100-240V AC, 50/60Hz Operating Temp +5 to +35 °C Operating Humidity 20% - 80% Dimensions 1967.9 x 1170.2 x 87.1 mm Weight 65 kg System Version Android 11 CPU Arm Cortex-A55 Quad-Core System Memory 4GB RAM Internal Storage 16GB ROM Bluetooth 4.2 compliant WLAN IEEE802.11ac/n/a/g/b Accessories Pen license, Soundbar, Trolley, USB-C, Wall mount Safety & Ergonomics CE, FCC, RoHS, UKCA, UL Green Features ECOMode, LED backlight Certifications Barco ClickShare compatible Audio Integrated 15W+15W speakers Warranty 3 years incl. backlight Operating Hours 16/7 Remote Management NaViSet Administrator 2 -
Description Downloads Datasheet Download
