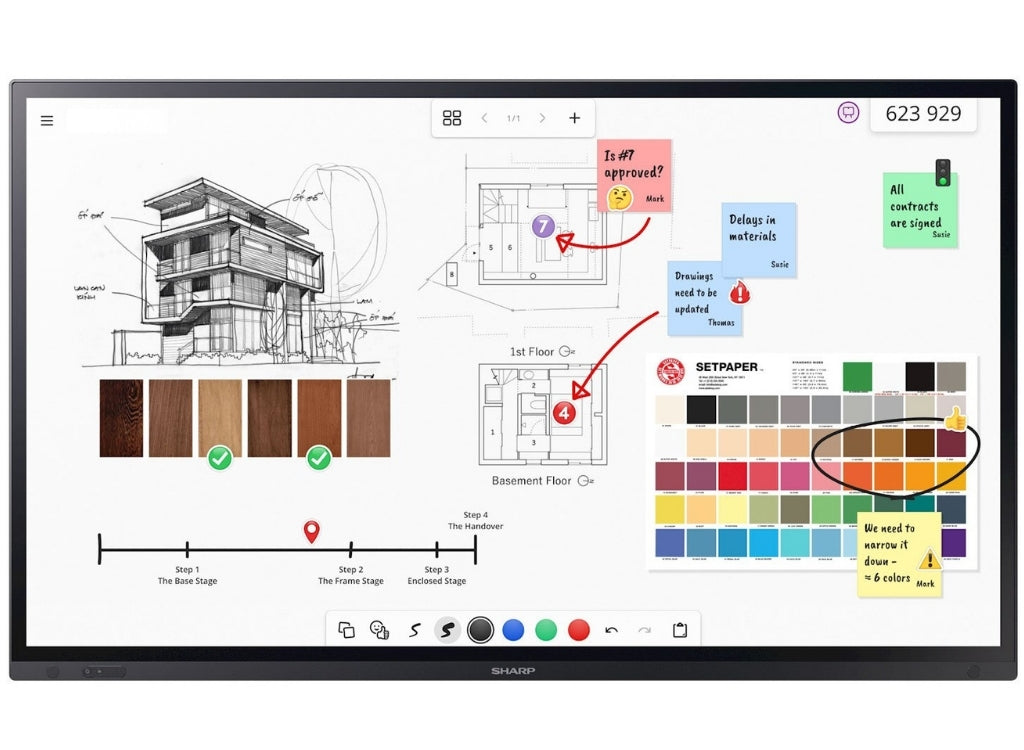

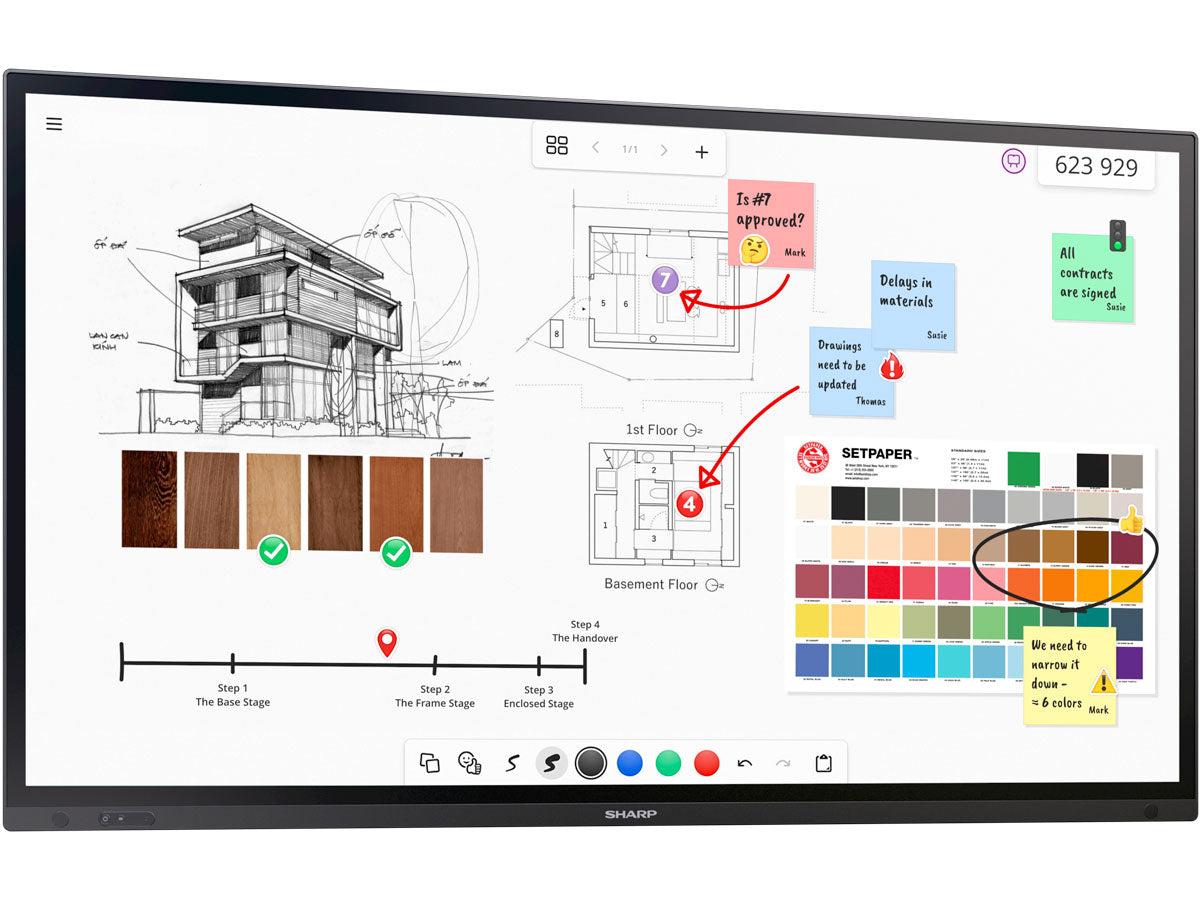

The Sharp PN-LA862 / 60005935 InGlass M5 interactive touch display bringing advanced professional functionality to Enterprise users. Sharp/NEC LA series safeguards the highest IT security standards whilst supporting maximum choice and flexibility. An Intel™ SDM slot expands the display’s customisable capability allowing safe and seamless integration into corporate IT systems, or benefit from pre-installed functionality including Sharp Meeting Launcher for quick access to your favourite apps and VC platforms, FlatFrog Board collaborative whiteboarding software, and AirServer™ for wireless screen sharing.
Featuring InGlass™ M5 premium touch technology, users benefit from the most natural writing experience and advanced interactive functionality. The high brightness output, high haze panel and premium glass coating delivers best readability in well-lit meeting rooms, without distraction from reflections, glare or fingerprints.
The LA series supports orientation any which way, including face up, allowing table-top, tilted desk or multi-board side-by-side installations for up to three displays. Users can connect their own notebook, safely and securely via a USB-C connection, providing best versatility in hybrid meetings and spontaneous collaborative interactions.
The LA series integrates elegantly and seamlessly into high-end meeting rooms and boardrooms providing trusted long-life performance whilst making minimal energy demands.
Highlights of the Sharp PN-LA862 86” 4K Smart InGlass™ Touch Display
Most natural writing experience – InGlass™ M5 premium touch system supports patented pressure sensitivity using passive pens as well as Windows Ink and palm rejection.
Secure by design – the non-Android platform with additional security features meets the highest IT security standards.
Optional Windows based Intel SDM slot-in PC – driving unlimited versatility with powerful integrated computing. Includes Sharp’s Meeting Launcher for quick and easy access to your apps offering a secure and locked environment.
Increase your productivity – benefit from a free one-year license for FlatFrog Board for Rooms. FlatFrog Board whiteboard software makes hybrid work easy and productive for everyone.
Energy efficiency – built-in functionality including an ambient light sensor, human presence detection and eco modes help to reduce power consumption.
| Category | Details |
|---|---|
| Display | |
| Panel Technology | IPS with Direct LED backlights |
| Screen Size (inch/cm) | 86 / 217.4 |
| Aspect Ratio | 16:9 |
| Brightness [cd/m²] | 500 (LCD panel without glass); 450 (product) |
| Contrast Ratio (typ.) | 1200:1 |
| Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Colour Depth [bn] | 1.073 (10bit) |
| Colour Gamut | 68% of DCI |
| Response Time (typ.) [ms] | 8 |
| Panel Refresh Rate [Hz] | 60 |
| Supported Orientation | Face Up*; Landscape; Portrait |
| Touch | |
| Touch Technology | InGlass™ M5 |
| Number of Touches | Real multi-touch up to 20 touches |
| Response Time [ms] | ≤ 15 |
| Touch Method | Finger; Gloves; Stylus (≥ 2 mm) |
| Supported Operating System | Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X |
| Data Interface | USB-HID |
| Accuracy [mm] | < 1 |
| Windows Ink | yes |
| Palm Rejection | yes |
| Pressure Sensitivity | yes |
| Glass | |
| Type | Premium toughened glass, anti-glare coating; Zero Bonding |
| Thickness [mm] | 3 |
| Haze Level [%] | 4 ˜ 8 |
| Hardness [H] | ≥ 8 |
| Resolution | |
| Native Resolution | 3840 x 2160 |
| Supported Resolutions | 1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1920 x 1080; 1920 x 1200; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160; 7680 x 4320 |
| Synchronisation Rate | |
| Horizontal Frequency [kHz] | 15 - 135 |
| Vertical Frequency [Hz] | 23 - 76 |
| Connectivity | |
| Input Video Digital | 1 x DisplayPort (with HDCP); 1 x USB-C (with HDCP, 65 W); 2 x HDMI (with HDCP) |
| Input Audio Digital | 1 x DisplayPort; 2 x HDMI |
| Input Control | LAN 100Mbit; RS232 |
| Input Data | 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream); 2 x USB 2.0 (Downstream) |
| Output Audio Analogue | 1 x 3,5 mm jack |
| Output Control | 1 x LAN 100Mbit |
| Input Detect | Custom; First; Last |
| PiP/PbP | Dual-Split; Quad-Split; scalable picture size |
| Open Modular Intelligence | |
| Intel® SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot | RPi Compute Module 4 |
| Sensors | |
| Ambient Light Sensor | Integrated, triggered actions programmable |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
| Presence Sensor | H angle left: 60°, H angle right: 60°, Distance: 3.6 m |
| Electrical | |
| Power Consumption [W] | 275; 0.5; < 2 (Networked Standby) |
| Power Management | VESA DPMS |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
| Environmental Conditions | |
| Operating Temperature [°C] | +0 to +35 |
| Operating Humidity [%] | 20 to 80 |
| Storage Humidity [%] | 10 to 80 |
| Storage Temperature [°C] | -20 to 60 |
| Mechanical | |
| Dimensions (W x H x D) [mm] | 1,965.4 x 1,163.9 x 86.5 |
| Weight [kg] | 71.5 |
| Bezel Width [mm] | 32.3 (bottom); 4.8 (left, right and top) |

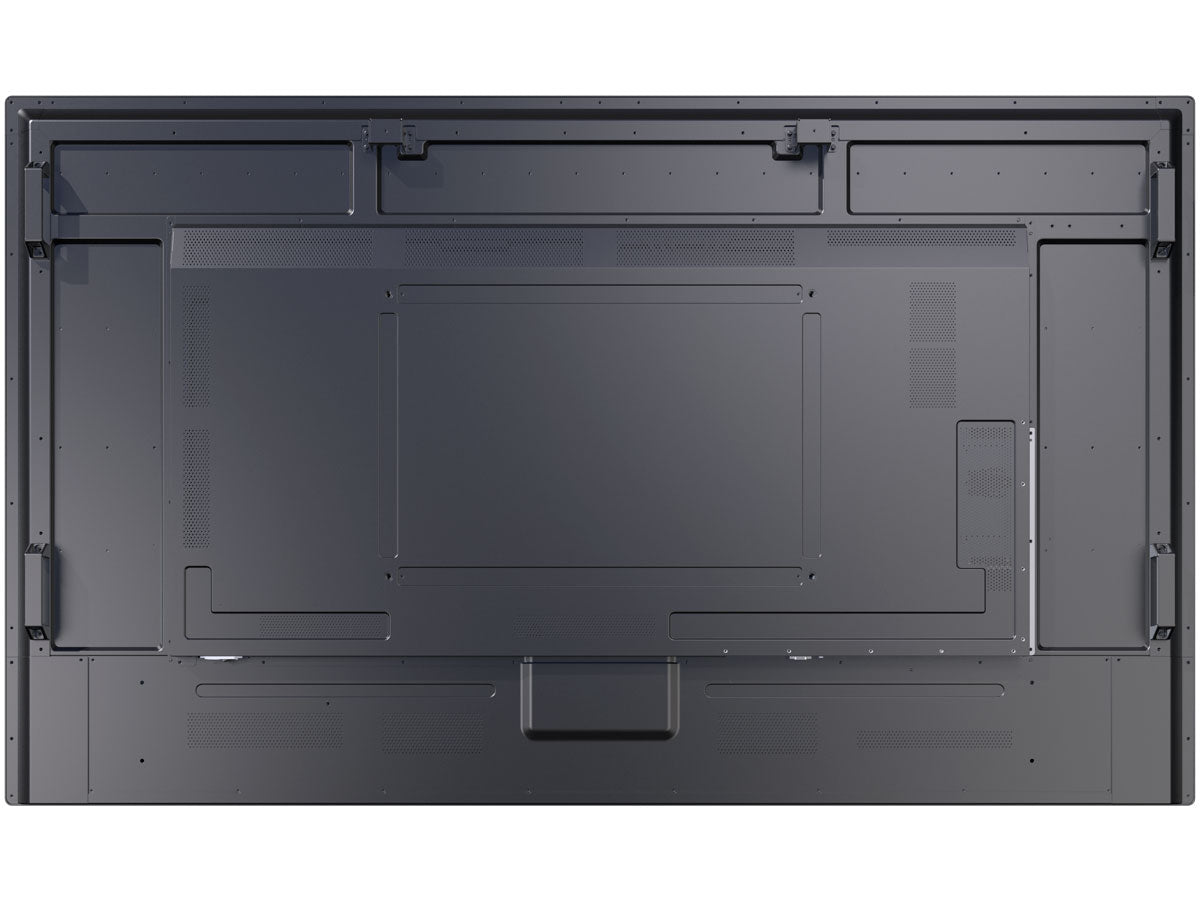

| VESA Mounting [mm] | 4 holes; 600 x 400 (FDMI); M8 |
| Ingress Protection | IP6x (front); IP2x (back) |
| Packaging | |
| Packaging Dimensions (W x H x D) [mm] | 2,095 x 1,310 x 225 |
| Packaging Weight [kg] | 87 |
| Description | Downloads |
|---|---|
| Sharp PN-LA862/60005935 86” 4K UHD Smart InGlass™ Touch Display DataSheet | Downloads |
