StarTech KVM Extender DP 4K 60Hz 300m SFP+ USB HID TAA | FD121-KVM-EXTENDER
SKU: FD121-KVM-EXTENDER
£573.03 (Excl. VAT)
- Description
- Specifications
- Downloads
-
StarTech KVM Extender DP 4K 60Hz 300m SFP+ USB HID TAA
The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).
4K 60Hz DisplayPort Video
The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.Universal Compatibility
The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.Built-In USB Hub

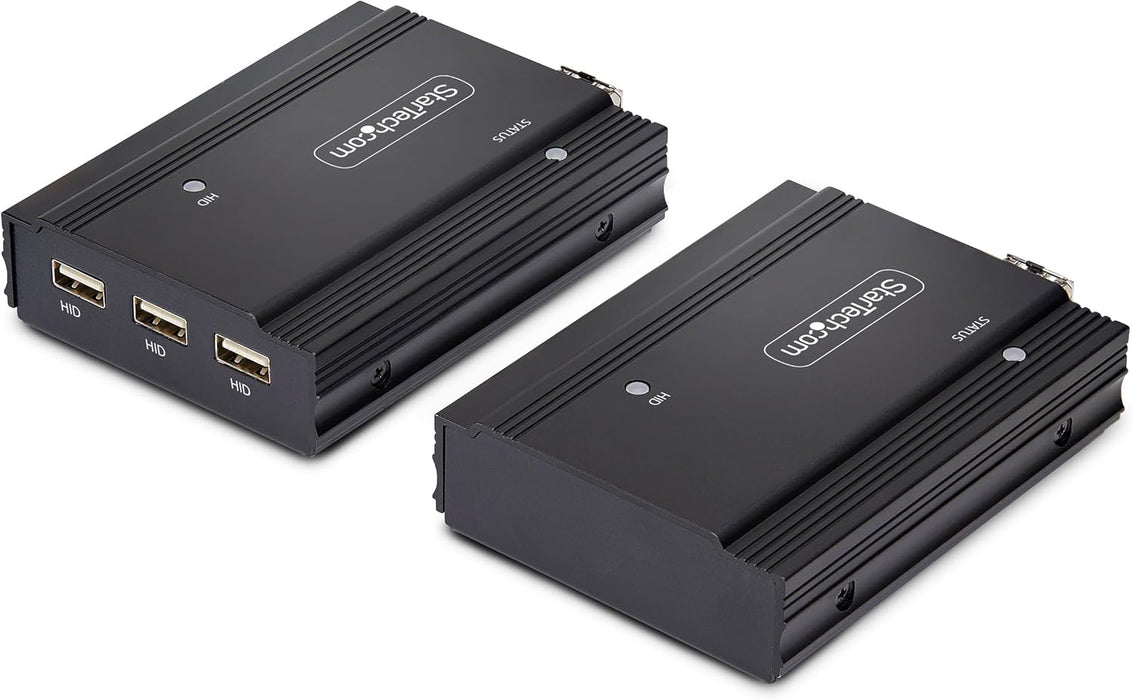

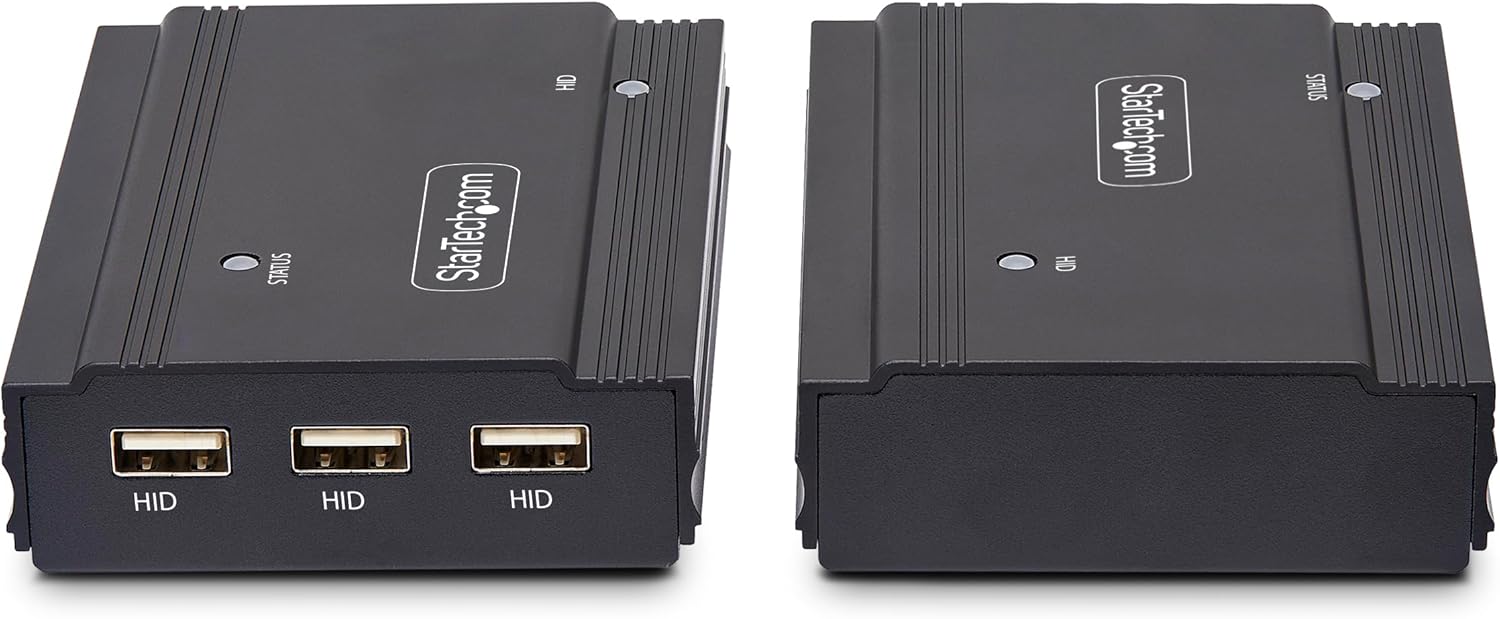

Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.Durable Design
The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.Applications
Professionals who need to work with computers or servers in remote or isolated locations
Manage digital signage setups where the computer running the content is remote from the display
Educational institutions that need to centralize and manage computer systems while providing access to users in different classrooms or locations -
Category Attribute Value Compatibility OS Independent Yes Software Required No Warranty Warranty 2 Years Console Ports SFP+ Slot 1 USB Type-A (HID) 3 (USB 1.1) DisplayPort 1 USB Mini-B (Power) 1 Host Ports DisplayPort 1 USB Mini-B 1 USB Mini-B (Power) 1 Environment Operating Temp 0°C to 50°C Storage Temp -10°C to 60°C Humidity 0% ~ 80% RH Hardware Audio Yes KVM Ports 1 PC Interface USB PC Video Type DisplayPort Monitor Support 1 Rack-Mountable No Cables Included No Indicators LED Indicators 2 Status, 2 USB HID Packaging Height 7.2 cm Length 17.9 cm Width 30.8 cm Weight 1.0 kg Performance Video Revision DisplayPort 1.2 Max Cable Length 300m (OM3 Fiber) Max Resolution 4096x2160 @ 60Hz Wide Screen Support Yes Audio via DisplayPort 2 Channel Auto Scan None MTBF 156,000 Hours Physical Color Black Height 2.8 cm Length 11.4 cm Width 7.8 cm Weight 0.5 kg Material Metal Power Power Source AC Adapter Included Input Voltage 100 - 240V AC Input Current 0.3A Output Voltage 5V DC Output Current 2A Power Consumption 10W Software Drivers Required No Notes SFP+ Module Pre-installed, interchangeable Box Contents Transmitter & Receiver Units Yes SFP+ Modules 2 (pre-installed) Power Adapters 2 (NA/EU/UK/ANZ) USB-A to USB Mini-B Cables 3 (1.5m each) Quick-Start Guide Included -
Description Downloads StarTech KVM Extender DP 4K 60Hz 300m SFP+ USB HID TAA | FD121-KVM-EXTENDER DataSheet Downloads StarTech KVM Extender DP 4K 60Hz 300m SFP+ USB HID TAA | FD121-KVM-EXTENDER Quick Start Guide Downloads
