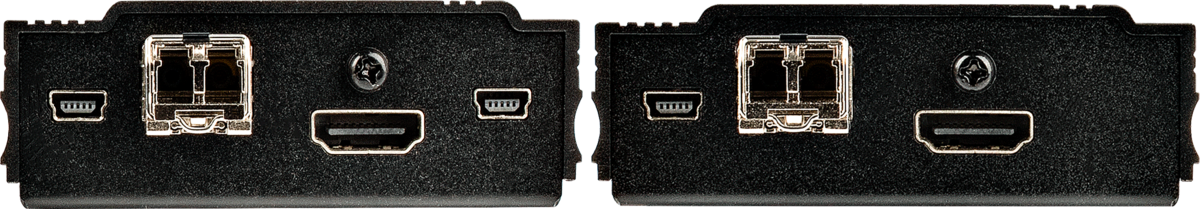

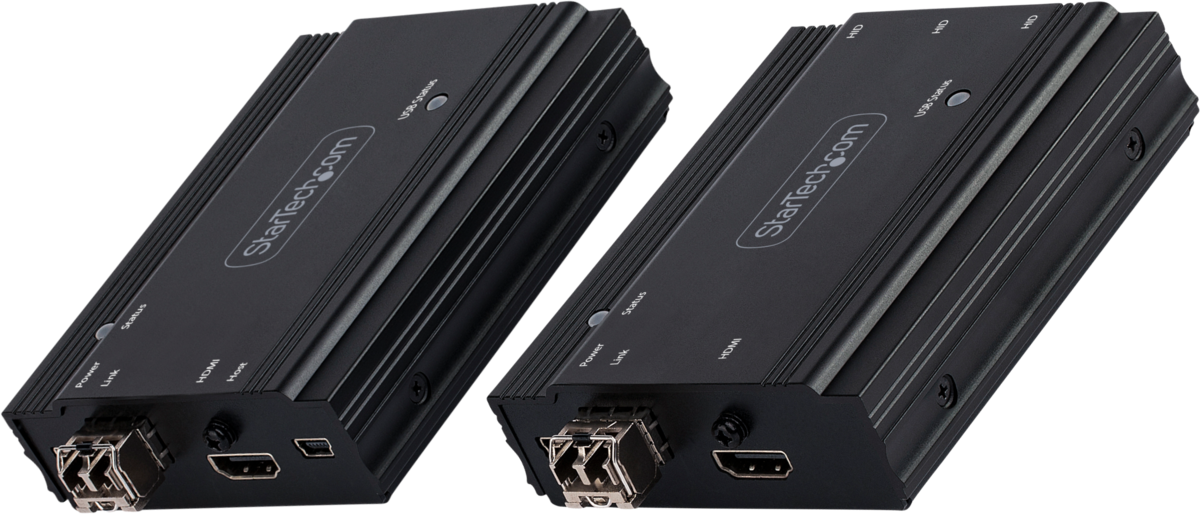

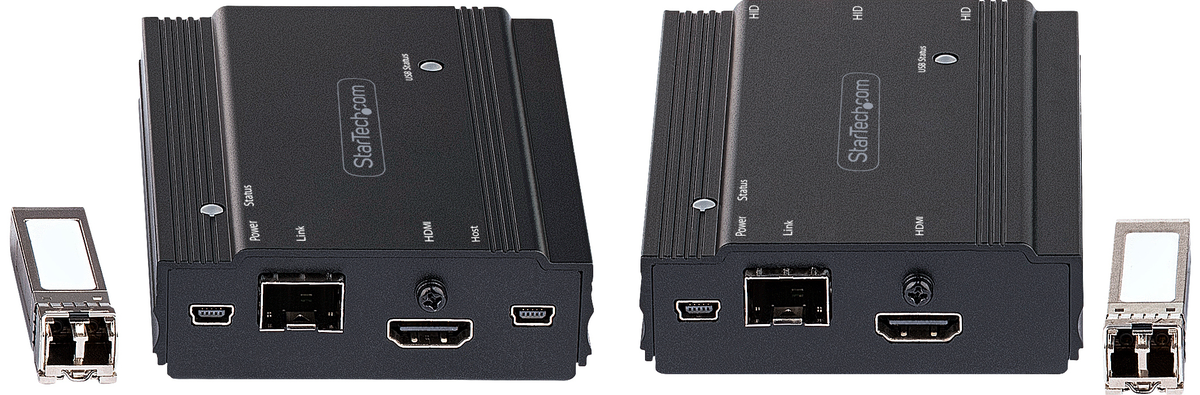

StarTech SV565FXHD4KU KVM Extender HDMI 4K 60Hz 300m SFP+ MMF TAA Kit
SKU: SV565FXHD4KU
£521.10 (Excl. VAT)
- Description
- Specifications
- Downloads
-
StarTech SV565FXHD4KU KVM Extender HDMI 4K 60Hz 300m SFP+ MMF TAA Kit

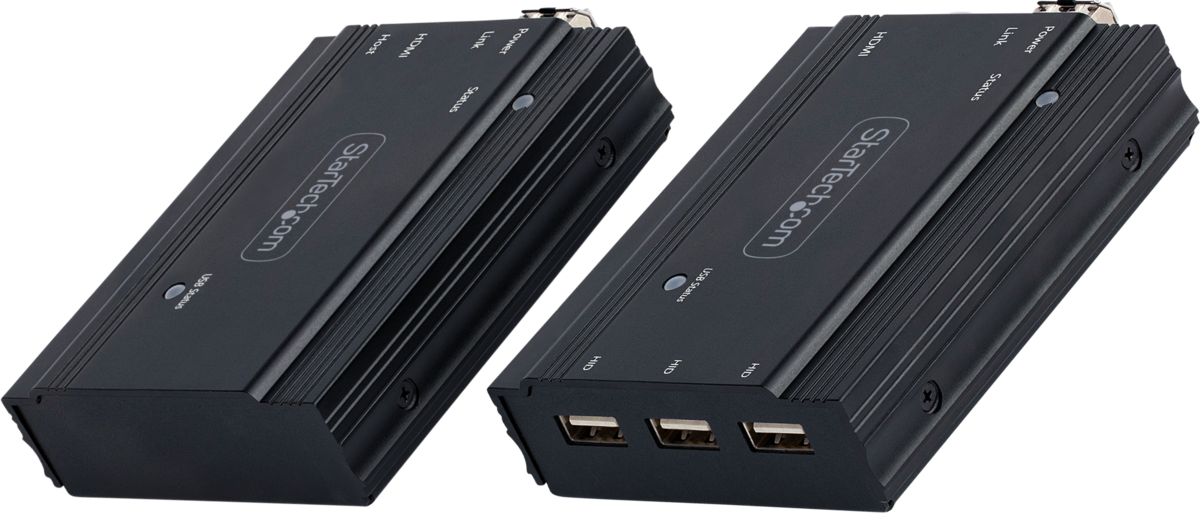

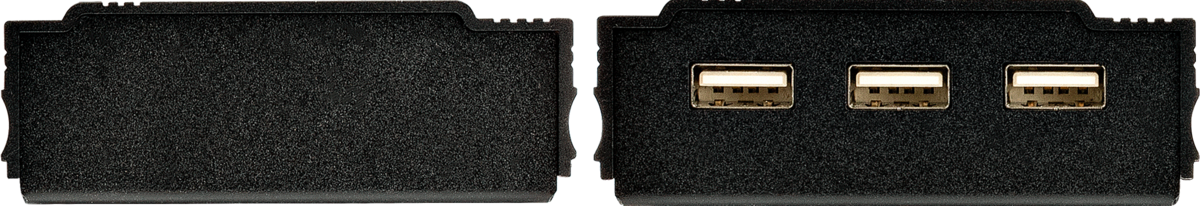

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.
Supports UHD 4K 60Hz
The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.
Hassle-Free Installation
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling
SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support. -

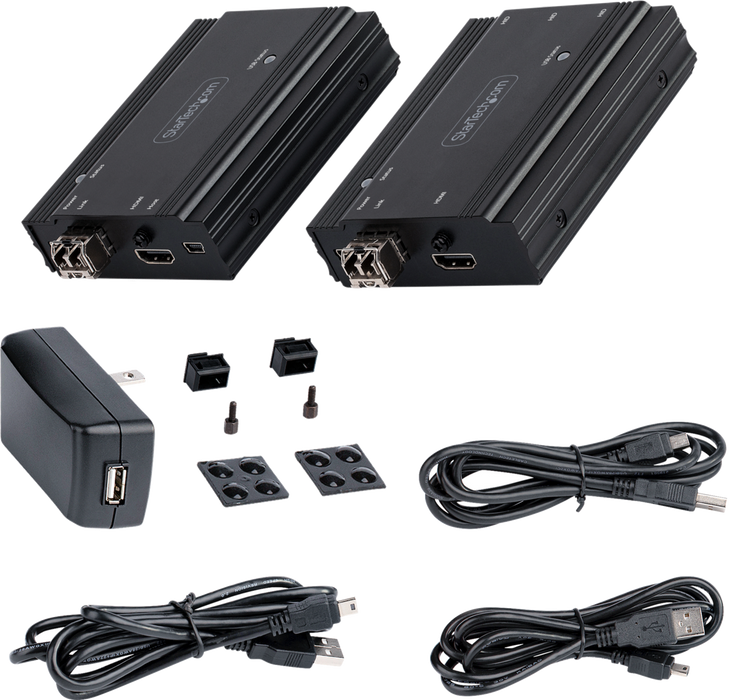

Category Attribute Value Compatibility OS Independent Yes Warranty Warranty 2 Years Standards IEEE Standard 802.3ae 10GBASE-SR Fiber Mode Multi Mode Wavelength 850nm Operating Mode Full-Duplex DDM Yes Network Speed 10 Gbps Console Ports SFP+ Slot 1 USB Type-A (USB 1.1) 3 HDMI (19 pin) 1 Host Ports HDMI (19 pin) 1 SFP+ Slot 1 Environment Operating Temp 0°C to 50°C Storage Temp -10°C to 60°C Humidity 0–80% RH Hardware Audio Yes KVM Ports 1 PC Interface USB Video Type HDMI Monitors Supported 1 Rack-Mountable No Cables Included No Indicators LEDs 2 Power, 2 USB Status Packaging Height 7.4 cm Length 31.0 cm Width 18.0 cm Weight 1.0 kg Quantity 1 Performance HDMI Version HDMI 2.0 Max Distance 300m (OM3 Fiber) Resolutions Supported 4K@60Hz, 4K@30Hz, 1080p Widescreen Support Yes Audio Spec HDMI 7.1 Channel MTBF 1,000,000 Hours Physical Color Black Height 2.8 cm Width 7.5 cm Length 10.0 cm Weight 0.5 kg Material Metal Power Source AC Adapter Included Input Voltage 100 – 240V AC Input Current 0.3A Output Voltage 5V DC Output Current 2A Power Consumption 10W Software Drivers Required No Box Contents Transmitter & Receiver Yes 10G SFP+ Modules 2 (Pre-installed) Power Adapters 2 (Universal) USB Cables 3 (USB-A to Mini-B) Quick Start Guide Included -
Description Downloads StarTech SV565FXHD4KU KVM Extender HDMI 4K 60Hz 300m SFP+ MMF TAA Kit DataSheet Downloads StarTech SV565FXHD4KU KVM Extender HDMI 4K 60Hz 300m SFP+ MMF TAA Kit Quick Start Guide Downloads StarTech SV565FXHD4KU KVM Extender HDMI 4K 60Hz 300m SFP+ MMF TAA Kit Product Information Downloads
