Startech USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)
SKU: SV565UTPHDU
£664.52 (Excl. VAT)
- Description
- Specifications
- Downloads
-

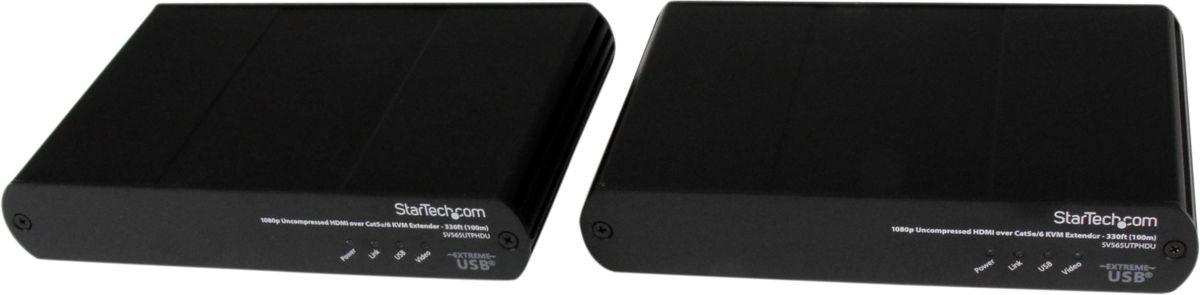

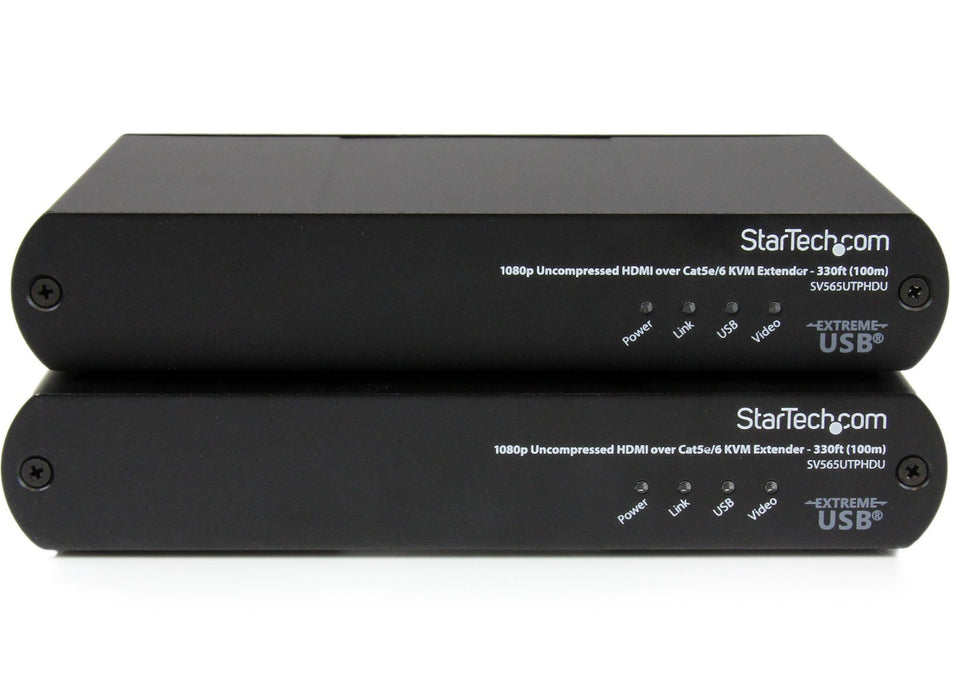

Startech USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)
The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.
A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.
This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Operate one or more servers from a remote location within the same building or campus
Use for remote control of secured, physically inaccessible servers
Can act as a thin client for power users controlling powerful rack-mounted servers as their desktop machines
Control and monitor a remote server from a harsh environment where the PC would not function properly due to heat/dust/etc. (factory, warehouse, mining, etc.)
Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable, such as a television broadcast studio
The StarTech.com Advantage
Power a large HDMI display from a distance with uncompressed 1080p video
Operate a single system or KVM switch remotely through KVM console extension
Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling -

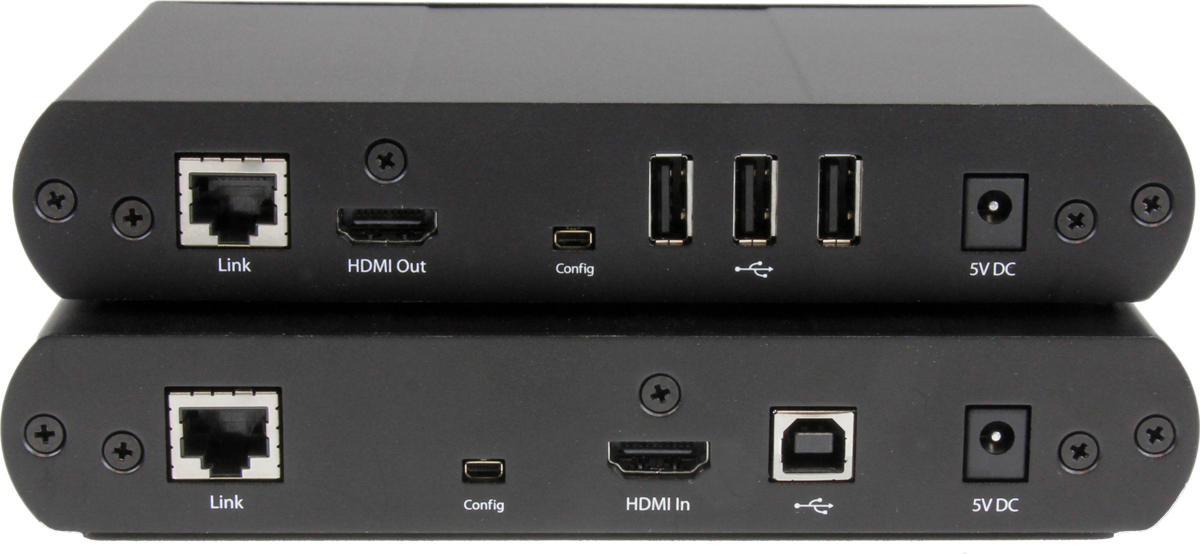

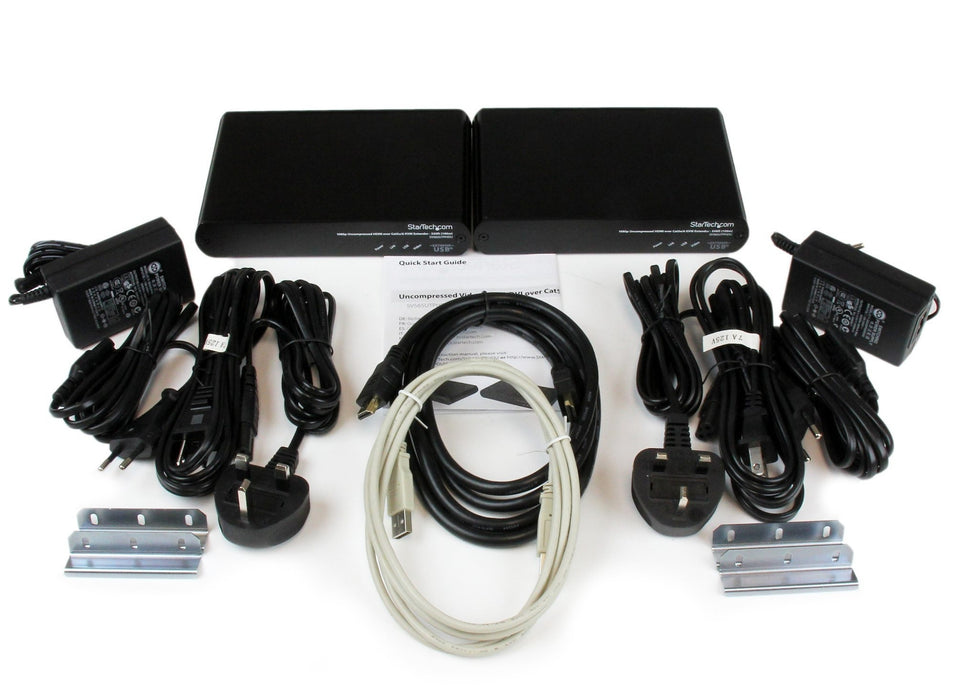

Category Attribute Value Warranty Warranty 2 Years Console Ports HDMI 1 USB 2.0 Type-A 3 RJ-45 1 Host Ports USB B 1 HDMI 1 RJ-45 1 Environment Operating Temp 0°C to 40°C Storage Temp -20°C to 70°C Humidity 20~80% RH Hardware Audio No KVM Ports 1 PC Interface USB PC Video Type HDMI Monitor Support 1 Rack-Mountable No Daisy-Chain Yes Indicators Power / Link / USB / Video Yes (LED) Packaging Height 15.5 cm Length 29.9 cm Width 22.7 cm Quantity 1 Shipping Weight 3.0 kg Performance IP Control No USB Data Rate 30 Mbps Max Distance 100m (328ft) Max Resolution 1080p / 1920x1200 Color Depth 30/36-bit Deep Color Physical Color Black Material Aluminum Length 17.5 cm Width 11.2 cm Height 3.0 cm Weight 0.8 kg Power Source 2 AC Adapters Included Input Voltage 100 - 240V AC Input Current 0.6 A Output Voltage 5V DC Output Current 3 A Plug Type C Power Consumption 15 W Software OS Compatibility OS independent Notes Config port for manufacturer Box Contents Transmitter / Receiver Units Yes HDMI & USB Cables Yes Power Adapters (NA, EU, UK) Yes Mounting Kit & Quick Guide Yes -
Description Downloads Startech USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m) DataSheet Downloads Startech USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m) Instruction Manual Downloads Startech USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m) Quick Start Guide Downloads
